LEESON Farm Duty/Agriculture Motors, High Torque, Single Phase, TEFC, C Face Footed
Marathon farm duty motors are ideal for demanding environments of agricultural applications. These motors have enclosures that resist moisture and entry of contaminants in rough and dirty environments.
Filter
A
B
C
D
E
F
G
H
I| Style | Model | Hp | Motor Design | Motor Mounting Type | Motor Service Factor | Frame | Motor Application | Shaft Length | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 056C17F5325 | - | - | - | - | - | - | - | - | €389.77 | |
| B | 056C17F5324 | - | - | - | - | - | - | - | - | €363.56 | |
| C | 056C17F5327 | - | - | - | - | - | - | - | - | €528.50 | |

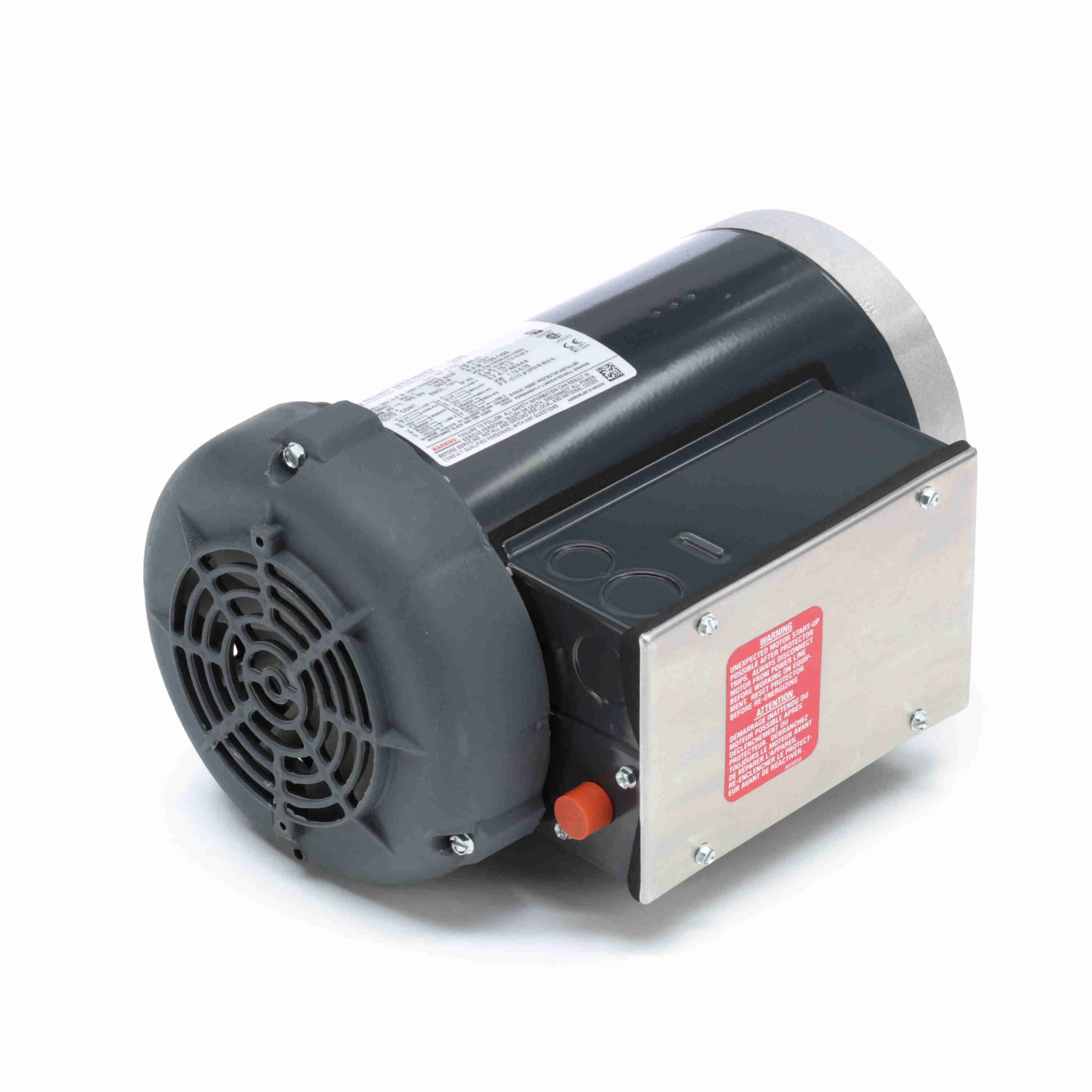

| D | 056B17F5584 | 1 1/2 hp | Capacitor Start, Run | Rigid Base | 1.15 | 56HC | Farm Duty | 2 1/16" | 13 13/16" | €802.84 | |

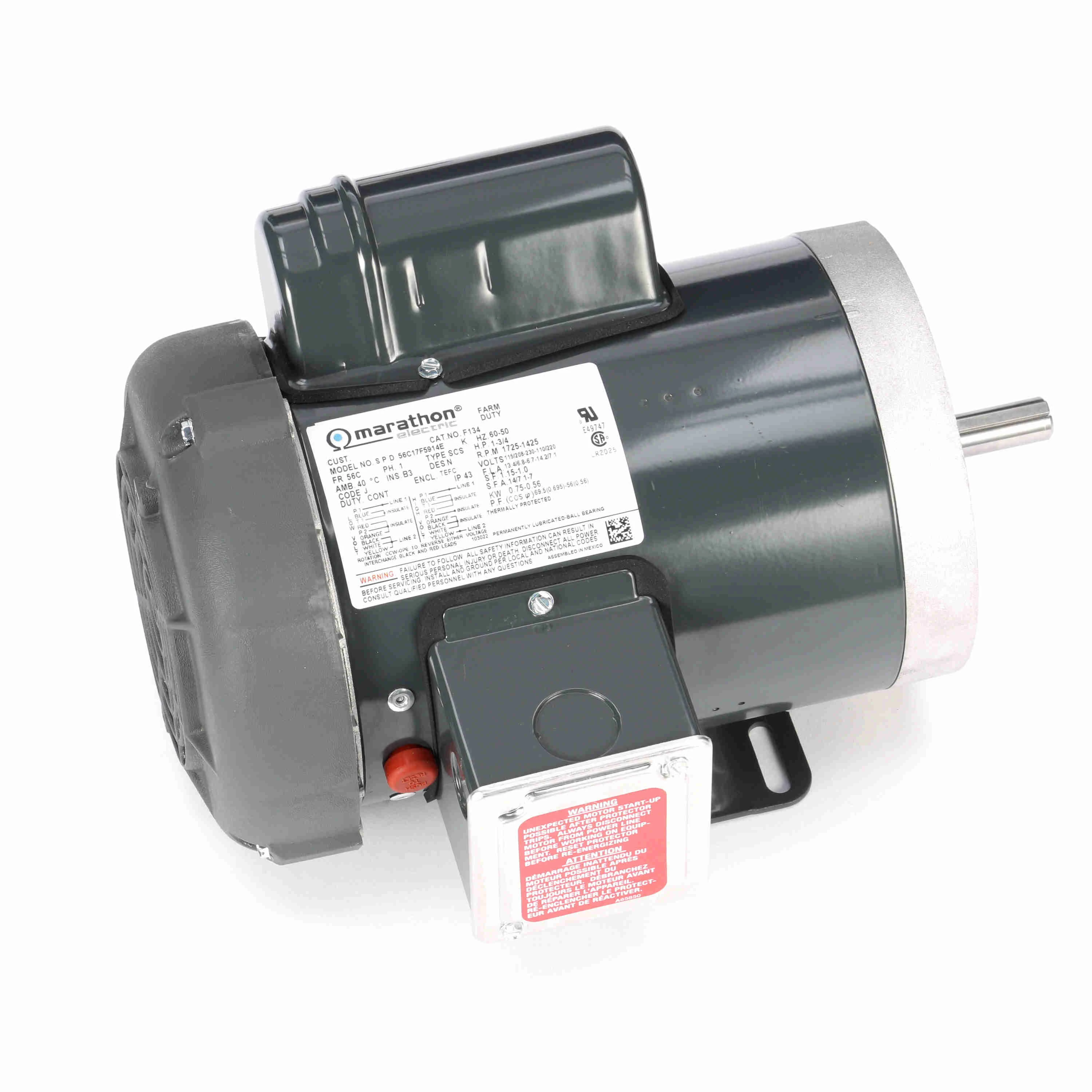

| E | 056C17F5914 | 1 hp | Capacitor Start | Rigid Base | 1.15 | 56C | Farm Duty | 2 1/16" | 12 13/16" | €690.39 | |
| F | 056B17FRN40002A1 | 1 hp | Capacitor-Start | C-Face | 1 | - | - | 1 15/16" | - | €1,115.16 | |

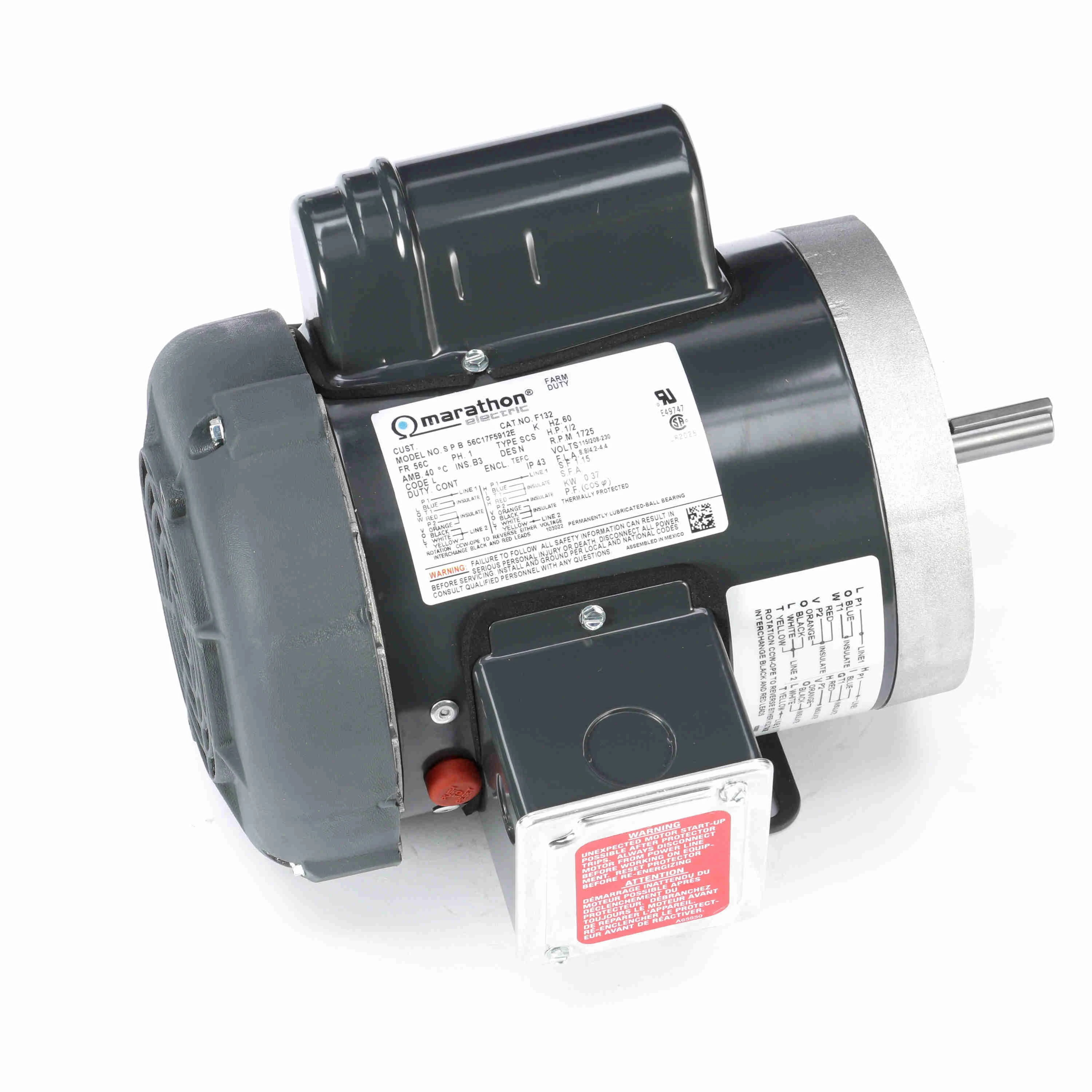

| G | 056C17F5912 | 1/2 hp | Capacitor Start | Rigid Base | 1.15 | 56C | General Application | 2 1/16" | 11 13/16" | €466.40 | |

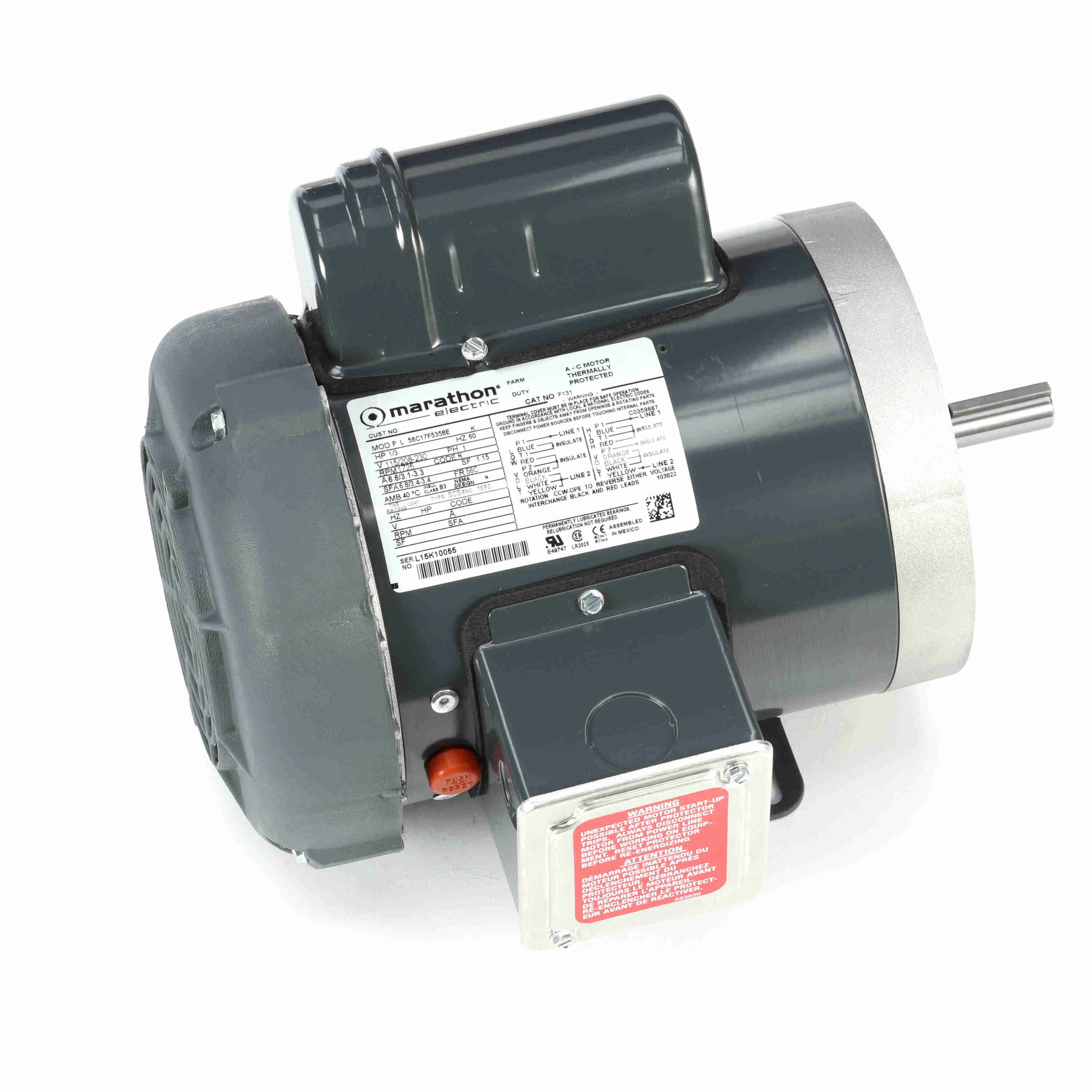

| H | 056C17F5358 | 1/3 hp | Capacitor Start | Rigid Base | 1.15 | 56C | General Application | 2 1/16" | 11 13/16" | €605.00 | |
| I | 056C17F5913 | 3/4 hp | Capacitor Start | Rigid Base | 1.15 | 56C | General Application | 2 1/16" | 12 5/16" | €484.15 |
Features
- Their single-phase design incorporates a capacitor start for high starting torque under heavy loads.
- They come with ball bearings to carry loads, reduce friction and align moving machine parts for a smooth operation.
- These motors feature a C-face mounting that allows for direct coupling with equipment while the motor weight is cantilevered with the help of a flange. They are available in horsepower ratings between 3/4 and 1-1/2 hp.
Standards and Approvals
- UL
- CSA
- CE
Frequently Asked Questions
What is a TEFC enclosure?
TEFC (Totally enclosed fan cooled) enclosure has an external fan attached to it which continuously provides airflow to the motor windings and keeps the motor cool during continuous operation.
What is the purpose of manual thermal protection?
Manual thermal protection turns off the motor when it generates excessive heat during the operation. The protectors need to reset after the motor completely cools down.
Why do these motors have a conduit box?
These poultry fan motors feature a conduit box for housing the wiring connections that contain vulnerable points like wire splices from accidental contacts and short-circuit damage.
