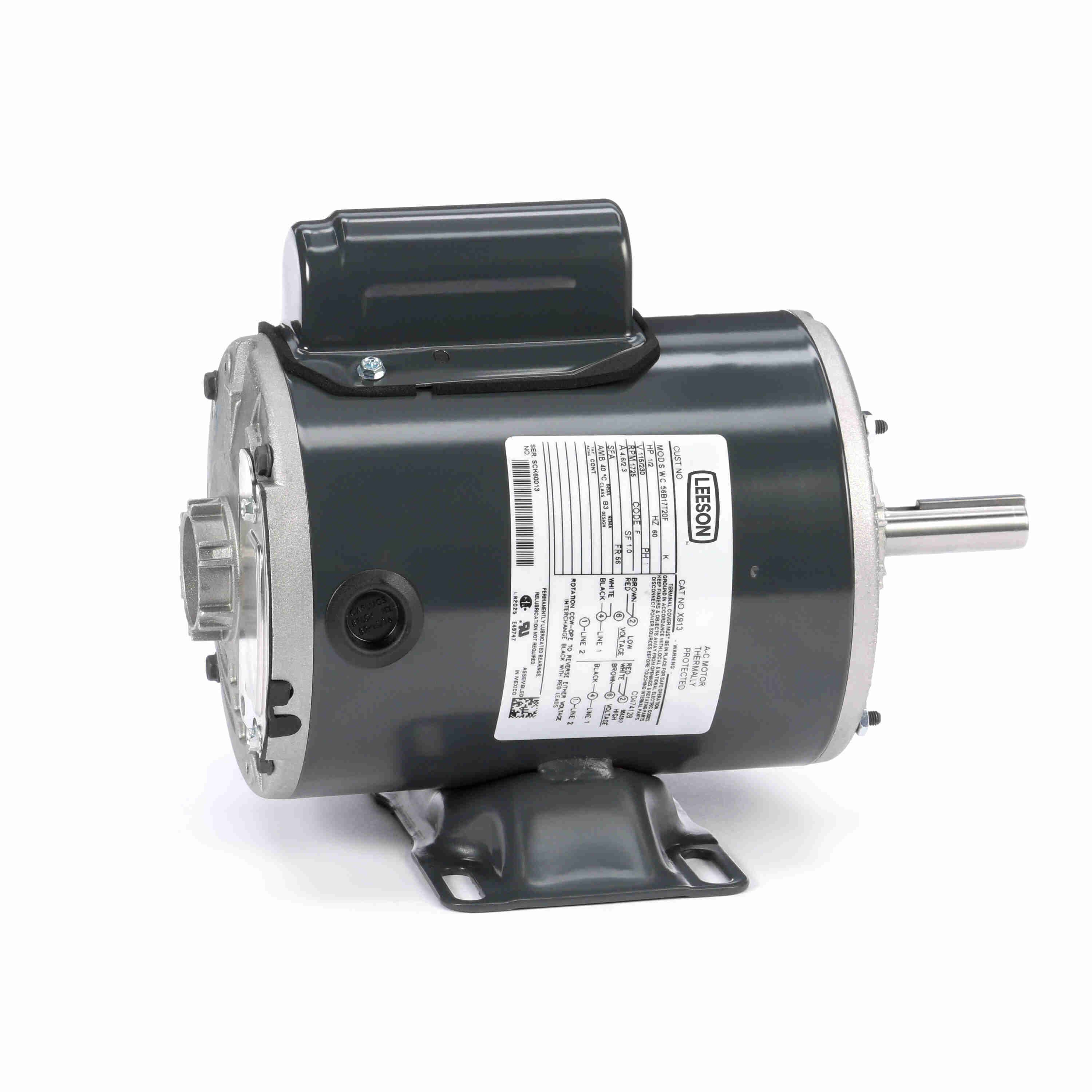

LEESON 056B17T20 X913 / 56B17T20F General Purpose Farm Duty Motor, 0.50 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Tuesday, Dec 23
€397.33 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Poultry Fan Motor |
| Application | HVAC/R |
| Bearing Type | Ball |
| Body Dia. | 5 11/16" |
| Duty Cycle | Continuous |
| Efficiency | 78.7% |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 4.6/2.3A |
| Hp | 1/2 hp |
| Ins. Class | Class B |
| Length Less Shaft | 8 1/2" |
| Max. Ambient Temp. | 104°F |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Belt Drive Fan/Blower |
| Motor Thermal Protection | Automatic |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 78.7% |
| Number Of Speeds | 1 |
| Overall Length | 10 1/2" |
| Phase | 1 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.0 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2" |
| Standards | Csa (Lr2025), Ul (E6312) |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115/230V AC |
| Weight | 22 lbs. |
Shipping Info:
| Ship weight (kg) | 9.9 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 32.39 |
| Ship width (cm) | 24.13 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Motor Design | Frame | Motor Application | Rpm Range | Service Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

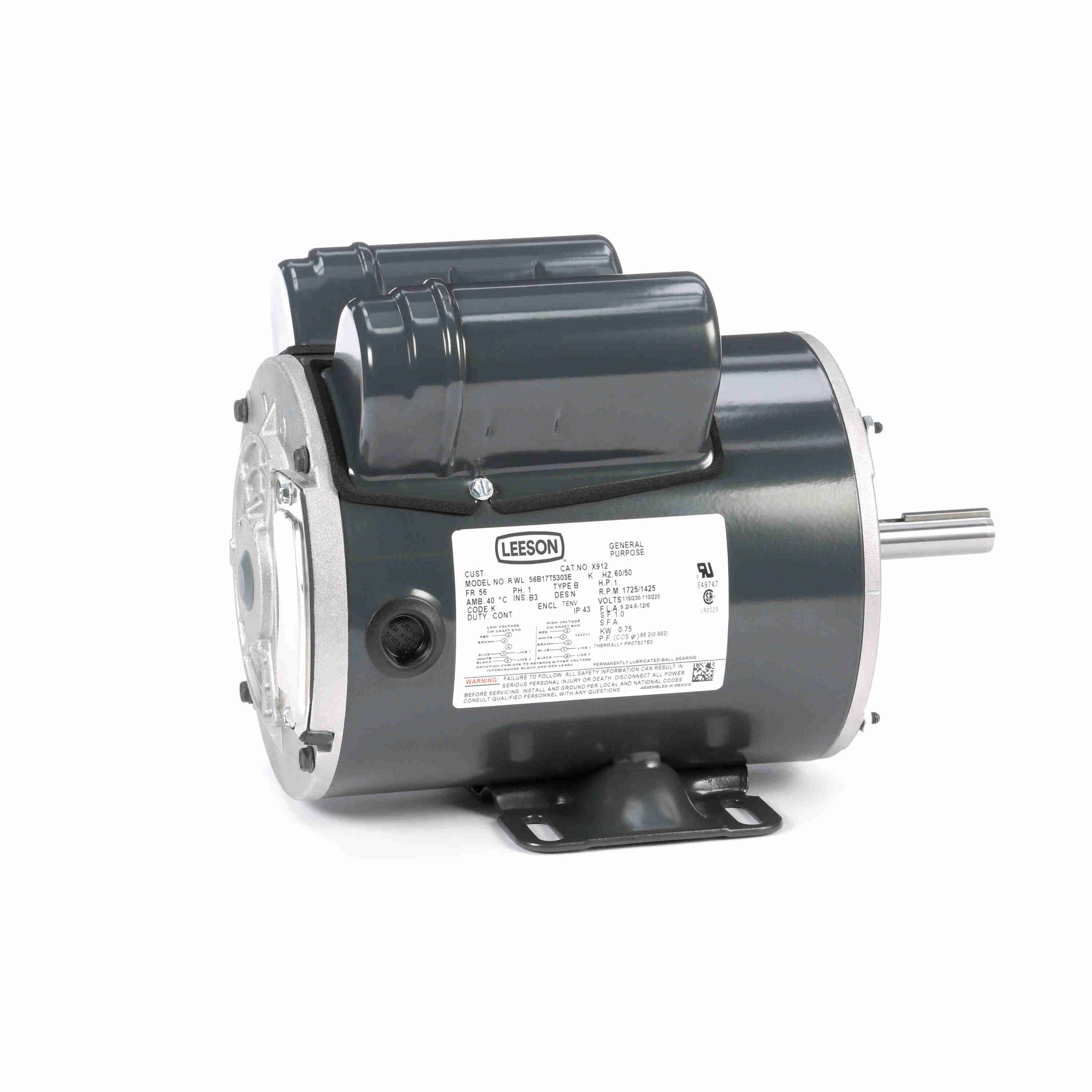

056B17T5303 | 115/230V AC | 1 hp | 1725.0 | Capacitor Start/Run | 56 | HVAC/R | - | 1 | €505.98 | |
 |
5KCP49UN9838S | 208-230V AC | 1/2 hp | 850 | Permanent Split Capacitor | 56Y | Farm Duty | 0-1000 RPM | 1 | €505.70 |
