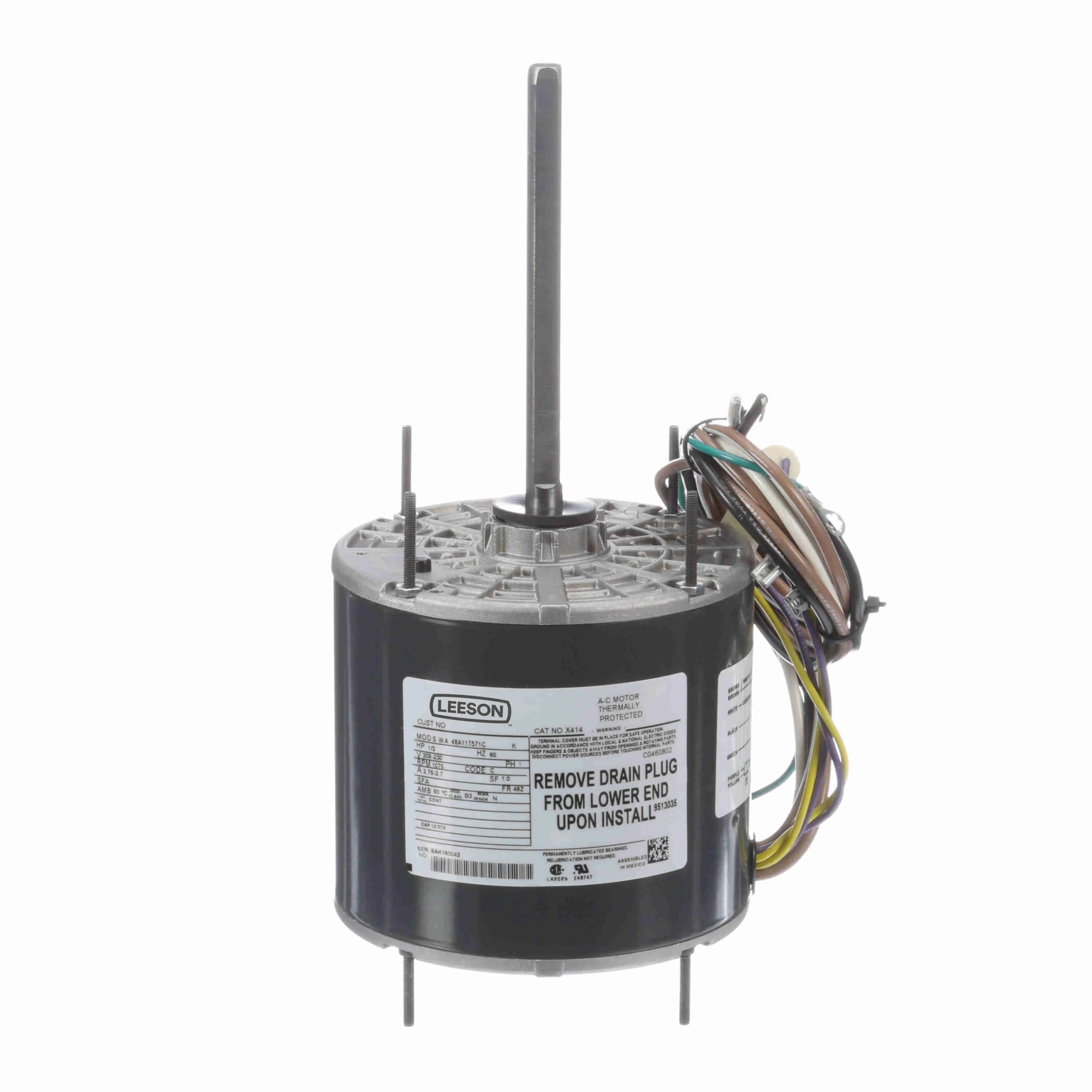

LEESON 048A11T571 48A11T571C / X414 Electric Motor, 1/2 RPM, 1075 Frame
Get it by Wednesday, Jul 1
€352.51 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Ambient Temp. | 60°C |
| Assembly | F1 Only |
| Bearing Type | Ball |
| Body Dia. | 5 5/8" |
| Bolt Circle Dia. | 5.312" |
| Capacitor Required | Not Included |
| Conduit Box Location | Exterior |
| Duty Cycle | Continuous |
| Efficiency | 70% |
| Enclosure Type | Totally Enclosed Air Over |
| Extended Thru Bolts | Yes |
| Features | Shaft Slinger, Thru Bolt, Weather Resistant Reversing Plug |
| Frame | 48Z |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 2.7-2.8A |
| Hp | 1/2 hp |
| Insulation Class | Class B |
| Lead Length | 30" |
| Length Less Shaft | 5.438" |
| Motor Application | HVAC, R |
| Motor Design | Permanent Split Capacitor |
| Motor Mounting Position | Horizontal, Vertical Shaft Up |
| Motor Shaft Design | Double Flat |
| Motor Shaft Rotation | CW, CCW |
| Motor Sub Application | Condenser Fan |
| Motor Type | Permanent Split Capacitor |
| Mounting Stud Pattern | 3 5/8" x 3 5/8" |
| Mounting Type | Extended Studs, Footless |
| Nameplate Speed | 1075 RPM |
| Nema Design | N |
| No. Of Speed | 1 |
| No. Of Studs | 4 |
| Overall Length | 11 1/2" |
| Phase | 1 |
| Power | 0.37 kW |
| Removable Base | No |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 6" |
| Shaft Orientation | Horizontal |
| Stud Size | #8-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230V AC |
Shipping Info:
| Ship weight (kg) | 7.65 |
| Ship height (cm) | 16.81 |
| Ship length (cm) | 40.79 |
| Ship width (cm) | 17.15 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Frame | Motor Mounting Type | Motor Thermal Protection | Motor Enclosure Design | Motor Application | Motor Sub Application | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
048A8O151 | 115V AC | 1/8 hp | 48Y | Stud | Automatic | Open Air Over | OEM Replacement | Direct Drive Fan, Blower | €422.02 | |
 |
048A11T2008 | 208-230V AC | 1/6 hp | 48Z | Stud | Automatic | Totally Enclosed Air Over | HVAC, R | Condenser Fan | - | RFQ
|
 |
048A17T87 | 208-230V AC | 1/4 hp | 48Y | Stud | Automatic | Totally Enclosed Air Over | HVAC, R | Condenser Fan | €270.52 | |
 |
048A11T569 | 208-230V AC | 1/4 hp | 48Y | Stud | Automatic | Totally Enclosed Air Over | HVAC, R | Condenser Fan | €268.88 | |
 |
048A11T619 | 460V AC | 1 hp | 48Y | C Face, Footless | - | - | - | - | €474.73 | |
 |
048A17T96 | 208-230V AC | 1/2 hp | 48Z | Extended Studs Footless | Automatic | Totally Enclosed Air Over | - | - | €336.46 | |
 |
048A11T581 | 460V AC | 3/4 hp | 48Y | Extended Studs Footless | Automatic | Totally Enclosed Air Over | - | - | €454.99 |
