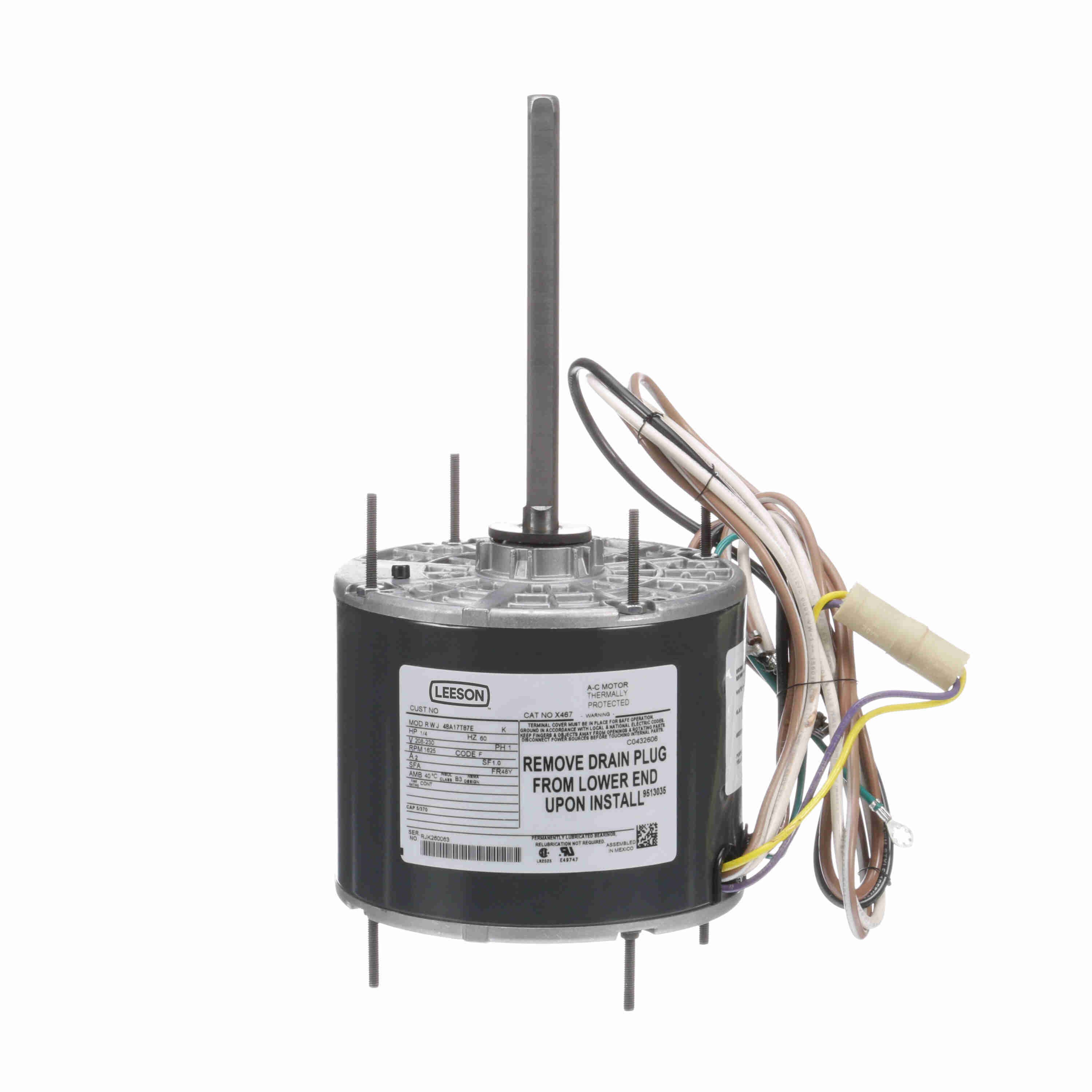

LEESON 048A17T87 48A17T87E / X467 Condenser Fan Motor, 0.25 HP, 1 Phase, 60 Hz, 208-230V, 1800 RPM
Get it by Monday, May 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€311.12 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient (c) | 40°C |
| Ambient Temp. | 40°C |
| Assembly | F1 Only |
| Bearing Type | Ball |
| Body Dia. | 5 11/16" |
| Bolt Circle Dia. | 5 5/16" |
| Capacitor Required | Included |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Efficiency | N/A % |
| Efficiency | Not Applicable |
| Enclosure Type | Totally Enclosed Air Over |
| Extended Thru-bolts | Yes |
| Features | Shaft Slinger, Thru Bolt, Weather Resistant Reversing Plug |
| Frame | 48Y |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 2A |
| Hp | 1/4 hp |
| Insulation Class | Class B |
| Lead Length | 30" |
| Length Less Shaft | 5" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal, Vertical Shaft Up |
| Motor Mounting Type | Stud |
| Motor Service Factor | 1 |
| Motor Shaft Design | Double Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Automatic |
| Motor Type | Permanent Split Capacitor |
| Mounting Stud Pattern | 3 5/8" x 3 5/8" |
| Mounting Type | Extended Studs, Footless |
| Nameplate Rpm | 1625 RPM |
| Nema Design | No Design Code |
| Nominal Efficiency | 66% |
| Number Of Speeds | 1 |
| Number Of Studs | 4 |
| Output Watts | 190 W |
| Overall Length | 11" |
| Phase | 1 |
| Removable Base | No |
| Rpm | 1625 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 6" |
| Shaft Orientation | Horizontal |
| Stud Size | #8-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Voltage | 208-230V AC |
Shipping Info:
| Ship weight (kg) | 5.4 |
| Ship height (cm) | 16.81 |
| Ship length (cm) | 40.79 |
| Ship width (cm) | 17.15 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Details:
- Starting Type: PSC 1 SPEED
- KVA Code: F
- Drive End Bearing: BALL
- IP Code: 43
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Product Variants
| Product | Model | Voltage | Hp | Motor Mounting Type | Frame | Motor Thermal Protection | Motor Enclosure Design | Nameplate Rpm | Max. Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
048A8O151 | 115V AC | 1/8 hp | Stud | 48Y | Automatic | Open Air Over | 825 RPM | 104°F | €405.76 | |
 |
048A11T2008 | 208-230V AC | 1/6 hp | Stud | 48Z | Automatic | Totally Enclosed Air Over | 1075 RPM | 40°C | €337.16 | |
 |
048A11T569 | 208-230V AC | 1/4 hp | Stud | 48Y | Automatic | Totally Enclosed Air Over | 1075 RPM | 60°C | €268.49 | |
 |
048A11T619 | 460V AC | 1 hp | C Face, Footless | 48Y | - | - | - | - | €474.73 | |
 |
048A17T96 | 208-230V AC | 1/2 hp | Extended Studs Footless | 48Z | Automatic | Totally Enclosed Air Over | - | - | €336.46 | |
 |
048A11T581 | 460V AC | 3/4 hp | Extended Studs Footless | 48Y | Automatic | Totally Enclosed Air Over | - | - | €454.99 | |
 |
048A11T580 | 460V AC | 1/2 hp | Extended Studs Footless | 48Y | Automatic | Totally Enclosed Air Over | - | - | €616.52 |
