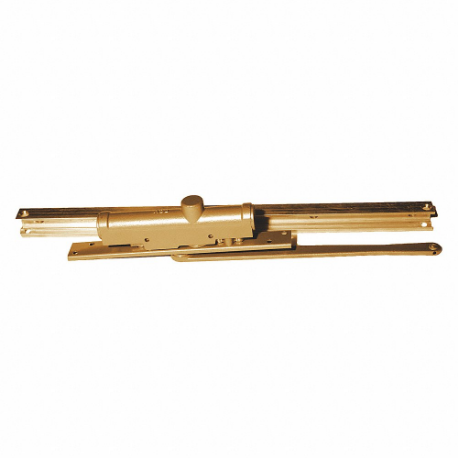

LCN 3133-STD LH BRASS Concealed Door Closer, Non Hold Open, Left Hand, 3 1/2 Inch Housing Dp, 2-1/4 In
Item: CR8NQFModel: 3133-STD LH BRASSCross Ref: 46TM69
7 In Stock
Ships within 2 days via
10.00% off
€1,074.15 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Door Closer |
| Ada Compliant | Yes |
| Arm Type | Track |
| Closer Mounting Style | Concealed Door |
| Closer Mounting Type | Concealed |
| Closer Series | 3130 Series |
| Closer Type | Non Hold Open |
| Color | Brass |
| Energy Source | Hydraulic |
| Finish | Satin Bronze Painted |
| For Use With | Interior Doors |
| Hand Orientation | Left Hand |
| Housing Depth | 3 1/2" |
| Housing Height | 3 1/4" |
| Housing Length | 8 3/4" |
| Housing Material | Cast Iron |
| Hydraulic/pneumatic | Hydraulic |
| Includes | WMS Screw Pack |
| Interior / Exterior | Interior |
| Ligature Resistance | Not Ligature Resistant |
| Ligature Resistant | No |
| Location Use | Interior |
| Manual/automatic | Manual |
| Material | Cast Iron |
| Max Door Opening Angle | 140° |
| Max. Door Opening | 140° |
| Mounting | Concealed |
| Operation Style | Manual |
| Performance Rating | Grade 2 Medium Duty |
| Product Type | Door Closer |
| Spring Size - Minimum | 1 |
| Spring Type | Adjustable |
| Ul Fire Rating | UL10C |
Shipping Info:
| Ship weight (kg) | 3.6 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Hand Orientation | Closer Type | Spring Type | Spring Size | Manual/automatic | Hydraulic/pneumatic | Closer Mounting Style | Arm Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4811-STD AL | Non Handed | Non Hold Open | Adjustable | 4 | Manual | Pneumatic | Surface | Track | €3,342.05 | |
 |
4011-REG LH AL | Left-Handed | Non Hold Open | Adjustable | 6 | Manual | Hydraulic | Surface | Regular | €818.29 | |
|
4011-REG RH AL | Right Hand | Non Hold Open | Adjustable | 6 | Manual | Hydraulic | Surface | Regular | €791.73 | |
 |
4040XP-CUSH AL | Non Handed | Non Hold Open | Adjustable | 6 | Manual | Hydraulic | Surface | Parallel | €824.89 | |
 |
4040XP-CUSH DKBRZ | Non Handed | Non Hold Open | Adjustable | 6 | Manual | Hydraulic | Surface | Parallel | €1,009.32 | |
 |
4040XP-HW/PA AL | Non Handed | Hold Open | Adjustable | 6 | Manual | Hydraulic | Surface | - | €940.31 | |
 |
4040XP-HW/PA DKBRZ | Non Handed | Hold Open | Adjustable | 6 | Manual | Hydraulic | Surface | - | €894.71 |
