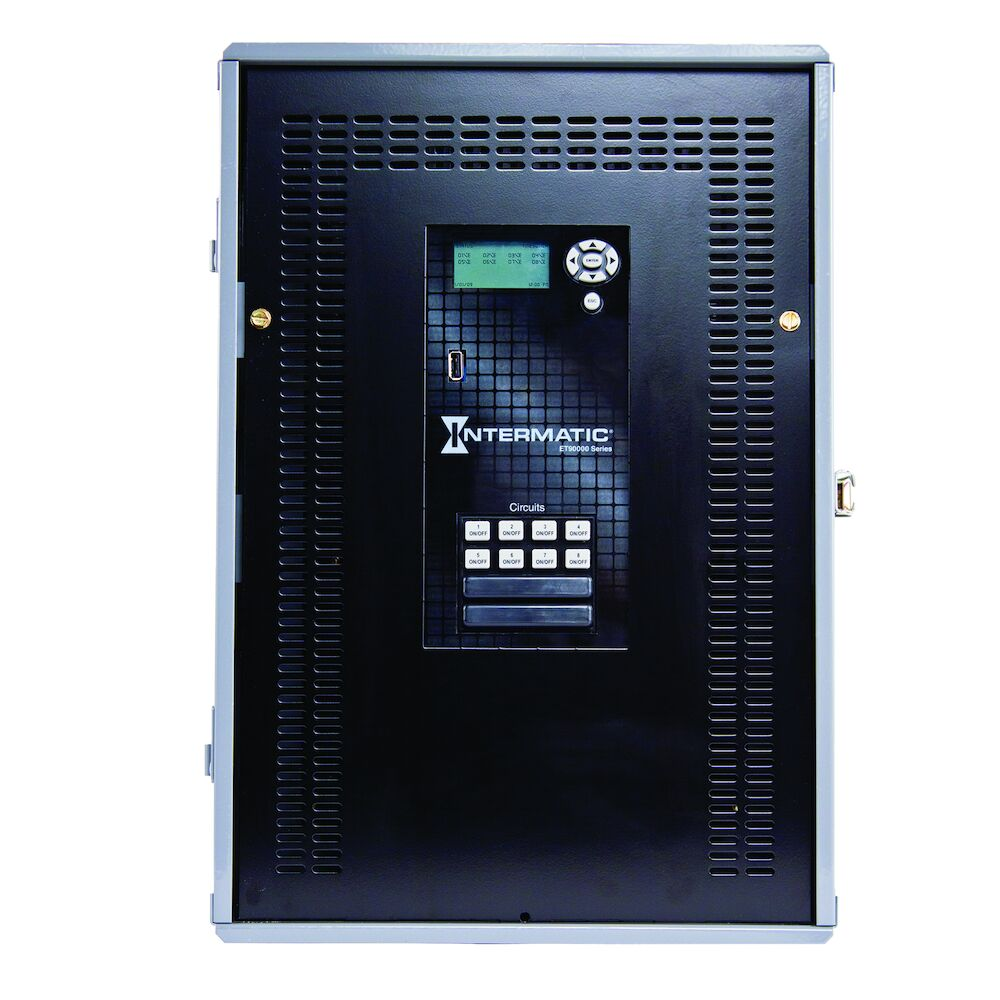

INTERMATIC ET90815CR Electric Timer Astro 365 Day 8 Spdt Nema 3r
Get it by Wednesday, Dec 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€3,582.63 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electronic Timer |
| Adjustment Type | Automatic |
| Amps | 30A |
| Applicable Ac Voltage Ranges | 120-277V AC |
| Application | Lighting, Machinery, Pump Controls |
| Astronomic Functionality | Astronomic |
| Available Actions - Electronic Timer | Cycle, On/Off, Pulse |
| Backup Device | Capacitor |
| Backup Restoration Time | 30 min. |
| Backup Time | 100 hrs. |
| Backup Time | 100 hr. |
| Backup Type | Supercapacitor |
| Battery Type | Supercapacitor |
| Body Color | Gray |
| Body Material | Metal |
| Color | Gray |
| Contact Form | SPDT, DPDT |
| Current Rating | 30A |
| Daylight Savings Adjustment | Automatic |
| Depth | 5 1/2" |
| Digital Timer Functions | On/Off |
| Display Height | 1.04 In. |
| Display Height | 1" |
| Display Qty | 1 |
| Display Width | 1.94 In. |
| Display Width | 2" |
| Electrical Installation Type | Screw Terminal |
| Enclosure | Steel |
| Enclosure Material | Steel |
| Events Available | 2000 |
| Features | Advanced Scheduling Including Relative Events, USB Connection Port |
| Height | 18 1/2" |
| Horsepower @ 120v - Maximum | 1 hp |
| Horsepower @ 240v - Maximum | 2 hp |
| Hp @ 120v | 1 hp |
| Hp @ 240v | 2 hp |
| Indoor/outdoor Usage | Outdoor |
| Length | 12 5/8" |
| Max. On/off Cycles | 4000 |
| Max. On/off Operations | 2000 |
| Max. Power Consumption | 50 W |
| Max. Time Setting | 365 Day |
| Max. Wattage | 50 W |
| Maximum On/off Times | 365 Days |
| Min. Time Setting | 1 sec. |
| Minimum On/off Times | 1 sec. |
| Minimum Pulse Time | 1 sec. |
| Mounting | Snap In |
| Nema Enclosure Rating | NEMA 3R |
| Number Of Channels | 8 |
| Number Of Circuits | 8 |
| Number Of Poles | 8 |
| Number Of Pulse Events | 4000 |
| On Off Operations | 2000 |
| Operating Temp. | -40°F to +120°F |
| Operating Temperature - Maximum | 104°F |
| Operating Temperature - Minimum | -40°F |
| Operation Features | Astronomic, Holiday |
| Operation Mode | Astro 365 Days |
| Overall Depth | 5 3/8" |
| Overall Height | 17 7/8" |
| Overall Width | 12 11/16" |
| Pulse Duration | 1 sec. to 24 hr. |
| Pulse Duration - Maximum | 24 hr. |
| Series | ET90000 Series |
| Time Setting - Maximum | 365 Days |
| Voltage | 120-277V AC |
| Voltage Selection Type | Auto Voltage |
| Voltage Type | Auto Voltage |
| Width | 12 3/4" |
| Wiring Option | Terminals |
Shipping Info:
| Ship weight (kg) | 9.25 |
| Ship height (cm) | 45.4 |
| Ship length (cm) | 13.8 |
| Ship width (cm) | 32.2 |
| HS code | 9106905510 |
| Country of Origin | MX |
Product Details:
- Special Features: Ethernet Module, Copy Programming To Other Time Switches For Backup Purposes Via USB
Product Variants
| Product | Model | Max. Time Setting | Contact Form | Depth | Number Of Poles | Height | Backup Time | Display Height | Display Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ET90115C | 365 Day | SPDT | 3" | 1 | 7 3/4" | 100 hrs. | 1" | 2" | €856.98 | |
 |
ET90115CE | 365 Day | SPDT | 3" | 1 | 7 3/4" | 100 hrs. | 1" | 2" | €1,115.26 | |
 |
ET90115CR | 365 Day | - | 3 1/2" | 1 | 9 1/2" | 100 hrs. | 1" | 2" | €1,008.76 | |
 |
ET90115CRE | 365 Day | SPDT | 3 1/2" | 1 | 9 1/2" | 100 hrs. | 1" | 2" | €1,163.93 | |
 |
ET90215C | 365 Day | - | 3" | 2 | 7 3/4" | 100 hrs. | 1" | 2" | €1,083.81 | |
|
ET90215CE | 365 Day | SPDT | 3" | 2 | 7 3/4" | 100 hrs. | 1" | 2" | €1,281.64 | |
 |
ET90215CR | 365 Day | SPDT | 3 1/2" | 2 | 9 1/2" | 100 hrs. | 1" | 2" | €1,136.35 |
