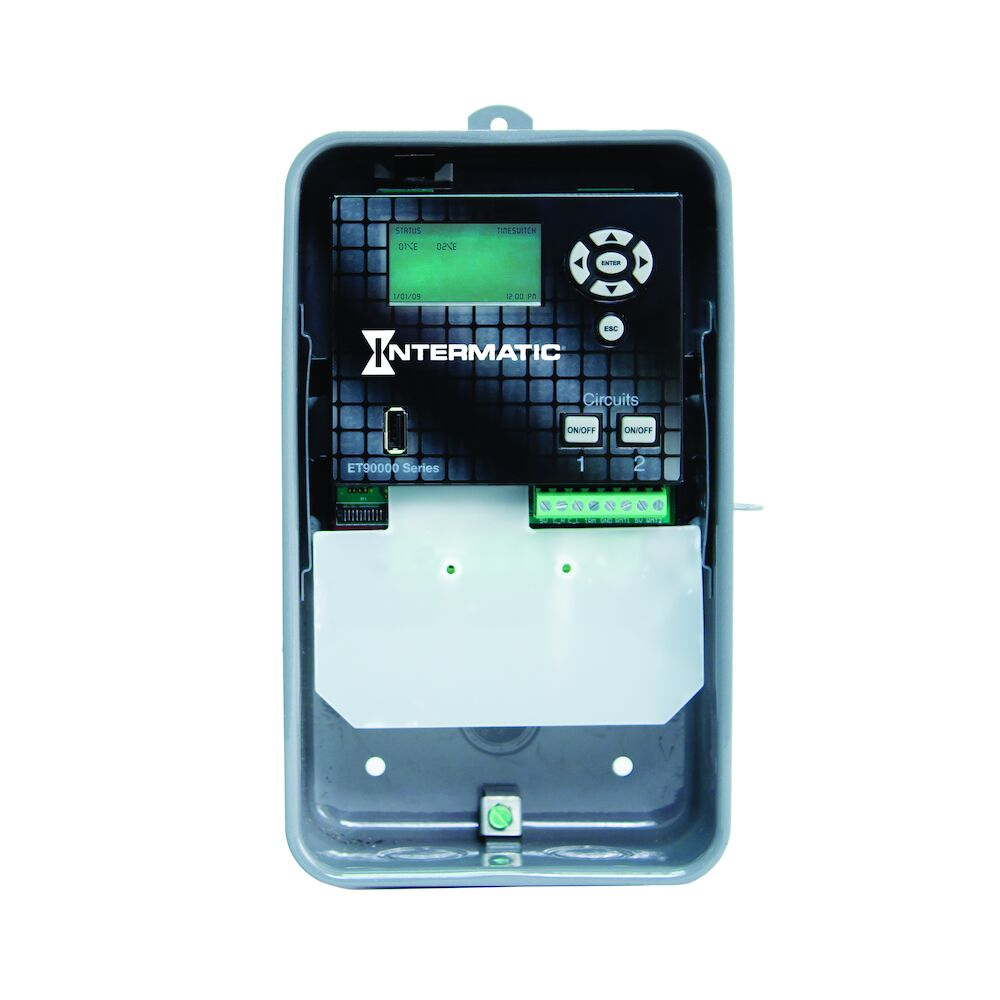

INTERMATIC ET90215CR Electric Timer Astro 365 Day 2 Spdt Nema 3r | AA4RYC 13D106

INTERMATIC ET90215CR Electric Timer Astro 365 Day 2 Spdt Nema 3r

Item: AA4RYCModel: ET90215CRCross Ref: 13D106
7 In Stock

Ships within 2 days via

€1,136.35
10.00% off
€1,022.72 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Electronic Timer
Adjustment Type Automatic
Amps 30A
Applicable Ac Voltage Ranges 120-277V AC
Application Lighting, Machinery, Pump Controls
Astronomic Functionality Astronomic
Available Actions - Electronic Timer Cycle, On/Off, Pulse
Backup Device Capacitor
Backup Restoration Time 30 min.
Backup Time 100 hrs.
Backup Time 100 hr.
Backup Type Supercapacitor
Battery Type Supercapacitor
Body Color Gray
Body Material Metal
Color Gray
Contact Form SPDT
Current Rating 30A
Daylight Savings Adjustment Automatic
Depth 3 1/2"
Digital Timer Functions On/Off
Display Height 1"
Display Height 1.04 In.
Display Qty 1
Display Width 2"
Display Width 1.94 In.
Electrical Installation Type Screw Terminal
Enclosure Steel
Enclosure Material Steel
Events Available 2000
Features Advanced Scheduling Including Relative Events, USB Connection Port
Height 9 1/2"
Horsepower @ 120v - Maximum 1 hp
Horsepower @ 240v - Maximum 2 hp
Hp @ 120v 1 hp
Hp @ 240v 2 hp
Indoor/outdoor Usage Outdoor
Length 5 5/8"
Max. On/off Cycles 4000
Max. On/off Operations 2000
Max. Power Consumption 16 W
Max. Time Setting 365 Day
Max. Wattage 16 W
Maximum On/off Times 365 Days
Min. Time Setting 1 sec.
Minimum On/off Times 1 sec.
Minimum Pulse Time 1 sec.
Mounting Snap In
Mounting Style Surface
Nema Enclosure Rating NEMA 3R
Number Of Channels 2
Number Of Circuits 2
Number Of Poles 2
Number Of Pulse Events 4000
On Off Operations 2000
Operating Temp. -40°F to +120°F
Operating Temperature - Maximum 104°F
Operating Temperature - Minimum -40°F
Operation Features Astronomic, Holiday
Operation Mode Astro 365 Days
Overall Depth 3 5/8"
Overall Height 9 5/8"
Overall Width 5 11/16"
Pulse Duration 1 sec. to 24 hr.
Pulse Duration - Maximum 24 hr.
Series ET90000 Series
Time Setting - Maximum 365 Days
Voltage 120-277V AC
Voltage Selection Type Auto Voltage
Voltage Type Auto Voltage
Width 5 3/4"
Wiring Option Terminals

Shipping Info:

Ship weight (kg) 1.98
Ship height (cm)24.3
Ship length (cm)9.1
Ship width (cm)14.5
HS code9106905520
Country of OriginMX

Product Details:

    • Special Features: Copy Programming To Other Time Switches For Backup Purposes Via USB

Product Variants

ProductModelMax. Time SettingContact FormDepthNumber Of PolesHeightBackup TimeDisplay HeightDisplay WidthPrice
INTERMATIC ET90115C Electric Timer Astro 365 Day 1 Spdt Nema 1 | AA4RXW 13D099 ET90115C365 DaySPDT3"17 3/4"100 hrs.1"2"€856.98
INTERMATIC ET90115CE Electric Timer Astro 365 Day 1 Spdt Ethernet | AA4RXX 13D101 ET90115CE365 DaySPDT3"17 3/4"100 hrs.1"2"€1,115.26
INTERMATIC ET90115CR Electric Timer Astro 365 Day 1 Spdt Nema 3r | AA4RXY 13D102 ET90115CR365 Day-3 1/2"19 1/2"100 hrs.1"2"€1,008.76
INTERMATIC ET90115CRE Electric Timer Astro 365 Day 1 Spdt Ethernet | AA4RXZ 13D103 ET90115CRE365 DaySPDT3 1/2"19 1/2"100 hrs.1"2"€1,163.93
INTERMATIC ET90215C Electric Timer Astro 365 Day 2 Spdt Nema 1 | AA4RYA 13D104 ET90215C365 Day-3"27 3/4"100 hrs.1"2"€1,083.81
INTERMATIC ET90215CE Electric Timer Astro 365 Day 2 Spdt Ethernet | AA4RYB 13D105 ET90215CE365 DaySPDT3"27 3/4"100 hrs.1"2"€1,281.64
INTERMATIC ET90215CRE Electric Timer Astro 365 Day 2 Spdt Ethernet | AA4RYD 13D107 ET90215CREIndefiniteSPDT3 5/8"29 7/8"100 hrs.1"2"€897.93
