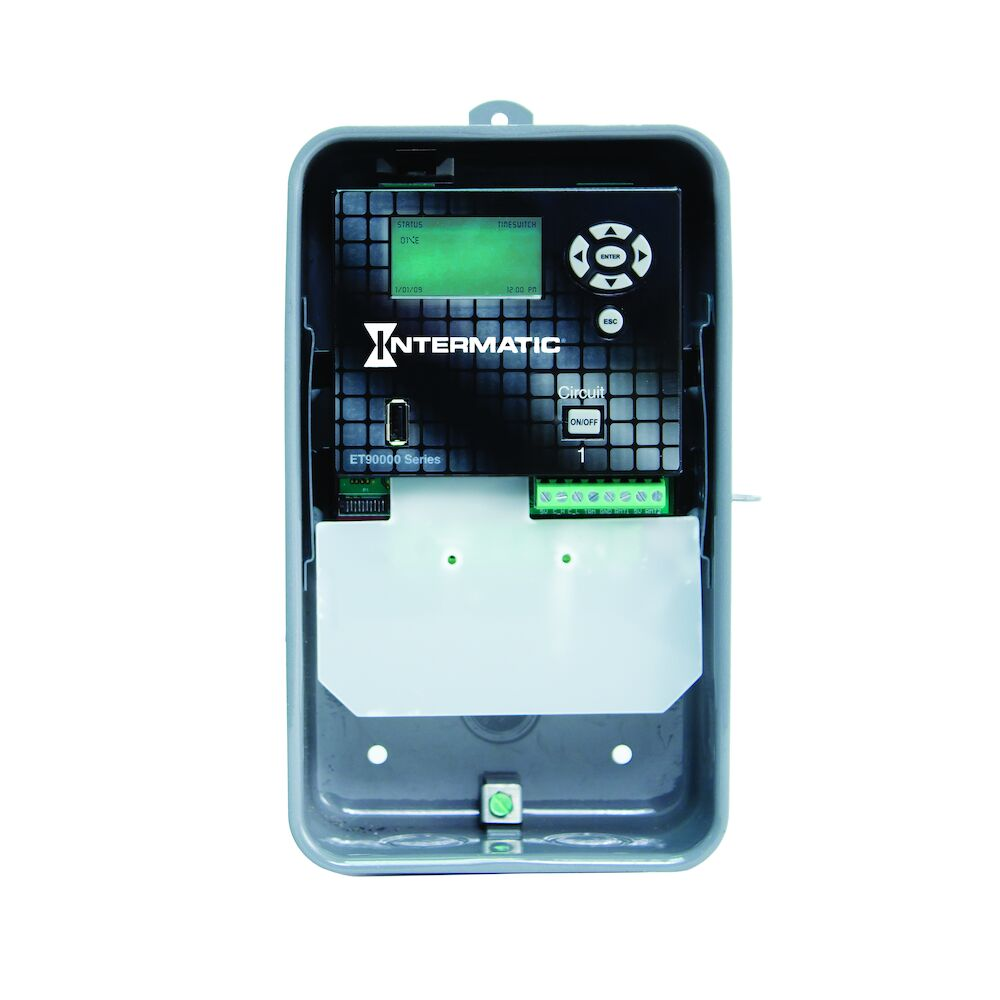

INTERMATIC ET90115CR Electric Timer Astro 365 Day 1 Spdt Nema 3r
Item: AA4RXYModel: ET90115CRCross Ref: 13D102
7 In Stock
Ships within 2 days via
10.00% off
€907.89 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Electronic Timer |
| Adjustment Type | Automatic |
| Amps | 30A |
| Application | Commercial, Industrial, Utility, Lighting Control, Energy Savings, Security, Comfort & Convenience, Machinery & Pumps, Panel Integrators, Indoor Lighting Control, Outdoor Lighting Control, Timing/Scheduling On/Off, Machinery & Pump Controls, School Districts, Banks, Small Hotels, Franchises, Retail Stores, Municipalities, Parking Lots, Offices |
| Available Actions - Electronic Timer | Cycle, On/Off, Pulse |
| Backup Device | Capacitor |
| Backup Restoration Time | 30 min. |
| Backup Time | 100 hrs. |
| Backup Time | 100 hr. |
| Backup Type | Supercapacitor |
| Battery Type | Supercapacitor |
| Color | Gray |
| Daylight Savings Adjustment | Automatic |
| Depth | 3 1/2" |
| Display Height | 1.04 In. |
| Display Height | 1" |
| Display Width | 1.94 In. |
| Display Width | 2" |
| Enclosure | Steel |
| Enclosure Material | Steel |
| Height | 9 1/2" |
| Hp @ 120v | 1 hp |
| Hp @ 240v | 2 hp |
| Length | 5 5/8" |
| Max. On/off Cycles | 4000 |
| Max. On/off Operations | 2000 |
| Max. Power Consumption | 16 W |
| Max. Time Setting | 365 Day |
| Max. Wattage | 16 W |
| Maximum On/off Times | 365 Days |
| Min. Time Setting | 1 sec. |
| Minimum On/off Times | 1 sec. |
| Minimum Pulse Time | 1 sec. |
| Mounting | Snap In |
| Number Of Channels | 1 |
| Number Of Circuits | 1 |
| Number Of Poles | 1 |
| Number Of Pulse Events | 4000 |
| On Off Operations | 2000 |
| Operating Temp. | -40°F to +120°F |
| Operation Features | Astronomic, Holiday |
| Operation Mode | Astro 365 Days |
| Pulse Duration | 1 sec. to 24 hr. |
| Voltage | 120-277V AC |
| Voltage Selection Type | Auto Voltage |
| Voltage Type | Auto Voltage |
| Width | 5 3/4" |
| Wiring Option | Terminals |
Shipping Info:
| Ship weight (kg) | 1.92 |
| Ship height (cm) | 24.3 |
| Ship length (cm) | 9.1 |
| Ship width (cm) | 14.5 |
| HS code | 9106905520 |
| Country of Origin | MX |
Product Details:
- Special Features: Copy Programming To Other Time Switches For Backup Purposes Via USB
Product Variants
| Product | Model | Max. Time Setting | Contact Form | Depth | Number Of Poles | Height | Backup Time | Display Height | Display Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ET90115C | 365 Day | SPDT | 3" | 1 | 7 3/4" | 100 hrs. | 1" | 2" | €856.98 | |
 |
ET90115CE | 365 Day | SPDT | 3" | 1 | 7 3/4" | 100 hrs. | 1" | 2" | €1,115.26 | |
 |
ET90115CRE | 365 Day | SPDT | 3 1/2" | 1 | 9 1/2" | 100 hrs. | 1" | 2" | €1,163.93 | |
 |
ET90215C | 365 Day | - | 3" | 2 | 7 3/4" | 100 hrs. | 1" | 2" | €1,083.81 | |
|
ET90215CE | 365 Day | SPDT | 3" | 2 | 7 3/4" | 100 hrs. | 1" | 2" | €1,281.64 | |
 |
ET90215CR | 365 Day | SPDT | 3 1/2" | 2 | 9 1/2" | 100 hrs. | 1" | 2" | €1,136.35 | |
 |
ET90215CRE | Indefinite | SPDT | 3 5/8" | 2 | 9 7/8" | 100 hrs. | 1" | 2" | €897.93 |
