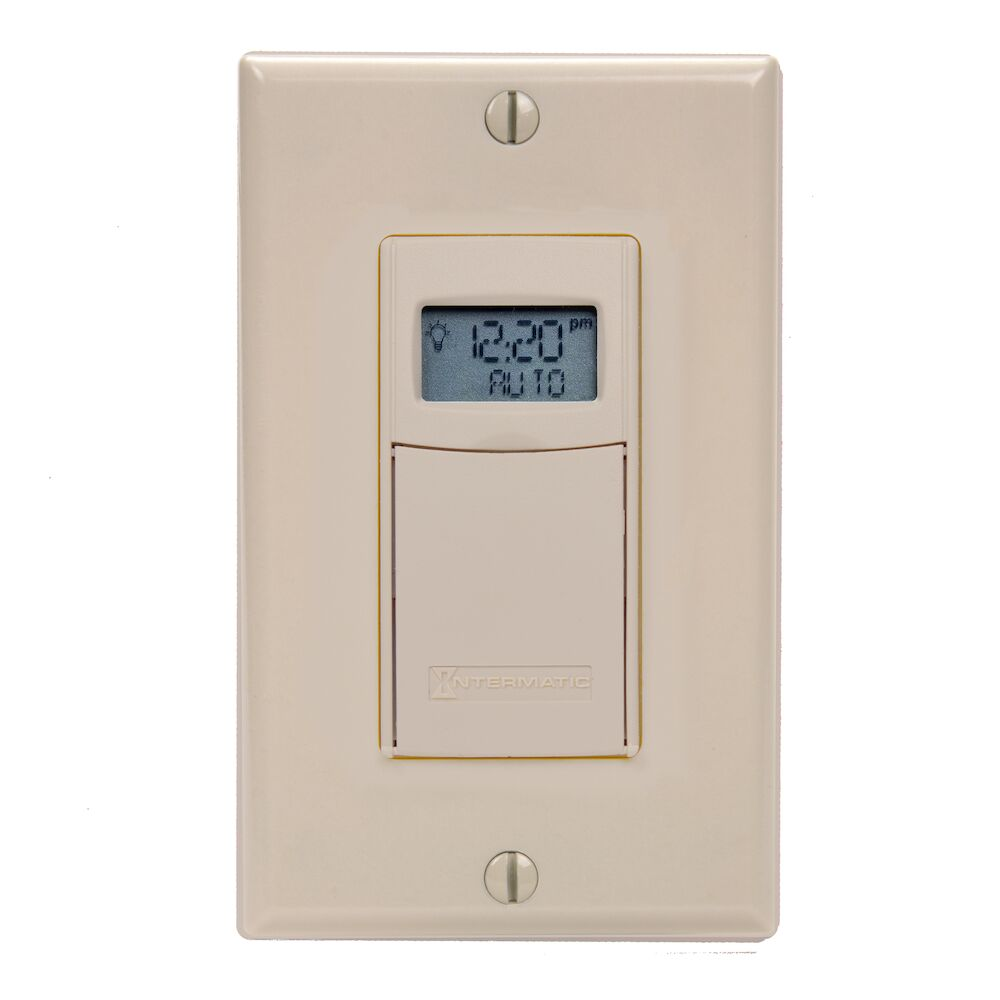

INTERMATIC EI600LAC Electronic Timer 7-Day SPDT 120-277 V
Item: AC9DXQModel: EI600LACCross Ref: 3FWZ5
7 In Stock
Ships within 2 days via
5.00% off
€142.08 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Wall Switch Timer |
| Amps | 20A |
| Applicable Ac Voltage Ranges | 277V AC |
| Application | HVAC, Lighting |
| Backup Protection Time | 3 yrs. |
| Backup Type | Battery |
| Battery Service Type | Replaceable |
| Battery Type | Lithium |
| Body Color | Light Almond |
| Chemical Composition Of The Battery Cell | Lithium |
| Color | Almond |
| Compatible Lighting | Compact Fluorescent, Fluorescent, Incandescent, LED |
| Contact Form | SPST, NO |
| Depth | 1 9/25" |
| Display Qty | 1 |
| Hp @ 120v | 1 hp |
| Hp @ 240v | 2 hp |
| Included Hold | No Hold Included |
| Included Wall Plate | No |
| Indoor/outdoor | Indoor, Outdoor |
| Length | 6 5/16" |
| Length (straight Wireway) | 6 5/16" |
| Max. Hp @ 120v | 1 hp |
| Max. Hp @ 240v | 2 hp |
| Max. Load Handling Capability | 20A |
| Max. On/off Cycles | 40 |
| Max. Time Setting | 7 Day |
| Max. Watts | 1800 W |
| Min. On/off Times | 1 min. |
| Min. Time Setting | 1 min. |
| Neutral Connection Required | No |
| No. Of Batteries Included | 1 |
| No. Of Gangs | 1 |
| No. Of Lithium Metal Cells In Battery | 1 |
| No. Of Poles | 1 |
| Operation Features | Astronomic, Daylight Saving Time |
| Overall Depth | 1 13/16" |
| Overall Height | 4 1/8" |
| Overall Width | 1 3/4" |
| Product Type | Wall Switch Timers |
| Style | Weekly |
| Switch Type | 3 Way |
| Timer Switch Type | Digital |
| Type | Decorator Electronic |
| Type Of Switch | Electronic |
| Voltage | 120-277V AC |
| Watts | 1800-4155 W |
| Width | 1 3/4" |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 10.48 |
| Ship length (cm) | 4.6 |
| Ship width (cm) | 4.45 |
| HS code | 9107008000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Max. Time Setting | Max. On/off Cycles | Min. Time Setting | Contact Form | Switch Type | Color | Depth | Indoor/outdoor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EI200W | 30 min. | 1 | 5 min. | SPST, NO | 1 Pole | White | 1 1/2" | Indoor | €108.44 | |
 |
EI200LA | 30 min. | 1 | 5 min. | SPST, NO | 1 Pole | Almond | 1 1/2" | Indoor | €95.47 | |
 |
EI210W | 60 min. | 1 | 10 min. | SPST, NO | 1 Pole | White | 1 1/2" | Indoor | €93.13 | |
 |
EI210LA | 60 min. | 1 | 10 min. | SPST, NO | 1 Pole | Almond | 1 1/2" | Indoor | €80.81 | |
 |
PE153 | 24 hrs. | 3 | 1 min. | SPST | - | Gray | 3 5/8" | Outdoor | €715.54 | |
 |
EI500C | 7 Days | 14 | 1 min. | - | 1 Pole | Ivory | 1 3/4" | Indoor, Outdoor | €119.69 | |
 |
EI500WC | 7 Day | 14 | 1 min. | SPST, NO | 1 Pole | White | 2 1/8" | Indoor, Outdoor | €79.70 |
