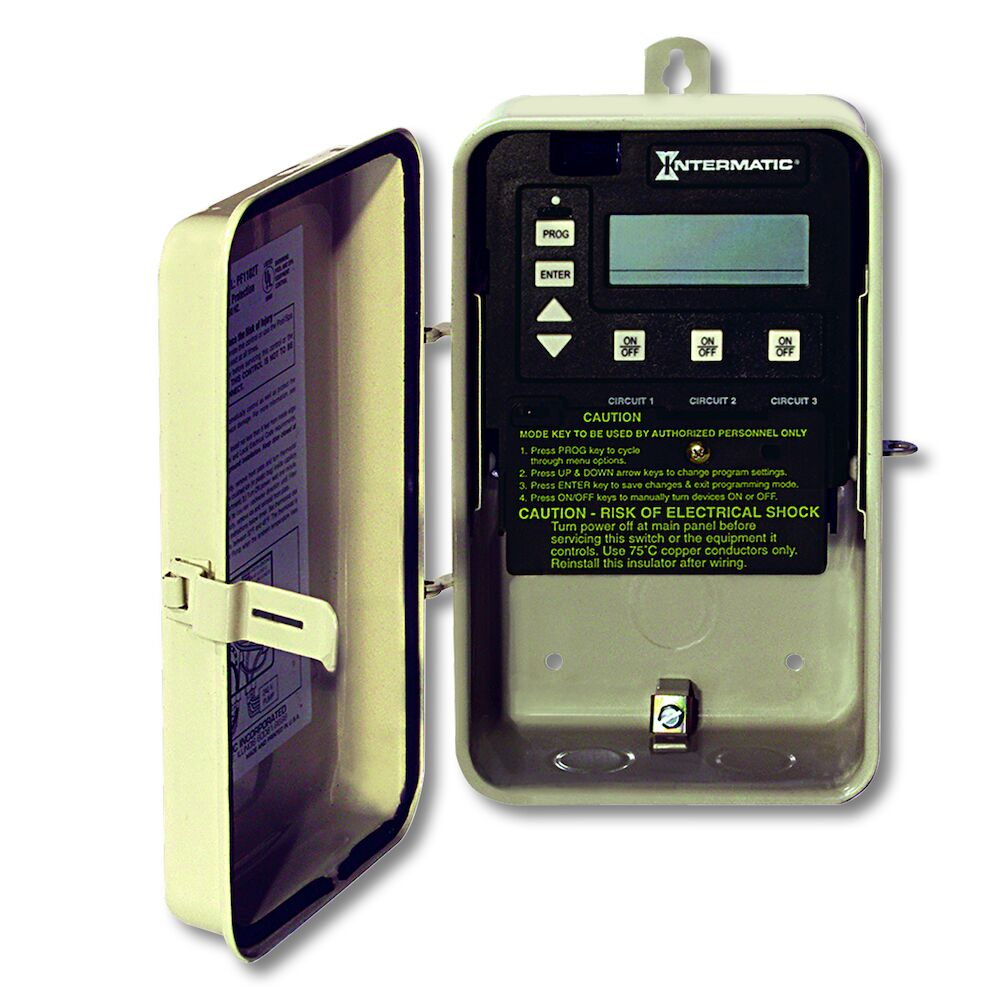

INTERMATIC PE153 Electronic Digital Time Clock, 24 Hour, 120/240 Volt AC
Item: AC9DXGModel: PE153Cross Ref: 3FWY5
7 In Stock
Ships within 2 days via
10.00% off
€626.59 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Wall Switch Timer |
| Applicable Ac Voltage Ranges | 120/240V AC |
| Application | Motor Controls, Pump Controls |
| Astronomic Functionality | Not Astronomic |
| Backup Time | 36 hrs. |
| Backup Time | 36 Hrs |
| Body Color | Gray |
| Body Material | Metal |
| Color | Gray |
| Contact Form | SPST |
| Current Rating | 17A |
| Depth | 3 5/8" |
| Digital Timer Functions | On/Off |
| Display Qty | 1 |
| Enclosure | Metal |
| Enclosure Material | Metal |
| Events Available | 6 |
| Features | Freeze Protection, Heater Protection, Multivoltage, Seven Preprogrammed Modes |
| Horsepower @ 120v - Maximum | 1 hp |
| Horsepower @ 240v - Maximum | 2 hp |
| Indoor/outdoor Usage | Outdoor |
| Length | 9 3/8" |
| Max. On/off Cycles | 3/Channel |
| Max. On/off Cycles | 3 |
| Max. On/off Operations | 3 |
| Min. Time Setting | 1 min. |
| Mounting | Wall |
| Mounting Style | Surface |
| Nema Enclosure Rating | NEMA 3R |
| Number Of Channels | 3 |
| Number Of Circuits | 3 |
| Number Of Poles | 3 |
| Operating Temp. | -40°F to +155°F |
| Operating Temperature - Maximum | 155°F |
| Operating Temperature - Minimum | -40°F |
| Overall Depth | 3 5/8" |
| Overall Height | 9 3/8" |
| Overall Width | 5 1/2" |
| Series | PE153 Series |
| Standards | Ccsaus |
| Time Setting - Max. | 24 hrs. |
| Time Setting - Maximum | 24 hrs. |
| Type | Digital |
| Voltage | 120/240V |
| Voltage Selection Type | Multi Voltage |
| Voltage Type | Multi Voltage |
| Wattage | 2400 W |
| Width | 5 1/2" |
Shipping Info:
| Ship weight (kg) | 1.76 |
| Ship height (cm) | 23.8 |
| Ship length (cm) | 9.2 |
| Ship width (cm) | 14 |
| HS code | 9107008000 |
| Country of Origin | CA |
Product Details:
- 7-day digital timer best suited for use with single-speed / two-speed pump and booster pump combination units, as well as in gardens, fountains, pools, spas and landscape lighting applications
- Features three ON / OFF events per circuit per day, seven pre-programmed modes, a freeze and heater protection system, an LCD readout screen and multi-voltage input and output configurations
- Countdown and override facilities enable the preset programs to be overridden and automatically resumed without requiring the user to reprogram the system
- Adheres to CSA standards for handling temperatures ranging between -20 and 130 deg F
Product Variants
| Product | Model | Contact Form | Max. On/off Cycles | Switch Type | Min. Time Setting | Max. Time Setting | Color | Depth | Number Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EI200W | SPST-NO | 1 | 1 Pole | 5 min. | 30 min. | White | 1 1/2" | 1 | €86.32 | |
 |
EI200LA | SPST-NO | 1 | 1 Pole | 5 min. | 30 min. | Almond | 1 1/2" | 1 | €95.47 | |
 |
EI210W | SPST-NO | 1 | 1 Pole | 10 min. | 60 min. | White | 1 1/2" | 1 | €77.63 | |
 |
EI210LA | SPST-NO | 1 | 1 Pole | 10 min. | 60 min. | Almond | 1 1/2" | 1 | €80.81 | |
 |
EI500C | - | 14 | 1 Pole | - | 7 Days | Ivory | 1 3/4" | 1 | €119.69 | |
 |
EI500WC | SPST-NO | 14 | 1 Pole | 1 min. | - | White | 2 1/8" | 1 | €79.70 | |
 |
EI600WC | SPST | 40 | 3 Way | 1 min. | - | White | 1 9/25" | 1 | €154.41 |
