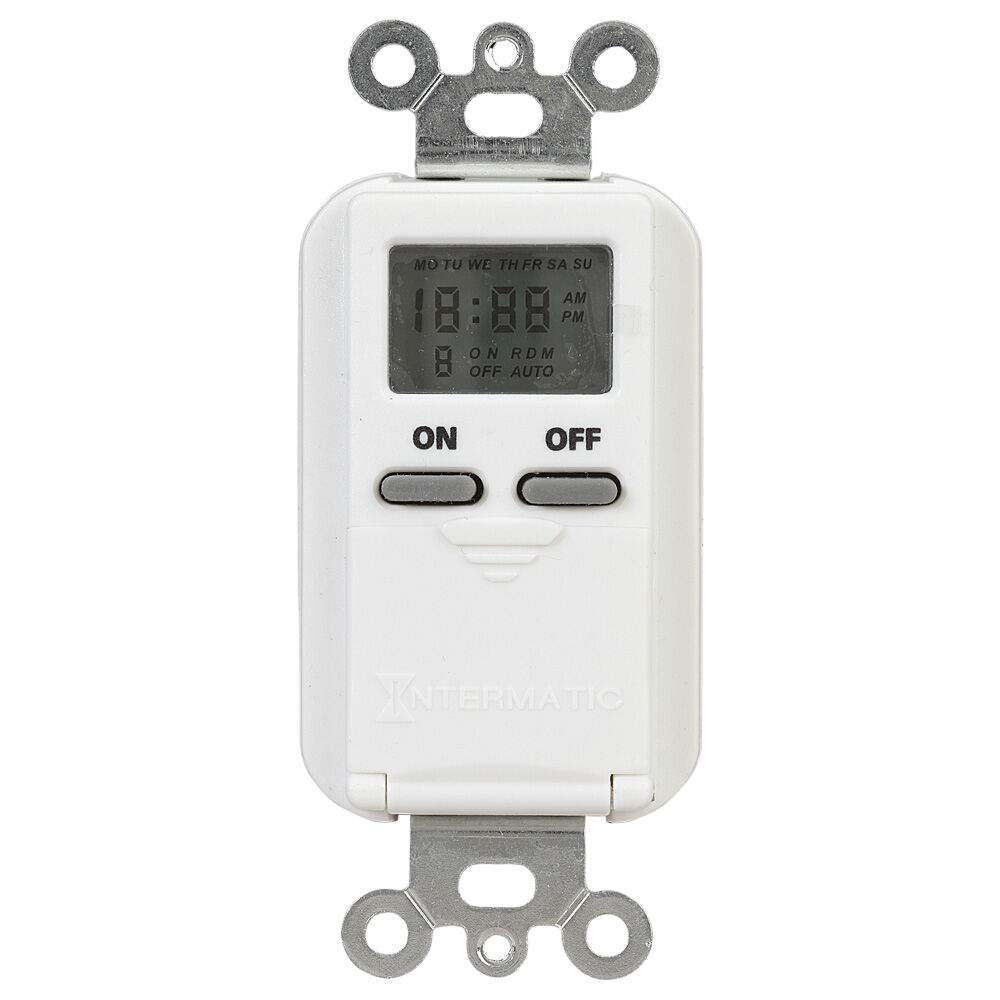

INTERMATIC EI500WC ON/OFF Standard Digital Timer, 125 VAC, 15 A
Item: AC9DXMModel: EI500WCCross Ref: 3FWZ1
7 In Stock
Ships within 2 days via
10.00% off
€71.74 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Wall Switch Timer |
| Applicable Ac Voltage Ranges | 125V AC |
| Application | HVAC, Lighting |
| Backup Type | Battery |
| Battery Type | Nickel Metal Hydride |
| Body Color | White |
| Chemical Composition Of The Battery Cell | Alloy Powder, Oxyhydroxide |
| Color | White |
| Compatible Lighting | Fluorescent, Incandescent, LED |
| Contact Form | SPST-NO |
| Current Rating | 15A |
| Depth | 2 1/8" |
| Display Qty | 1 |
| Features | Rechargeable Battery Backup, Requires Neutral Connection |
| Hp @ 120v | 1/4 hp |
| Hp @ 120v - Maximum | 1/4 hp |
| Includes Hold | No Hold Included |
| Includes Wall Plate | No Wall Plate Included |
| Indoor/outdoor Usage | Indoor/Outdoor |
| Length | 6 5/16" |
| Length (straight Wireway) | 6 5/16" |
| Max. On/off Cycles | 14 |
| Max. On/off Operations | 14 |
| Min. Time Setting | 1 min. |
| Minimum On/off Times | 1 min. |
| Neutral Connection Required | Yes |
| No. Of Batteries Included | 1 |
| Number Of Gangs | 1 |
| Number Of Poles | 1 |
| Overall Depth | 1 7/16" |
| Overall Height | 4 1/8" |
| Product Type | Wall Switch Timers |
| Style | Weekly |
| Switch Type | 1 Pole |
| Time Setting - Maximum | 7 Day |
| Timer Switch Type | Digital |
| Tungsten (incandescent) Range(s) | 1000 W |
| Tungsten Incandescent | 1000 W |
| Type | Decorator Digital |
| Type Of Switch | Electronic |
| Wattage | 1800 W |
| Wattage - Maximum | 1875 W |
| Width | 3" |
| Wiring Configurations | Single |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 10.48 |
| Ship length (cm) | 3.65 |
| Ship width (cm) | 4.45 |
| HS code | 9107008000 |
| Country of Origin | CN |
Product Details:
- EI500 Series digital timer featuring 7-day programmable schedules with 14 ON / OFF events ideal for use with deck or landscape light controls, attic fans, hallway lights and small commercial signs
- Integrated display continuously shows the time of the day, day of the week, timer load and the load status
- Comes with a built-in rechargeable, non-serviceable battery backup facility and can withstand temperatures ranging from 0 to 40 deg C
Product Variants
| Product | Model | Contact Form | Max. On/off Cycles | Switch Type | Min. Time Setting | Max. Time Setting | Color | Depth | Number Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EI200W | SPST-NO | 1 | 1 Pole | 5 min. | 30 min. | White | 1 1/2" | 1 | €86.32 | |
 |
EI200LA | SPST-NO | 1 | 1 Pole | 5 min. | 30 min. | Almond | 1 1/2" | 1 | €95.47 | |
 |
EI210W | SPST-NO | 1 | 1 Pole | 10 min. | 60 min. | White | 1 1/2" | 1 | €77.63 | |
 |
EI210LA | SPST-NO | 1 | 1 Pole | 10 min. | 60 min. | Almond | 1 1/2" | 1 | €80.81 | |
 |
PE153 | SPST | 3 | - | 1 min. | - | Gray | 3 5/8" | 3 | €696.21 | |
 |
EI500C | - | 14 | 1 Pole | - | 7 Days | Ivory | 1 3/4" | 1 | €119.69 | |
 |
EI600WC | SPST | 40 | 3 Way | 1 min. | - | White | 1 9/25" | 1 | €154.41 |
