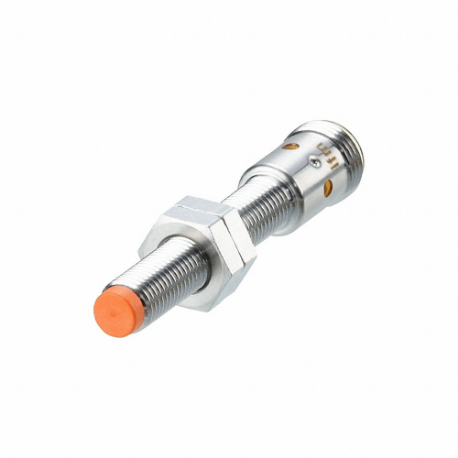

IFM IE5288 Cylindrical Proximity Sensor, 10 To 36VDC, 300 Hz Proximity Sensor Op Freq, 3 Wire Pnp
Item: CR4LGFModel: IE5288Cross Ref: 35T308
7 In Stock
Ships within 2 days via
10.00% off
€94.83 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Cylindrical Proximity Sensor |
| Ac Supply Voltage Rating | Not Rated |
| Basic Proximity Sensor Case Material | Metal |
| Body Finish | Bronze Coated |
| Body Material | Brass |
| Case Material | Brass White Bronze Coated |
| Dc Supply Voltage Rating | 10-30V DC |
| Display Qty | 1 |
| Electrical Connection | M12 |
| Electrical Installation Type | Direct Connector |
| Full-metal Housing | No |
| Housing | Threaded Type |
| Includes | (2) Lock Nuts |
| Includes Indicator Lights | Indicator Lights Included |
| Increased Sensing Range | Yes |
| Ip Rating | IP67 |
| Length | 62 mm |
| Max. Detecting Distance | 4 mm |
| Max. Load Current | 200 mA |
| Nominal Sensor Diameter | M8 Threaded |
| Number Of Pins | 4 |
| Number Of Wires | 3 |
| Operating Temp. Range | -13°F to +158°F |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Output Circuit | PNP |
| Output Circuit Contact Form | No |
| Output Circuit Current - Maximum | 100 mA |
| Output Circuit Type | PNP |
| Output Circuit Voltage - Maximum | 2.5V DC |
| Output Mode | No |
| Overall Height | 60 mm |
| Overload Protection | Yes |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Dia. | 8 mm |
| Proximity Sensor Operating Frequency | 300 Hz |
| Proximity Sensor Output Circuit Type | Three Wire PNP |
| Reverse Polarity Protection | Yes |
| Sensing Face Shielding | Unshielded |
| Sensing Method | Inductive |
| Sensor Body Style | Cylindrical |
| Sensor Diameter | 8 mm |
| Shielded / Unshielded | Unshielded |
| Short-circuit Protection | Yes |
| Supply Voltage | 10-30V DC |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Max. Detecting Distance | Ip Rating | Number Of Wires | Output Mode | Proximity Sensor Dia. | Proximity Sensing Method | Sensing Method | Shielded / Unshielded | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
IIS229 | 22 mm | IP65, IP66, IP67, IP68, IP69K | 3 | No | 30 mm | Inductive | Inductive | Unshielded | €139.22 | |
 |
IIS244 | 15 mm | IP65, IP66, IP67, IP68, IP69K | 3 | No | 30 mm | Inductive | Inductive | Shielded | €143.74 | |
 |
IIS228 | 15 mm | IP65, IP66, IP67, IP68, IP69K | 3 | No | 30 mm | Inductive | Inductive | Shielded | €139.22 | |
 |
IIS248 | 15 mm | IP65, IP66, IP67, IP68, IP69K | 3 | NC | 30 mm | Inductive | Inductive | Shielded | €139.23 | |
|
IIS235 | 15 mm | IP65, IP66, IP67, IP68, IP69K | 3 | NC | 30 mm | Inductive | Inductive | Shielded | €139.20 | |
|
IIS237 | 22 mm | IP65, IP66, IP67, IP68, IP69K | 3 | NC | 30 mm | Inductive | Inductive | Unshielded | €139.23 | |
 |
IIS249 | 22 mm | IP65, IP66, IP67, IP68, IP69K | 3 | NC | 30 mm | Inductive | Inductive | Unshielded | €139.23 |
