IFM Cylindrical Proximity Sensors and Switches
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1
L1
M1
N1
O1
P1
Q1
R1
S1| Style | Model | Max. Detecting Distance | Ip Rating | Output Mode | Proximity Sensor Dia. | Proximity Sensing Method | Sensing Method | Sensor Dia. | Max. Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | IFS304 | - | IP65, IP66, IP67, IP68, IP69K | - | - | - | Inductive | 12 mm | 185°F | €141.41 | |
| B | IFS299 | - | IP65, IP66, IP67, IP68, IP69K | - | - | - | Inductive | 12 mm | 185°F | €141.41 | |
| C | IFS306 | - | IP65, IP66, IP67, IP68, IP69K | - | - | - | Inductive | 12 mm | 185°F | €141.41 | |
| D | IE5123 | 1 mm | IP67 | No | 8 mm | Inductive | Inductive | 8 mm | 176°F | €158.06 | |
| D | IE5121 | 1 mm | IP67 | No | 8 mm | Inductive | Inductive | 8 mm | 176°F | €115.88 | |
| E | IE5207 | 1 mm | IP67 | No | 8 mm | Inductive | Inductive | 8 mm | 176°F | €100.63 | |
| F | IF7106 | 2 mm | IP67 | No | 12 mm | Inductive | Inductive | 12 mm | 167°F | €85.80 | |
| G | IF0303 | 2 mm | IP67 | No | 12 mm | Inductive | Inductive | 12 mm | 176°F | €140.09 | |
| G | IF0006 | 2 mm | IP67 | NC | 12 mm | Inductive | Inductive | 12 mm | 176°F | €177.55 | |
| H | IE5312 | 2 mm | IP67 | No | 8 mm | Inductive | Inductive | 8 mm | 158°F | €80.60 | |
| I | IE5287 | 2 mm | IP65, IP67 | No | 8 mm | Inductive | Inductive | 8 mm | 158°F | €171.74 | |
| J | IF7104 | 2 mm | IP67 | No | 12 mm | Inductive | Inductive | 12 mm | 167°F | €60.06 | |
| K | IF5720 | 2 mm | IP67 | No | 12 mm | Inductive | Inductive | 12 mm | 176°F | €96.87 | |
| L | IF7102 | 2 mm | - | No | 12 mm | Inductive | - | - | - | €56.90 | |
| M | IFT244 | 3 mm | IP68, IP69K | No | 12 mm | Inductive | Inductive | 12 mm | 212°F | €109.57 | |
| M | IFT240 | 3 mm | IP68, IP69K | No | 12 mm | Inductive | Inductive | 12 mm | 212°F | €103.85 | |
| N | IE5338 | 3 mm | IP65, IP67 | No | 8 mm | Inductive | Inductive | 8 mm | 140°F | €151.33 | |
| O | IFS246 | 4 mm | - | No | 12 mm | Inductive | - | - | - | €55.43 | |
| P | IF0311 | 4 mm | IP67 | No | 12 mm | Inductive | Inductive | 12 mm | 158°F | €140.10 | |
| Q | IFS260 | 4 mm | IP65, IP66, IP67, IP68, IP69K | NC | 12 mm | Inductive | Inductive | 12 mm | 185°F | €60.06 | |
| R | IF0302 | 4 mm | IP67 | No | 12 mm | Inductive | Inductive | 12 mm | 176°F | €140.10 | |
| S | IFS256 | 4 mm | IP65, IP66, IP67, IP68, IP69K | No | 12 mm | Inductive | Inductive | 12 mm | 185°F | €62.15 | |
| T | IFS212 | 4 mm | IP67 | No | 12 mm | Inductive | Inductive | 12 mm | 158°F | €55.43 | |
| U | IFS254 | 4 mm | IP65, IP66, IP67, IP68, IP69K | No | 12 mm | Inductive | Inductive | 12 mm | 185°F | €55.49 | |
| V | IFS204 | 4 mm | IP67 | No | 12 mm | Inductive | Inductive | 12 mm | 158°F | €54.79 | |
| W | IF5719 | 4 mm | IP67 | No | 12 mm | Inductive | Inductive | 12 mm | 176°F | €108.52 | |
| X | IFT203 | 4 mm | IP68, IP69K | No | 12 mm | Inductive | Inductive | 12 mm | 212°F | €198.22 | |
| Y | IFS240 | 4 mm | IP65, IP66, IP67, IP68, IP69K | No | 12 mm | Inductive | Inductive | 12 mm | 185°F | €60.05 | |
| O | IFS244 | 4 mm | IP65, IP66, IP67, IP68, IP69K | No | 12 mm | Inductive | Inductive | 12 mm | 185°F | €60.04 | |
| Y | IFS242 | 4 mm | IP65, IP66, IP67, IP68, IP69K | No | 12 mm | Inductive | Inductive | 12 mm | 185°F | €60.05 | |

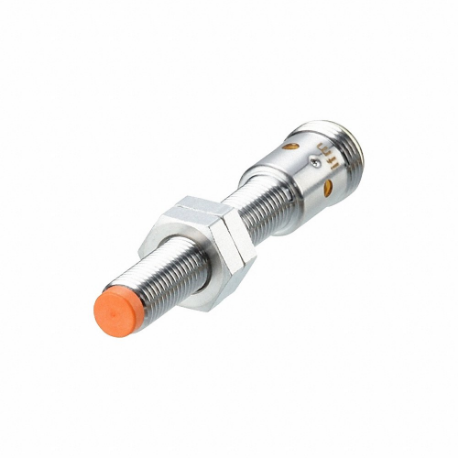

| Z | IE5288 | 4 mm | IP67 | No | 8 mm | Inductive | Inductive | 8 mm | 158°F | €73.76 | |
| A1 | IF7105 | 4 mm | IP67 | No | 12 mm | Inductive | Inductive | 12 mm | 167°F | €60.06 | |
| B1 | IF7103 | 4 mm | IP67 | No | 12 mm | Inductive | Inductive | 12 mm | 158°F | €56.89 | |
| R | IF0008 | 4 mm | IP67 | NC | 12 mm | Inductive | Inductive | 12 mm | 176°F | €135.91 | |
| C1 | IFS252 | 4 mm | IP65, IP66, IP67, IP68, IP69K | No | 12 mm | Inductive | Inductive | 12 mm | 185°F | €62.15 | |
| Y | IFS248 | 4 mm | IP65, IP66, IP67, IP68, IP69K | NC | 12 mm | Inductive | Inductive | 12 mm | 185°F | €60.05 | |
| S | IFS258 | 4 mm | IP65, IP66, IP67, IP68, IP69K | No | 12 mm | Inductive | Inductive | 12 mm | 185°F | €55.49 | |
| A1 | IF7107 | 4 mm | IP67 | No | 12 mm | Inductive | Inductive | 12 mm | 167°F | €60.06 | |
| Y | IFS249 | 4 mm | IP65, IP66, IP67, IP68, IP69K | NC | 12 mm | Inductive | Inductive | 12 mm | 185°F | €60.07 | |
| Q | IFS262 | 4 mm | IP65, IP66, IP67, IP68, IP69K | NC | 12 mm | Inductive | Inductive | 12 mm | 185°F | €60.06 | |
| D1 | IG7104 | 5 mm | IP67 | No | 18 mm | Inductive | Inductive | 18 mm | 167°F | €59.00 | |
| E1 | IGT248 | 5 mm | IP68, IP69K | No | 18 mm | Inductive | Inductive | 18 mm | 212°F | €116.97 | |
| F1 | IG5717 | 5 mm | IP67 | No | 18 mm | Inductive | Inductive | 18 mm | 176°F | €113.26 | |
| G1 | IG0328 | 5 mm | IP67 | No | 18 mm | Inductive | Inductive | 18 mm | 176°F | €155.93 | |
| H1 | IG0327 | 5 mm | IP67 | NC | 18 mm | Inductive | Inductive | 18 mm | 176°F | €161.21 | |

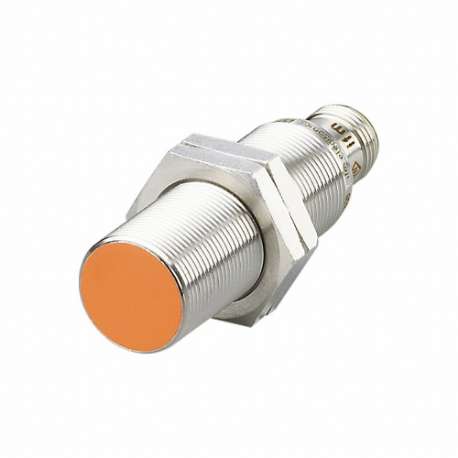

| I1 | IG7102 | 5 mm | IP67 | No | 18 mm | Inductive | Inductive | 18 mm | 158°F | €55.45 | |
| E1 | IGT247 | 5 mm | IP68, IP69K | No | 18 mm | Inductive | Inductive | 18 mm | 212°F | €105.70 | |
| J1 | KF5001 | 6 mm | IP65 | No | 12 mm | Capacitive | Capacitive | 12 mm | 158°F | €292.99 | |
| K1 | IFT246 | 6 mm | IP65, IP67, IP68, IP69K | No | 12 mm | Inductive | Inductive | 12 mm | 212°F | €105.30 | |
| K1 | IFT245 | 6 mm | IP65, IP67, IP68, IP69K | No | 12 mm | Inductive | Inductive | 12 mm | 212°F | €104.34 | |
| L1 | IFS205 | 7 mm | - | No | 12 mm | Inductive | - | - | - | €55.46 | |
| M1 | IFS255 | 7 mm | IP65, IP66, IP67, IP68, IP69K | No | - | - | Inductive | 12 mm | 185°F | €55.43 | |
| N1 | IFS263 | 7 mm | IP65, IP66, IP67, IP68, IP69K | NC | 12 mm | Inductive | Inductive | 12 mm | 185°F | €109.13 | |
| O1 | IFS213 | 7 mm | IP67 | No | 12 mm | Inductive | Inductive | 12 mm | 158°F | €54.79 | |
| N1 | IFS261 | 7 mm | IP65, IP66, IP67, IP68, IP69K | NC | 12 mm | Inductive | Inductive | 12 mm | 185°F | €60.04 | |
| P1 | IFS257 | 7 mm | IP65, IP66, IP67, IP68, IP69K | No | 12 mm | Inductive | Inductive | 12 mm | 185°F | €62.15 | |
| Q1 | IFS245 | 7 mm | IP65, IP66, IP67, IP68, IP69K | No | 12 mm | Inductive | Inductive | 12 mm | 185°F | €60.06 | |
| R1 | IFS250 | 7 mm | IP65, IP66, IP67, IP68, IP69K | NC | 12 mm | Inductive | Inductive | 12 mm | 185°F | €60.04 | |
| R1 | IFS241 | 7 mm | IP65, IP66, IP67, IP68, IP69K | No | 12 mm | Inductive | Inductive | 12 mm | 185°F | €60.04 | |
| M1 | IFS253 | 7 mm | IP65, IP66, IP67, IP68, IP69K | No | 12 mm | Inductive | Inductive | 12 mm | 185°F | €65.79 | |
| S1 | IF0312 | 7 mm | IP67 | No | 12 mm | Inductive | Inductive | 12 mm | 158°F | €140.10 |
