HUBBELL WIRING DEVICE-KELLEMS HBL8464V Straight Blade Male Plug, 2-P 3-W Grounding, 20A 250V, 6- 20P, White
Item: AC2MJWModel: HBL8464VCross Ref: 2LBY3
7 In Stock
White
0.3" to 0.66"
NEMA 6-20P
Ships within 2 days via
10.00% off
€49.51 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug |
| Amps | 20A |
| Antimicrobial | No |
| Body Length | 1.88" |
| Color | White |
| Conductor | #18 AWG to #12 AWG |
| Conductor Range | #18 AWG to #12 AWG |
| Connection Orientation | Straight |
| Connectivity | Screw Terminals |
| Cord Dia. Range | 0.300"-0.660" |
| Cord Size | 0.3" to 0.66" |
| Current Rating | 20A |
| Diameter | #18 AWG to #12 AWG |
| Dielectric Strength | Withstands 2,000V minimum |
| For Environment | Dry |
| For Location | Indoor |
| For Maximum Cable Diameter | 0.66" |
| For Minimum Cable Diameter | 0.3" |
| Grade | Hospital |
| Grounding | Grounded |
| Height | 1.13" |
| Horsepower Rating | 2 hp |
| Housing Color | White |
| Housing Material | Nylon |
| Insulation | Insulated Body |
| Insulation Material | Nylon |
| Ip Rating | IP20 |
| Length | 1 22/25" |
| Material | Nylon |
| Max. Hp | 2 hp |
| Maximum Operating Temperature | 167°F |
| Maximum Wire Size | 12 AWG |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 18 AWG |
| Nema Plug Configuration | 6-20P |
| Nema Rating | NEMA 6-20P |
| Number Of Blades | 3 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-hbl8464v.pdf |
| Resistance Properties | Corrosion Resistant |
| Standards | Csa Certified C22.2 No. 42 File 280C, Federal Specification W-C-596, Nema Wd-6, Ul 498 File E1706 |
| Temp. Rating | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Ul 94 Flammability Rating | HB |
| Voltage | 250V |
| Voltage Rating | 250V AC |
| Width | 1 1/2" |
| Wire Connection Type | Screw Terminals |
| Wire Size | 18 AWG to 12 AWG |
| Wiring Style | Hinged |
| Wiring Type | Hinged |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.87 |
| Ship length (cm) | 4.78 |
| Ship width (cm) | 3.81 |
| HS code | 8536698000 |
| Country of Origin | US |
Product Details:
- Valise Series, Hospital Grade, Straight,
Documentation:
Product Variants
| Product | Model | Number Of Poles | Amps | Nema Plug Configuration | Wiring Style | Voltage | Color | Material | Nema Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

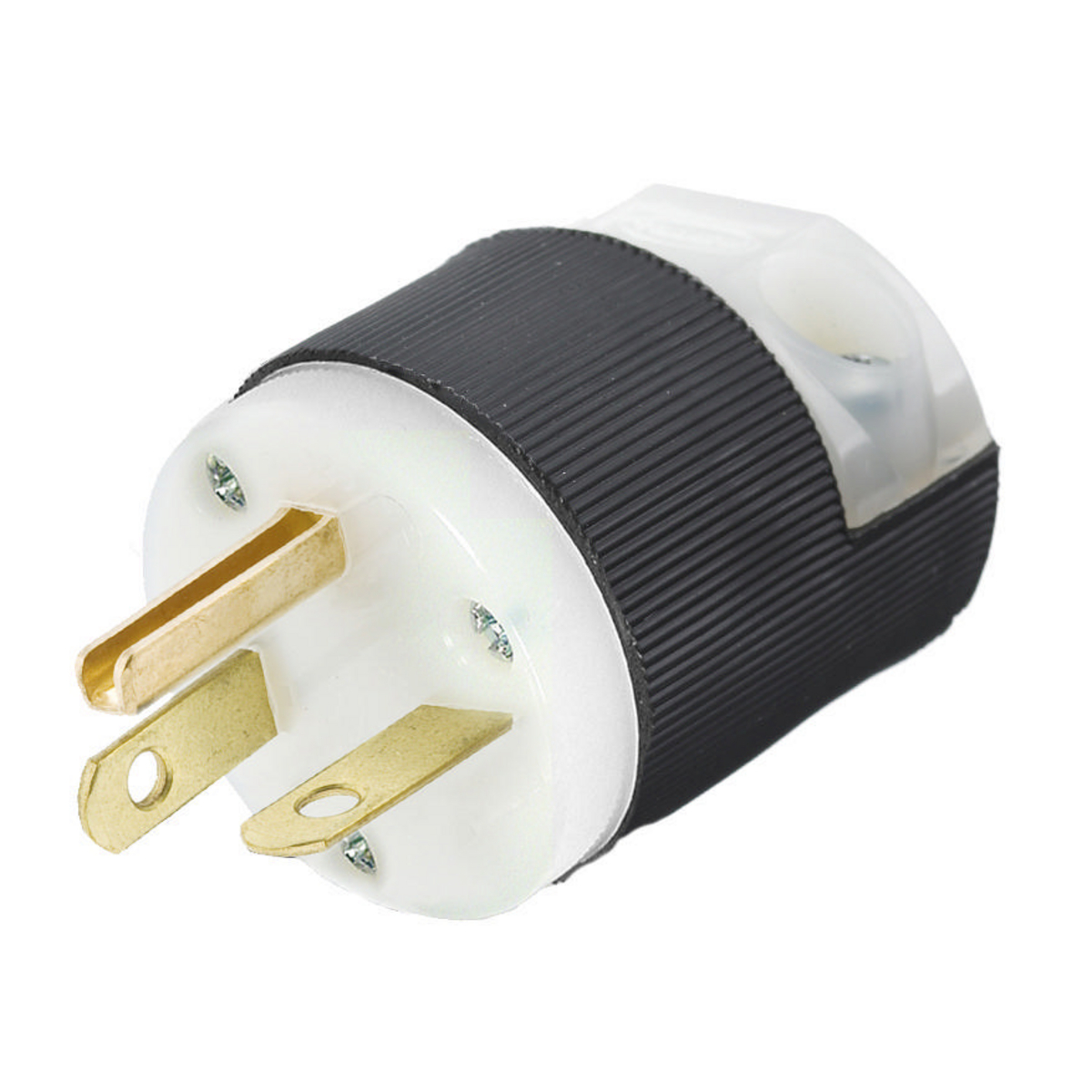

HBL5466C | 2 | 20A | 6-20P | Standard | 250V | Black, White | Nylon | NEMA 6-20P | €63.82 | |
 |
HBL5666C | 2 | 15A | 6-15P | Standard | 250V | Black, White | Nylon | NEMA 6-15P | €25.54 | |
 |
HBL5866VY | 2 | 15A | 1-15P | Hinged | 125V | Yellow | Nylon | NEMA 1-15P | €29.90 | |
 |

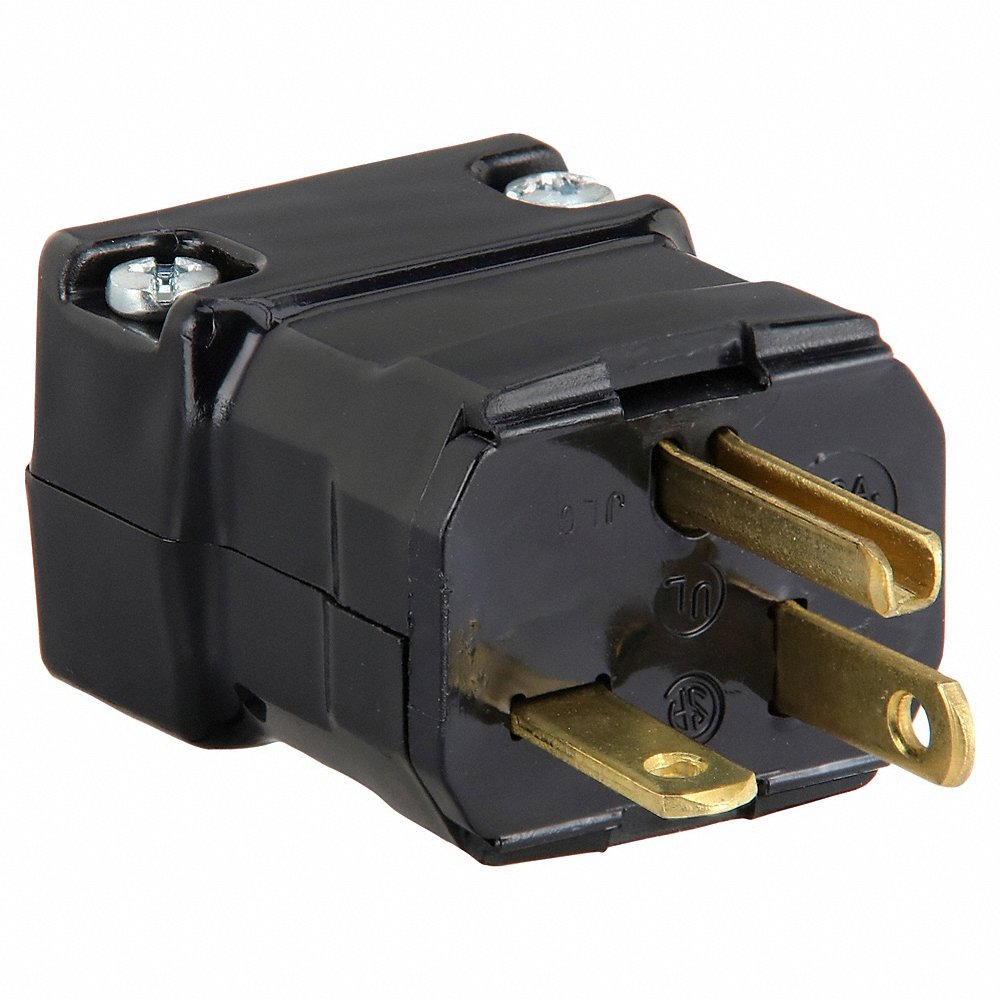

HBL5364VBK | 2 | 20A | 5-20P | Hinged | - | Black | Polycarbonate | NEMA 5-20P | €40.58 | |
 |

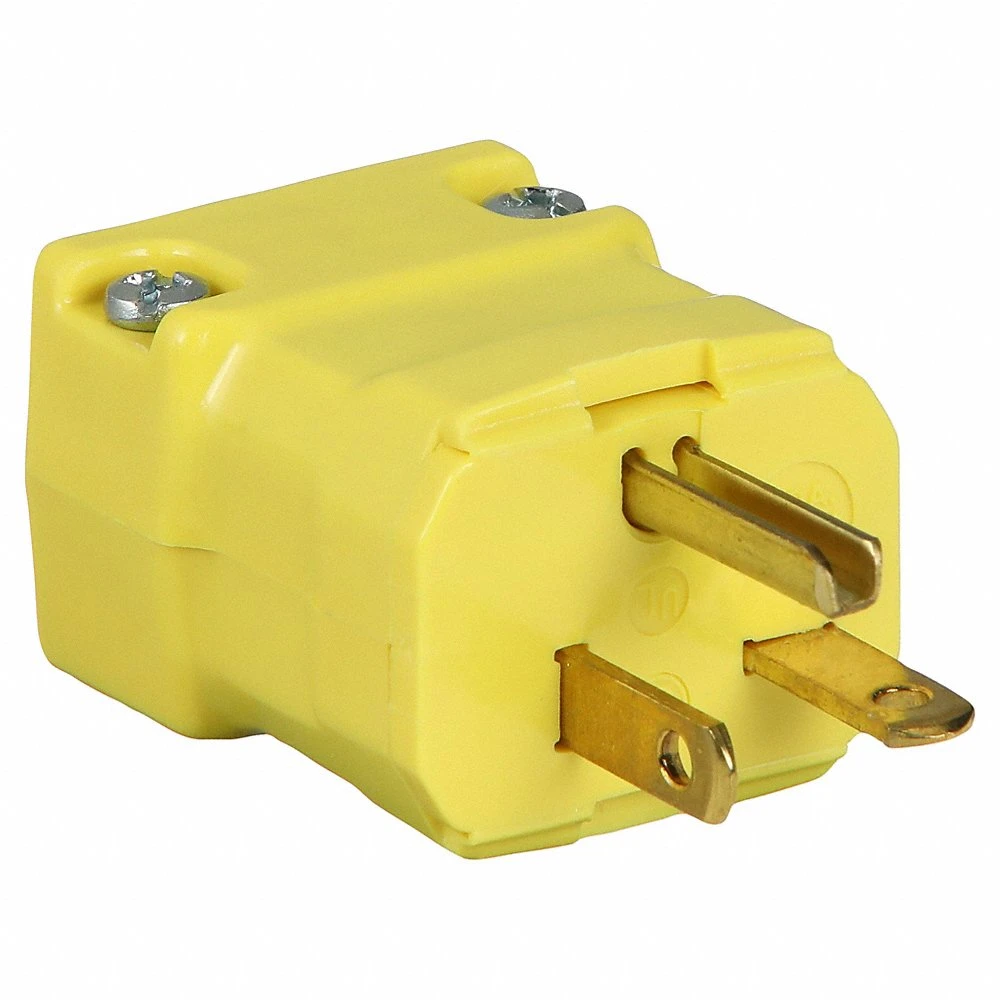

HBL5464VY | 2 | 20A | 6-20P | Hinged | 250V | Yellow | Nylon | NEMA 6-20P | €42.67 | |
 |

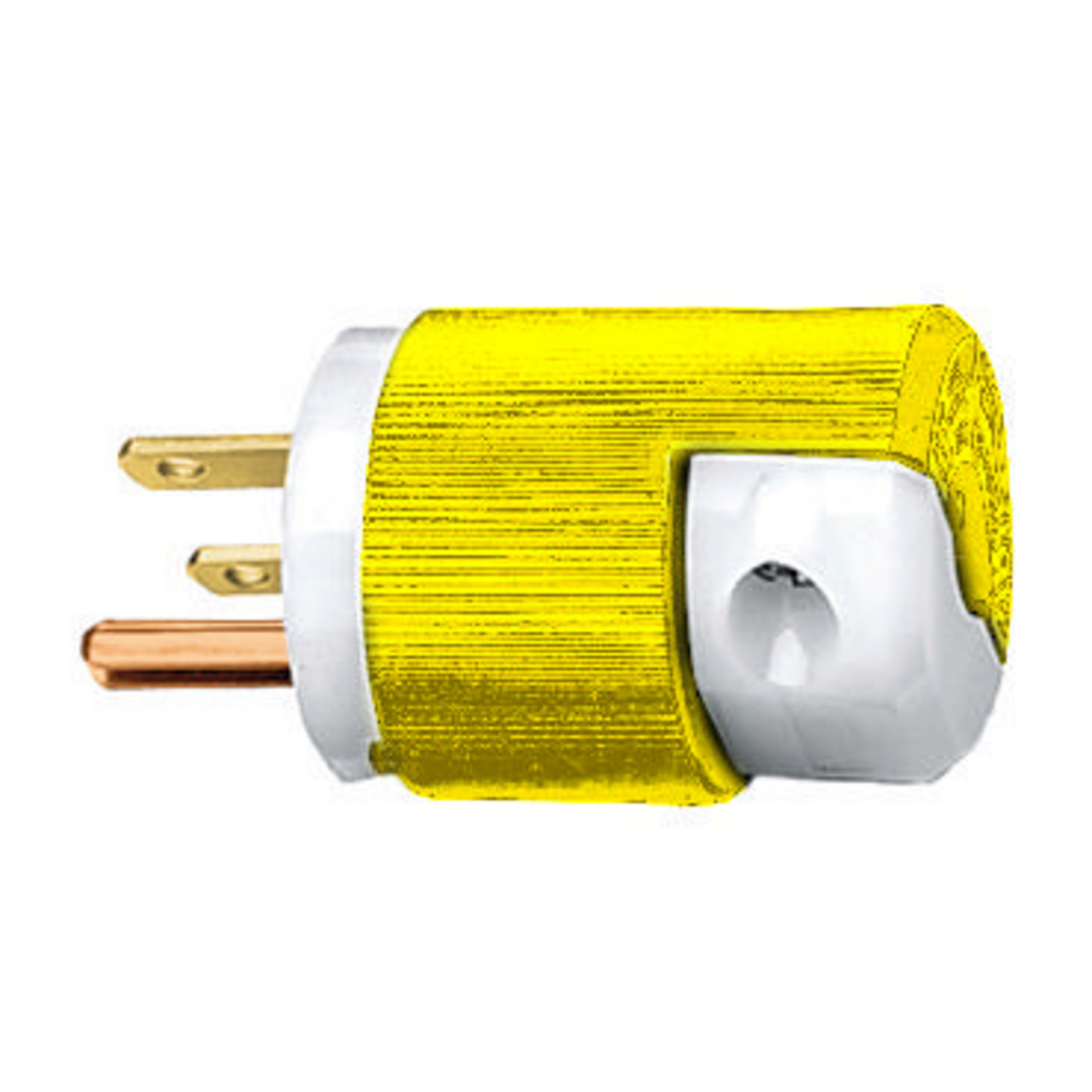

HBL56CM66C | 2 | 15A | 6-15P | Standard | 250V | Yellow | Nylon | NEMA 6-15P | €56.30 | |
 |
HBL8364V | 2 | 20A | 5-20P | Hinged | 125V | White | Nylon | NEMA 5-20P | €47.23 |
