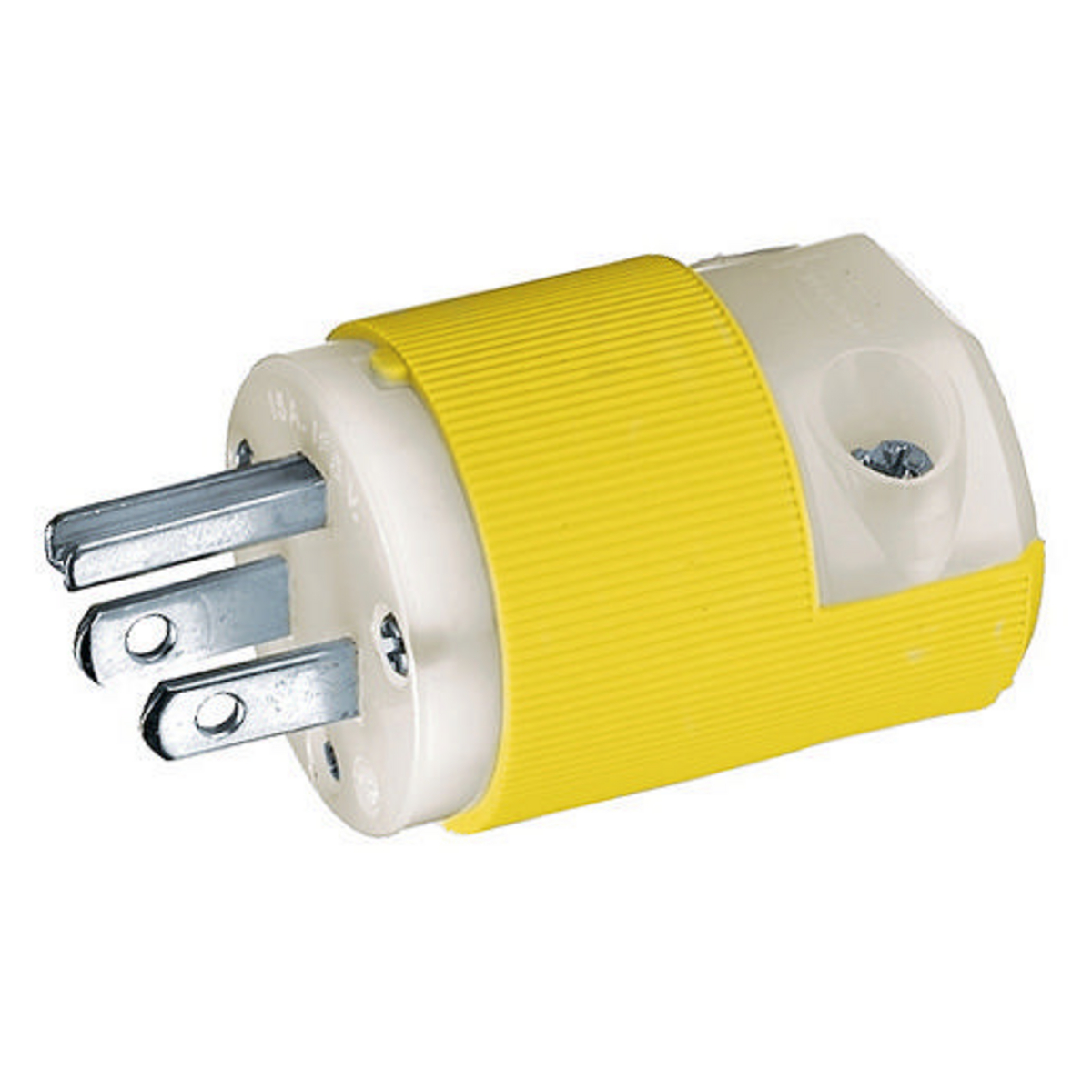

HUBBELL WIRING DEVICE-KELLEMS HBL52CM66C Plug 5-15p 15a 125v

Item: AC8QBNModel: HBL52CM66CCross Ref: 3D197

7 In Stock

Yellow

Color

0.23" to 0.72"

Cord Size

Nema Rating

Ships within 2 days via

~~€43.52~~

5.00% off

€41.34 /unit

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Plug
Amps	15A
Anti Microbial	No
Body Length	1.52"
Color	Yellow
Connection Orientation	Straight
Cord Size	0.23" to 0.72"
Finish	Corrosion Resistant
For Max. Cable Dia.	0.72"
For Min. Cable Dia.	0.23"
Grounding	Grounded
Housing Color	Yellow
Housing Material	Polycarbonate
Hp	1/2 hp
Insulation Material	Nylon
Ip Rating	IP20
Material	Nylon
Max. Operating Temp.	167°F
Max. Wire Size	10 AWG
Min. Operating Temp.	-40°F
Min. Wire Size	18 AWG
Nema Plug Configuration	5-15P
No. Of Blades	3
No. Of Poles	2
No. Of Wires	3
Outside Dia.	1.52"
Phase	1
Polarized	Yes
Product Datasheet	hubbell-wiring-device-kellems-hbl52cm66c.pdf
Resistance Properties	Chemical Resistant, Corrosion Resistant, Impact Resistant
Standards	Csa Certified C22.2 No. 42 File 280, Nema Wd-6, Ul 498 File E1706
Ul 94 Flammability Rating	HB
Voltage	125V AC
Wire Connection Type	Screw Terminal
Wiring Style	Standard
Wiring Type	Standard

Model	Amps	Voltage	Nema Plug Configuration	Wiring Style	Color	Material	Nema Rating	Cord Size	Price
HBL5466C	20A	250V AC	6-20P	Standard	Black, White	Nylon	NEMA 6-20P	0.23" to 0.72"	€61.79
HBL5666C	15A	250V AC	6-15P	Standard	Black, White	Nylon	NEMA 6-15P	0.23" to 0.72"	€17.88
HBL5866VY	15A	125V AC	1-15P	Hinged	Yellow	Nylon	NEMA 1-15P	0.218" to 0.385"	€29.90
HBL5364VBK	20A	125V AC	5-20P	Hinged	Black	Polycarbonate	NEMA 5-20P	0.22" to 0.66"	€40.58
HBL5464VY	20A	250V AC	6-20P	Hinged	Yellow	Nylon	NEMA 6-20P	0.22" to 0.66"	€42.67
HBL56CM66C	15A	250V AC	6-15P	Standard	Yellow	Nylon	NEMA 6-15P	0.23" to 0.72"	€56.30
HBL8364V	20A	125V AC	5-20P	Hinged	White	Nylon	NEMA 5-20P	0.3" to 0.66"	€47.23
