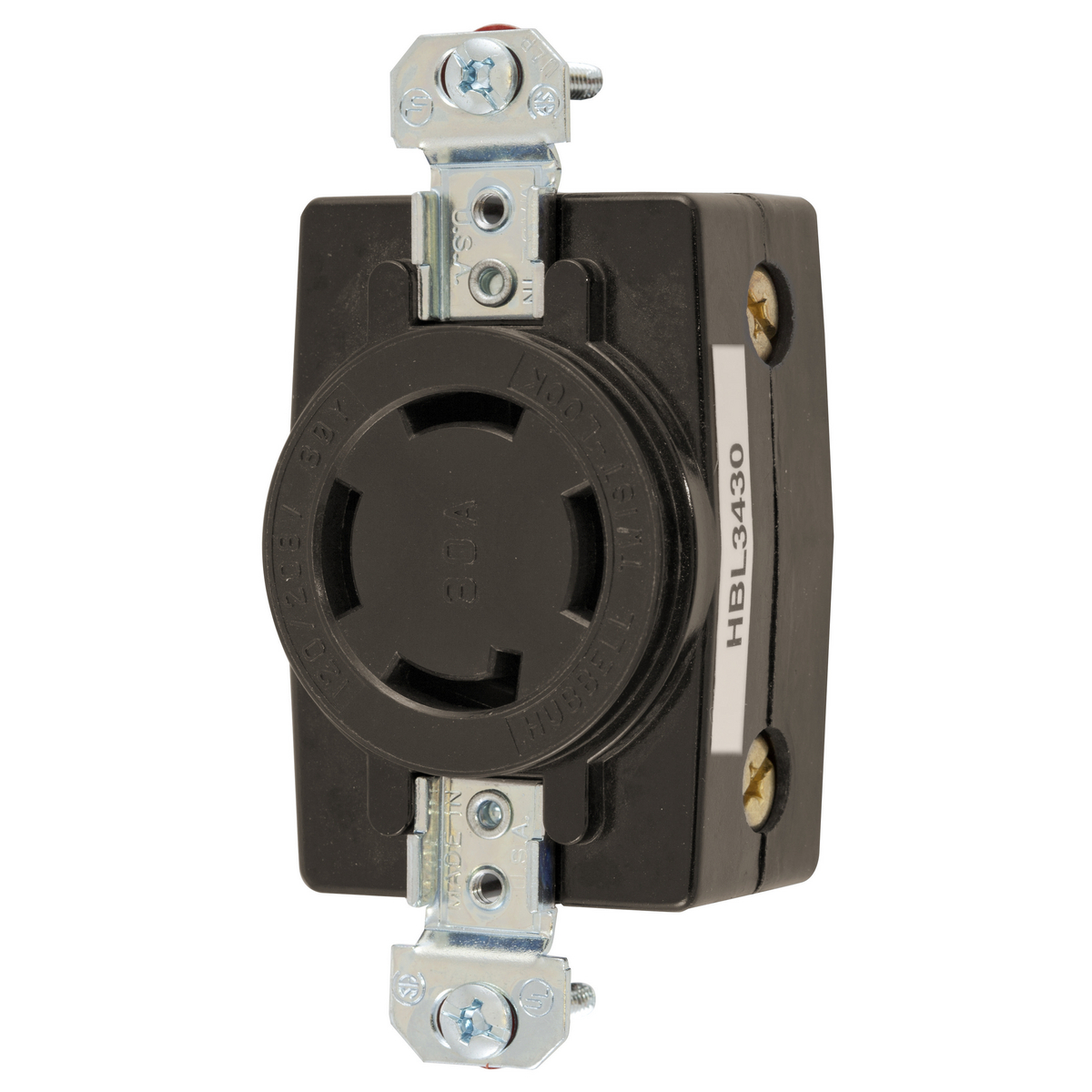

HUBBELL WIRING DEVICE-KELLEMS HBL3430 Flush Receptacle, 30A, 3-Phase, Wye 120/208VAC, 4-Pole, 4-Wire Non-Grounding
Item: AC8PYPModel: HBL3430Cross Ref: 3D114
7 In Stock
Not Available
Black
6240 W
Ships within 2 days via
10.00% off
€151.15 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 30A |
| Color | Black |
| Connection Orientation | Straight |
| Connectivity | Back Wired Screw Terminals |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 30A |
| Dielectric Strength | Withstands 2,000V minimum |
| Flange Type | Non Flanged |
| For Environment | Dry |
| For Location | Indoor |
| Grade | Grade Industrial |
| Grounding | Non Grounded |
| Height | 1 9/25" |
| Housing Color | Black |
| Housing Material | Nylon |
| Includes | Mounting Hardware |
| Includes Mounting Hardware | Yes |
| Ip Rating | IP20 |
| Length | 3.61" |
| Market | Industrial |
| Material | Nylon |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 8 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 16 AWG |
| Mounting | Screw Mounting |
| Mounting Type | Flush |
| Nema Configuration | Non-NEMA |
| Nema Enclosure Rating | 1 |
| Nema Rating | NEMA 12, NEMA 4X |
| Nema Receptacle Configuration | Non-NEMA |
| Number Of Gangs | 1 |
| Number Of Poles | 4 |
| Number Of Wires | 4 |
| Phase | 3 |
| Polarized | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-hbl3430.pdf |
| Resistance Properties | Corrosion Resistant |
| Shrouded | No |
| Type | Non Shrouded |
| Ul 94 Flammability Rating | V-2 |
| Voltage Rating | 120/208V AC |
| Wattage | 6240 W |
| Width | 1.71" |
| Wire Connection Type | Screw Terminals |
| Wire Size | 16 AWG to 8 AWG |
| Wire Type | Standard |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 3.45 |
| Ship length (cm) | 9.17 |
| Ship width (cm) | 4.34 |
| HS code | 8536698000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Number Of Poles | Number Of Wires | Phase | Current Rating | Voltage Rating | Ip Rating | Resistance Properties | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL2330 | 2 | 3 | 1 | 20A | 277V AC | IP20 | Corrosion Resistant | Nylon | €70.70 | |
 |
HBL2510 | 4 | 5 | 3 | 20A | 120/208V AC | IP20 | Corrosion Resistant | Nylon | €115.90 | |
 |
HBL2810 | 4 | 5 | 3 | 30A | 120/208V AC | IP20 | Corrosion Resistant | Nylon | €165.66 | |
 |
HBL2350 | 2 | 3 | 1 | 20A | 600V AC | IP20 | Corrosion Resistant | Nylon | €84.16 | |
 |
HBL2440 | 4 | 4 | 3 | 20A | 120/208V AC | IP30 | Corrosion Resistant | Nylon | €101.32 | |
 |
HBL2740 | 3 | 4 | 3 | - | - | - | - | Nylon | €133.52 | |
 |
HBL2750 | 4 | 4 | 3 | 30A | 120/208V AC | IP20 | Corrosion Resistant | Thermoplastic | €158.00 |
