DESTACO Rotary Actuators
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q| Style | Model | Bore Dia. | Height | Overall Height | Overall Width | Output Torque | Min. Operating Pressure | Shaft Dia. | Shaft Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | GR100-120OPYGZ | - | - | - | - | - | - | - | - | - | RFQ
|
| B | DRF-106M-180 | - | - | - | - | - | - | - | - | - | RFQ
|
| C | RR-46-180 | 1 1/4" | 3 1/2" | 2 1/8" | 3 1/2" | 122 lbs.-in. | 40 psi | 4 1/2" | 5/8" | €5,524.99 | |
| D | RR-46-90 | 1 1/4" | 3 1/2" | 2 1/8" | 3 1/2" | 122 lbs.-in. | 40 psi | 4 1/2" | 5/8" | €6,000.38 | |
| E | RR-36-90 | 1" | 3" | 1 3/4" | 3" | 65 lbs.-in. | 40 psi | 4" | 1/2" | €4,537.48 | |
| F | RR-18-90 | 1/2" | 0.969" | 1" | 2 1/4" | 6.5 lbs.-in. | 29.99 psi | 2 1/4" | 1/8" | €3,137.39 | |
| G | RR-18-180 | 1/2" | 0.969" | 1" | 2 1/4" | 6.5 lbs.-in. | 29.99 psi | 2 1/4" | 1/8" | €3,113.23 | |
| H | RR-28-180 | 3/4" | 1.313" | 1 5/16" | 3 3/8" | 22 lbs.-in. | 29.99 psi | 3 3/8" | 1/8" | €3,374.35 | |
| I | RR-28-90 | 3/4" | 1.313" | 1 5/16" | 3 3/8" | 22 lbs.-in. | 29.99 psi | 3 3/8" | 1/8" | €3,106.99 | |
| J | RR-18M-180 | 12.7 mm | 0.969" | 24.6 mm | 57.1 mm | 0.7 N-m | 29.99 psi | 57.15 mm | 3.18 mm | €2,853.35 | |
| K | RR-18M-90 | 12.7 mm | 0.969" | 24.6 mm | 57.1 mm | 0.7 N-m | 29.99 psi | 57.15 mm | 3.18 mm | €2,853.35 | |
| L | RR-28M-180 | 19.1 mm | 1.313" | 33.3 mm | 85.7 mm | 2.5 N-m | 29.99 psi | 85.73 mm | 3.18 mm | €3,240.54 | |
| M | RR-28M-90 | 19.1 mm | 1.313" | 33.3 mm | 85.7 mm | 2.5 N-m | 29.99 psi | 85.73 mm | 3.18 mm | €3,240.54 | |
| N | RR-36M-90 | 25.4 mm | 3" | 43.7 mm | 76.2 mm | 7.4 N-m | 40 psi | 101.6 mm | 12.7 mm | €4,277.54 | |
| O | RR-36M-180 | 25.4 mm | 3" | 43.7 mm | 76.2 mm | 7.4 N-m | 40 psi | 101.6 mm | 12.7 mm | €4,277.54 | |

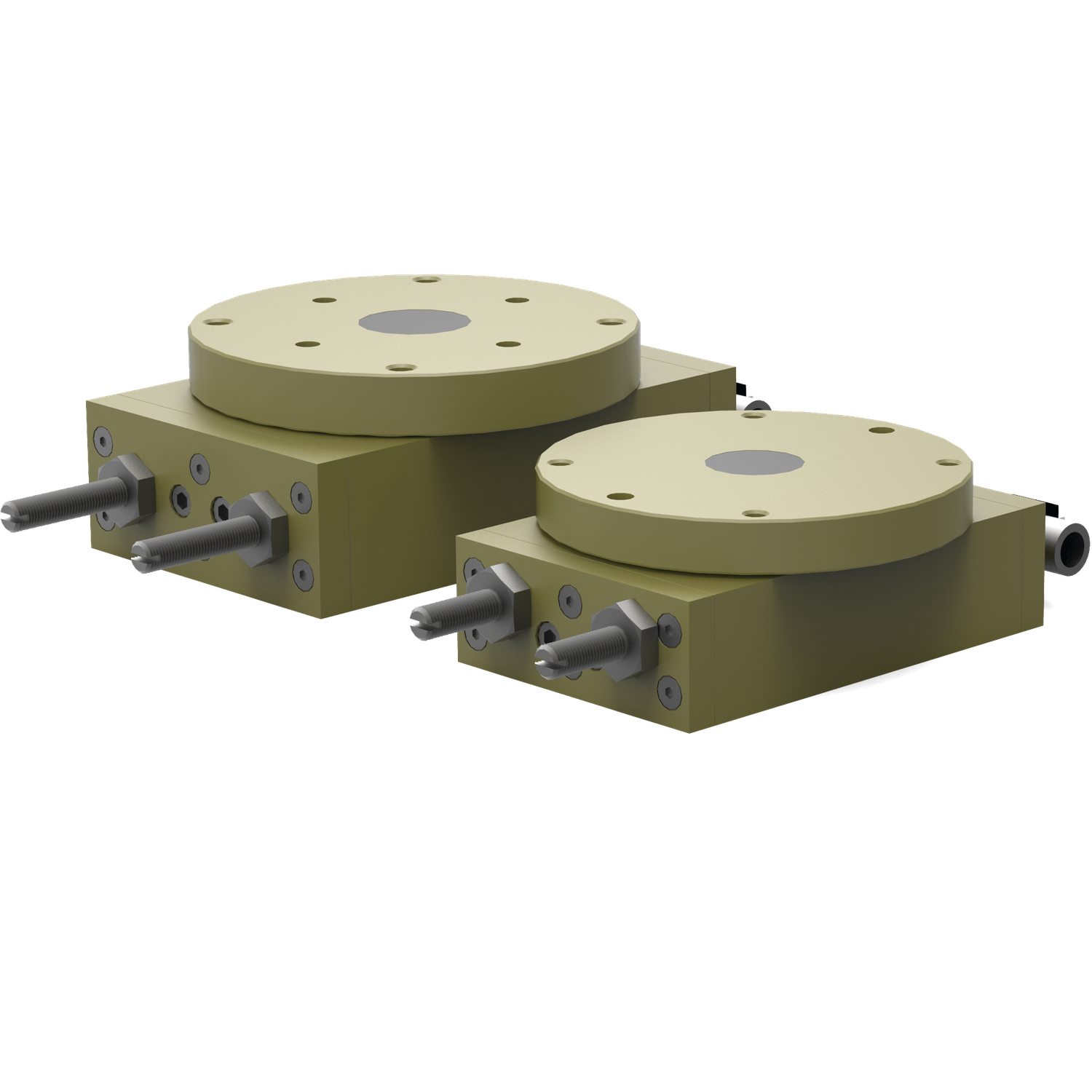

| P | RR-46M-90 | 31.75 mm | 3 1/2" | 54 mm | 88.9 mm | 14 N-m | 40 psi | 113.54 mm | 15.47 mm | €5,740.43 | |
| Q | RR-46M-180 | 31.75 mm | 3 1/2" | 54 mm | 88.9 mm | 14 N-m | 40 psi | 113.54 mm | 15.47 mm | €5,740.43 |
