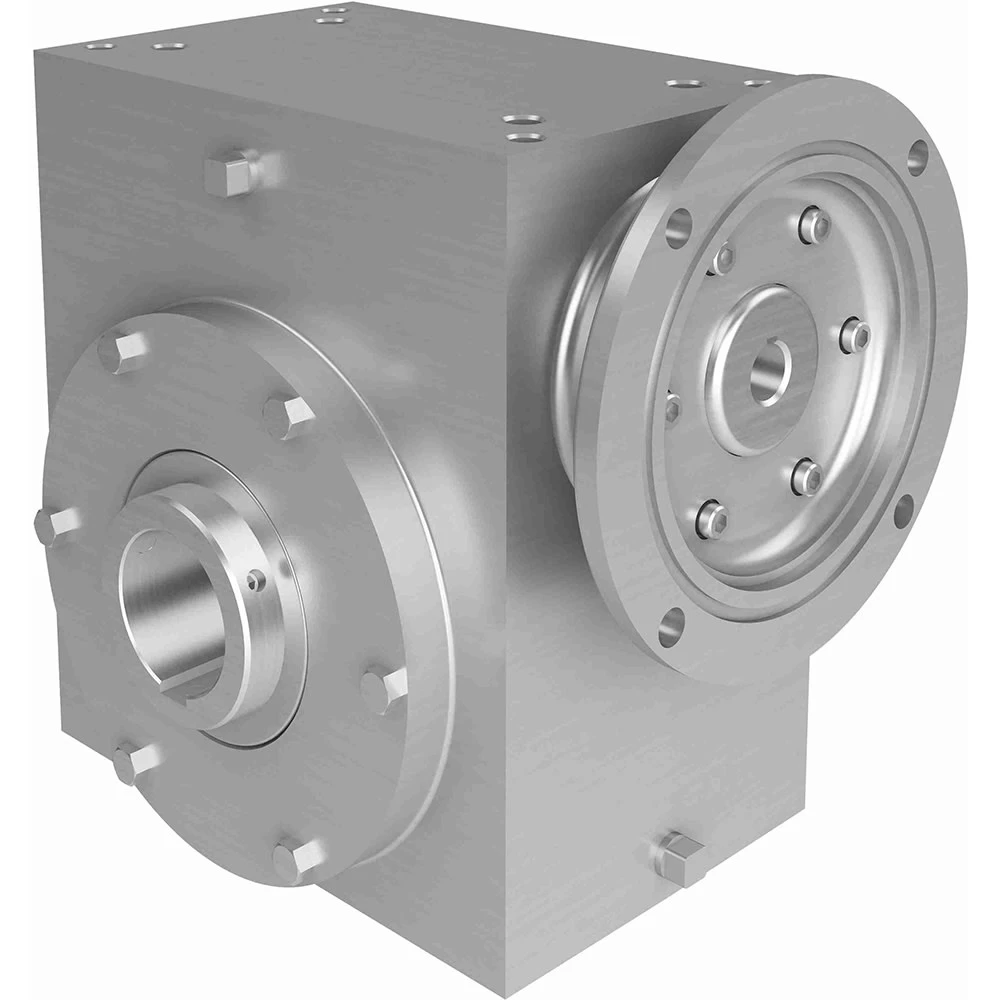

HUB CITY 0270-09326 Worm Reducer, 2.462 Hp, 1.438 Inch I.D, 0.625 Inch O.D, Stainless Steel
Get it by Tuesday, Dec 23
€4,968.82 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 3 1/4" |
| Center Distance Range | Above 3.25" |
| Frame Size | 56C |
| Gear Type | Worm Right Angle |
| Housing Material | Stainless Steel |
| Hp Range | 2 hp to 3 hp |
| Input Dia. | 5/8" |
| Input Style | C Face Quill |
| Keyway Size | 3/16" x 3/32" |
| Max. Input Hp | 2.462 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1.438" |
| Output Rpm | 35 RPM |
| Output Shaft | Hollow Bore |
| Output Shaft Direction | Left Or Right |
| Output Torque Range | 2500 lbs.-in. to 5000 lbs.-in. |
| Product Line | Stainless Steel Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 50:1 |
| Service Factor | 1 |
| Style | A |
| Torque Rating | 3315 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 35.55 |
| Ship height (cm) | 38.1 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 38.1 |
Product Variants
| Product | Model | Max. Input Hp | Frame Size | Gear Type | Housing Material | Height | Output Type | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
0270-09458 | 2.462 hp | 140TC | Worm Right Angle | Stainless Steel | - | - | €4,968.82 | |
 |
0270-09576 | 3.619 hp | 180TC | Worm Right Angle | Stainless Steel | - | - | €5,021.79 | |
 |
0270-09589 | 2.926 hp | 180TC | Worm Right Angle | Stainless Steel | - | - | €5,021.79 | |
 |
0270-09664 | 1.03 hp | 180TC | Worm Right Angle | Stainless Steel | - | - | €5,021.79 | |
 |
0270-09680 | - | - | Worm Right Angle | Stainless Steel | - | - | - | RFQ
|
 |
0270-09869 | 0.691 hp | 56C | Worm Right Angle | Stainless Steel | - | - | €4,968.82 | |
 |
0270-10122 | - | - | Worm Right Angle | Stainless Steel | - | - | - | RFQ
|
