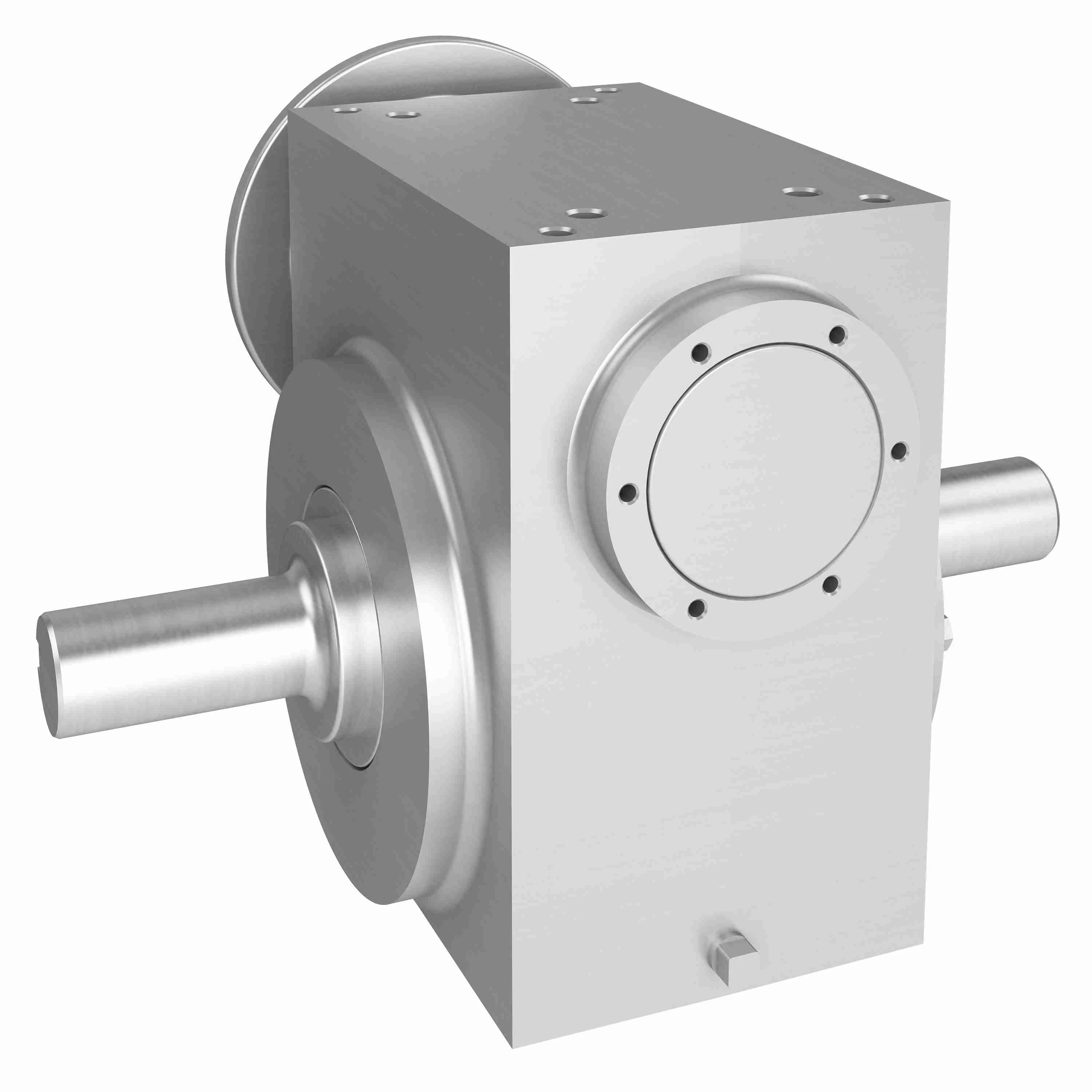

HUB CITY 0270-09189 Worm Reducer, 6.127 Hp, 1.500 Inch I.D, 0.875 Inch O.D, Stainless Steel
Get it by Friday, Aug 28
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 3 1/4" |
| Gear Type | Worm Right Angle |
| Housing Material | Stainless Steel |
| Input Dia. | 7/8" |
| Input Hp | 6.127 hp |
| Input Style | C Face Quill |
| Keyway | 3/16" x 3/32" |
| Motor Frame Size | 140TC |
| Mounting Style | A |
| Output | 116.7 RPM |
| Output Dia. | 1 1/2" |
| Output Shaft | Shaft |
| Output Shaft Direction | Left, Right |
| Output Torque Rating | 2980 lbs.-in. |
| Overhung Load | 1100 lbs.-in. |
| Ratio | 15:1 |
| Reduction | Single |
| Service Factor | 1 |
| Style | A |
Shipping Info:
| Ship weight (kg) | 35.55 |
| Ship height (cm) | 38.1 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 38.1 |
Product Variants
| Product | Model | Input Dia. | Output Speed | Max. Input Hp | Input Style | Style | Ratio | Overhung Load | Output Shaft Direction | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0270-09171 | 5/8" | 29.2 RPM | 2.114 hp | C Face Quill | B | 60:1 | 1100 | Left | €3,609.58 | |
 |
0270-09183 | 5/8" | 29.2 RPM | 2.114 hp | C Face Quill | C | 60:1 | 1100 | Right | €3,609.58 | |
 |
0270-09162 | 5/8" | - | - | C Face Quill | B | 5:1 | 1100 lbs.-in. | Left | - | RFQ
|
 |
0270-09161 | 5/8" | - | - | C Face Quill | A | 100:1 | 1100 lbs.-in. | Left, Right | - | RFQ
|
|
0270-09166 | 5/8" | - | - | C Face Quill | B | 20:1 | 1100 lbs.-in. | Left | - | RFQ
|
|
0270-09197 | 7/8" | - | - | C Face Quill | A | 100:1 | 1100 lbs.-in. | Left, Right | - | RFQ
|
|
0270-09204 | 7/8" | - | - | C Face Quill | B | 30:1 | 1100 lbs.-in. | Left | - | RFQ
|
