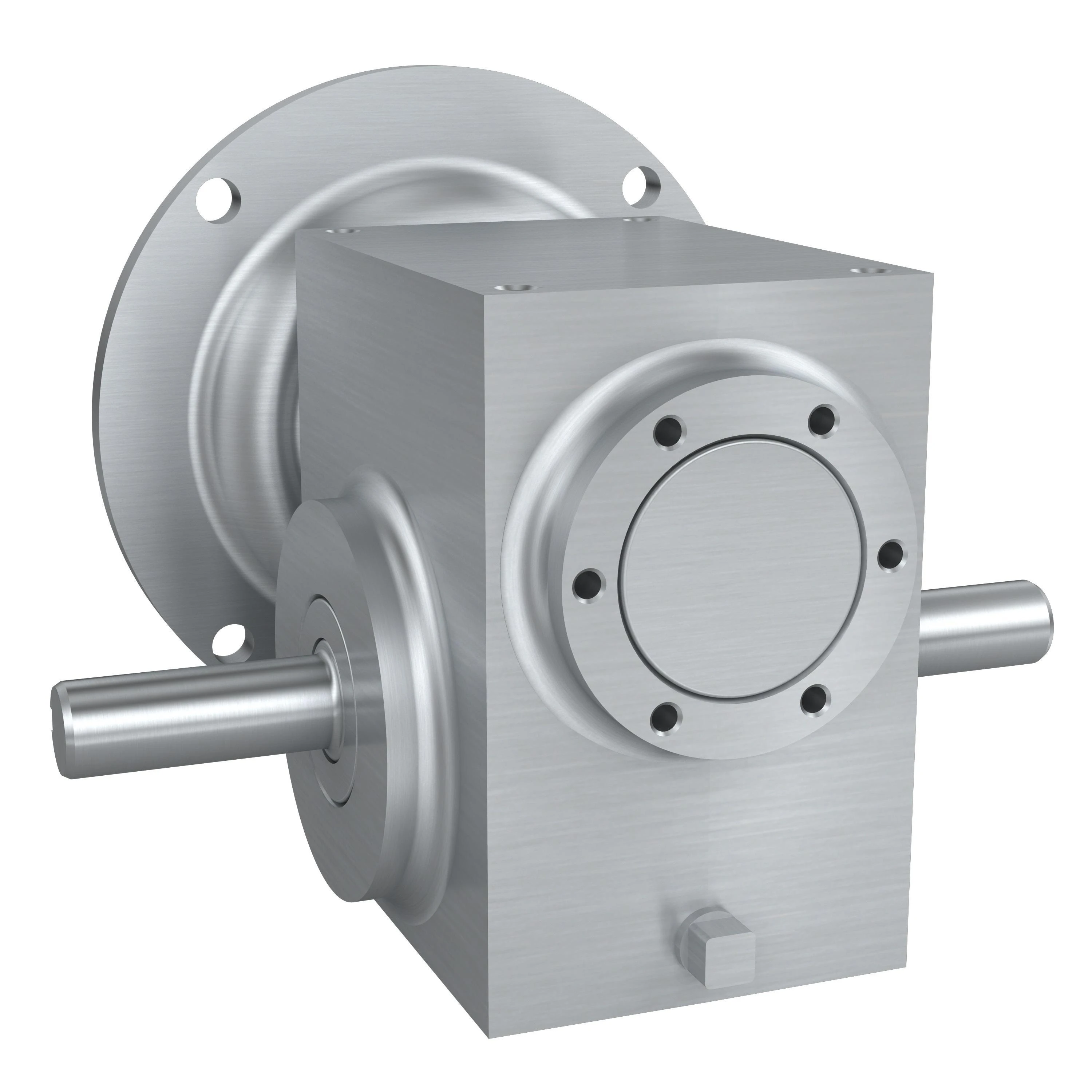

HUB CITY 0270-07428 Worm Reducer, 0.63 Hp, 0.750 Inch I.D, 0.875 Inch O.D, Stainless Steel
Get it by Friday, Apr 10
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 1.54" |
| Gear Type | Worm Right Angle |
| Housing Material | Stainless Steel |
| Input Diameter | 7/8" |
| Input Hp | 63/100 hp |
| Input Style | C Face Quill |
| Keyway | 3/16" x 3/32" |
| Motor Frame Size | 140TC |
| Mounting Style | A |
| Output | 58.3 RPM |
| Output Diameter | 3/4" |
| Output Shaft | Shaft |
| Output Shaft Direction | Left, Right |
| Output Torque Rating | 478 lbs.-in. |
| Overhung Load | 860 lbs.-in. |
| Ratio | 30:1 |
| Reduction | Single |
| Service Factor | 1 |
| Style | A |
Shipping Info:
| Ship weight (kg) | 9.45 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 22.86 |
Product Variants
| Product | Model | motor frame size | output | ratio | gear type | center distance | input style | housing material | service factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

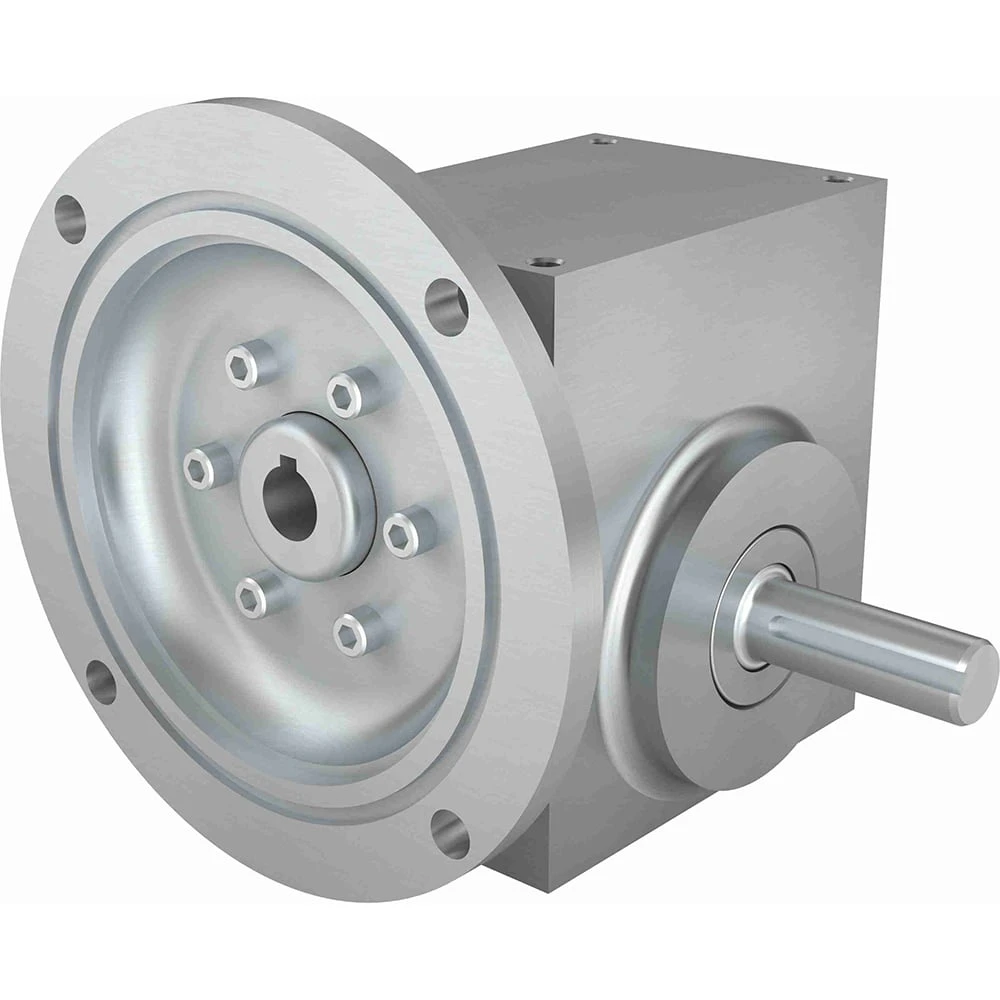

0270-07416 | 56C | 58.3 RPM | 30:1 | Worm Right Angle | 1.54" | C Face Quill | Stainless Steel | 1 | €1,678.52 | |
 |

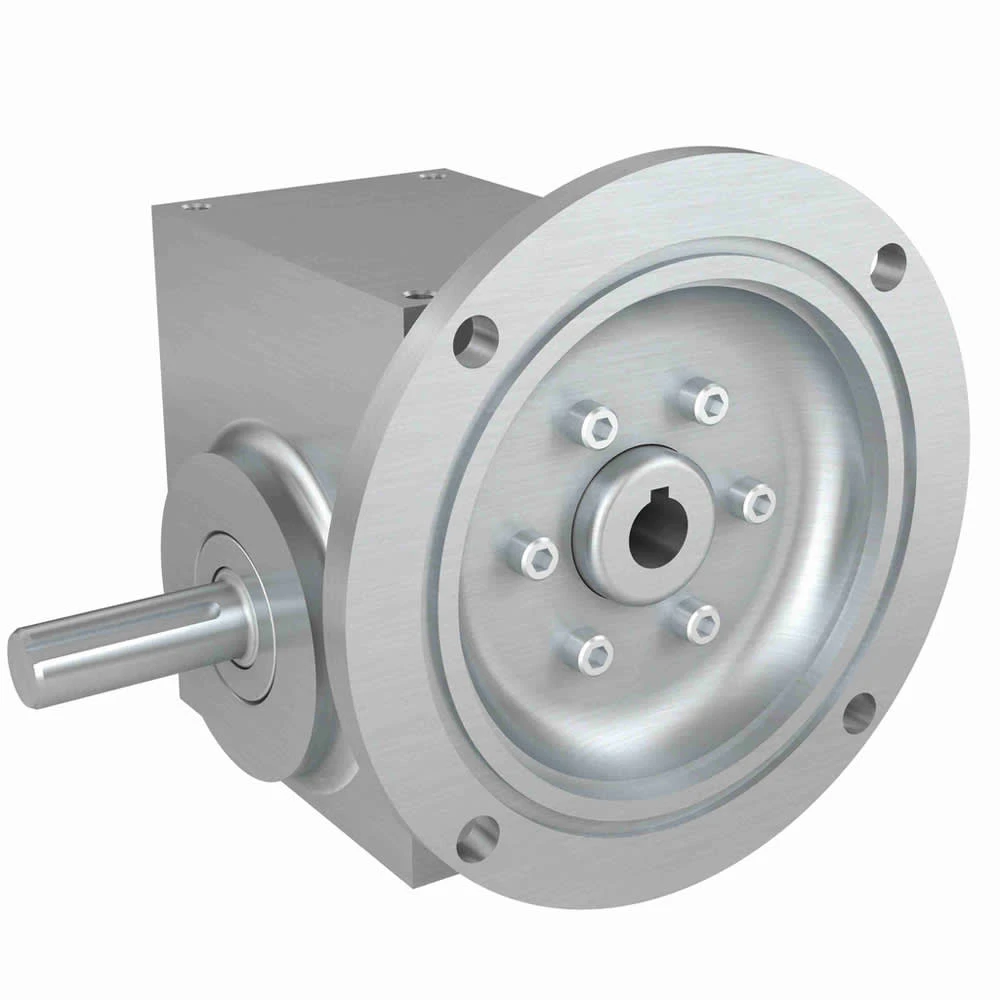

0270-07401 | 56C | 116.7 RPM | 15:1 | Worm Right Angle | 1.54" | C Face Quill | Stainless Steel | 1 | €1,678.52 | |
 |
0270-07404 | 56C | 58.3 RPM | 30:1 | Worm Right Angle | 1.54" | C Face Quill | Stainless Steel | 1 | €1,678.52 | |
 |
0270-07405 | 56C | 43.75 RPM | 40:1 | Worm Right Angle | 1.54" | C Face Quill | Stainless Steel | 1 | €1,678.52 | |
 |

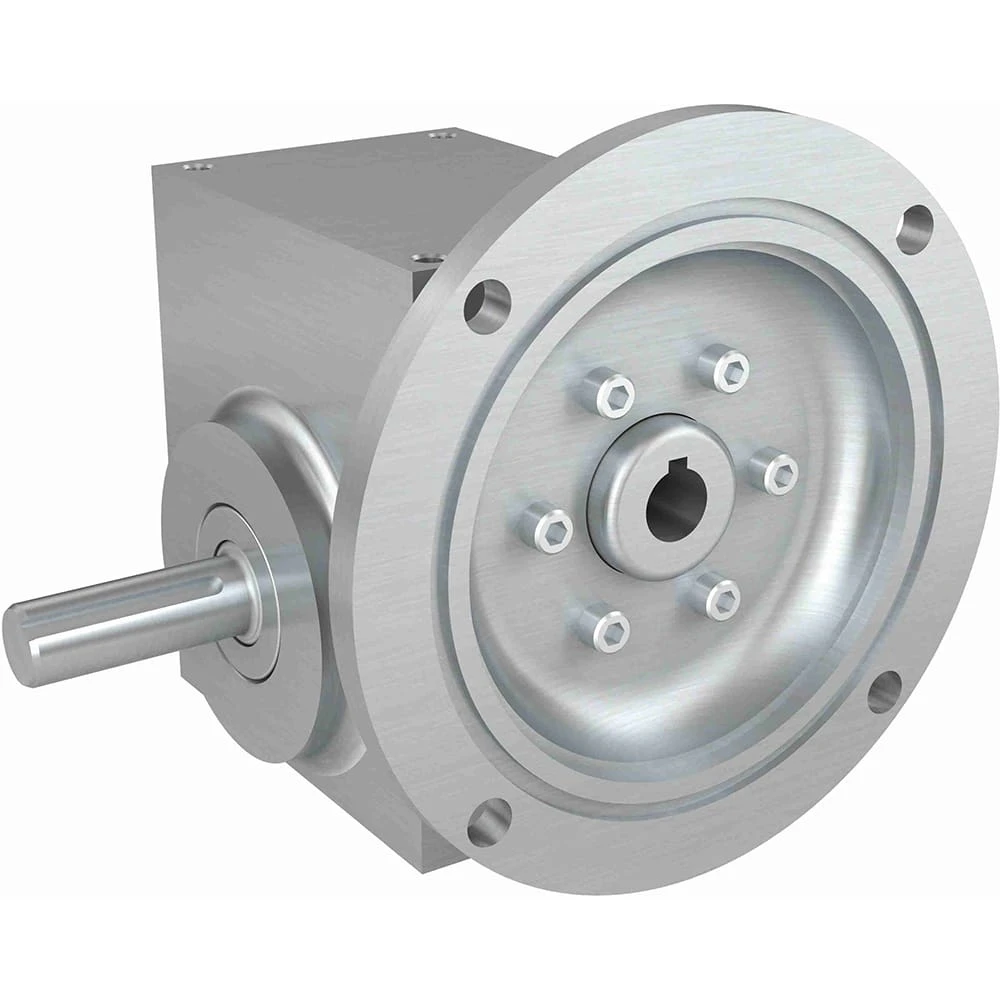

0270-07407 | 56C | 29.2 RPM | 60:1 | Worm Right Angle | 1.54" | C Face Quill | Stainless Steel | 1 | €1,678.52 | |
 |

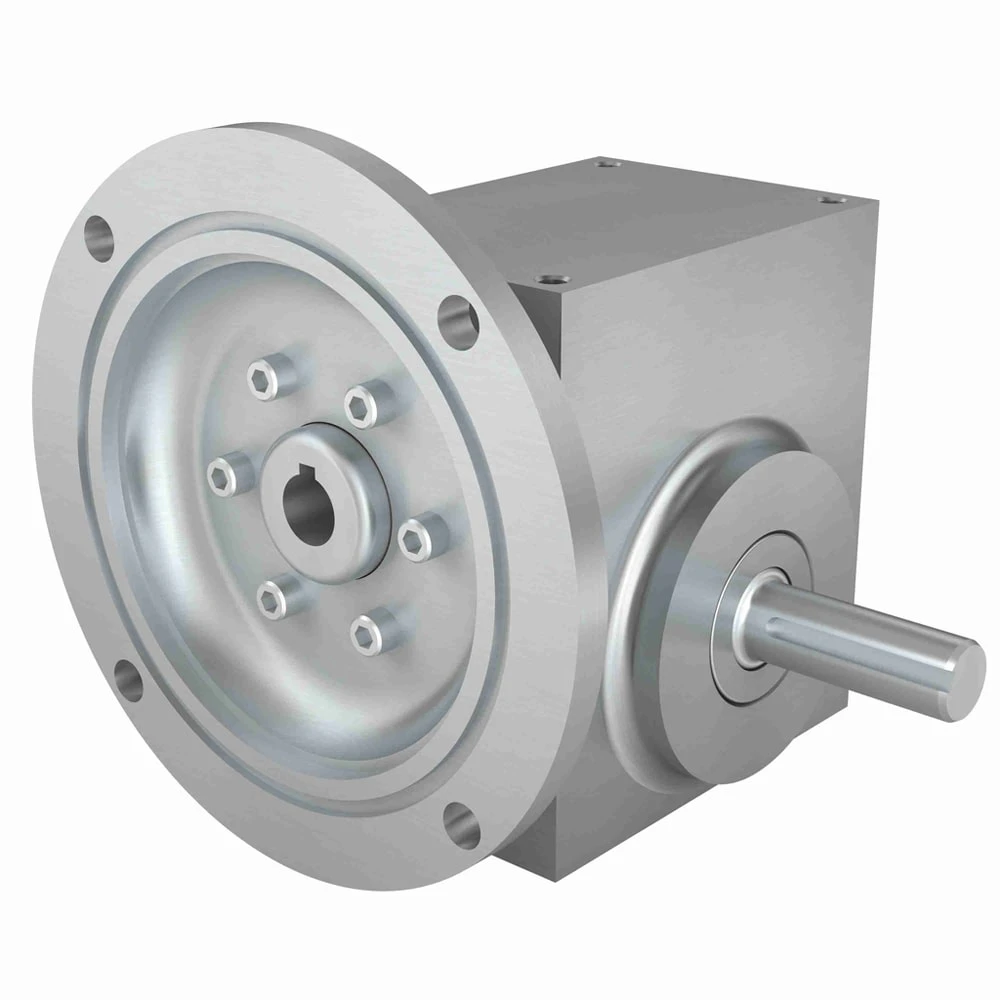

0270-07413 | 56C | 116.7 RPM | 15:1 | Worm Right Angle | 1.54" | C Face Quill | Stainless Steel | 1 | €1,678.52 | |
 |
0270-07419 | 56C | 29.2 RPM | 60:1 | Worm Right Angle | 1.54" | C Face Quill | Stainless Steel | 1 | €1,678.52 |
