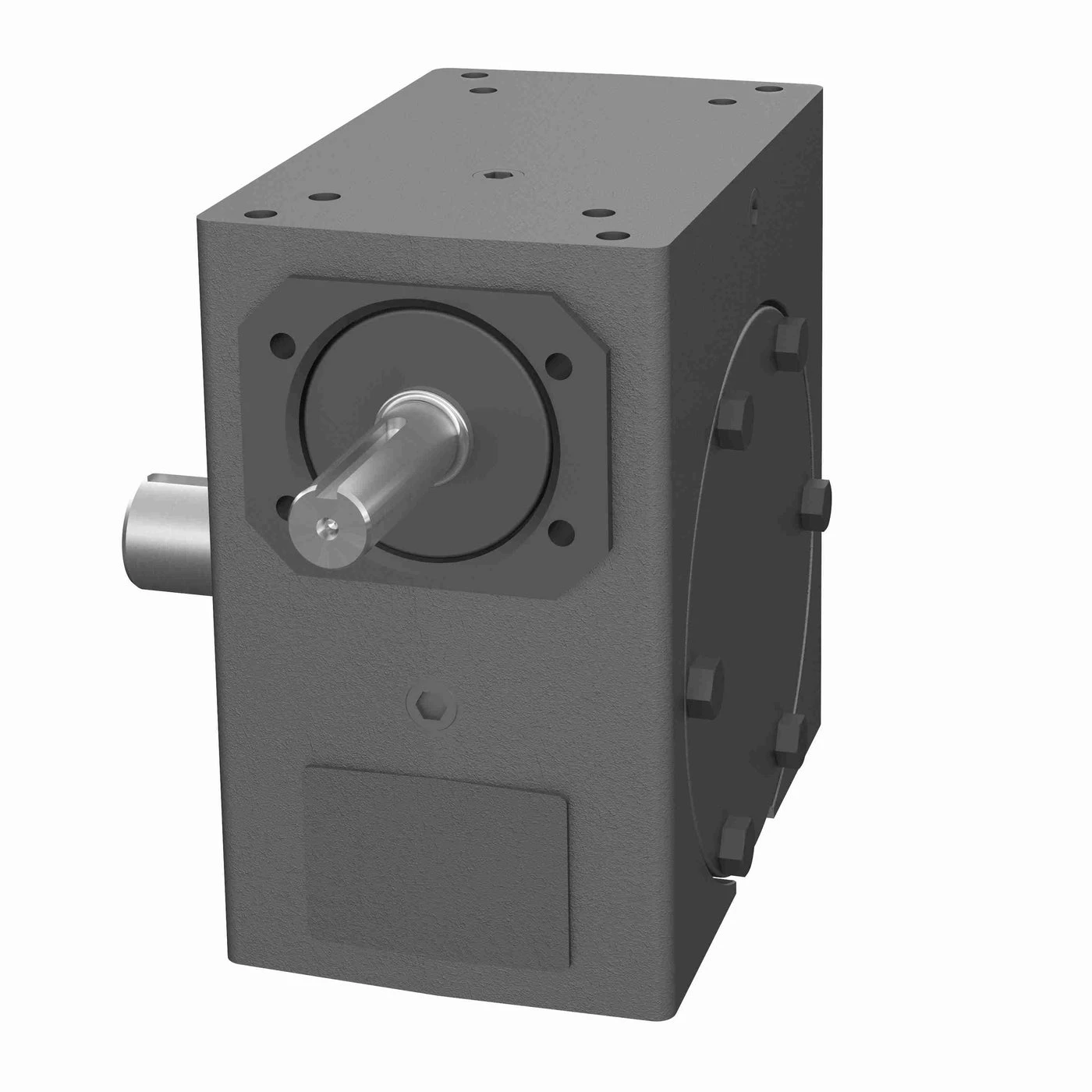

HUB CITY 0230-06966 Worm Reducer, 3.49 Hp, 1.250 Inch I.D, 0.75 Inch O.D, Cast Iron
Get it by Tuesday, Sep 1
€1,211.04 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 1" to 3 1/4" , 2.63" |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Hp | 3 hp to 5 hp |
| Input Dia. | 3/4" |
| Input Style | Shaft |
| Max. Input Hp | 3.49 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1 1/4" |
| Output Shaft | Shaft |
| Output Shaft Direction | Left |
| Output Speed | 117 RPM |
| Output Torque | 1000 lbs.-in. to 2500 lbs.-in. |
| Product Datasheet | hub-city-0230-06967.pdf |
| Product Line | Powercubex Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 15:1 |
| Service Factor | 1 |
| Style | B |
| Torque | 1570 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 16.65 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 25.4 |
Documentation:
Product Variants
| Product | Model | Output Dia. | Input Dia. | Output Speed | Max. Input Hp | Input Style | Style | Output Shaft | Ratio | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0230-07306 | 1 1/4" | 5/8" | 43.8 RPM | 1 29/50 hp | C Face Quill | A | Hollow Bore | 40:1 | €1,599.67 | |
 |
0230-07330 | 1 1/2" | 5/8" | - | - | C Face Quill | A | Hollow Bore | 40:1 | €1,847.63 | |
 |
0230-07637 | 1" | 5/8" | 175 RPM | 5 hp | C Face Quill | R | Hollow Bore | 10:1 | €1,722.02 | |
 |
0230-06955 | 1 1/4" | 3/4" | 87.5 RPM | 2.83 hp | Shaft | A | Shaft | 20:1 | €1,486.36 | |
 |
0230-07315 | 1.438" | 5/8" | 87.5 RPM | 2.83 hp | C Face Quill | A | Hollow Bore | 20:1 | €1,599.67 | |
 |
0230-07175 | 1 1/4" | 5/8" | 35 RPM | 1.27 hp | C Face Quill | A | Shaft | 50:1 | €1,260.16 | |
 |
0230-07304 | 1 1/4" | 5/8" | 70 RPM | 2.31 hp | C Face Quill | A | Hollow Bore | 25:1 | €1,847.63 |
