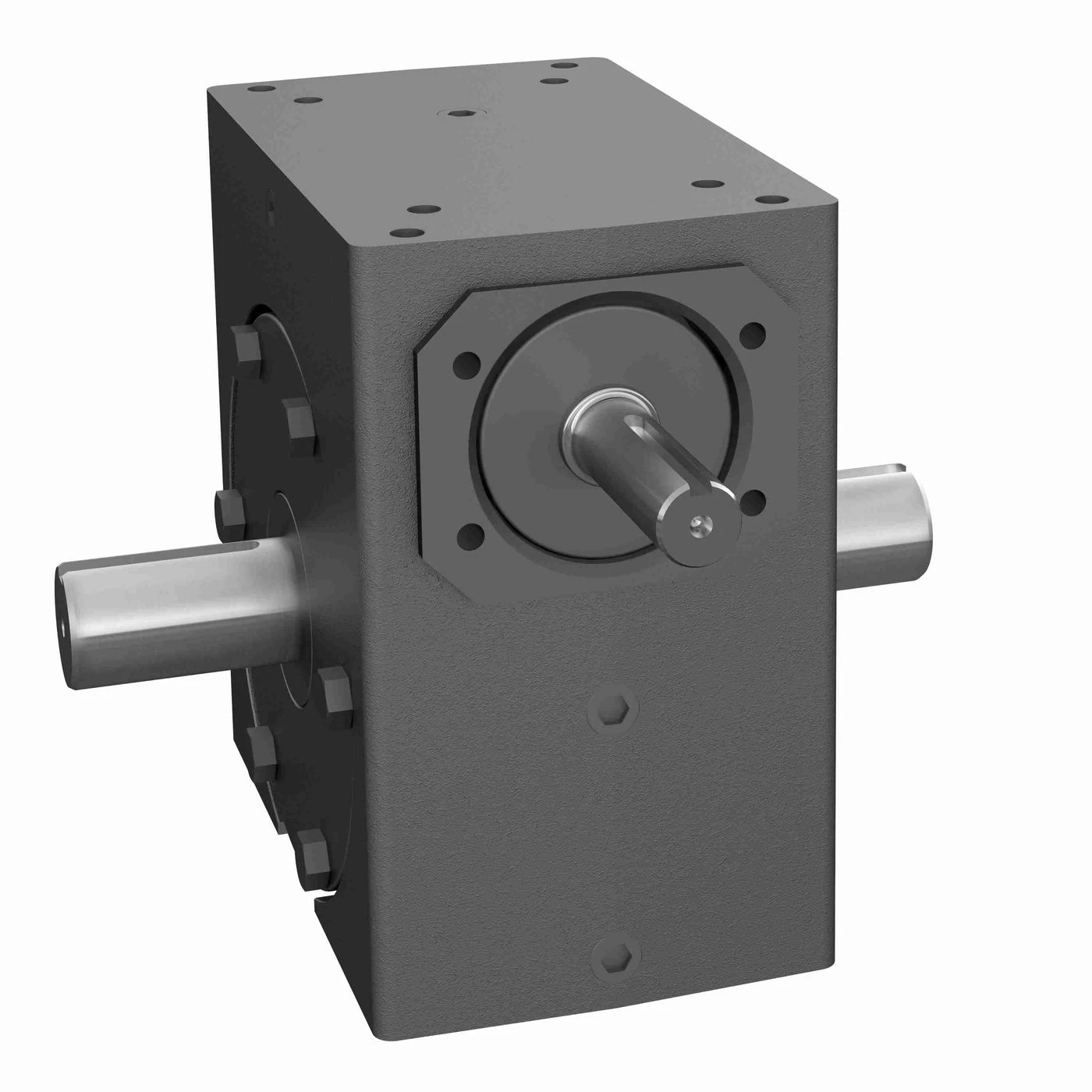

HUB CITY 0230-06954 Worm Reducer, 3.49 Hp, 1.250 Inch I.D, 0.75 Inch O.D, Cast Iron
Get it by Monday, Dec 22
€1,048.52 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 2.63" |
| Center Distance Range | 1" to 3 1/4" |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Hp Range | 3 hp to 5 hp |
| Input Dia. | 3/4" |
| Input Style | Shaft |
| Keyway Size | 3/16" x 3/32" |
| Max. Input Hp | 3.49 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1 1/4" |
| Output Rpm | 117 RPM |
| Output Shaft | Shaft |
| Output Shaft Direction | Double |
| Output Shaft Orientation | LR |
| Output Torque Range | 1000 lbs.-in. to 2500 lbs.-in. |
| Overhung Load | 1150 |
| Product Line | Powercubex Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 15:1 |
| Service Factor | 1 |
| Style | A |
| Torque Rating | 1570 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 16.65 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 25.4 |
Product Variants
| Product | Model | Max. Input Hp | Frame Size | Gear Type | Overhung Load | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|
 |
0230-07306 | 1 29/50 hp | 56C | Worm | - | Cast Iron | €1,599.67 | |
 |
0230-07330 | - | - | Worm | - | Cast Iron | €1,847.63 | RFQ
|
 |
0230-07637 | 5 hp | 56C | Worm | - | Cast Iron | €1,722.02 | |
 |
0230-06955 | 2.83 hp | - | Worm | 1150 | Cast Iron | €1,486.36 | |
 |
0230-07315 | 2.83 hp | 56C | Worm | - | Cast Iron | €1,599.67 | |
 |
0230-07175 | 1.27 hp | 56C | Worm | 1150 | Cast Iron | €1,260.16 | |
 |
0230-07304 | 2.31 hp | 56C | Worm | - | Cast Iron | €1,847.63 |
