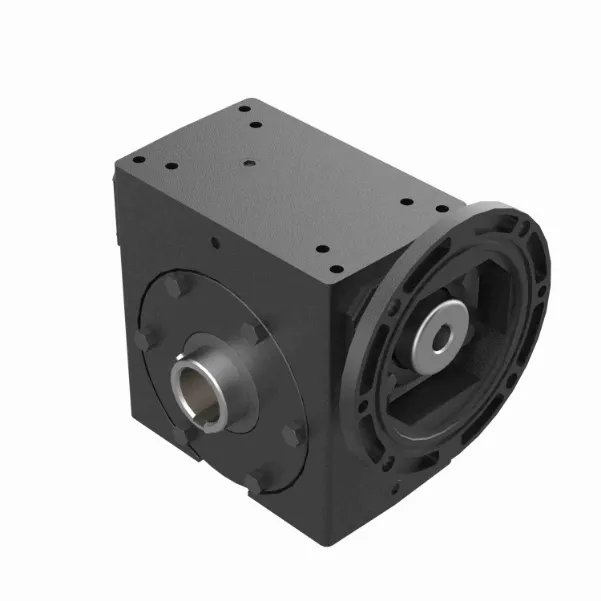

HUB CITY 0230-07304 Worm Reducer, 2.31 Hp, 1.250 Inch I.D, 0.625 Inch O.D, Cast Iron
Get it by Tuesday, Apr 14
€1,847.63 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 2.63" |
| Center Distance Range | 1" to 3 1/4" |
| Frame Size | 56C |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Hp Range | 2 hp to 3 hp |
| Input Dia. | 5/8" |
| Input Style | C Face Quill |
| Keyway Size | 3/16" x 3/32" |
| Max. Input Hp | 2.31 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1 1/4" |
| Output Rpm | 70 RPM |
| Output Shaft | Hollow Bore |
| Output Shaft Direction | Left Or Right |
| Output Torque Range | 1000 lbs.-in. to 2500 lbs.-in. |
| Product Datasheet | hub-city-0230-47178.pdf |
| Product Line | Powercubex Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 25:1 |
| Service Factor | 1 |
| Style | A |
| Torque Rating | 1640 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 17.1 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 25.4 |
Documentation:
Product Variants
| Product | Model | max. input hp | input style | output shaft | ratio | output rpm | frame size | output | output diameter | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0230-07306 | 1 29/50 hp | C Face Quill | Hollow Bore | 40:1 | 43.8 RPM | 56C | - | - | €1,599.67 | |
 |
0230-07330 | - | C Face Quill | Hollow Bore | 40:1 | - | - | 43.8 RPM | 1 1/2" | €1,847.63 | RFQ
|
 |
0230-07637 | 5 hp | C Face Quill | Hollow Bore | 10:1 | 175 RPM | 56C | - | - | €1,722.02 | |
 |
0230-06955 | 2.83 hp | Shaft | Shaft | 20:1 | 87.5 RPM | - | - | - | €1,486.36 | |
 |
0230-07315 | 2.83 hp | C Face Quill | Hollow Bore | 20:1 | 87.5 RPM | 56C | - | - | €1,599.67 | |
 |
0230-07175 | 1.27 hp | C Face Quill | Shaft | 50:1 | 35 RPM | 56C | - | - | €1,260.16 | |
 |
0230-07303 | 2.83 hp | C Face Quill | Hollow Bore | 20:1 | 87.5 RPM | 56C | - | - | €1,599.67 |
