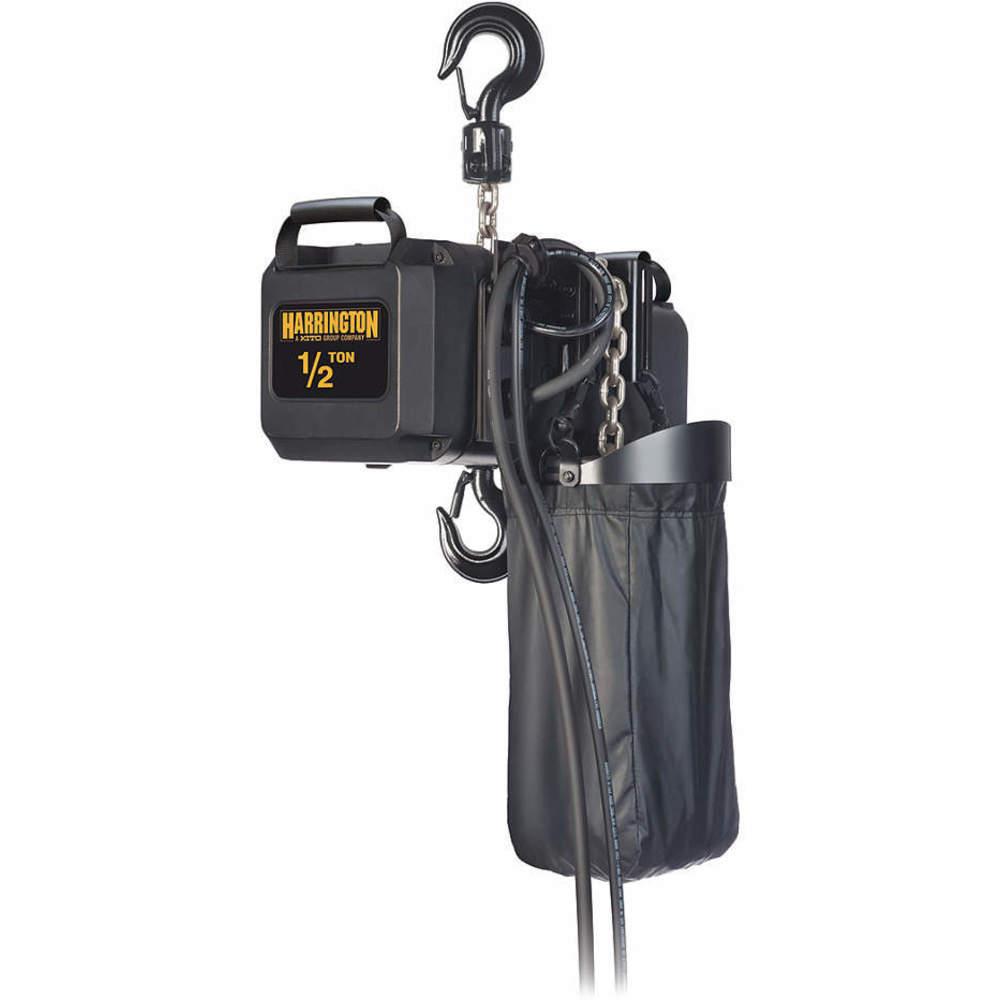

HARRINGTON TNER005L-10 Electric Theatre Chain Hoist 1000lb 10ft
Get it by Tuesday, Feb 17
10.00% off
€6,018.59 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Theatre Chain Hoist |
| Amperage Draw | 3.7A |
| Amps @ Low Volts | 3.7A |
| Body Depth | 14 3/16" |
| Body Finish | Enamel |
| Body Length | 18 11/16" |
| Body Material | Aluminum |
| Body Width | 7 7/8" |
| Brake Type | Pull Rotor |
| Capacity | 1000 lbs. |
| Chain Finish | Nickel Plated |
| Classification | H3 |
| Clutch | Friction Clutch |
| Clutch Type | Friction Clutch |
| Color | Black |
| Configuration | Hook Mounted - No Trolley |
| Controller Cord Length | 2.5 ft. |
| Duty Classification | H3 - Standard Duty |
| Features | Easy Lift Handles, Non Drip, Grease Packed Gearbox, Plug And Play Voltage Changer, Quiet Load Sheave, Self Adjusting Pull Rotor Motor Brake, Standard Overload Protection, Unique Chain Guide |
| Finish | Enamel |
| Fits Brand | Harrington Hoists Inc |
| Fixed Lift Speed | 16 FPM |
| For Max. Beam Height | Not Applicable |
| For Maximum Beam Flange Width | Not Applicable |
| For Minimum Beam Flange Width | Not Applicable |
| For Minimum Beam Height | Not Applicable |
| For Outdoor Use | Yes |
| Headroom | 13 3/16" |
| Headroom Size | 13 3/16" |
| Hoist Ip Rating | IP55 |
| Housing Depth | 13 13/16" |
| Housing Length | 18 11/16" |
| Housing Width | 7 7/8" |
| Includes | Chain Container, Safety Latch Hook |
| Includes Brake | Brake Included |
| Includes Clutch | Clutch Included |
| Lift | 10 ft. |
| Lift Speed | 16 FPM |
| Lifting Capacity | 1000 lbs. |
| Lifting Hook Material | Carbon Steel |
| Lifting Hook Opening Width | 29/32" |
| Lifting Hook Type | Swivel Hook With Safety Latch |
| Load Capacity | 1000 lbs. |
| Lubrication | Grease |
| Manufacturers Warranty Length | 1 yr. |
| Max Current Draw | 3.7A |
| Maximum Lift Speed | Not Applicable |
| Maximum Lifting Length | 10 ft. |
| Maximum Pulling Capacity | Not Applicable |
| Min. Between Hooks | 13 13/16" |
| Min. Radius Curve | Not Applicable |
| Minimum Lift Speed | Not Applicable |
| Minimum Retracted Length | 13 3/16" |
| Motor Hp | 5/8 hp |
| Mount Type | Hook Mounted - No Trolley |
| Number Of Load Chains | 1 |
| Number Of Reeves | 1 |
| Number Of Speeds | 1 |
| Operating Voltage | 208-230/460V AC |
| Overload Protection Included | Yes |
| Pendant Ip Rating | Not Applicable |
| Phase | 3 |
| Reeving | 1 |
| Speed Programmability | Non Programmable |
| Starts And Stops Per Hour | 150 |
| Thermal Protection | Included |
| Tonnage - Lifting Capacity | 0.5 ton. |
| Trolley Wheel Dia. | Not Applicable |
| Trolley Wheel Material | Not Applicable |
| Voltage | 230/460V |
Shipping Info:
| Ship weight (kg) | 35.1 |
| Ship height (cm) | 48.26 |
| Ship length (cm) | 63.5 |
| Ship width (cm) | 43.18 |
| HS code | 8425110000 |
Product Variants
| Product | Model | Lifting Capacity | Motor Hp | Lift Speed | Lifting Hook Opening Width | Max Current Draw | Minimum Retracted Length | Body Depth | Body Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TNER010L-10 | 2000 lbs. | 1 1/4 hp | 16 FPM | 1 3/16" | 5.6A | 16 3/32" | 15" | 20" | €7,415.93 | |
 |
TNER020L-10 | 4000 lbs. | 1 1/4 hp | 8 FPM | 1 1/2" | 5.6A | 22 13/16" | 15" | 20" | €8,984.05 |
