HARRINGTON TNER005L-60 Electric Theatre Chain Hoist 1000lb 60ft
Get it by Tuesday, Jul 7
€6,790.28 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Theatre Chain Hoist |
| Amps @ Low Voltage | 3.7A |
| Amps Draw | 3.7A |
| Body Depth | 14 3/16" |
| Body Finish | Enamel |
| Body Length | 18 11/16" |
| Body Material | Aluminum |
| Body Width | 7 7/8" |
| Brake Type | Pull Rotor |
| Capacity | 1000 lbs. |
| Chain Finish | Nickel Plated |
| Classification | H3 |
| Clutch | Friction Clutch |
| Clutch Type | Friction Clutch |
| Color | Black |
| Configuration | Hook Mounted - No Trolley |
| Controller Cord Length | 2.5 ft. |
| Duty Classification | H3 - Standard Duty |
| Features | Easy Lift Handles, Non Drip, Grease Packed Gearbox, Plug And Play Voltage Changer, Quiet Load Sheave, Self Adjusting Pull Rotor Motor Brake, Standard Overload Protection, Unique Chain Guide |
| Finish | Enamel |
| Fits Brand | Harrington Hoists Inc |
| Fixed Lift Speed | 16 FPM |
| For Max. Beam Flange Width | Not Applicable |
| For Max. Beam Height | Not Applicable |
| For Min. Beam Flange Width | Not Applicable |
| For Min. Beam Height | Not Applicable |
| For Outdoor Use | Yes |
| Head Room | 13 3/16" |
| Headroom Size | 13 3/16" |
| Hoist Ip Rating | IP55 |
| Housing Depth | 13 13/16" |
| Housing Length | 18 11/16" |
| Housing Width | 7 7/8" |
| Included | Chain Container, Safety Latch Hook |
| Included Brake | Brake Included |
| Included Clutch | Clutch Included |
| Lift | 60 ft. |
| Lift Speed | 16 FPM |
| Lifting Capacity | 1000 lbs. |
| Lifting Hook Material | Carbon Steel |
| Lifting Hook Opening Width | 29/32" |
| Lifting Hook Type | Swivel Hook With Safety Latch |
| Load Capacity | 1000 lbs. |
| Lubrication | Grease |
| Max. Amps | 3.7A |
| Max. Lift Speed | Not Applicable |
| Max. Lifting Length | 60 ft. |
| Max. Pulling Capacity | Not Applicable |
| Min. Between Hooks | 13 13/16" |
| Min. Lift Speed | Not Applicable |
| Min. Radius Curve | Not Applicable |
| Min. Retracted Length | 13 3/16" |
| Motor Hp | 5/8 hp |
| Mounting Type | Hook Mounted No Trolley |
| No. Of Load Chains | 1 |
| No. Of Reeves | 1 |
| No. Of Speed | 1 |
| Operating Voltage | 208-230/460V AC |
| Overload Protection Included | Yes |
| Pendant Ip Rating | Not Applicable |
| Phase | 3 |
| Reeving | 1 |
| Speed Programmability | Non Programmable |
| Starts And Stops Per Hour | 150 |
| Thermal Protection | Included |
| Tonnage-lifting Capacity | 0.5 ton. |
| Trolley Wheel Dia. | Not Applicable |
| Trolley Wheel Material | Not Applicable |
| Voltage | 230/460V |
Shipping Info:
| Ship weight (kg) | 46.8 |
| Ship height (cm) | 48.26 |
| Ship length (cm) | 63.5 |
| Ship width (cm) | 43.18 |
| HS code | 8425110000 |
Product Variants
| Product | Model | Lifting Capacity | Motor Hp | Lift Speed | Lifting Hook Opening Width | Body Depth | Body Length | Body Width | Fixed Lift Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

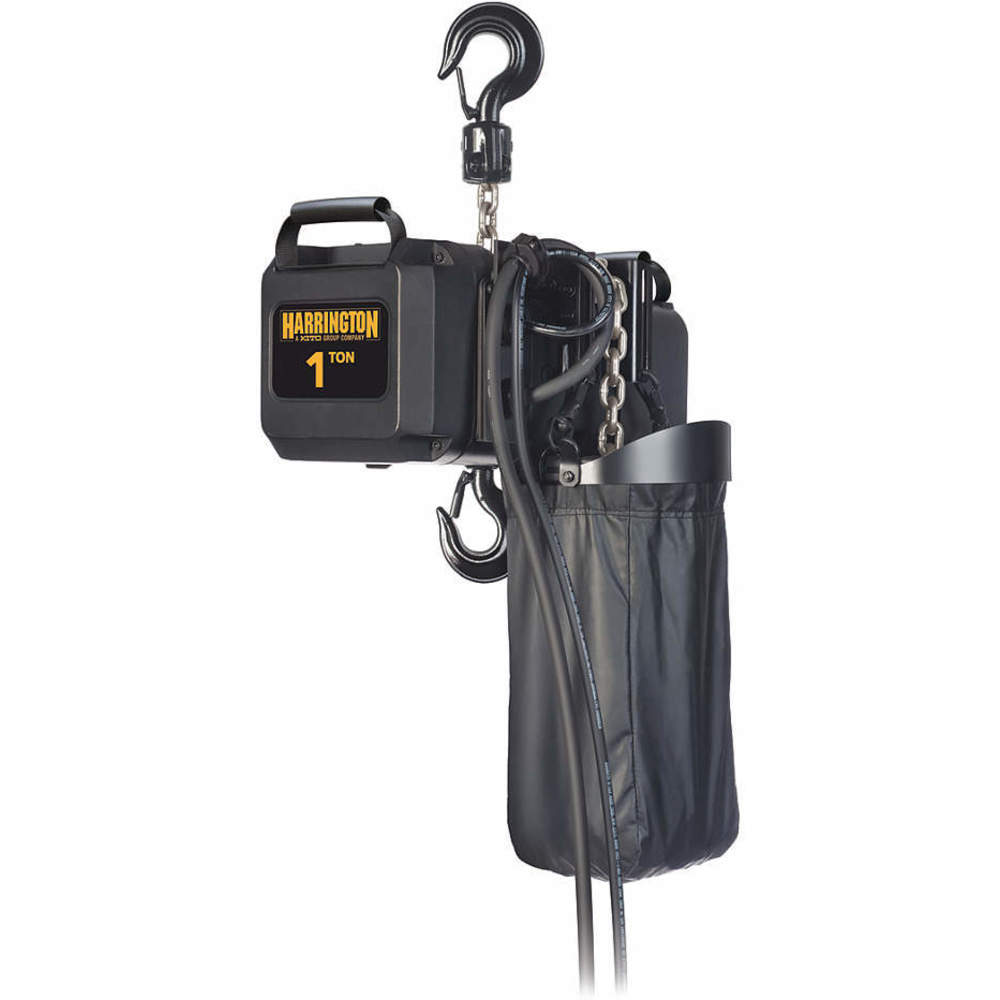

TNER010L-60 | 2000 lbs. | 1 1/4 hp | 16 FPM | 1 3/16" | 15" | 20" | 8 13/16" | 16 FPM | €7,790.16 | |
 |

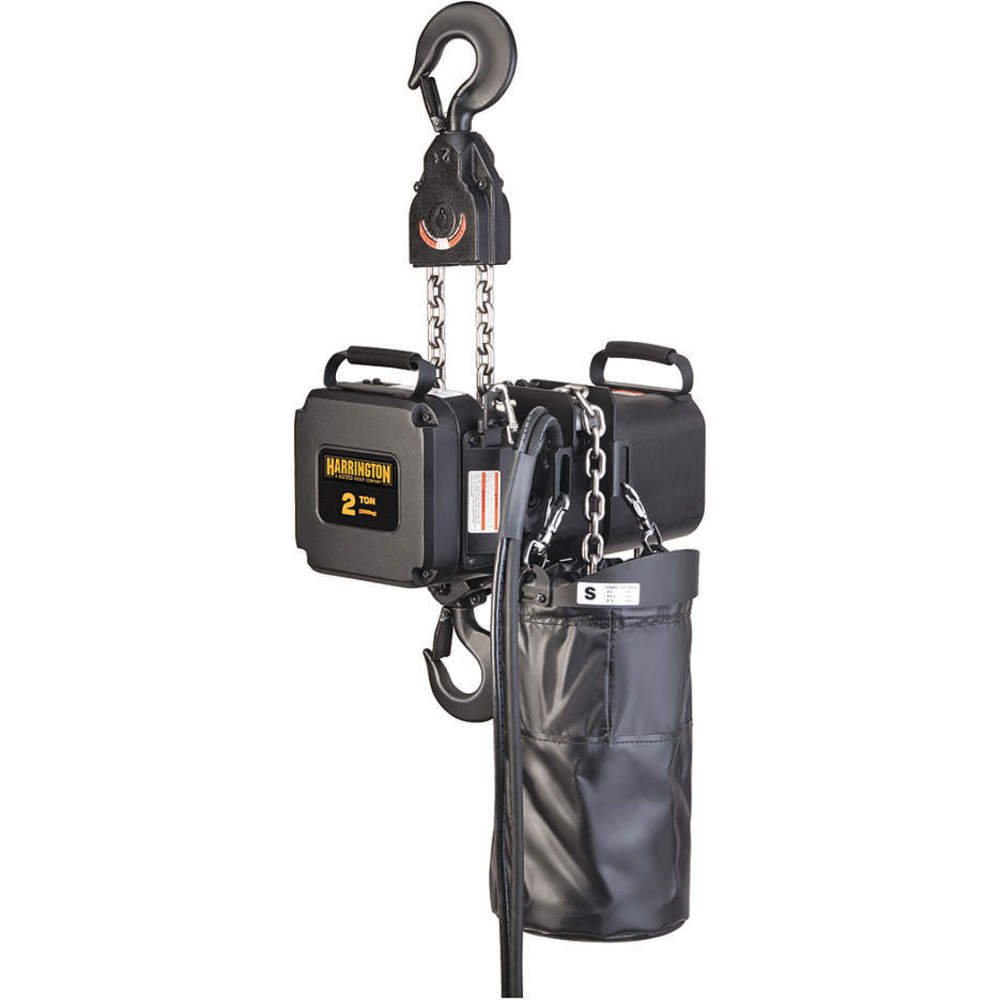

TNER020L-60 | 4000 lbs. | 1 1/4 hp | 8 FPM | 1 1/2" | 15" | 20" | 8 13/16" | 8 FPM | €10,929.77 |
