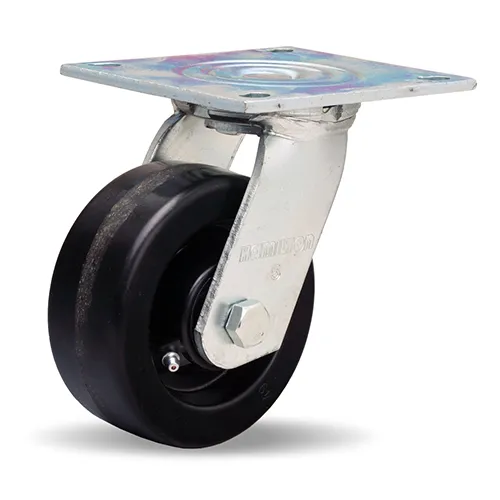

HAMILTON S-MS-5P Medium Service Swivel Caster, 5 X 2 Inch Size, 3/4 Inch Straight Roller Bearing
1000 lbs.
5"
Swivel
Get it by Wednesday, Jul 1
€63.52 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Caster |
| Abrasion Resistant | Medium |
| Bearing Type | Straight Roller |
| Bolt Hole 1 | 4" x 4" |
| Bolt Hole 2 | 4 1/8" x 4 1/2" |
| Caster Color/finish | Bright Zinc Plated |
| Caster Rig Type | Cold Forged/Stamped |
| Chemical Resistant | Poor |
| Cushioning (resilience) | Low |
| High Temp. Range (f) | 300°F |
| Impact Resistance | Medium |
| Load Capacity | 1000 lbs. |
| Load Capacity @ 3 Mph | 1000 lbs. |
| Low Temp. Range (f) | -50°F |
| Moisture Resistance | Low |
| Mounting Bolt | 3/8" |
| Mounting Plate | 5" x 5 1/2" |
| Mounting Plate Length | 5 1/2" |
| Mounting Plate Width | 5" |
| Overall Height | 6 1/2" |
| Relative Capacity | High |
| Relative Cost | Low |
| Replacement Wheel | W-520-P-3/4 |
| Swivel Offset | 1 1/2" |
| Swivel Or Rigid Caster | Swivel |
| Wheel Color/finish | Black |
| Wheel Core Material | Phenolic |
| Wheel Dia. | 5" |
| Wheel Face | 2" |
| Wheel Material @ Tread | Phenolic |
| Wheel Type | Plastex |
Shipping Info:
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 16.51 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 12.7 |
| Country of Origin | US |
Product Variants
| Product | Model | Wheel Dia. | Wheel Width | Load Rating | Caster Sub-type | Wheel Bearing Type | Mounting Height | Load Capacity | Wheel Core Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S-MS-6MB | 6" | 2" | - | Swivel | Precision Ball | 7 1/2" | 1250 lbs. | Cast Iron | €143.70 | |
 |
R-MS-8R | 8" | 2" | - | Rigid | Roller | 9 1/2" | - | - | €123.74 | |
 |
S-MS-8R | 8" | 2" | - | Swivel | Roller | 9 1/2" | 500 lbs. | Cast Iron | €148.64 | |
 |
R-MS-5DB | 5 | 2 | 1050 | - | - | - | - | - | €94.63 | |
 |
R-MS-5MB | 5 | 2 | 1250 | - | - | - | 900 | - | €73.06 | |
 |
R-MS-5NF | 5 | 2 | 600 | - | - | - | - | - | €57.97 | |
 |
R-MS-5P | 5 | 2 | - | - | - | - | - | - | €51.10 |
