BROWNING SF Type, Quick Disconnect Bushings
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1
L1
M1
N1
O1
P1
Q1
R1
S1
T1| Style | Model | Overall Length | Bore Size | Keyway Size | Bolt Circle Dia. | Flange Thickness | Outside Dia. | Rated Torque | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

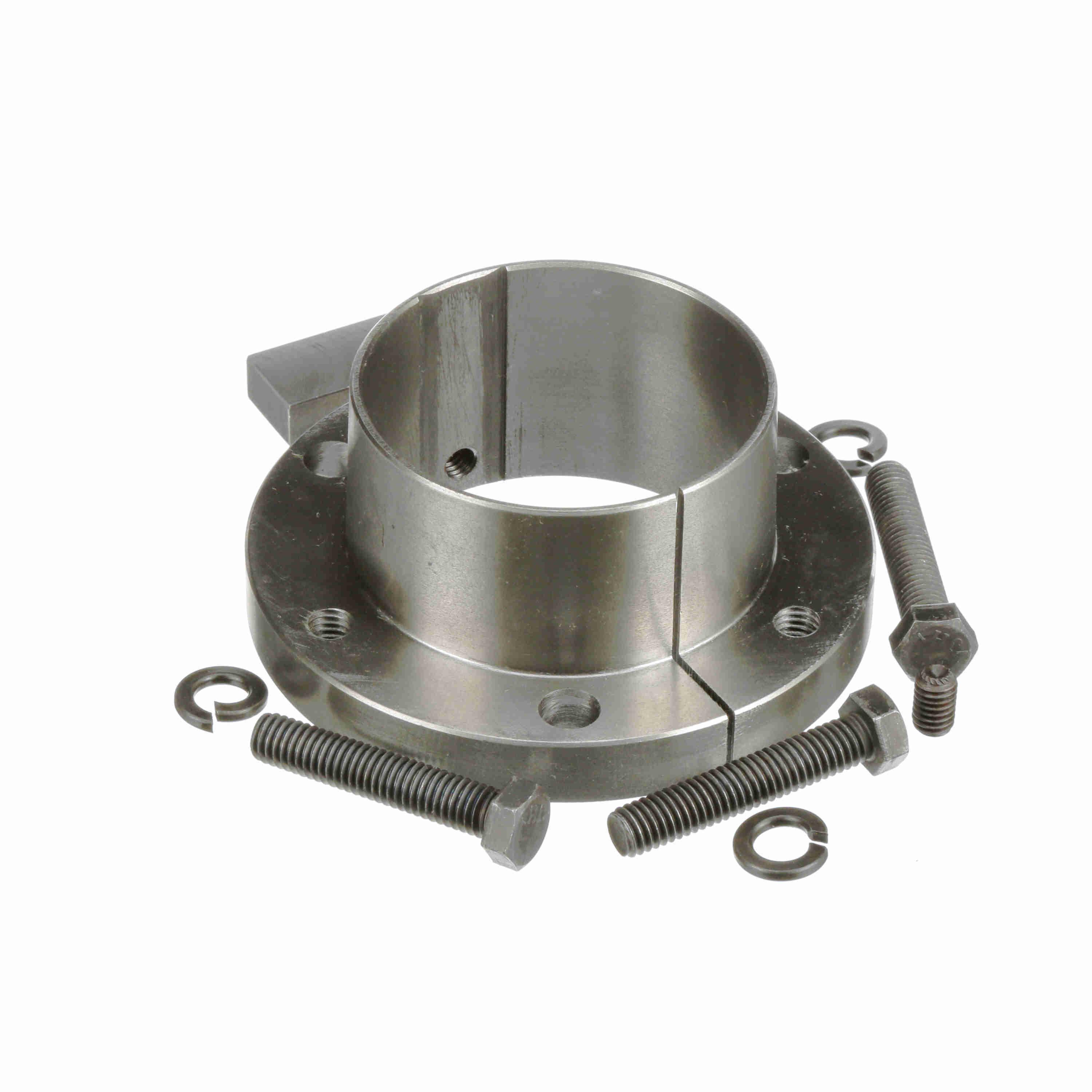

| A | 1077502 | 1.995" | 2 7/8" | 3/4" x 3/8" | 3 7/8" | 9/16" | 3 1/8" | - | - | €82.01 | RFQ
|
| B | 1077486 | 1.995" | 2 3/4" | 5/8" x 5/16" | 3 7/8" | 9/16" | 3 1/8" | 11000 lbs.-in. | - | €169.14 | |
| C | 1077403 | 1.995" | 2 1/4" | 1/2" x 1/4" | 3 7/8" | 9/16" | 3 1/8" | 11000 lbs.-in. | - | €123.27 | |

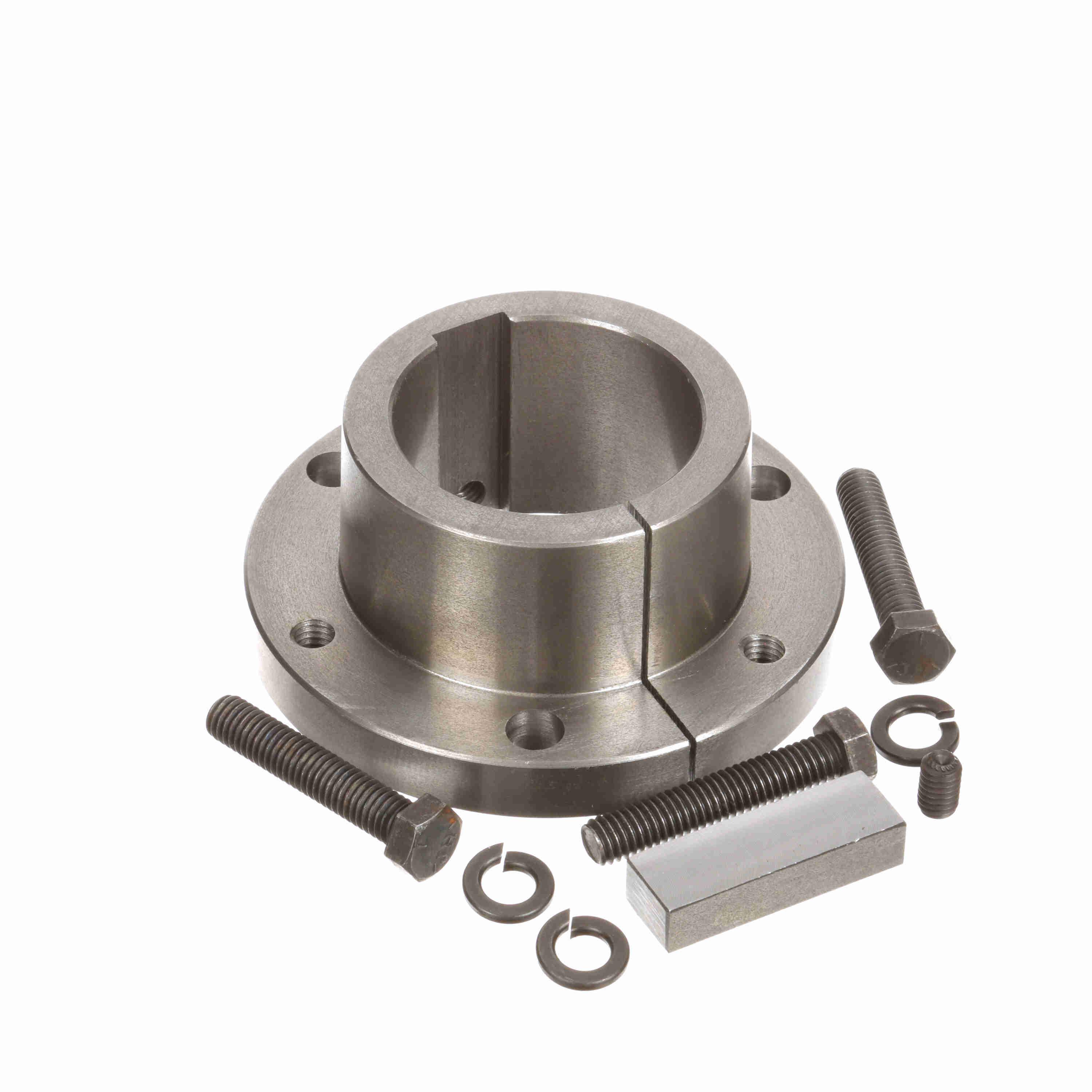

| D | 1077411 | 1.995" | 2 5/16" | 5/8" x 5/16" | 3 7/8" | 9/16" | 3 1/8" | - | - | €82.01 | RFQ
|
| E | 1077429 | 1.995" | 2 3/8" | 5/8" x 5/16" | 3 7/8" | 9/16" | 3 1/8" | 11000 lbs.-in. | - | €117.61 | |
| F | 1077437 | 1.995" | 2 7/16" | 5/8" x 5/16" | 3 7/8" | 9/16" | 3 1/8" | 11000 lbs.-in. | - | €115.91 | |

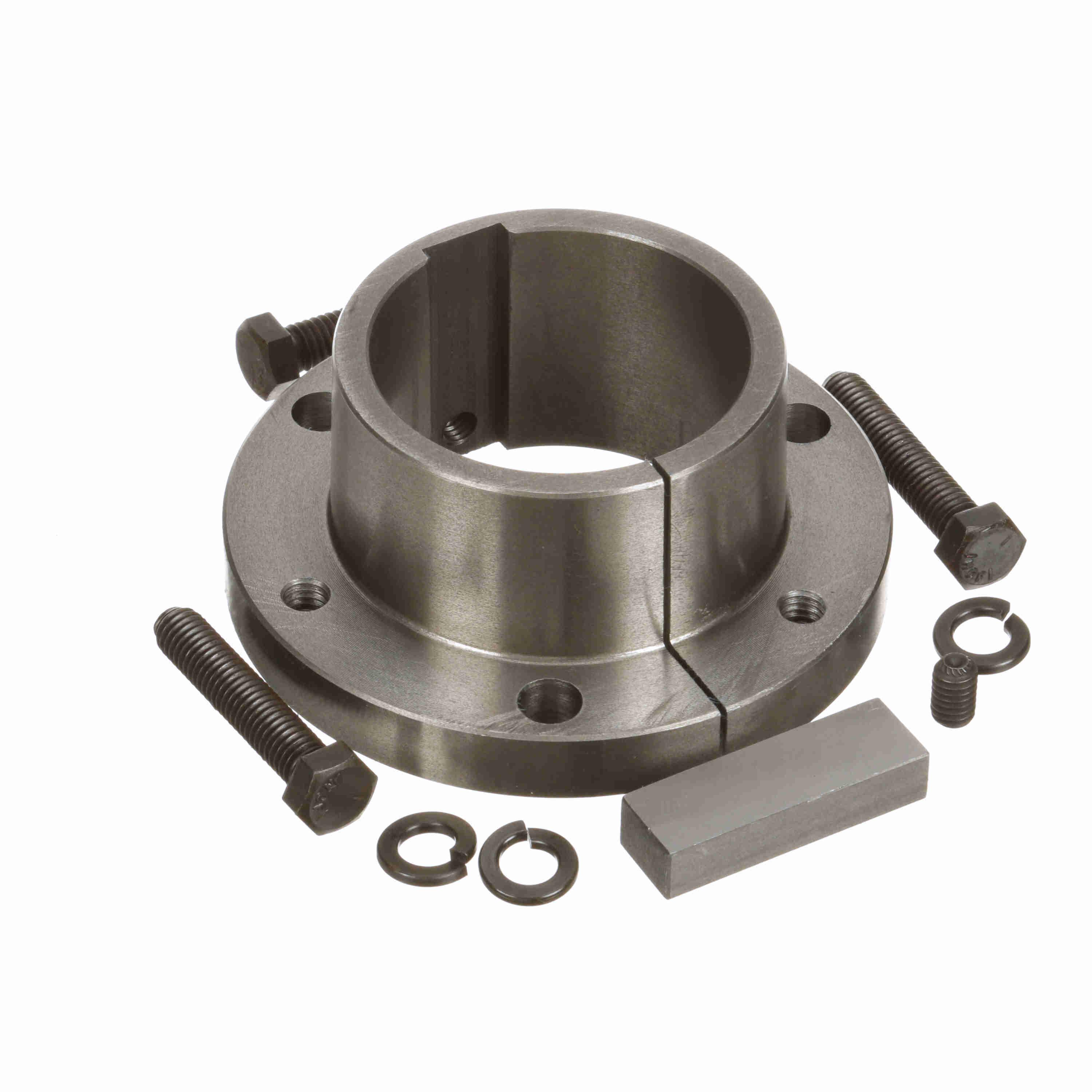

| G | 1077452 | 1.995" | 2 9/16" | 5/8" x 5/16" | 3 7/8" | 9/16" | - | - | - | €106.05 | |

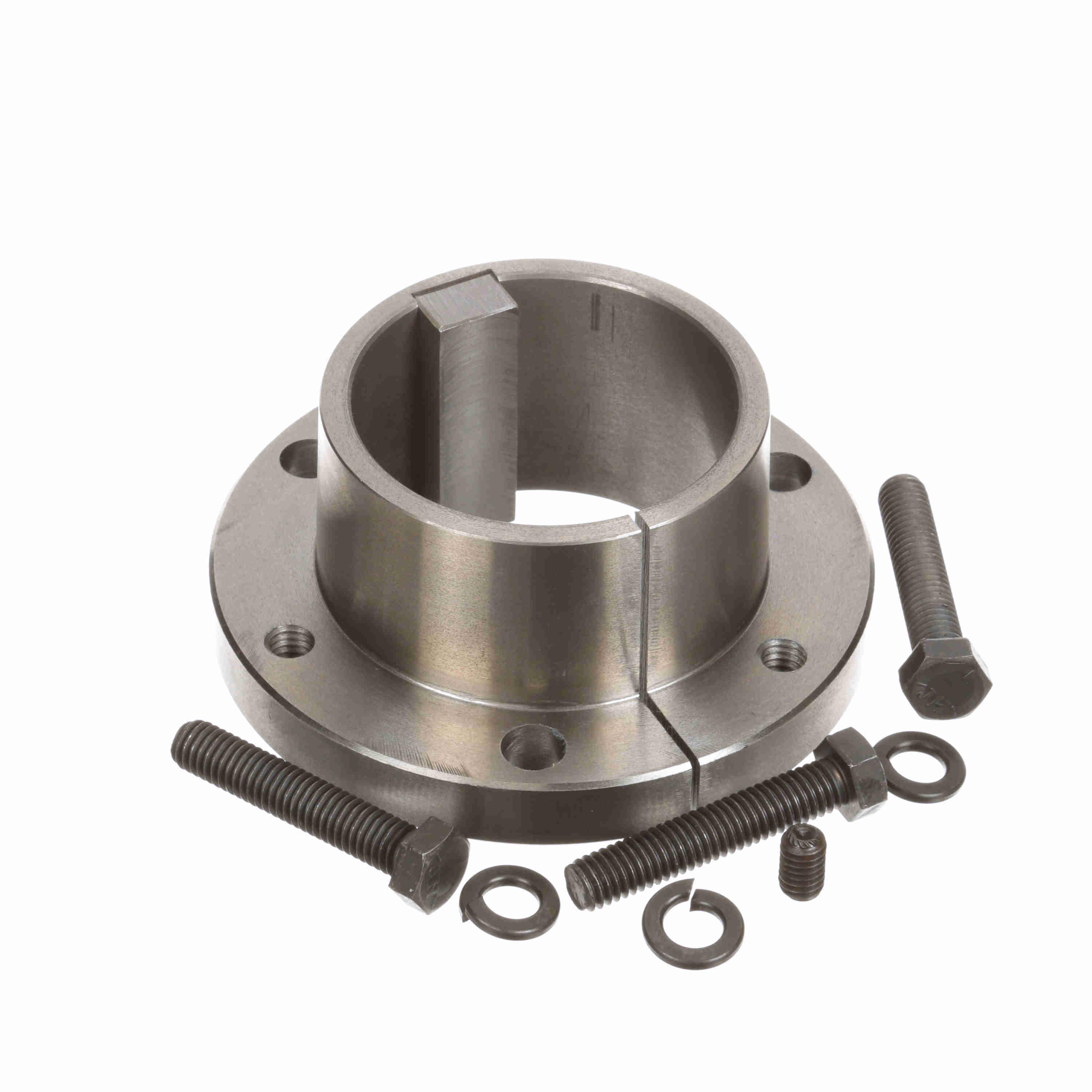

| H | 1077460 | 1.995" | 2 5/8" | 5/8" x 5/16" | 3 7/8" | 9/16" | 3 1/8" | - | - | €82.01 | RFQ
|

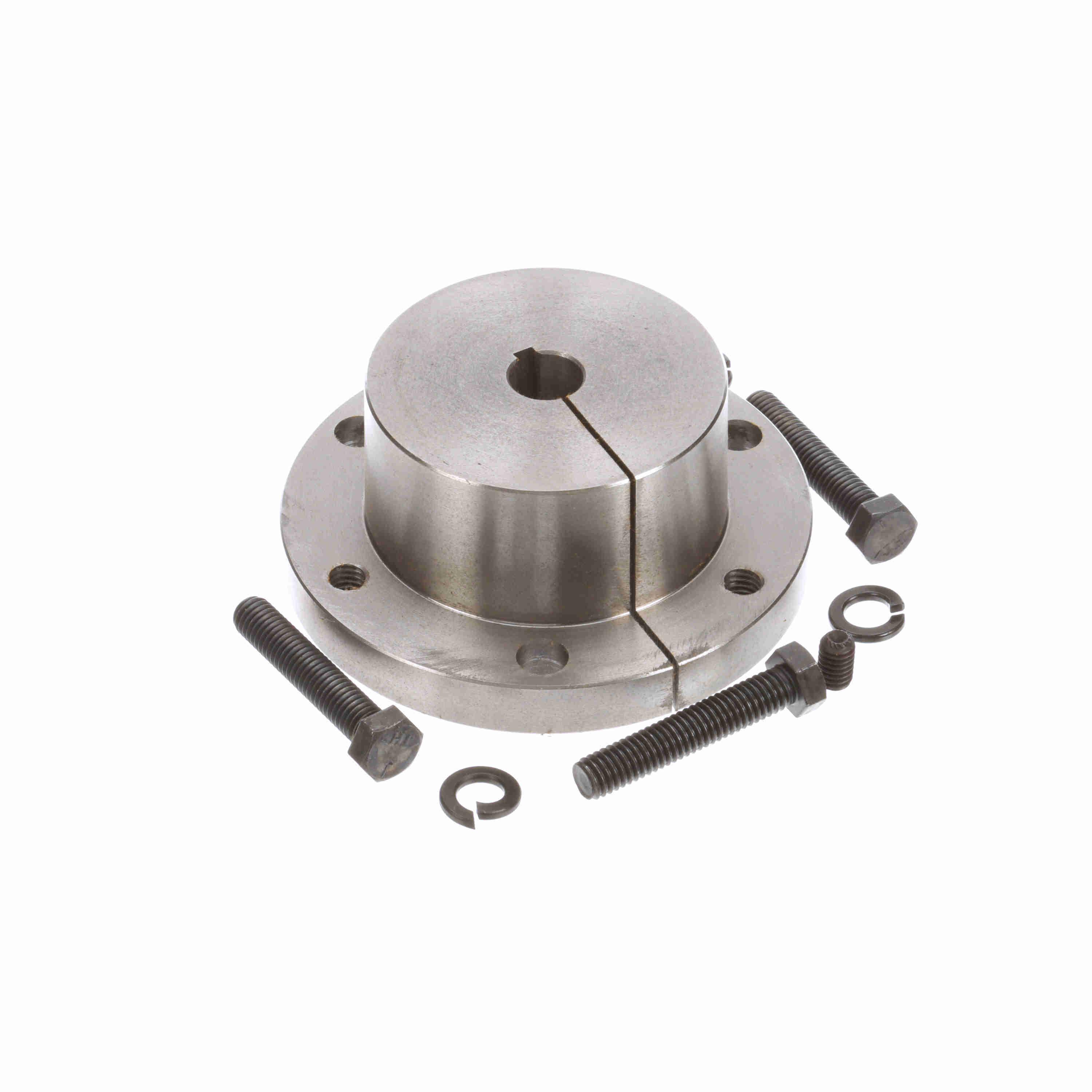

| I | 1077122 | 1.995" | 5/8" | 3/16" x 3/32" | 3 7/8" | 9/16" | 3 1/8" | - | - | €106.05 | |
| J | 1077387 | 1.995" | 2 1/8" | 1/2" x 1/4" | 3 7/8" | 9/16" | 3 1/8" | 11000 lbs.-in. | - | €115.91 | |

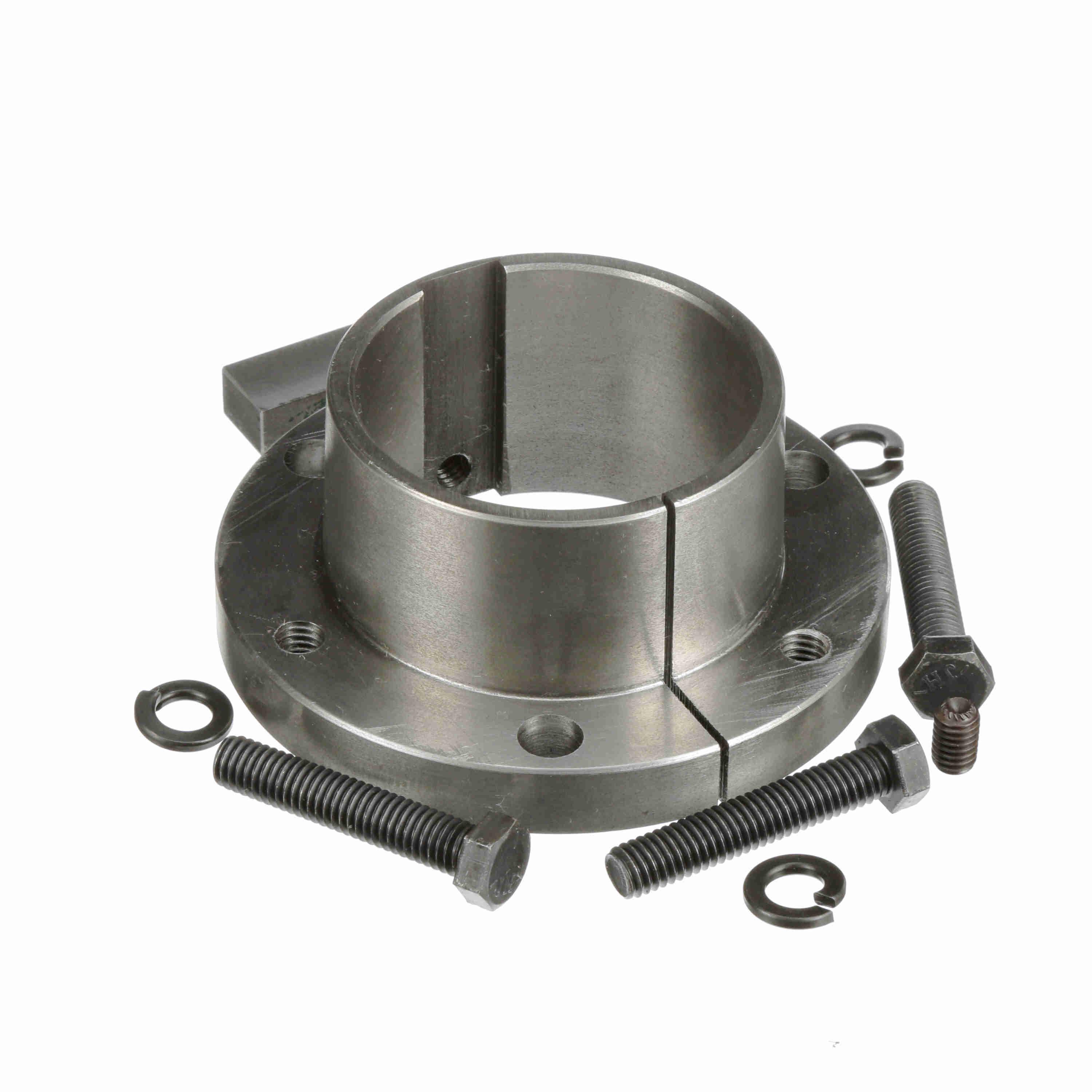

| K | 1077478 | 1.995" | 2 11/16" | 5/8" x 5/16" | 3 7/8" | 9/16" | 3 1/8" | 11000 lbs.-in. | - | €117.61 | |

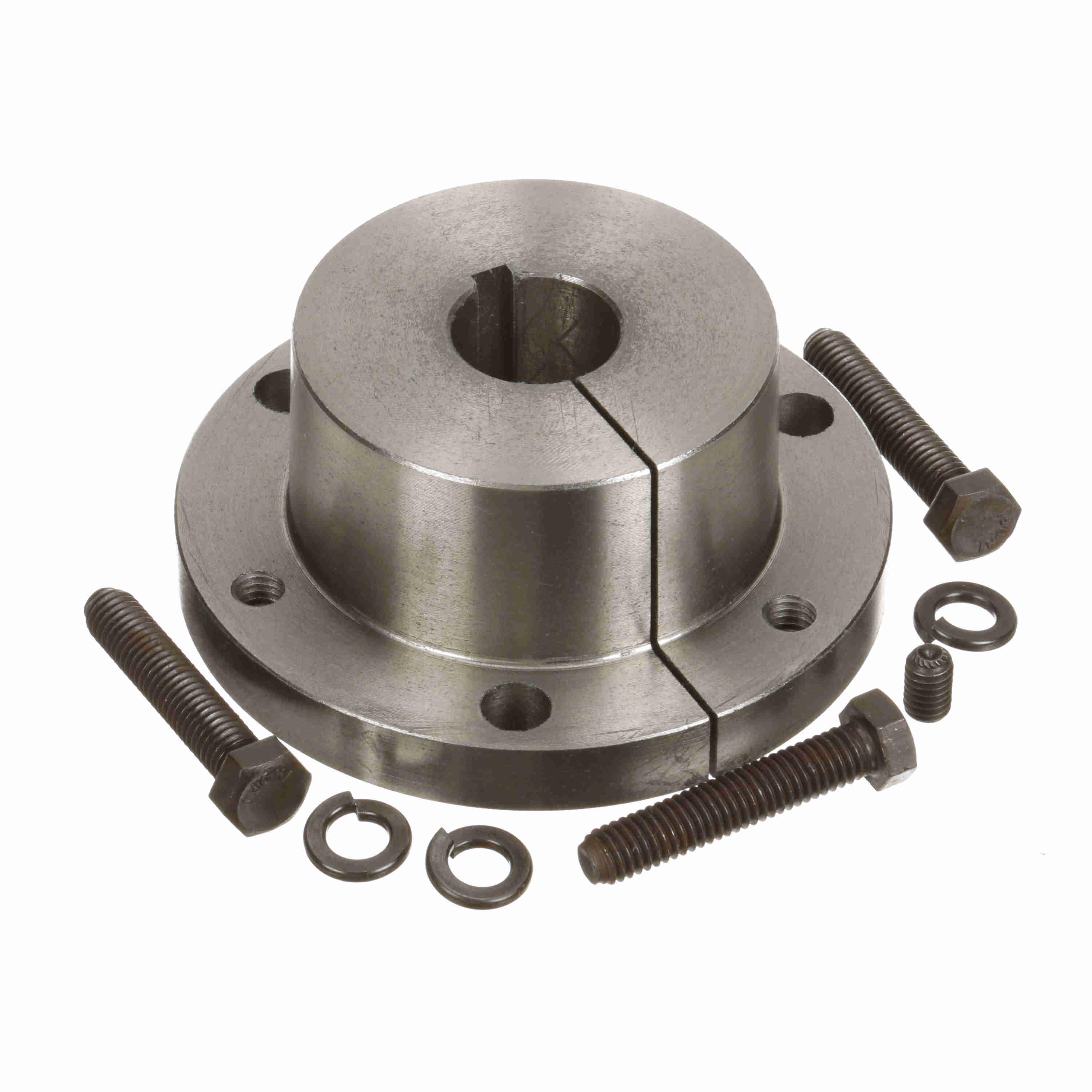

| L | 1077197 | 1.995" | 1 1/16" | 1/4" x 1/8" | 3 7/8" | 9/16" | - | - | - | €97.28 | |
| M | 1077148 | 1.995" | 3/4" | 3/16" x 3/32" | 3 7/8" | 9/16" | 3 1/8" | - | - | €205.01 | |
| N | 1077510 | 1.995" | 2 15/16" | 3/4" x 3/8" | 3 7/8" | 9/16" | 3 1/8" | 11000 lbs.-in. | - | €117.61 | |

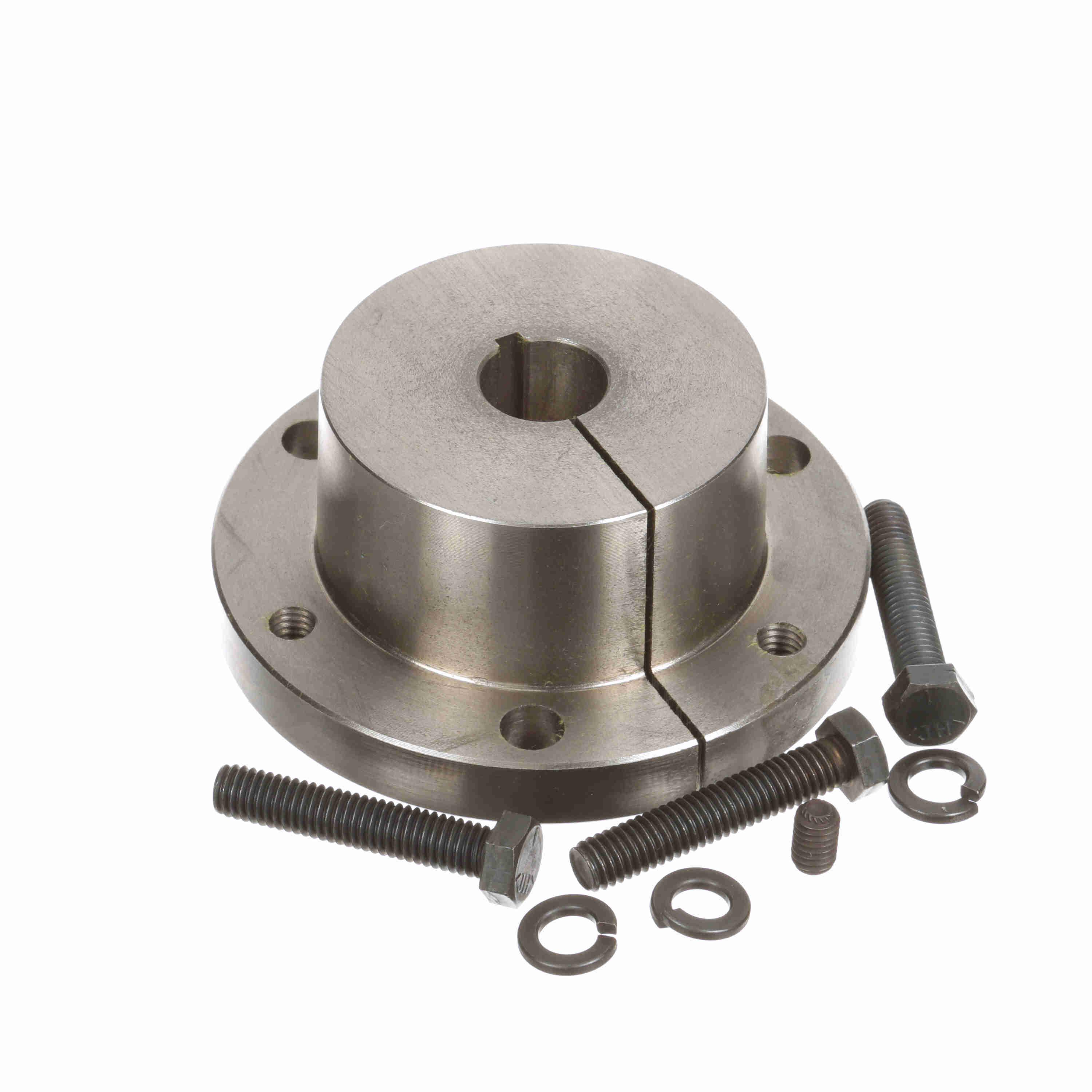

| O | 1077163 | 1.995" | 7/8" | 3/16" x 3/32" | 3 7/8" | 9/16" | 3 1/8" | - | - | €106.05 | |
| P | 1077171 | 1.995" | 15/16" | 1/4" x 1/8" | 3 7/8" | 9/16" | 3 1/8" | - | - | €106.05 | |

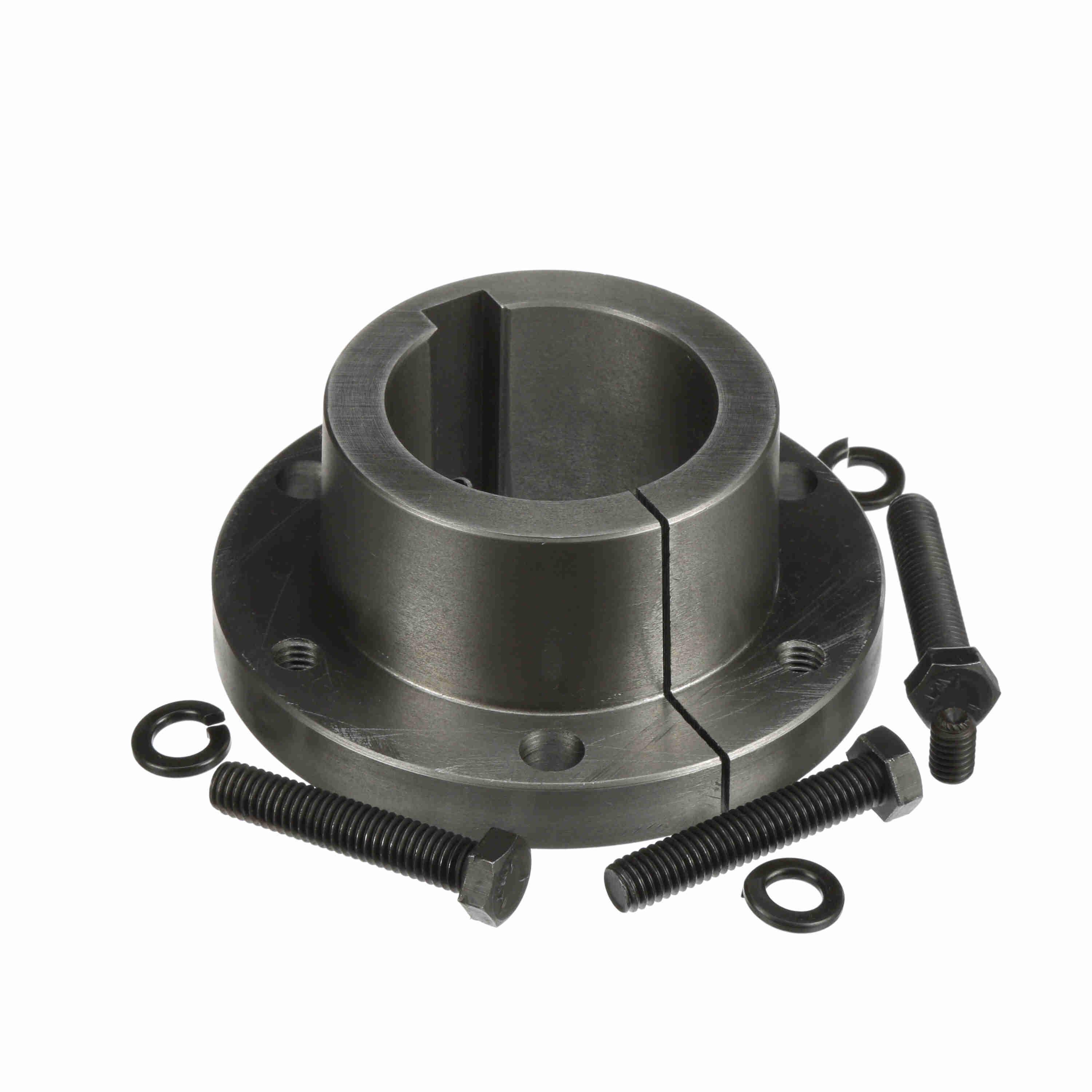

| Q | 1077395 | 1.995" | 2 3/16" | 1/2" x 1/4" | 3 7/8" | 9/16" | 3 1/8" | 11000 lbs.-in. | - | €115.91 | |
| R | 1077445 | 1.995" | 2 1/2" | 5/8" x 5/16" | 3 7/8" | - | 3 1/8" | - | - | €90.96 | |

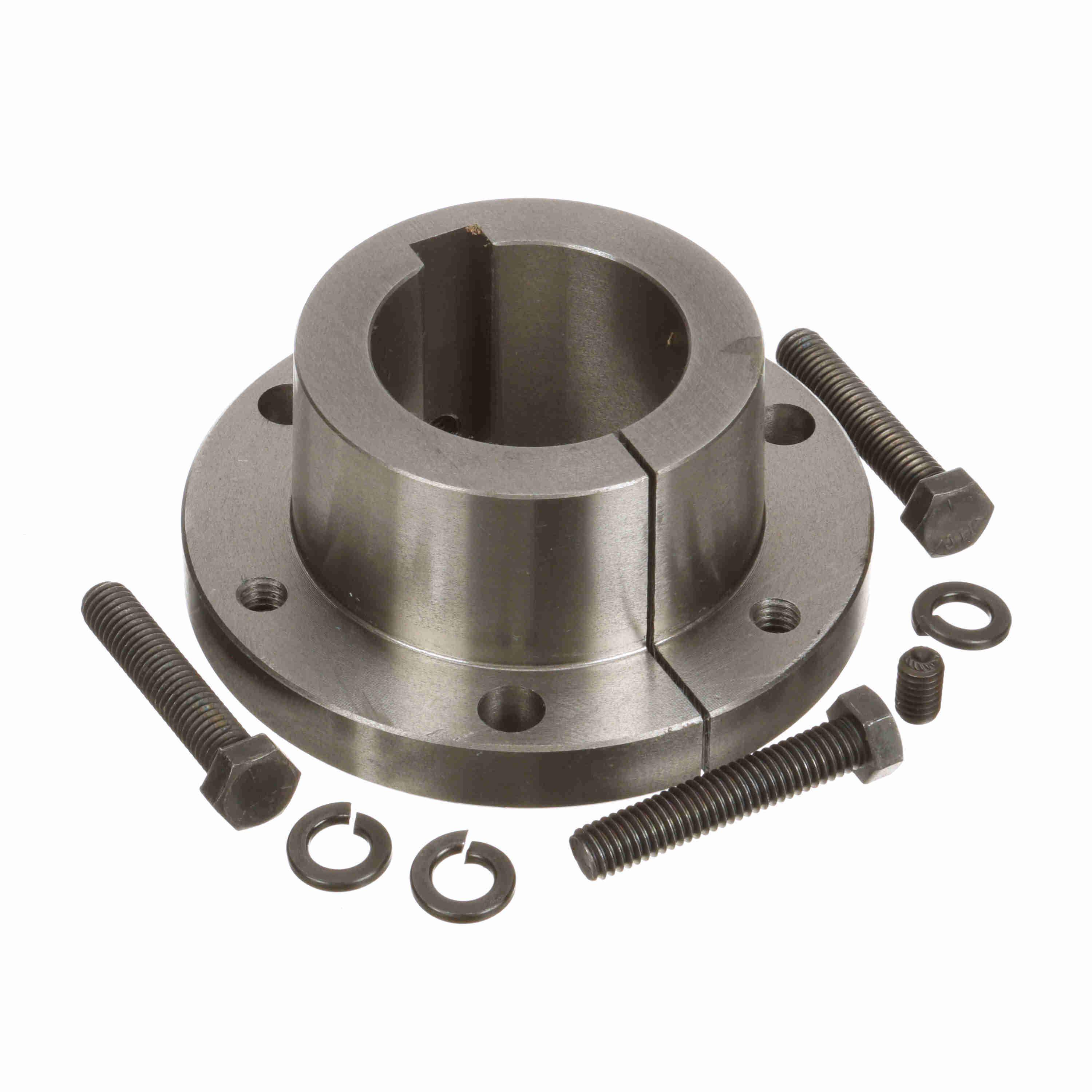

| S | 1077379 | 1.995" | 2 1/16" | 1/4" x 1/8" | 3 7/8" | 9/16" | 3 1/8" | - | - | €188.07 | |
| T | 1077270 | 1.995" | 1 7/16" | 3/4" x 3/16" | 3 7/8" | 9/16" | - | 11000 lbs.-in. | - | €172.38 | |
| U | 1077213 | 1.995" | 1 3/16" | 1/4" x 1/8" | 3 7/8" | 9/16" | 3 1/8" | 11000 lbs.-in. | - | €79.72 | RFQ
|
| V | 1077189 | 1.995" | 1" | 1/4" x 1/8" | 3 7/8" | 9/16" | - | 11000 lbs.-in. | - | €79.72 | RFQ
|

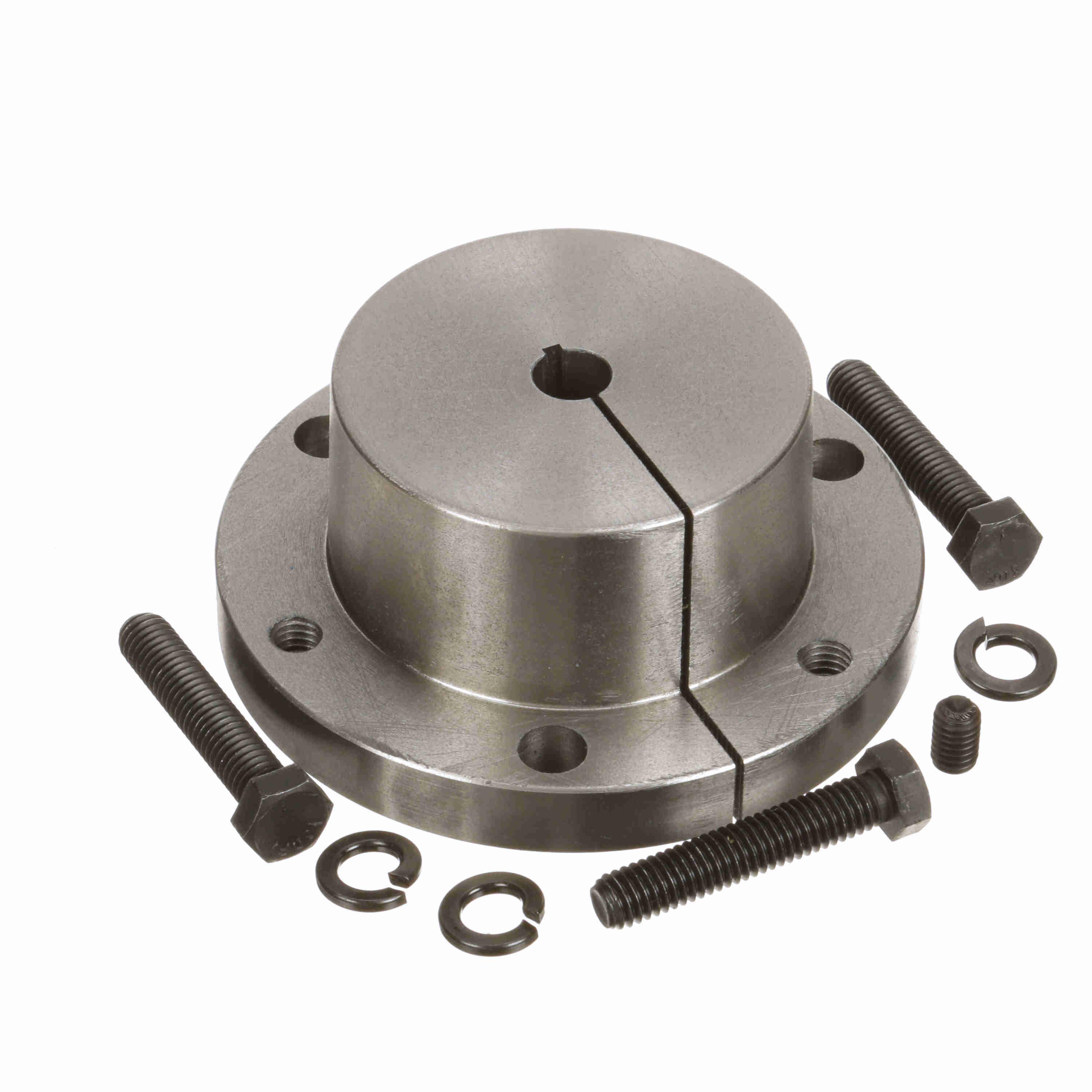

| W | 1077106 | 1.995" | 1/2" | 1/8" x 1/16" | 3 7/8" | 9/16" | 3 1/8" | - | - | €106.05 | |
| X | 1077361 | 1.995" | 2" | 1/2" x 1/4" | 3 7/8" | 9/16" | - | 11000 lbs.-in. | - | €172.38 | |
| Y | 1077221 | 1.995" | 1 1/4" | 1/4" x 1/8" | 3 7/8" | 9/16" | 3 1/8" | 11000 lbs.-in. | - | €172.38 | |

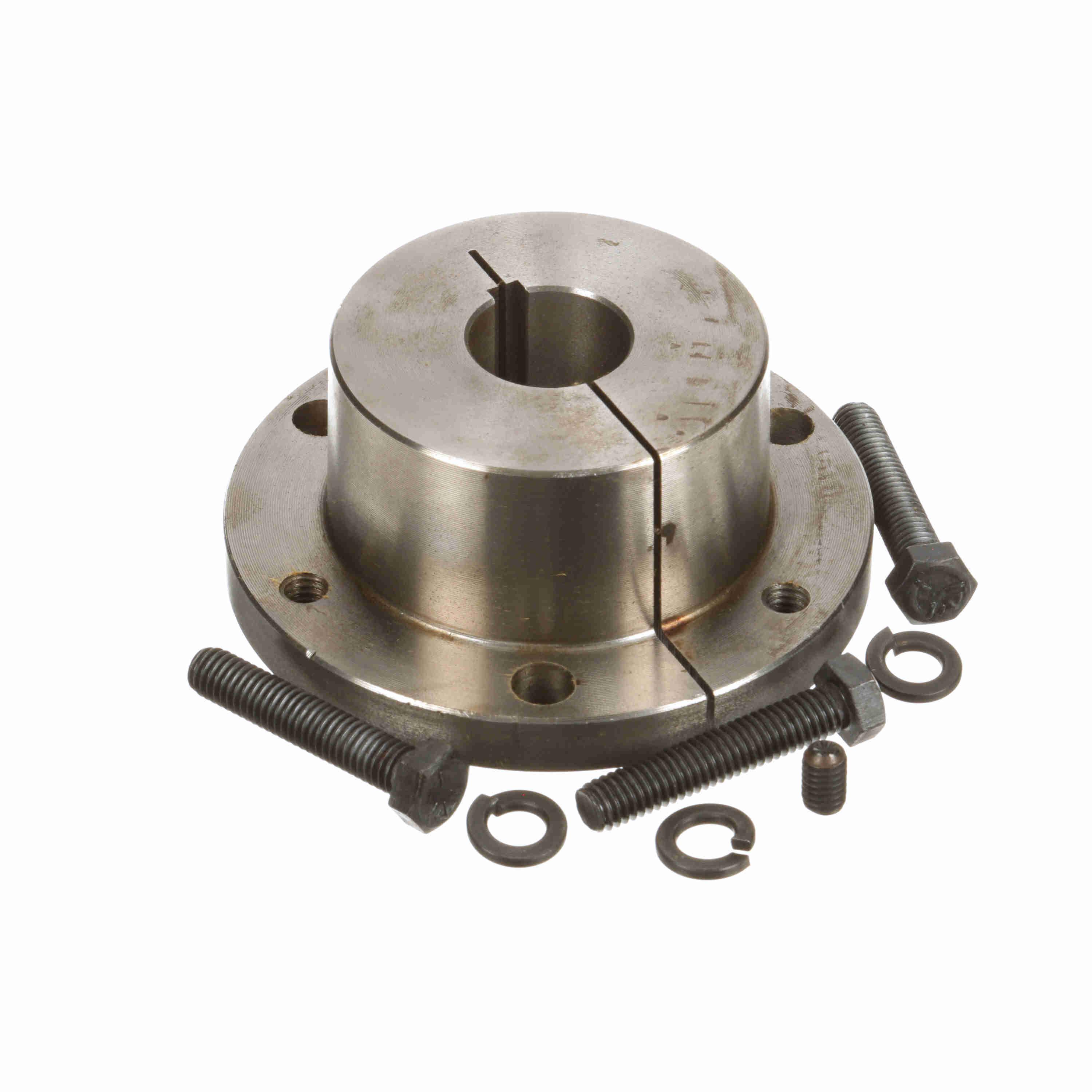

| Z | 1077205 | 1.995" | 1 1/8" | 1/4" x 1/8" | 3 7/8" | 9/16" | 3 1/8" | 11000 lbs.-in. | - | €106.05 | |
| A1 | 1077288 | 1.995" | 1 1/2" | 3/4" x 3/16" | 3 7/8" | 9/16" | 3 1/8" | 11000 lbs.-in. | - | €169.14 | |
| B1 | 1077304 | 1.995" | 1 5/8" | 3/4" x 3/16" | 3 7/8" | 9/16" | 3 1/8" | 11000 lbs.-in. | - | €117.61 | |
| C1 | 1077312 | 1.995" | 1 11/16" | 3/4" x 3/16" | 3 7/8" | 9/16" | 3 1/8" | 11000 lbs.-in. | - | €172.38 | |
| D1 | 1077320 | 1.995" | 1 3/4" | 3/4" x 3/16" | 3 7/8" | 9/16" | 3 1/8" | 11000 lbs.-in. | - | €117.61 | |
| E1 | 1077346 | 1.995" | 1 7/8" | 1/2" x 1/4" | 3 7/8" | 9/16" | - | 11000 lbs.-in. | - | €115.91 | |
| F1 | 1077353 | 1.995" | 1 15/16" | 1/2" x 1/4" | 3 7/8" | 9/16" | 3 1/8" | 11000 lbs.-in. | - | €117.61 | |

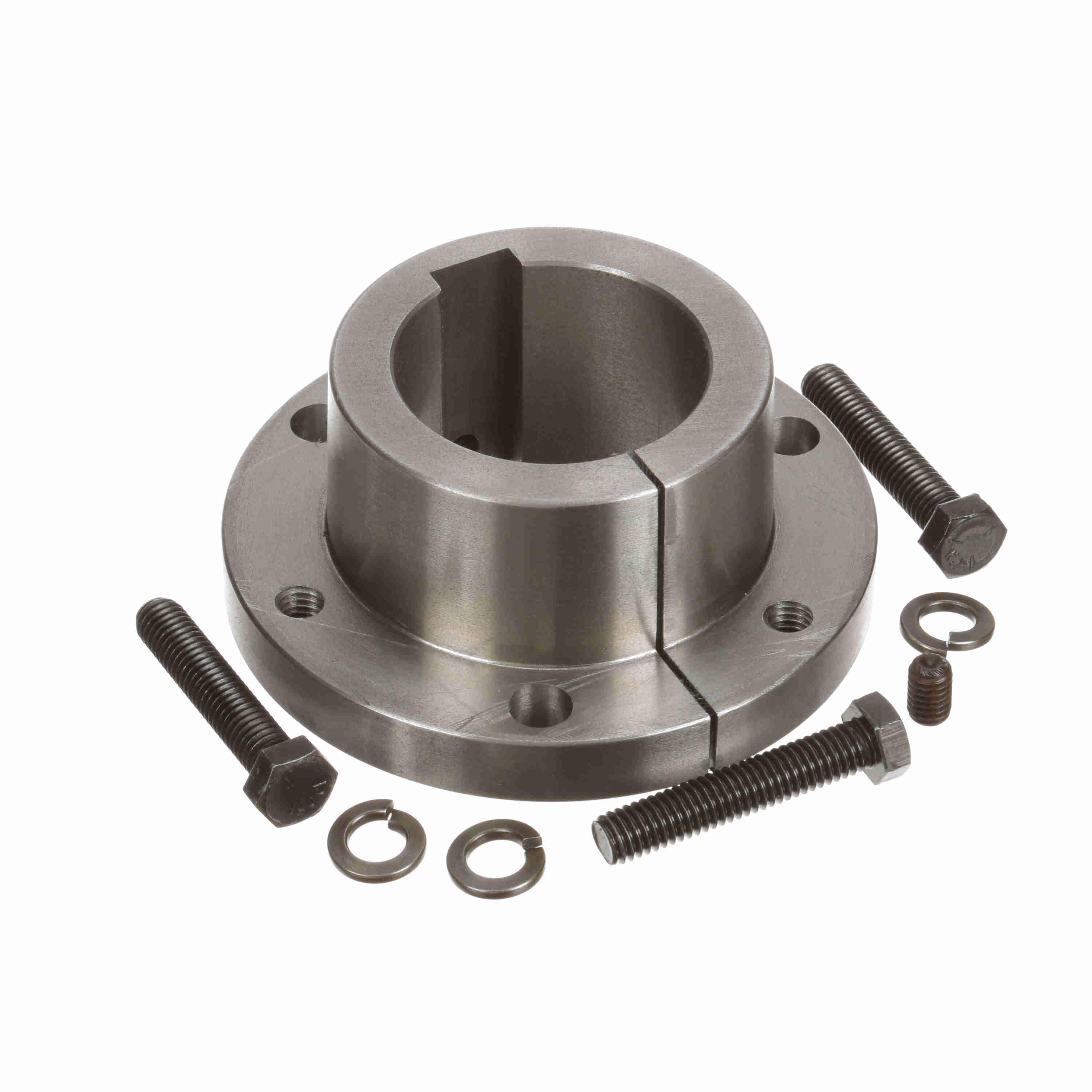

| G1 | 3208436 | 2" | 55 mm | 16 mm x 5 mm | 3 7/8" | 9/16" | 3 1/8" | 11000 lbs.-in. | Type SF | €108.95 | |

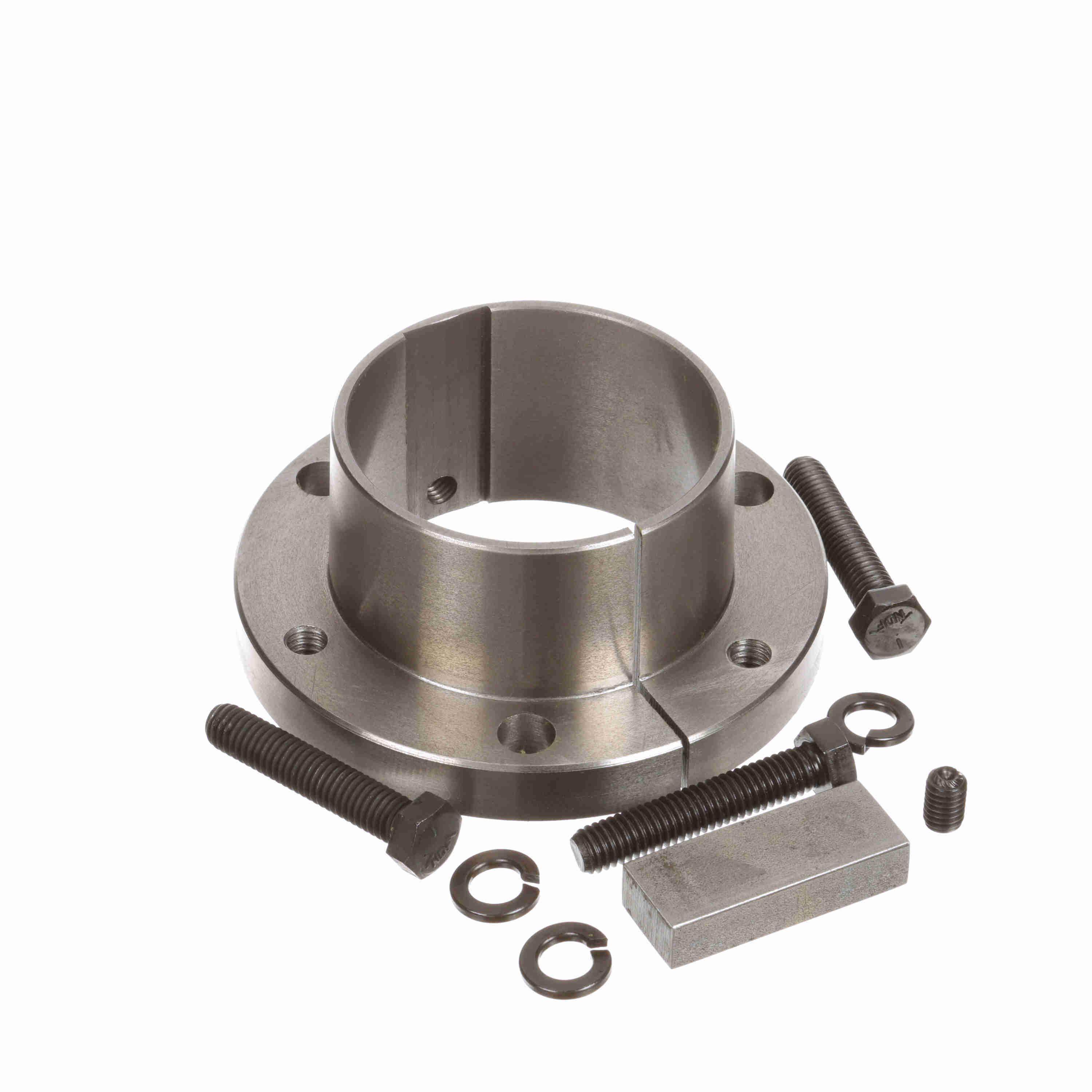

| H1 | 1077494 | 2" | 2 13/16" | 3/4" x 3/8" | 3 7/8" | 9/16" | 3 1/8" | 11000 lbs.-in. | Type SF | €106.05 | |

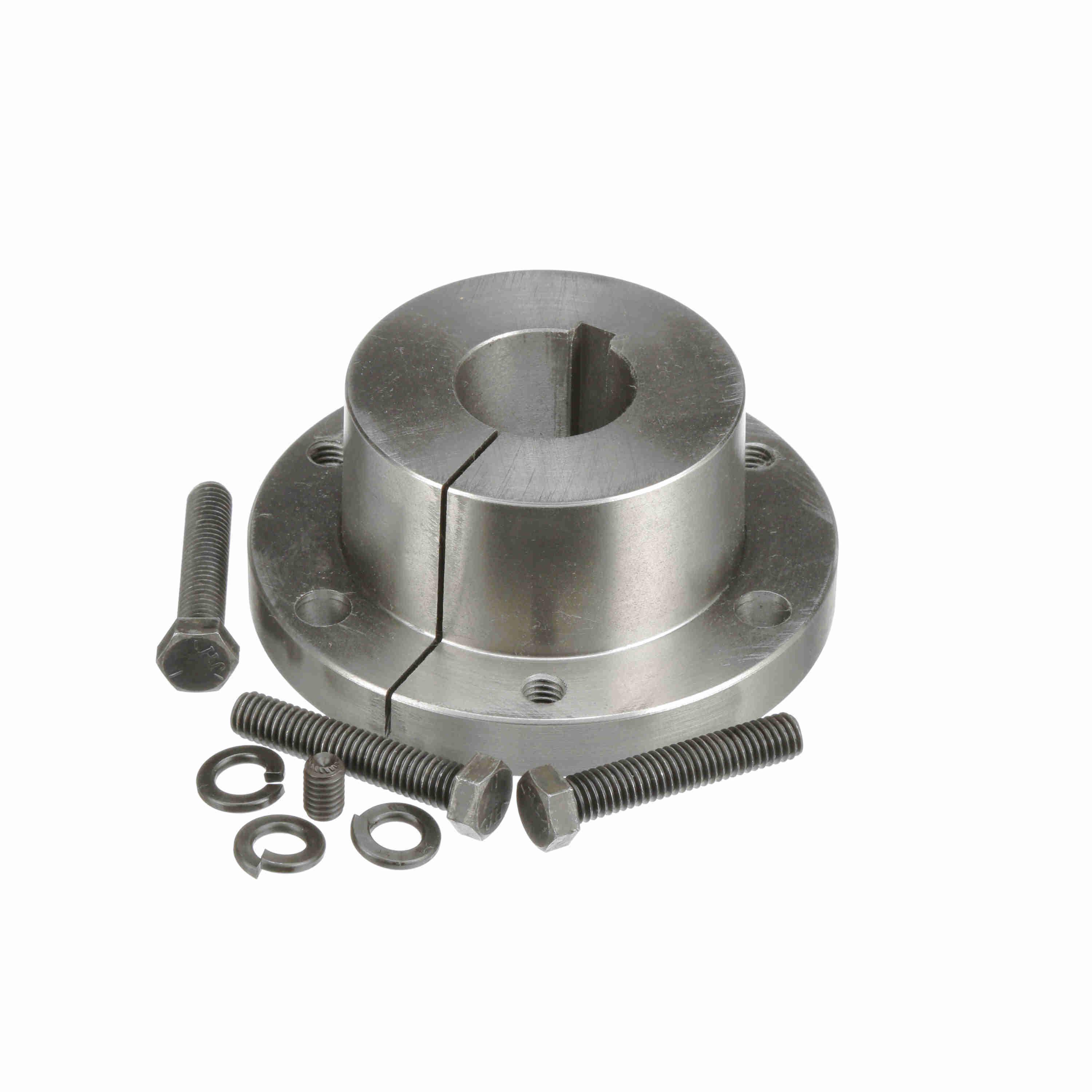

| I1 | 1077254 | 2" | 1 3/8" | 5/16" x 5/32" | 3 7/8" | 9/16" | 3 1/8" | 11000 lbs.-in. | Type SF | €101.15 | |

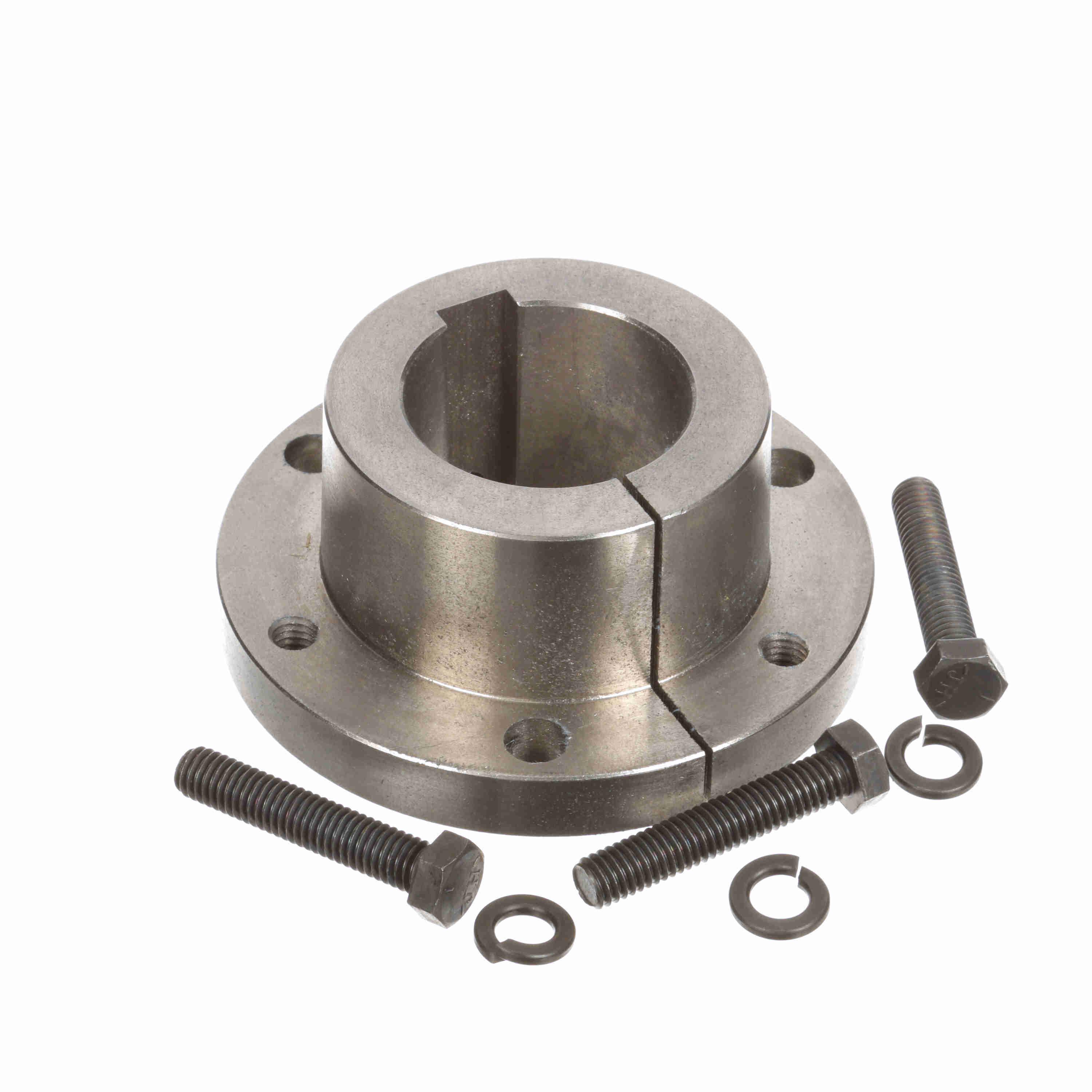

| J1 | 3208428 | 2" | 50 mm | 14 mm x 4.5 mm | 3 7/8" | 9/16" | 3 1/8" | 11000 lbs.-in. | Type SF | €108.95 | |

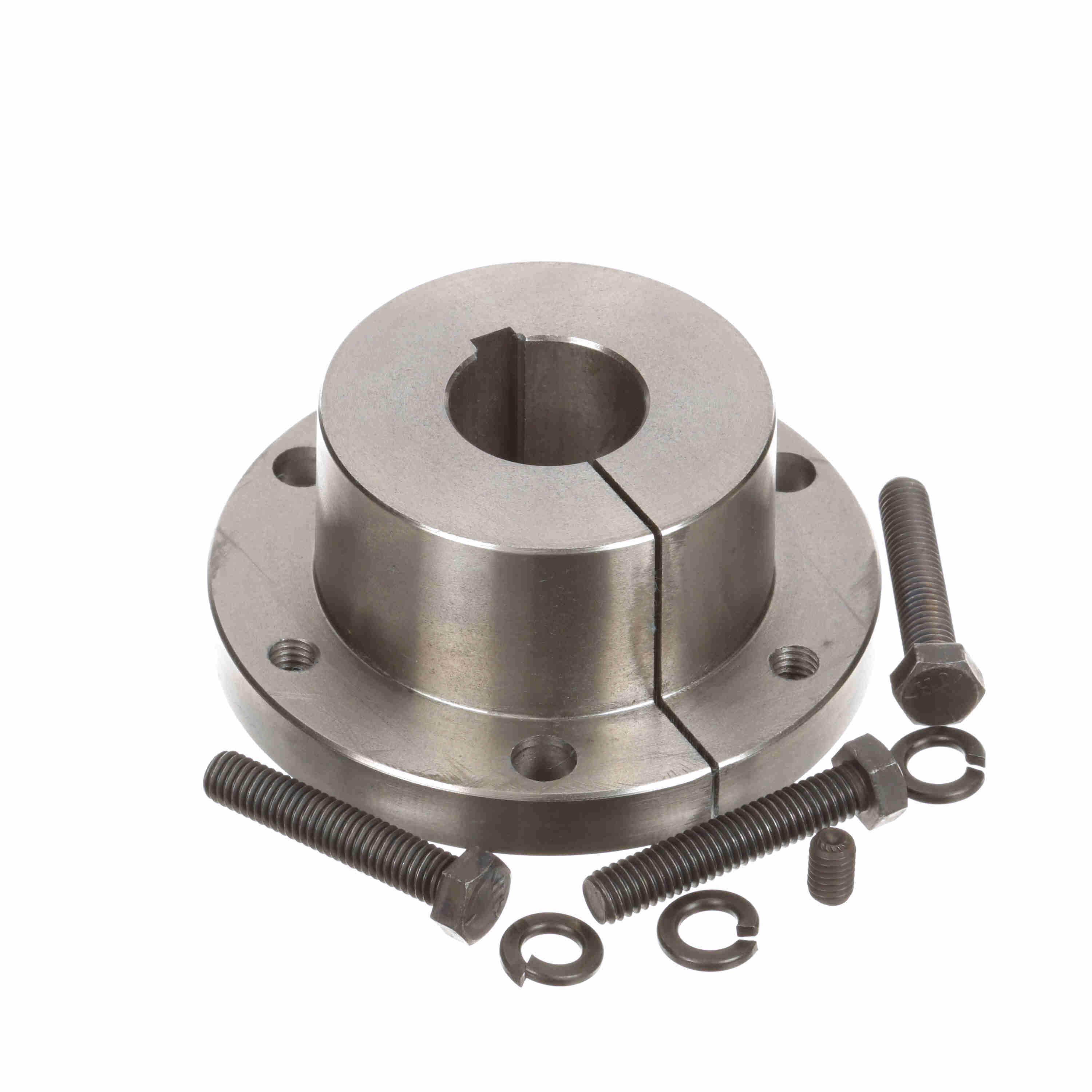

| K1 | 1077239 | 2" | 1 5/16" | 5/16" x 5/32" | 3 7/8" | 9/16" | 3 1/8" | 11000 lbs.-in. | Type SF | €106.05 | |

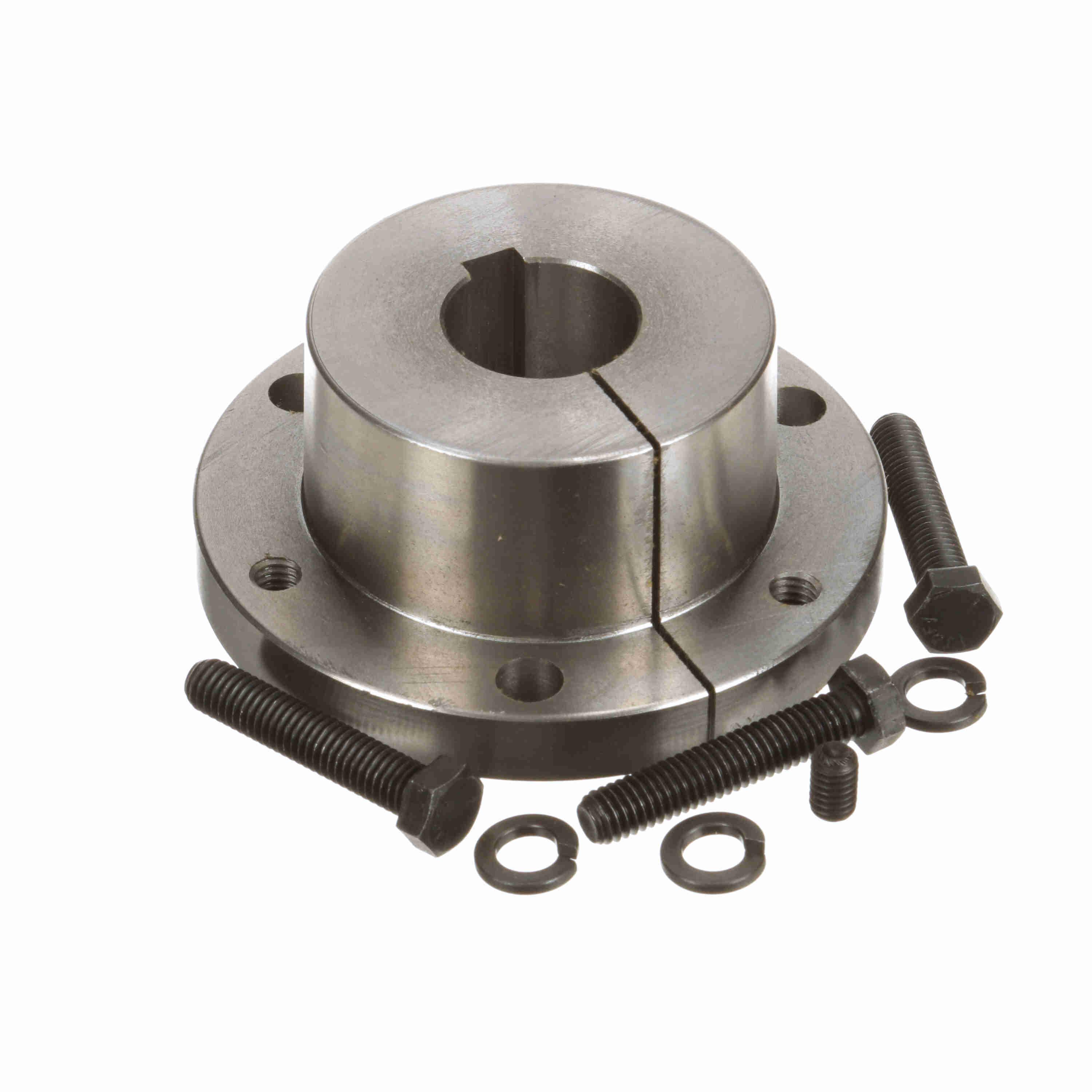

| L1 | 3208352 | 2" | 32 mm | 10 mm x 4 mm | 3 7/8" | 9/16" | 3 1/8" | 11000 lbs.-in. | Type SF | €108.95 | |
| M1 | 1077247 | 2" | 1 5/16" | 3/4" x 3/16" | 3 7/8" | 9/16" | 3 1/8" | 11000 lbs.-in. | Type SF | €188.07 | |
| M | 3208402 | 2" | 45 mm | 14 mm x 4.5 mm | 3 7/8" | 9/16" | - | 11000 lbs.-in. | Type SF | €193.23 | |

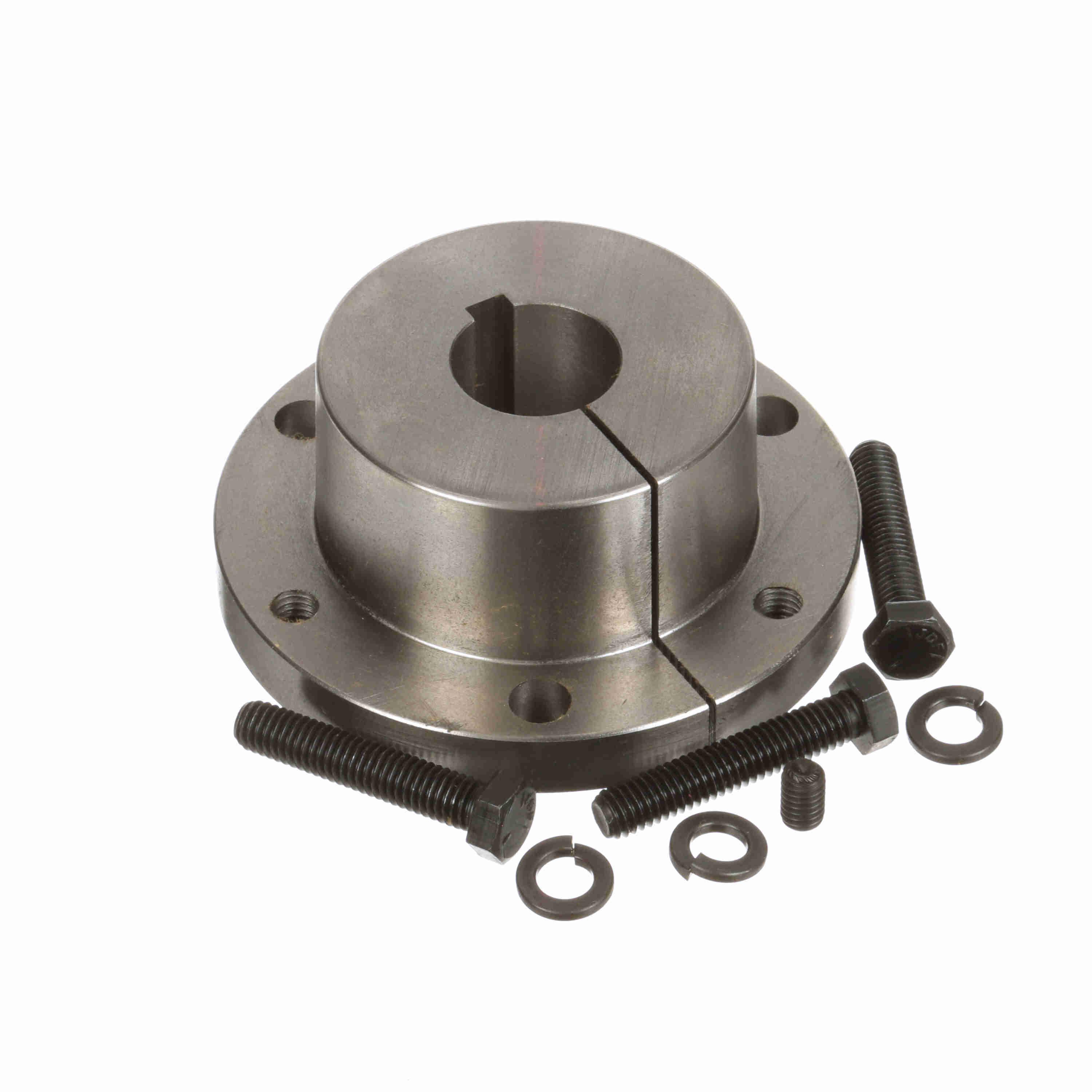

| N1 | 3208345 | 2" | 30 mm | 8 mm x 3.5 mm | 3 7/8" | 9/16" | - | 11000 lbs.-in. | Type SF | €84.26 | RFQ
|
| O1 | 3208410 | 2" | 48 mm | 14 mm x 4.5 mm | 3 7/8" | 9/16" | 3 1/8" | 11000 lbs.-in. | Type SF | €84.26 | RFQ
|
| M | 1077262 | 2" | 1 3/8" | 3/4" x 3/16" | 3 7/8" | 9/16" | 3 1/8" | 11000 lbs.-in. | Type SF | €106.05 | |
| P1 | 3208360 | 2" | 35 mm | 10 mm x 4 mm | 3 7/8" | 9/16" | 3 1/8" | 11000 lbs.-in. | Type SF | €242.87 | |

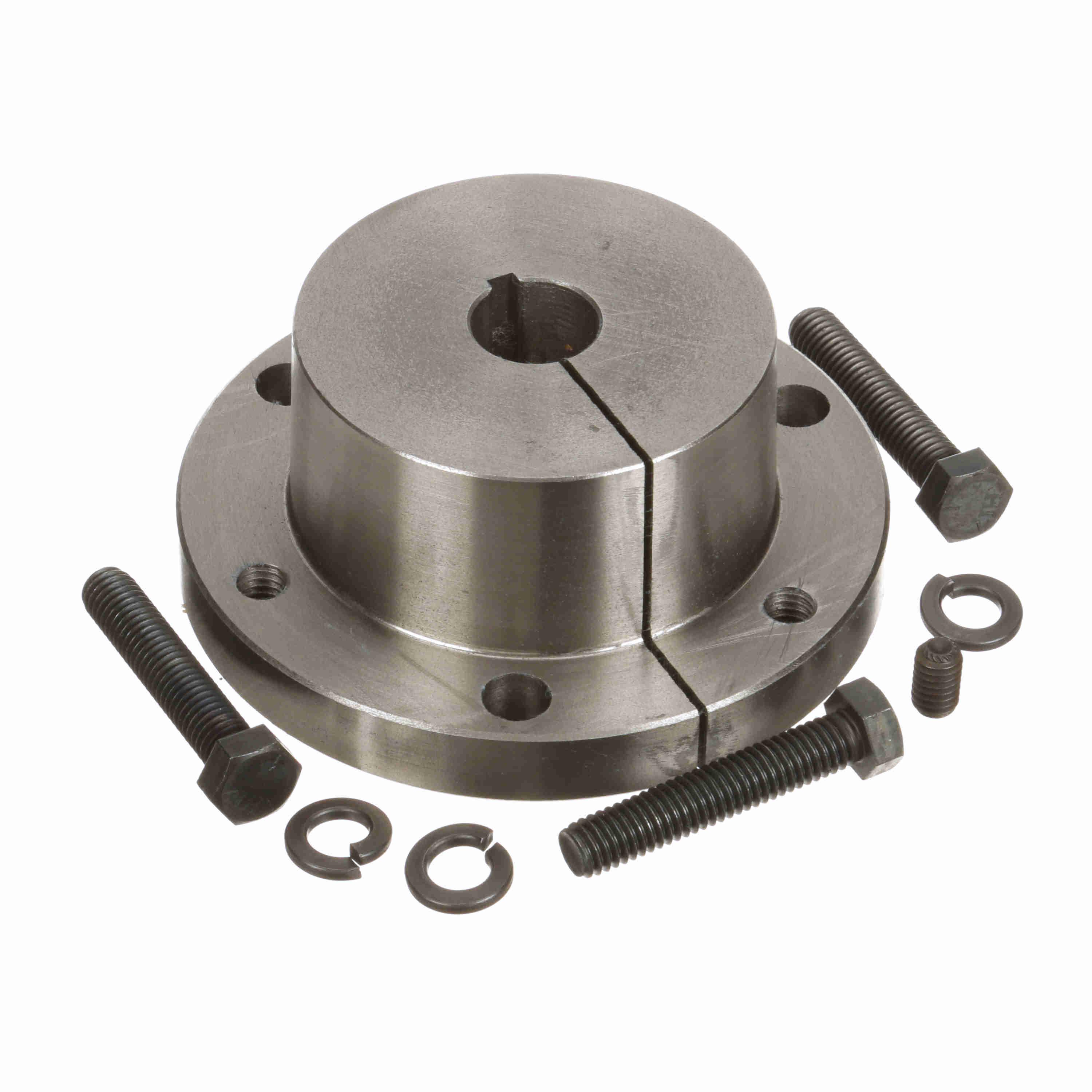

| Q1 | 1077155 | 2" | 13/16" | 3/16" x 3/32" | 3 7/8" | 9/16" | 3 1/8" | 11000 lbs.-in. | Type SF | €97.28 | |
| M | 3208337 | 50.673 mm | 28 mm | 8 mm x 3.5 mm | 3 7/8" | 9/16" | 3 1/8" | - | - | €99.94 | |

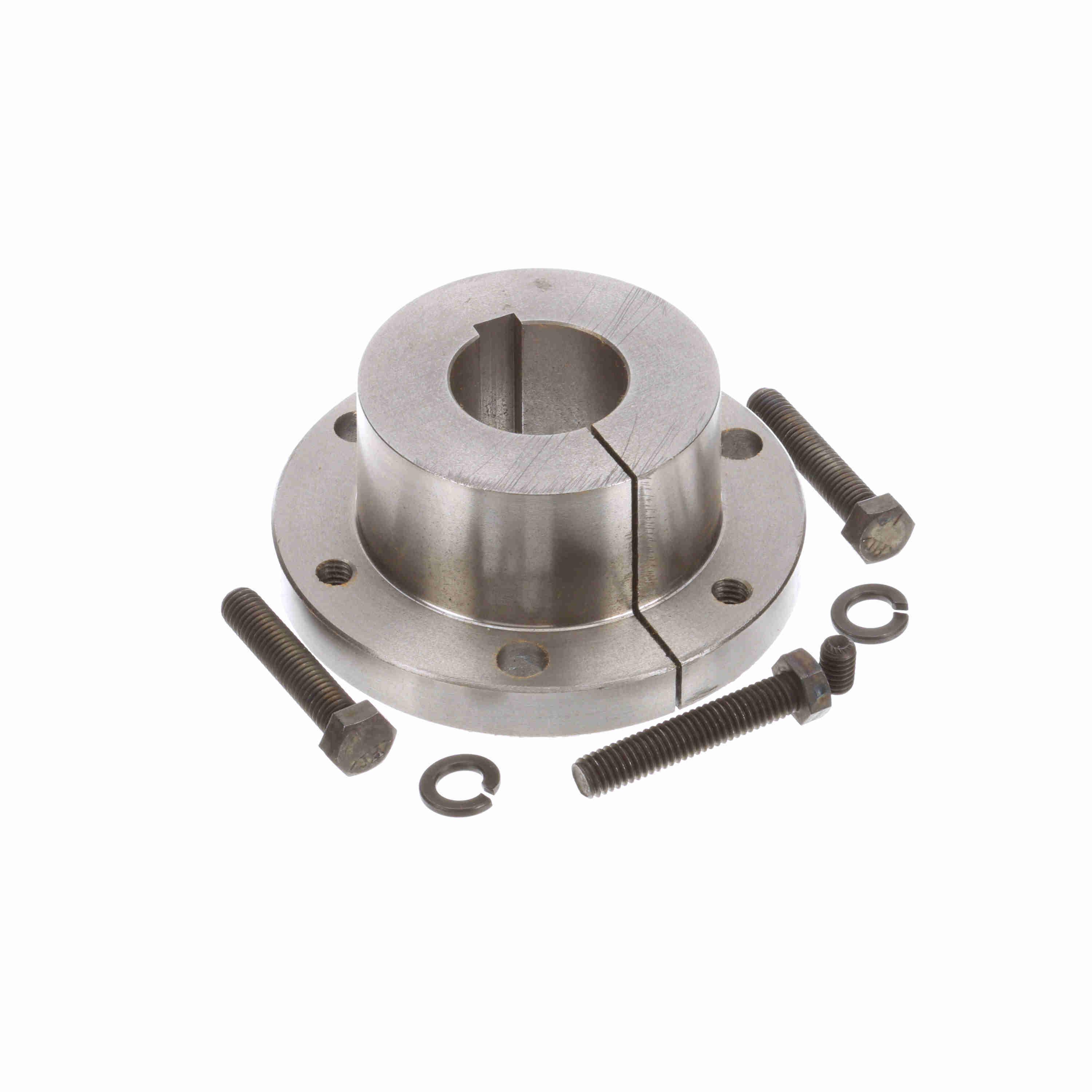

| R1 | 3208378 | 50.673 mm | 38 mm | 10 mm x 4 mm | 3 7/8" | 9/16" | 3 1/8" | - | - | €108.95 | |

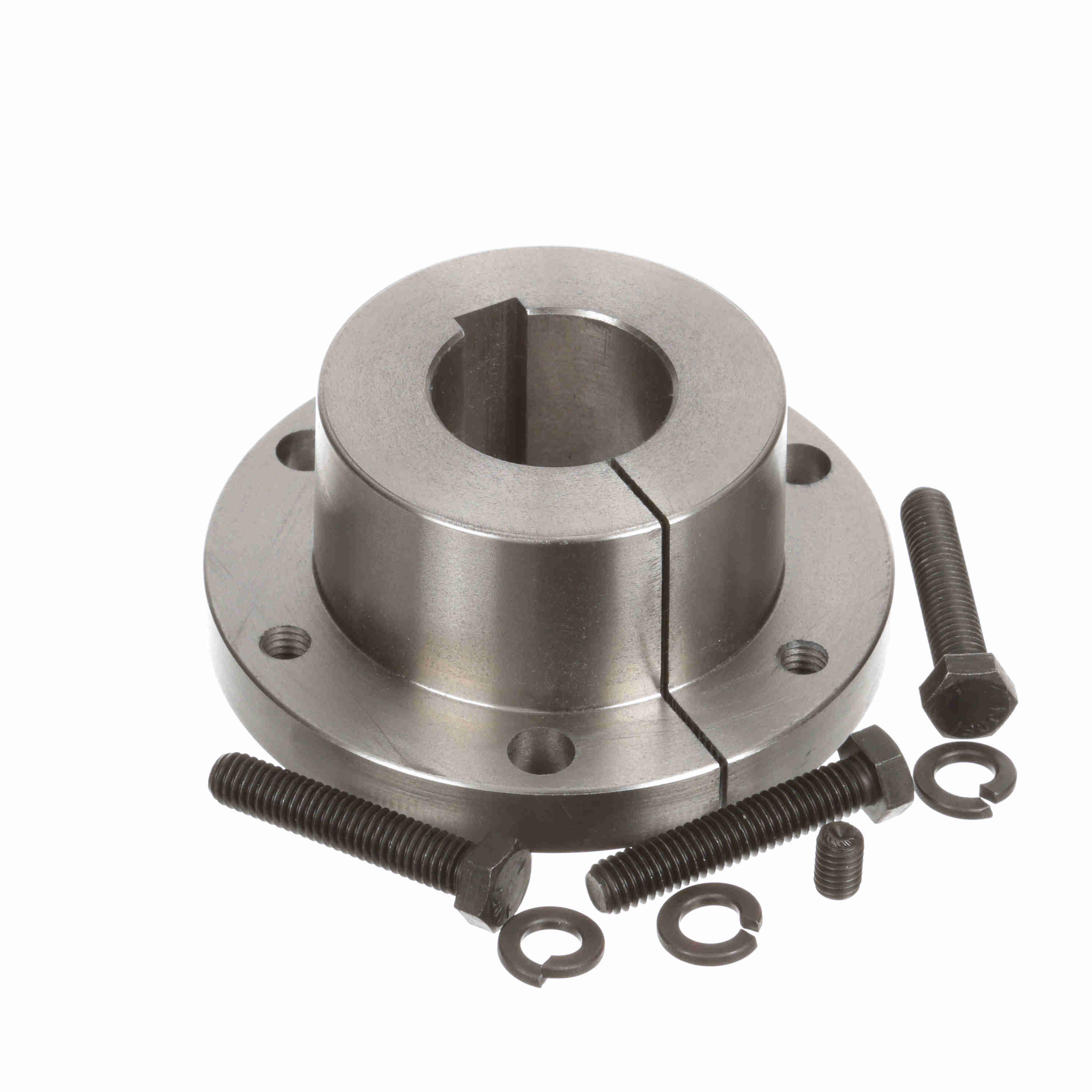

| S1 | 3208386 | 50.673 mm | 40 mm | 10 mm x 4 mm | 3 7/8" | 9/16" | 3 1/8" | 11000 lbs.-in. | - | €108.95 | |

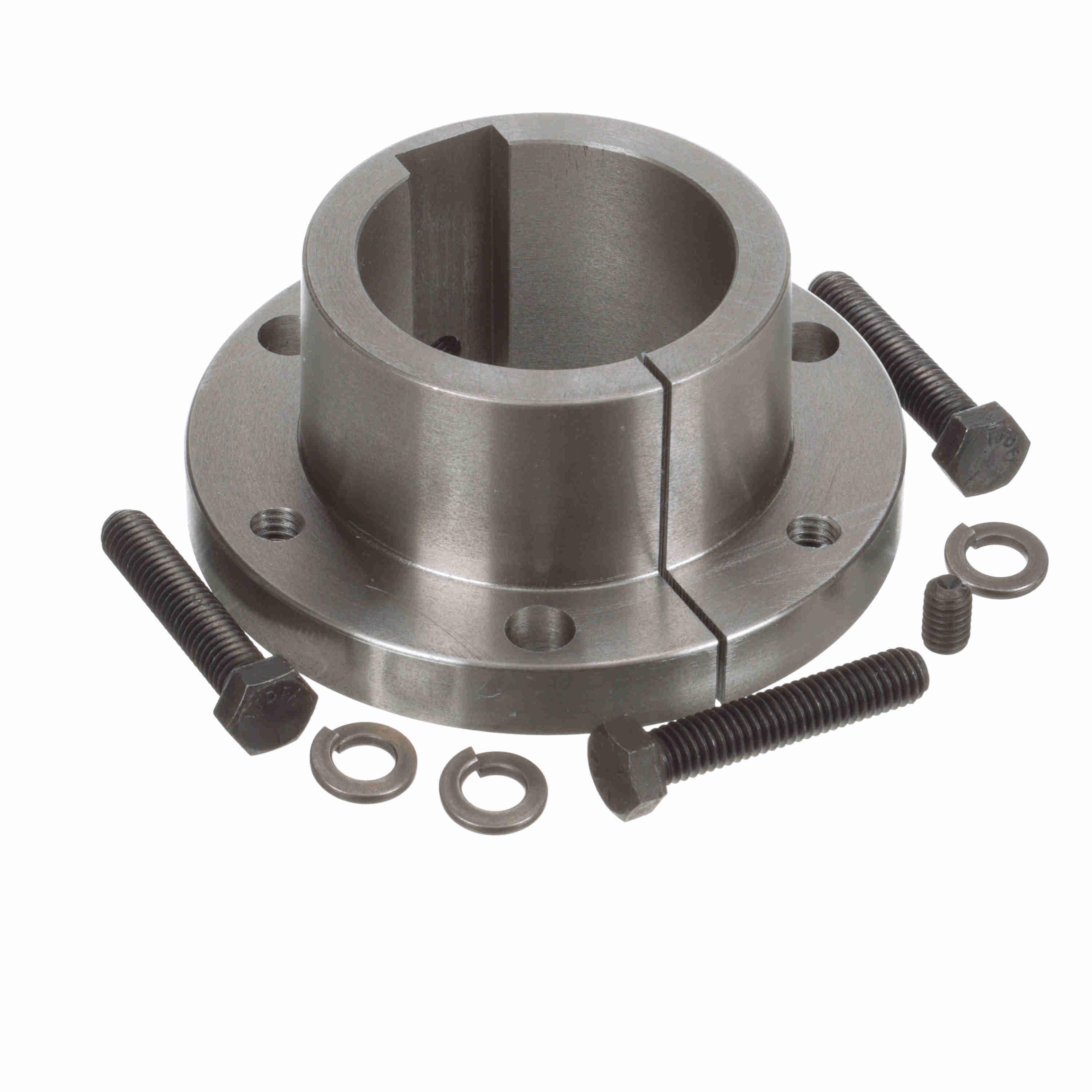

| T1 | 3208444 | 50.673 mm | 60 mm | 18 mm x 5.5 mm | 3 7/8" | 9/16" | - | - | - | €108.95 |
