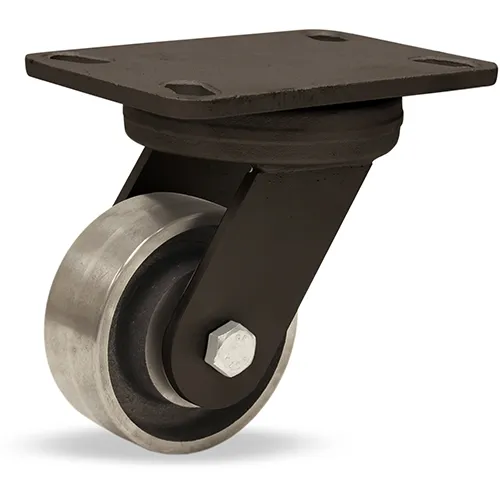

HAMILTON S-HSK-4HFSB Swivel Caster, 4 X 2 Inch Size, Forged Steel Wheel
1120 lbs.
4"
2"
Swivel
Get it by Tuesday, Aug 25
€343.67 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Swivel Caster |
| Abrasion Resistant | Very High |
| Bearing Type | High Heat Stainless Steel Precision Shielded Ball |
| Bolt Hole 1 | 2 7/16" x 4 15/16" |
| Bolt Hole 2 | 3 3/8" x 5 1/4" |
| Caster Color/finish | Black |
| Caster Rig Type | Kingpinless |
| Chemical Resistant | Medium |
| Cushioning (resilience) | Low |
| High Temp. Range (f) | 750°F |
| Impact Resistance | High |
| Load Capacity @ 550°f | 1120 lbs. |
| Load Capacity @ 750°f | 560 lbs. |
| Low Temp. Range (f) | -40°F |
| Moisture Resistance | High |
| Mounting Bolt | 1/2" |
| Mounting Plate | 4 1/2" x 6 1/2" |
| Mounting Plate Length | 6 1/2" |
| Mounting Plate Width | 4 1/2" |
| Overall Height | 5 5/8" |
| Relative Capacity | Very High |
| Relative Cost | High |
| Replacement Wheel | W-4-HFSB-1/2 |
| Swivel Offset | 1 3/4" |
| Swivel Or Rigid Caster | Swivel |
| Wheel Color/finish | High Heat Clear |
| Wheel Core Material | Steel |
| Wheel Dia. | 4" |
| Wheel Face | 2" |
| Wheel Material @ Tread | Metal |
| Wheel Type | Inferno Forged Stl |
Shipping Info:
| Ship weight (kg) | 5.85 |
| Ship height (cm) | 14.29 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 10.16 |
| Country of Origin | US |
Product Variants
| Product | Model | Wheel Dia. | Inside Bolt Hole Spacing | Load Rating | Wheel Width | Caster Sub-type | Wheel Bearing Type | Mounting Height | Wheel Core Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
R-HSK-6HMB | 6" | 2 7/16" x 4 15/16" | 560 lbs. | 2" | Rigid | Precision Ball | 7 3/4" | Iron | €281.27 | |
 |
S-HSK-6HFSB | 6" | 2 7/16" x 4 15/16" | 800 lbs. | 2" | Swivel | Precision Ball | 7 3/4" | Steel | €507.24 | |
 |
S-HSK-6HMB | 6" | 2 7/16" x 4 15/16" | 600 lbs. | 2" | Swivel | Precision Ball | 7 3/4" | Cast Iron | €441.05 | |
 |
R-HSK-6HFSB | 6" | 2 7/16" x 4 15/16" | 800 lbs. | 2" | Rigid | Precision Ball | 7 3/4" | Forged Steel | €382.66 | |
 |
R-HSK-8HMB | 8" | 2 7/16" x 4 15/16" | 600 lbs. | 2" | Rigid | Precision Ball | 9 3/4" | Iron | €365.73 | |
 |
S-HSK-8HNY | 8" | 2 7/16" x 4 15/16" | 2000 lbs. | 2" | Swivel | Roller | 9 3/4" | Nylon | €358.28 | |
 |
S-HSK-8HMB | 8" | 2 7/16" x 4 15/16" | 600 lbs. | 2" | Swivel | Precision Ball | 9 3/4" | Cast Iron | €534.95 |
