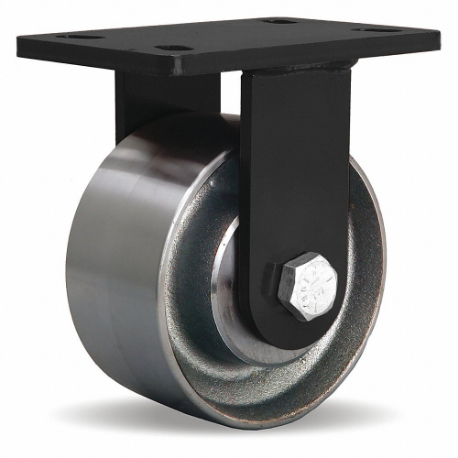

HAMILTON R-FMK-63HFSB Heat-Resistant Standard Plate Caster, 6 Inch Dia, 7 1/2 Inch Height
2560 lbs.
6"
3"
Rigid
Get it by Friday, Dec 19
10.00% off
€899.54 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plate Caster |
| Application | Aerospace Tooling, All Purpose Industrial/Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts |
| Brake Type | No Brake Included |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Material | Steel |
| Caster Mounting Type | Plate |
| Caster Sub-type | Rigid |
| Core Color | Silver |
| Esd Conductive | Yes |
| Features | Durable, High Heat, Quiet Operation, Reliable |
| For Axle Dia. | 3/4" |
| For Surface Type | Concrete |
| Frame Color | Black |
| Frame Construction | Forged |
| Frame Finish | Enamel |
| Includes Fasteners | No |
| Includes Mounting Fasteners | No |
| Includes Spanner Bushing | Yes |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2 7/16" x 4 15/16" |
| Load Rating | 1280 lbs. |
| Mounting Bolt Dia. | 1/2" |
| Mounting Plate Bolt Hole Pattern | A |
| Mounting Plate Size | 4 1/2" x 6 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 4 1/2" X 6 1/2" ( A ) |
| Mounting Plate Thickness | 0.312" |
| Non-marking | No |
| Nsf Listed | No |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temp. Range | -50°F to +200°F |
| Outside Bolt Hole Spacing | 3 3/8" x 5 1/4" |
| Overall Wheel Width | 3" |
| Standards | Icwm |
| Swivel Bearing Seal Type | Sealed |
| Swivel Lead | 1 3/4" |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Roller |
| Tread Material, Wheel Material | Steel |
| Tread Shape | Standard |
| Wheel Bearing Material | Stainless Steel |
| Wheel Bearing Type | Precision Ball |
| Wheel Core Type | Solid |
| Wheel Diameter | 6" |
| Wheel Type | Flat Free |
| Wheel Width | 3" |
| Wheel/tread Color | Silver |
| Wheel/tread Hardness | 179 BHN |
| Wheel/tread Hardness Rating | Extra Hard |
| With Toe Plate | No |
Shipping Info:
| Ship weight (kg) | 12.15 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Wheel Dia. | Caster Sub-type | Inside Bolt Hole Spacing | Wheel Width | Wheel Bearing Type | Load Rating | Mounting Height | Wheel Core Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
R-HSK-6HMB | - | Rigid | 2 7/16" x 4 15/16" | 2" | Precision Ball | 560 lbs. | 7 3/4" | Iron | €301.77 | |
 |
S-HSK-6HFSB | - | Swivel | 2 7/16" x 4 15/16" | 2" | Precision Ball | 800 lbs. | 7 3/4" | Steel | €556.57 | |
 |
S-HSK-6HMB | - | Swivel | 2 7/16" x 4 15/16" | 2" | Precision Ball | 600 lbs. | 7 3/4" | Cast Iron | €477.99 | |
 |
R-HSK-6HFSB | - | Rigid | 2 7/16" x 4 15/16" | 2" | Precision Ball | 800 lbs. | 7 3/4" | Forged Steel | €365.32 | |
 |
R-HSK-8HMB | - | Rigid | 2 7/16" x 4 15/16" | 2" | Precision Ball | 600 lbs. | 9 3/4" | Iron | €396.36 | |
 |
S-HSK-8HNY | - | Swivel | 2 7/16" x 4 15/16" | 2" | Roller | 2000 lbs. | 9 3/4" | Nylon | €393.14 | |
 |
S-HSK-8HMB | - | Swivel | 2 7/16" x 4 15/16" | 2" | Precision Ball | 600 lbs. | 9 3/4" | Cast Iron | €586.97 |
