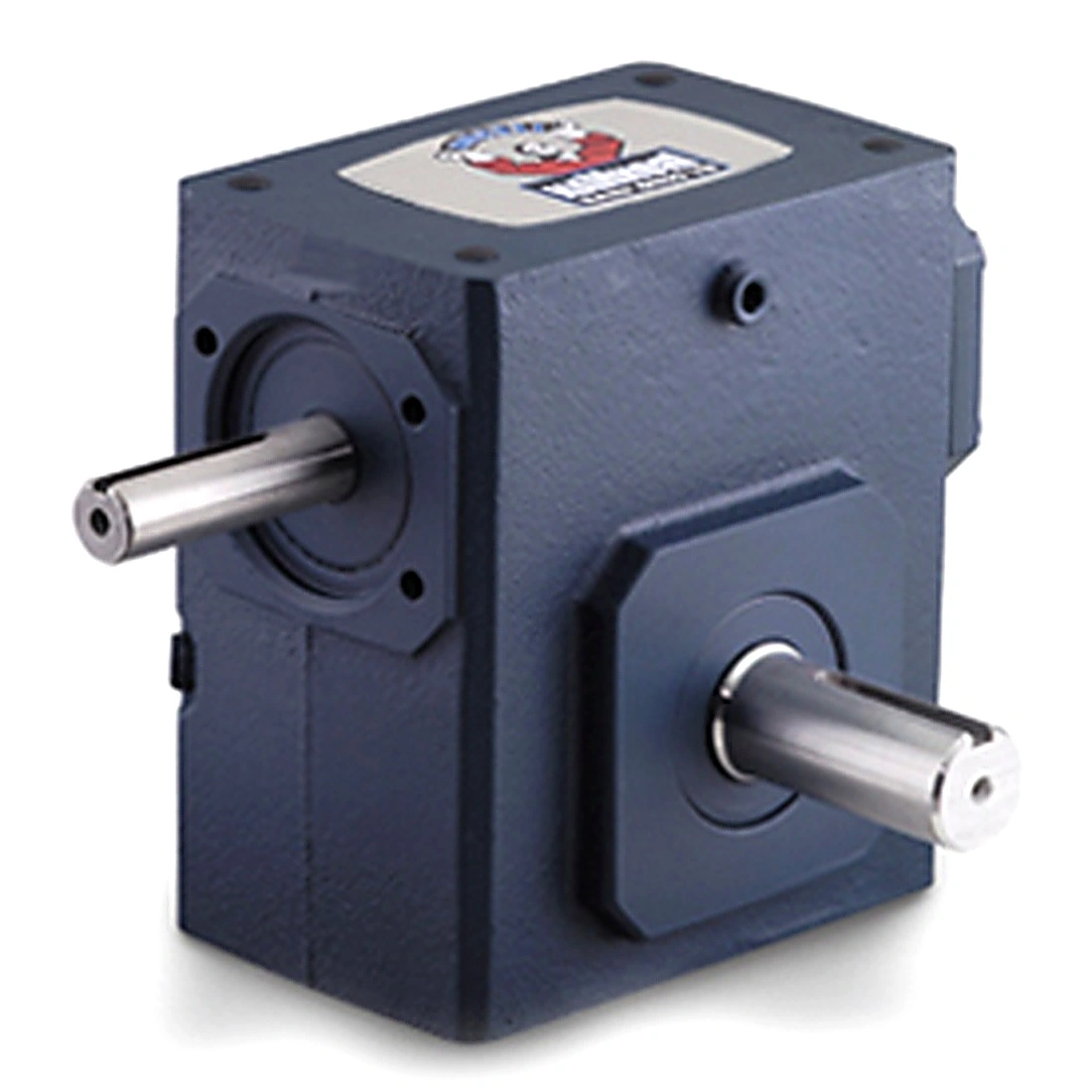

GROVE GEAR GRL8320019.00 Worm Reducer, 20:1 Ratio, 0.875 Inch I.D, 1.375 Inch O.D, Cast Iron | BG3FFZ

GROVE GEAR GRL8320019.00 GRL-B832-20-D Right Angle Gear Reducer, 20 to 1 Reduction Ratio, 87 RPM Output, 3267 lb-in Torque, Dual Shaft Output

Item: BG3FFZModel: GRL8320019.00Cross Ref: GRL-B832-20-D
Check Availability
In Stock
Ratio

Get it by Thursday, Aug 27

€2,266.69 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Reducer
A 5.75
Application General Purpose
Assembly B-D
B 8.5
C 9.38"
Center Distance 3 1/4"
Centre Distance 3 1/4"
Dimensions 9.38"
Gear Drive Reductions Single
Gear Ratio 20:1
Gear Type Worm
Gearbox Type Worm
Gross Weight 0 lbs.
Height 9.38"
I 5.02"
Input Bore Size 7/8"
Input Dia. 7/8"
Input Hp 5 9/50 hp
Input Hp @ 1750 Rpm 5 9/50 hp
Input Keyway Size 0.1875" x 1.63"
Input Shaft Length 2.38"
Input Speed 1750 RPM
Input Style Shaft
Input Type Solid Shaft
J 7 1/2"
K 3 3/4"
Length 19.38
Lubrication PAG Synthetic Oil
Lubrication Type Pag Synthetic Oil
M 2.38
Material Cast Iron
Max. Input Hp 5 9/50 hp
Max. Input Speed 1750 RPM
Max. Ohl (output Shaft) 2275
Max. Output Speed 87 RPM
Max. Thrust Load (output Shaft) 2574
Mount Style B
Mounting Type Base
N 7.06
Nema Input Mounting Solid Shaft
No. Of Gear Reductions Single
O 3.66"
Output Dia. 1 3/8"
Output Hp 4.536 hp
Output Keyway Size 0.3125" x 2.63"
Output Shaft Solid Shaft
Output Shaft Dia 1.375
Output Shaft Direction Double
Output Shaft Length 3.66"
Output Shaft Thrust Rating 2574
Output Shaft Type Double Shaft
Output Speed 87 RPM
Output Style D
Output Type Shaft
Overhung Load Rating 2275 lbs.
Paint/coating Blue
Product Datasheet grove-gear-gr8130084-00.pdf
Product Line GRL Series - Ironman Worm Gear Reducers
Product Series GRL Series
Reducer Worm - Right Angle
Reducer Style Worm - Right Angle
Reducer Type Single
Reduction Single
Series Type Cast Iron 800 Worm Gear Reducers
Shaft Seal Material Viton
Speed 87 RPM
T 1.375
Tap Depth 22/25"
Torque 3267 lbs.-in.
Torque (lb-in)@1750rpm 3267
Type Right Angle Single Reduction
U 7/8"
Width 15.13

Shipping Info:

Ship weight (kg) 30.15
Ship height (cm)38.1
Ship length (cm)49.23
Ship width (cm)38.43

Documentation:

Datasheet

Product Variants

ProductModelOutput SpeedOutput HpOutput TorqueMax. Input HpOutput Dia.Input Dia.Paint/coatingGear TypePrice
GROVE GEAR GRL8320307.00 Worm Reducer, 30:1 Ratio, 1.375 Inch I.D, 1.375 Inch O.D, Cast Iron | AX4BAQ GRL8320307.0058 RPM2.986 hp3226 lbs.-in.3.619 hp1 3/8"1 3/8"BlueWorm€2,558.79
GROVE GEAR GRL8320047.00 Worm Reducer, 50:1 Ratio, 0.875 Inch I.D, 1.375 Inch O.D, Cast Iron | AX4BBB GRL8320047.0035 RPM1.841 hp3315 lbs.-in.2.462 hp1 3/8"7/8"BlueWorm€2,655.47
GROVE GEAR GRL8320309.00 Worm Reducer, 50:1 Ratio, 1.375 Inch I.D, 1.375 Inch O.D, Cast Iron | AX4NYL GRL8320309.0035 RPM1.841 hp3315 lbs.-in.2.462 hp1 3/8"1 3/8"BlueWorm€2,558.79
GROVE GEAR GRL8320025.00 Worm Reducer, 10:1 Ratio, 0.875 Inch I.D, 1.375 Inch O.D, Cast Iron | AX4ZJL GRL8320025.00175 RPM7.497 hp2700 lbs.-in.8 23/250 hp1 3/8"7/8"BlueWorm€2,558.79
GROVE GEAR GRL8320046.00 Worm Reducer, 40:1 Ratio, 0.875 Inch I.D, 1.375 Inch O.D, Cast Iron | AX6XLZ GRL8320046.0043 RPM2.293 hp3303 lbs.-in.2.926 hp1 3/8"7/8"BlueWorm€2,655.47
GROVE GEAR GRL8320086.00 Reducer, 3-Piece Coupled Input Output Shaft Right Worm Gear | AX6XMA GRL8320086.0043 RPM-3303 lbs.-in.-1 3/8"7/8"-Worm€1,386.53
GROVE GEAR GRL8320191.00 Quill Input Worm Gear Reducer, 3.25 Inch Distance, 3315 Inch/lbs Torque, Cast Iron | AX8AQC GRL-BMQ832-50-D-180 GRL8320191.0035 RPM-3315 lbs.-in.-1 3/8"--Worm€1,440.79
