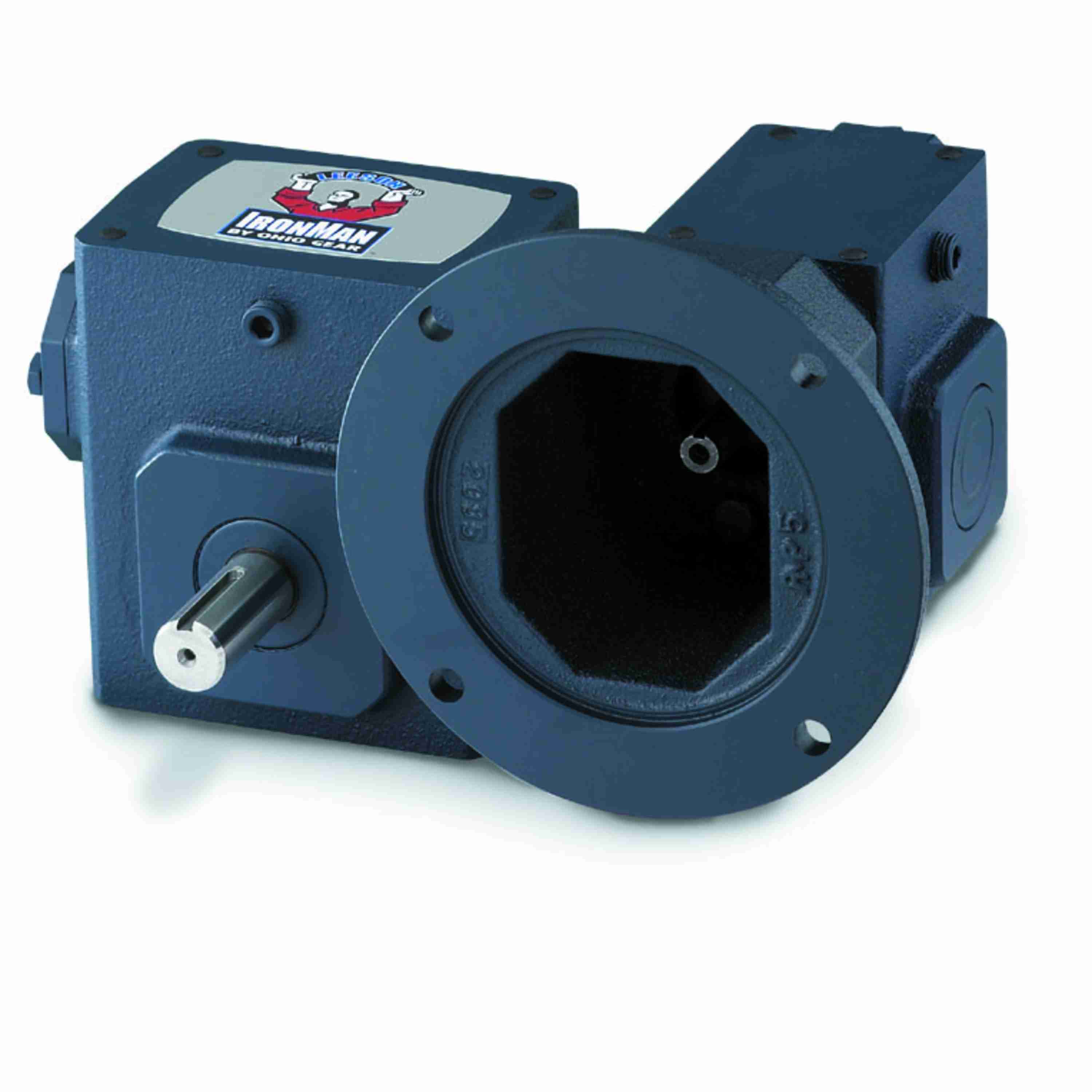

GROVE GEAR GRL8262063.00 GRL-DM826-2400-R1-56 Double Reduction Reducer, 2400:1 Ratio, 1.125 Inch Output Diameter, Cast Iron
Get it by Monday, Aug 31
€1,484.76 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| A | 4.84 |
| Aj | 5.88 |
| B | 7.12 |
| Bc | 7.01 |
| Be | 0.38" |
| Bf | 0.41 |
| Bj | 12.41 |
| C | 8 1/2" |
| C1 | 4.66 |
| Ce | 1.33 |
| Center Distance | 2.63" |
| D1 | 1.72 |
| D2 | 2.94 |
| F | 3.38 |
| Frame | 56C |
| Frame Size | 56C |
| G | 1.69 |
| Gear Type | Double Worm |
| Housing Material | Cast Iron |
| I | 4.34" |
| Input Keyway Size | 1/8" x 1" |
| Input Speed | 1750 RPM |
| Input Style | C Face Coupled |
| J | 6.38" |
| K | 3.19" |
| Lm | 6.07 |
| Max. Input Hp | 12/125 hp |
| Mounting Type | Base |
| N | 5.63 |
| No. Of Gear Reductions | 2 |
| O | 2.73" |
| Output Dia. | 1 1/8" |
| Output Hp | 7/250 hp |
| Output Key Size | 1/4" x 1 3/4" |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | DM |
| Output Shaft Orientation | R1 |
| Output Speed | 0.729 RPM |
| Output Torque | 2563 lbs.-in. |
| Overhung Load | 1625 lbs. |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| R | 2 11/25" |
| Reducer | Worm - Right Angle |
| Reduction | Double |
| Reduction Type | Double |
| Series | GR Series |
| Series Style | GRL-DM |
| Series Type | Cast Iron 800 Worm Gear Reducers |
| T | 1.125 |
| Tap Depth | 0.69" |
| Tap Size | 3/8"-16 |
| Thread Type | Coarse |
| U | 1/2" |
Shipping Info:
| Ship weight (kg) | 35.1 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Output Speed | Output Hp | Max. Input Hp | Output Torque | Output Dia. | Input Dia. | Paint/coating | Output | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
GRL8260151.00 | 58.3 RPM | 1.743 hp | 2 29/200 hp | - | - | - | Blue | Left | €1,604.39 | |
 |
GRL8265549.00 | 116.7 RPM | 3.216 hp | - | 1737 lbs.-in. | - | - | Blue | Left | €835.53 | RFQ
|
|
GRL8262015.00 | - | - | - | - | - | - | Blue | Right | €1,101.19 | RFQ
|
|
GRL8265550.00 | - | - | - | - | - | - | Blue | Right | €903.80 | RFQ
|
|
GRL8260242.00 | 233.3 RPM | 4.571 hp | 4 239/250 hp | - | - | - | Blue | - | €1,863.65 | |
 |
GRL8263010.00 | - | 0.835 hp | 1.216 hp | - | 1 1/8" | 5/8" | White Epoxy | Left | €2,091.11 | |
|
GRL8264054.00 | - | - | - | - | - | - | Blue | Left/Right | €1,338.64 | RFQ
|
