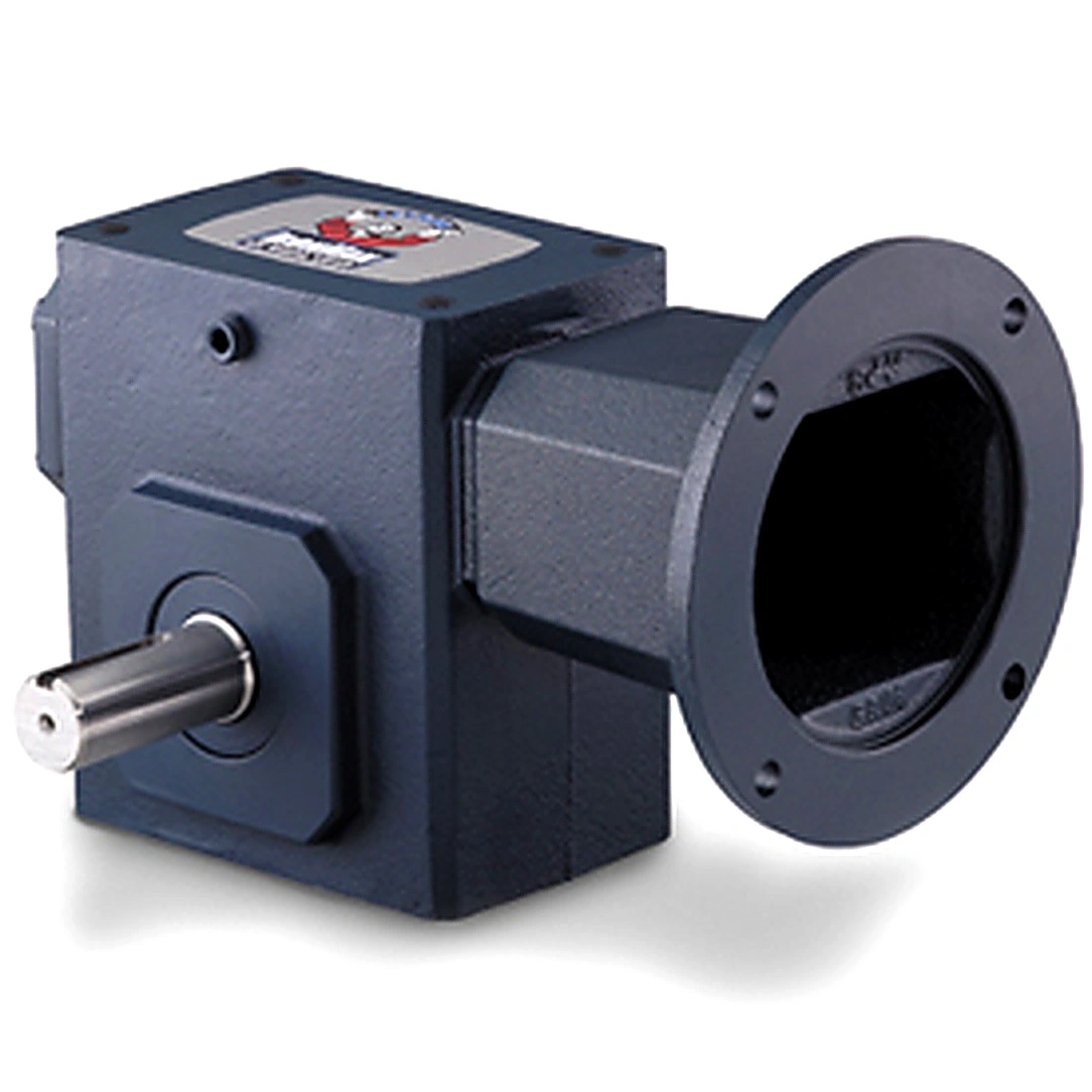

GROVE GEAR GRL8260112.00 GRL-BM826-15-L-180 Right Angle Gear Reducer, 15 to 1 Reduction Ratio, 116 RPM Output, 1737 lb-in Torque, H1 Left Output
Get it by Tuesday, Jul 14
€1,781.20 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| A | 4.84 |
| Aj | 7.25 |
| Ak | 8.5 |
| Application | General Purpose |
| Assembly | BM-L |
| B | 7.12 |
| Be1 | 1/2" |
| Bf | 0.53 |
| C | 8" |
| Center Distance | 2.63" |
| D | 2.94 |
| F | 3.38 |
| Frame | 180TC |
| G | 1.69 |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Housing Material | Cast Iron |
| I | 4.34" |
| Input Bore (c Face) | 1 1/8" |
| Input Bore Size | 1 1/8" |
| Input Dia. | 3/4" |
| Input Hp | 3.614 hp |
| Input Hp @ 1750 Rpm | 3.614 hp |
| Input Keyway Size | 3/16" x 1.63" |
| Input Keyway Size (c Face) | 1/4" x 1/8" |
| Input Speed | 1750 RPM |
| Input Style | Flexible Coupling Input |
| Input Type | C-Face Coupled |
| J | 6.38" |
| K | 3.19" |
| Key Way Size | 1/4" x 1/8" |
| L1 | 9 8/25" |
| Material | Cast Iron |
| Max. Input Hp | 3 307/500 hp , 3.614 hp |
| Max. Ohl (output Shaft) | 1625 |
| Max. Thrust Load (output Shaft) | 2069 |
| Mounting Type | Base |
| N | 5.63 |
| No. Of Gear Reductions | 1 |
| O | 2.73" |
| Output | Left |
| Output Dia. | 1 1/8" |
| Output Hp | 3 27/125 hp |
| Output Key Size | 1/4" x 1 3/4" |
| Output Shaft | Solid Shaft |
| Output Shaft Assembly Code | L |
| Output Shaft Dia | 1.125 |
| Output Shaft Dia. | 1 1/8" |
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Shaft Thrust Rating | 2069 |
| Output Shaft Type | Left Handed Shaft |
| Output Speed | 116 RPM |
| Output Style | L |
| Output Torque | 1737 lbs.-in. |
| Output Type | Solid Shaft |
| Overhung Load | 1625 lbs. |
| Overhung Load Rating | 1625 lbs. |
| Paint/coating | Blue |
| Product Line | GRL Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Reduction | Single |
| Reduction Type | Single |
| Series | GRL Series |
| Series Style | GRL-BM-L |
| Series Type | Cast Iron 800 Worm Gear Reducers |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Speed | 116 RPM |
| T | 1.125 |
| Tap Depth | 0.69" |
| Tap Size | 3/8"-16 |
| Thread Type | Coarse |
| Torque (lb-in)@1750rpm | 1737 |
| U | 3/4" |
| Width | 12.25 |
Shipping Info:
| Ship weight (kg) | 25.65 |
| Ship height (cm) | 29.85 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 31.12 |
Product Variants
| Product | Model | max. input hp | output torque | mounting type | series | gear type | gear ratio | center distance | no. of gear reductions | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
GRL8260151.00 | 2 29/200 hp | - | - | - | - | - | 2.63" | - | €1,604.39 | |
|
GRL8265549.00 | - | 1737 lbs.-in. | - | - | - | - | 2.6" | - | €835.53 | RFQ
|
|
GRL8262015.00 | - | - | - | - | - | - | 2.6" | - | €1,101.19 | RFQ
|
|
GRL8265550.00 | - | - | - | - | - | - | 2.6" | - | €903.80 | RFQ
|
|
GRL8260242.00 | 4 239/250 hp | - | - | - | - | - | 2.63" | - | €1,863.65 | |
 |
GRL8263010.00 | 1.216 hp | - | Base | - | - | 60:1 | 2.63" | - | €2,091.11 | |
|
GRL8264054.00 | - | - | - | - | - | - | 2.6" | - | €1,338.64 | RFQ
|
