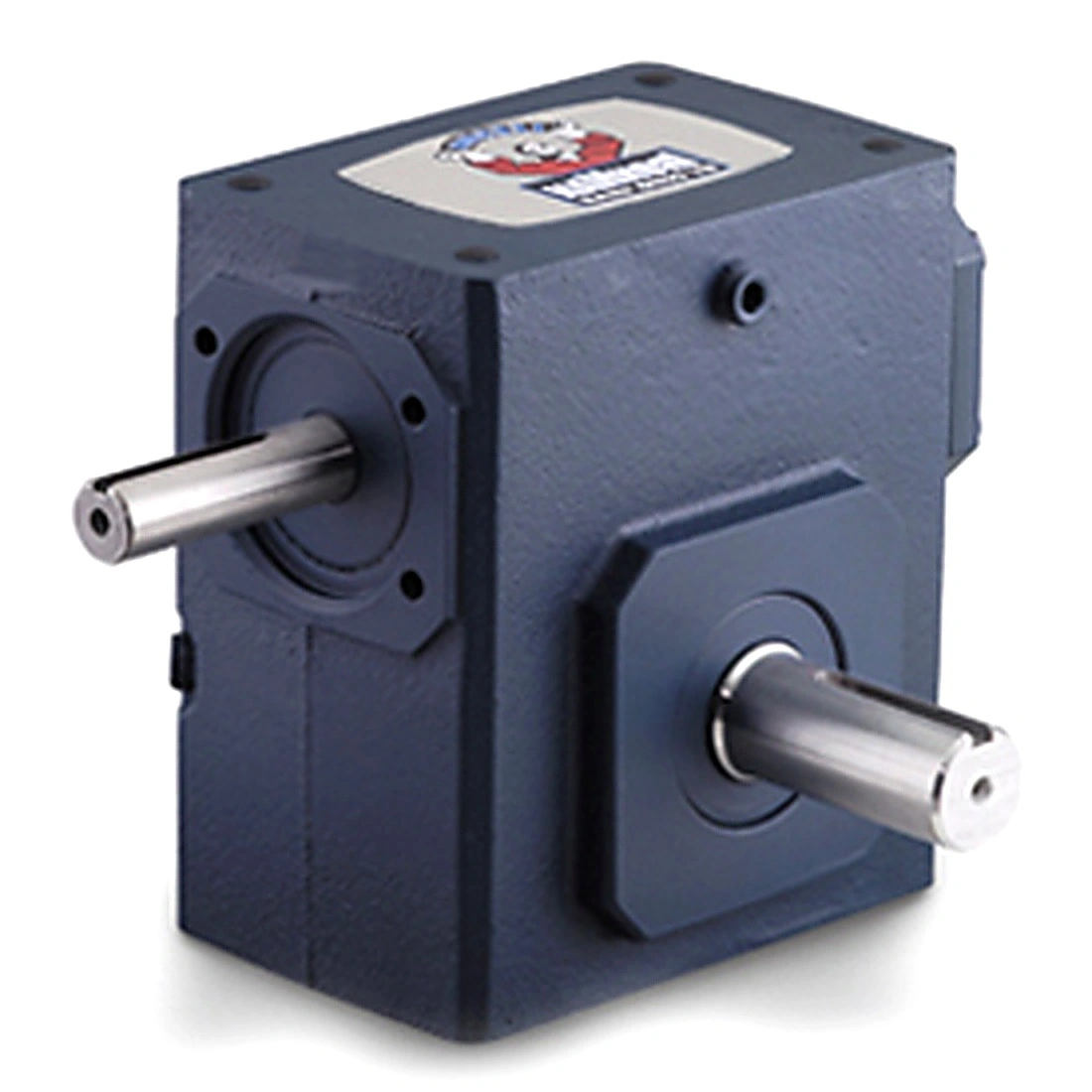

GROVE GEAR GRG8320108.00 Solid Input Shaft Worm Gear Reducer, Double Worm | AY4TLZ GRG-B832-100-D

GROVE GEAR GRG8320108.00 GRG-B832-100-D Right Angle Gear Reducer, 100 to 1 Ratio, 1.5 Inch Dual Output Shaft, Solid Shaft Input, 17 RPM Output

Item: AY4TLZModel: GRG8320108.00Cross Ref: GRG-B832-100-D
Check Availability
In Stock

Get it by Monday, Aug 31

€1,247.12 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Gear Reducer
A 5.75
Application General Purpose
Assembly B-D
B 8.5
C 9.38"
Center Distance 3 1/4"
D 3.5
F 4
G 2
Gear Type Worm
H-tap Size 7/16"-14
H-tap Type UNC
Housing Material Cast Iron
I 5.02"
Input Dia. 7/8"
Input Hp @ 1750 Rpm 0.691 hp
Input Keyway 3/16" x 1.63"
Input Keyway Size 3/16" x 1.63"
Input Speed 1750 , 1750 RPM
Input Style Solid Shaft
J 7 1/2"
K 3 3/4"
L 6.76"
M 2.38
Max. Input Hp @ 1750 1/2 hp
Mount Footprint 4 x 7.5
Mount Style B
N 7.06
Nema Input Mounting Solid Shaft
No. Of Gear Reductions 1 , Single
O 3.42"
Output Config Dual Shaft
Output Dia. 1 1/2"
Output Key 3/8 x 2.63
Output Key Size 3/8" x 2.63"
Output Shaft Solid Shaft
Output Shaft Assembly Code D
Output Shaft Dia. 1.5
Output Shaft Direction Double
Output Shaft Thrust Rating 2574
Output Speed 17 , 17 RPM
Output Speed @ 1750 Rpm Input 17
Output Torque 1567 lbs.-in.
Output Torque Rating (in-lb) 1567 lbs.-in.
Overhung Load Rating 2275 lbs.
Product Datasheet grove-gear-gr8130084-00.pdf
Product Line GRG Series - Ironman Worm Gear Reducers
Product Type Right Angle
Ratio 1001 to 2501
Reducer Worm - Right Angle
Reduction Ratio 100
Series GRG , GRG Series
Series Code Grg
Series Size 832
Service Factor 1
Shaft Center Distance 3.25
Shaft Center Height 3.5
Shaft Seal Material Viton
T 1.5
Tap Depth 22/25"
Tap Size 7/16"-14
Thread Type Coarse
Torque (lb-in)@1750rpm 1567 lbs.-in.
U 7/8"

Shipping Info:

Ship weight (kg) 31.95
Ship height (cm)21.59
Ship length (cm)31.75
Ship width (cm)25.4

Documentation:

Datasheet

Product Variants

ProductModelOutput SpeedOutput HpMax. Input HpOutput TorqueOutput Dia.Input Dia.Paint/coatingOutputPrice
GROVE GEAR GRG8320167.00 Worm Reducer, 50:1 Ratio, 0.875 Inch I.D, 1.5 Inch O.D, Cast Iron | AX4ENU GRG8320167.0035 RPM1.841 hp2 231/500 hp-1 1/2"7/8"Blue-€2,655.47
GROVE GEAR GRG8325786.00 Helical Reducer, 300:1 Ratio, 1.5 Inch Output Diameter, Cast Iron | AX4FXZ GRG8325786.006.1 RPM0.524 hp0.895 hp5412 lbs.-in.1 1/2"---€2,192.99
GROVE GEAR GRG8325707.00 Reducer, Solid Input Shaft Solid Output Shaft Right Worm | AX4YBE GRG8325707.00116.7 RPM5.516 hp-2980 lbs.-in.--BlueRight€1,883.38
RFQ
GROVE GEAR GRG8322177.00 Double Reduction Reducer, 1200:1 Ratio, 1.5 Inch Output Diameter, Cast Iron | AX6FFD GRG-DMQ832-1200-R1-56 GRG8322177.001.46 RPM17/125 hp0.378 hp5731 lbs.-in.1 1/2"---€2,137.81
GROVE GEAR GRG8320272.00 Worm Reducer, 100:1 Ratio, 0.875 Inch I.D, 1.5 Inch O.D, Cast Iron | AX6XKM GRG8320272.0017 RPM87/200 hp0.691 hp1567 lbs.-in.1 1/2"7/8"BlueRight€2,523.25
GROVE GEAR GRG8325541.00 Quill Input Worm Gear Reducer | AX6ZCC GRG8325541.00------BlueRight€1,607.27
RFQ
GROVE GEAR GRG8322182.00 Quill Input Worm Gear Reducer | AX7LFC GRG8322182.00------BlueRight€3,106.49
RFQ
