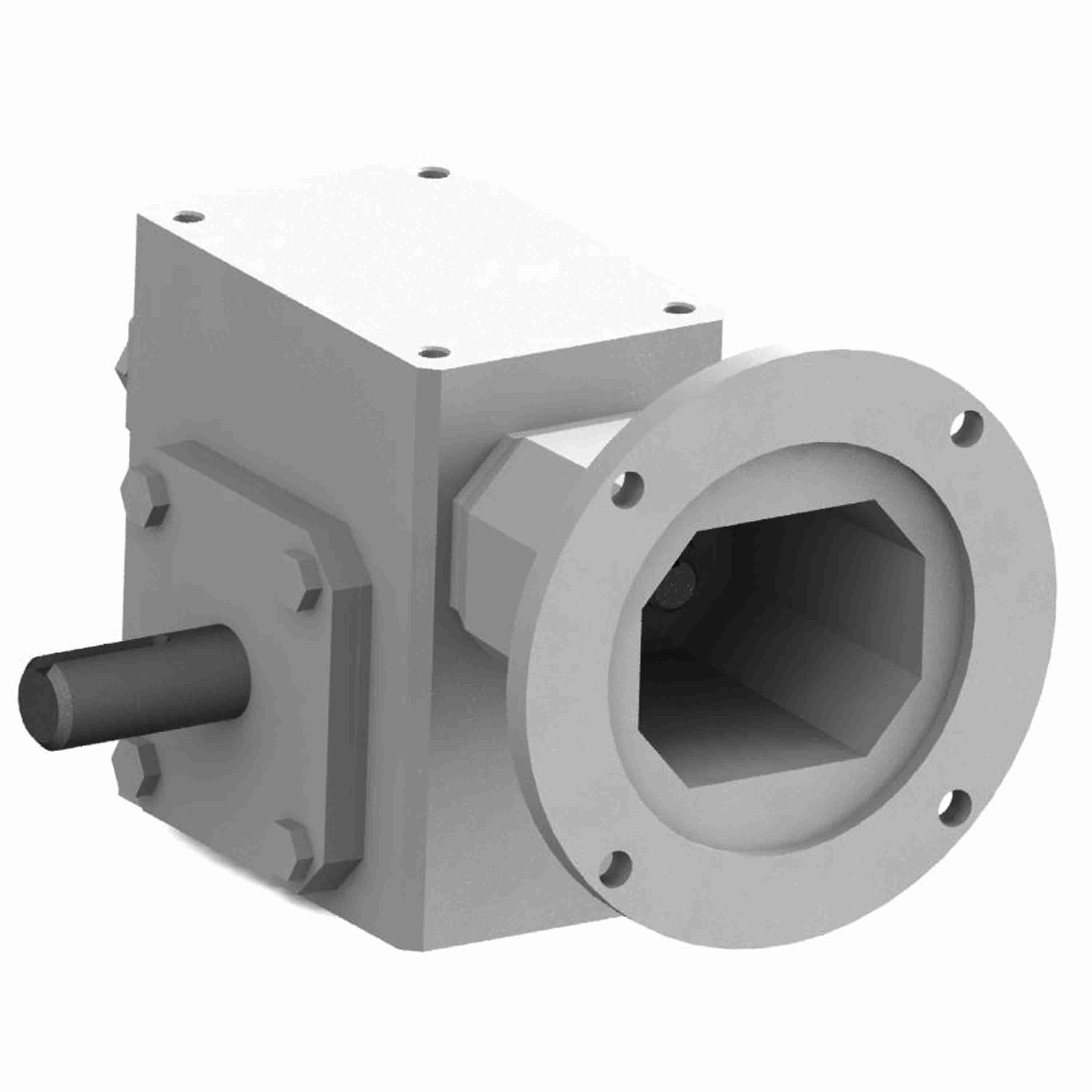

GROVE GEAR GRG8265558.00 GRG-WBM826-30-L-140 Worm Gear Reducers
Get it by Tuesday, Sep 1
€1,199.76 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Assembly | WBM-L |
| Center Distance | 2.63" |
| Frame | 140TC |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Input Bore (c Face) | 7/8" |
| Input Dia. | 7/8" |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Speed | 1750 RPM |
| Input Style | C Face Coupled |
| Max. Input Hp | 2 29/200 hp |
| Mounting Type | Base |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1 1/4" |
| Output Hp | 1.743 hp |
| Output Key Size | 1/4" x 1 3/4" |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | L |
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Speed | 58 RPM |
| Output Style | L |
| Output Torque | 1883 lbs.-in. |
| Overhung Load | 1625 lbs. |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reduction | Single |
| Reduction Type | Single |
| Series | GR Series |
| Series Style | GRG-WBM-L |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
Shipping Info:
| Ship weight (kg) | 25.65 |
| Ship height (cm) | 29.85 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 31.12 |
Product Variants
| Product | Model | Output Speed | Output Hp | Max. Input Hp | Output Dia. | Input Dia. | Output Torque | Paint/coating | Output | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
GRG8260151.00 | 58.3 RPM | 1.743 hp | - | 1 1/4" | 5/8" | - | Blue | Left | €1,462.42 | |
 |
GRG8265881.00 | 43.75 RPM | 1.287 hp | - | - | - | 1854 lbs.-in. | Blue | Left | €1,529.75 | |
 |
GRG8260205.00 | 350 RPM | 6 69/250 hp | 6.693 hp | 1 1/4" | 7/8" | 1130 lbs.-in. | Blue | - | €1,863.65 | |
|
GRG8264029.00 | - | - | - | - | - | - | Blue | Right | €2,305.24 | RFQ
|
|
GRG8263822.00 | - | - | - | - | - | - | - | Right | €1,825.42 | RFQ
|
|
GRG8264038.00 | - | - | - | - | - | - | Blue | Right | €2,305.24 | RFQ
|
|
GRG8264009.00 | - | - | - | - | - | - | Blue | Left | €2,305.24 | RFQ
|
