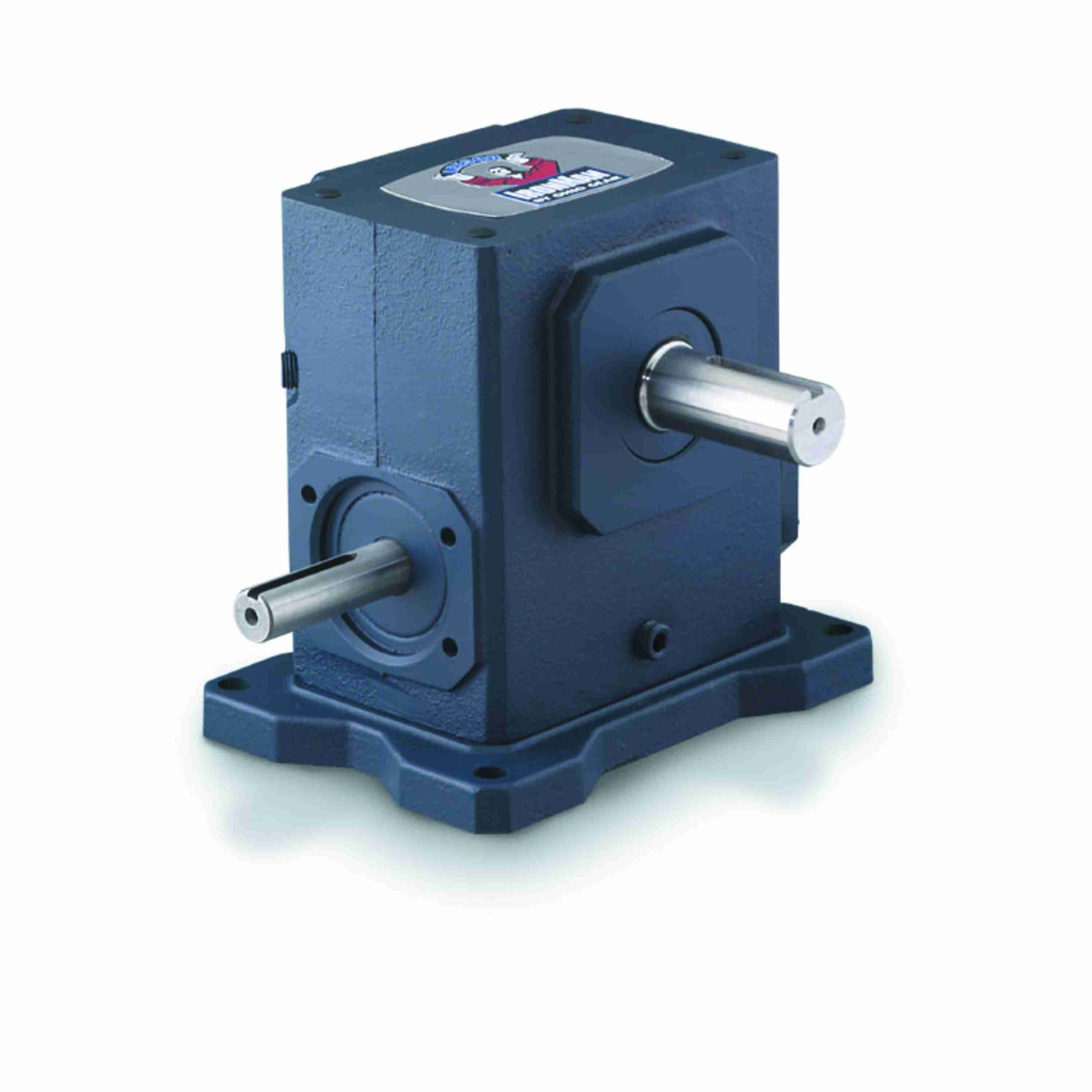

GROVE GEAR GRG8215523.00 GRG-WU821-60-L Worm Reducer, 60:1 Ratio, 0.625 Inch I.D, 1 Inch O.D, Cast Iron
Get it by Friday, Aug 28
€821.44 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Assembly | WU-L |
| B | 7.69 |
| C | 7.09" |
| Center Distance | 2.06" |
| D | 2.75 |
| F | 4.69 |
| G | 2.34 |
| Gear Type | Worm |
| H | 0.47" |
| Housing Material | Cast Iron |
| I | 3.61" |
| Input Dia. | 5/8" |
| Input Hp | 0.674 hp |
| Input Keyway Size | 3/16" x 1.38" |
| Input Speed | 1750 RPM |
| Input Style | Shaft |
| J | 6.38" |
| K | 3.19" |
| M | 1.76 |
| Max. Input Hp | 0.674 hp |
| Mounting Type | Horizontal Base, Worm Under |
| N | 4.68 |
| No. Of Gear Reductions | 1 |
| O | 2.29" |
| Output Dia. | 1" |
| Output Hp | 87/200 hp |
| Output Key Size | 1/4" x 1.44" |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | L |
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Speed | 29 RPM |
| Output Style | L |
| Output Torque | 940 lbs.-in. |
| Overhung Load | 1415 lbs. |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reduction | Single |
| Reduction Type | Single |
| Series | GR Series |
| Series Style | GRG-WU-L |
| Series Type | Cast Iron 800 Worm Gear Reducers |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| U | 5/8" |
| V | 18/25" |
Shipping Info:
| Ship weight (kg) | 11.7 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Output Speed | Output Dia. | Input Dia. | Output Hp | Output Torque | Max. Input Hp | Output | Paint/coating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GRG8215654.00 | - | - | - | - | - | - | Right | Blue | €1,501.47 | |
| GRG8210125.00 | 87.5 RPM | 1" | 5/8" | 1.338 hp | - | 1 73/125 hp | Right | Blue | €1,050.98 | |
| GRG8210118.00 | 29.2 RPM | 1" | 5/8" | 0.435 hp | - | 0.674 hp | Left | Blue | €930.17 | |
| GRG8210113.00 | - | 1" | 5/8" | 1.338 hp | - | 1 73/125 hp | Left | Blue | €1,050.98 | |
| GRG8210175.00 | 58.3 RPM | - | 7/8" | 0.896 hp | - | 1 129/1000 hp | - | Blue | €1,341.81 | |
| GRG8210117.00 | 35 RPM | 1" | 5/8" | 0.539 hp | - | 0.769 hp | Left | Blue | €930.17 | |
| GRG8210115.00 | - | 1" | 5/8" | 0.896 hp | - | 1.129 hp | Left | Blue | €930.17 |
