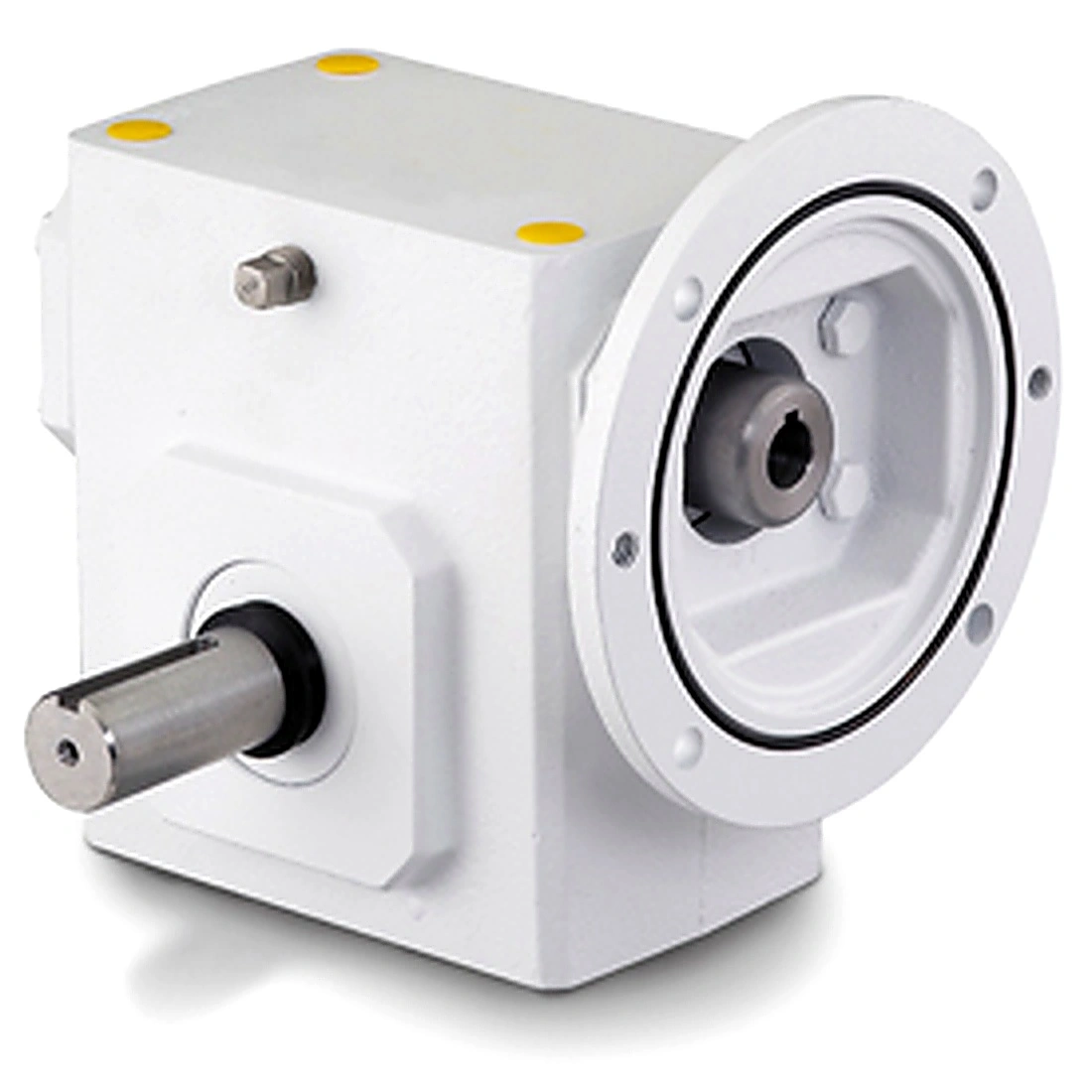

GROVE GEAR GRG8213011.00 GRG-WBMQ821-80-L-56 Right Angle Gear Reducer, 80 to 1 Reduction Ratio, 21 RPM Output, 547 lb-in Torque, Epoxy Washdown
Get it by Friday, Jul 17
€879.44 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| A | 3.81 |
| Aj | 5.88 |
| Application | Epoxy Washdown |
| Assembly | WBMQ-L |
| B | 5.8 |
| Be | 0.38" |
| Bf | 0.41 |
| C | 6.38" |
| Center Distance | 2.06" |
| D | 2.28 |
| Frame | 56C |
| Frame Size | 56C |
| G | 1.5 |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| I | 3.61" |
| Input Bore (c Face) | 5/8" |
| Input Dia. | 5/8" |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Quill Dia. | 5/8" |
| Input Speed | 1750 RPM |
| Input Style | C Face Quill |
| J | 4 3/4" |
| K | 2.38" |
| Key Way Size | 3/16" x 3/32" |
| Lq | 4.46" |
| Max. Input Hp | 38/125 hp |
| Mounting Type | Base |
| N | 4.68 |
| No. Of Gear Reductions | 1 |
| O | 2.29" |
| Output Dia. | 1" |
| Output Hp | 19/100 hp |
| Output Key Size | 1/4" x 1.44" |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | L |
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Speed | 21.9 RPM |
| Output Style | L |
| Output Torque | 547 lbs.-in. |
| Overhung Load | 1495 lbs. |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reduction | Single |
| Rq | 4.06" |
| Series | GR Series |
| Series Style | GRG-WBMQ-L |
| Series Type | Cast Iron 800 Worm Gear Reducers |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Tap Depth | 0.63" |
| Tap Size | 5/16"-18 |
| Thread Type | Coarse |
| Torque (lb-in)@1750rpm | 547 |
Shipping Info:
| Ship weight (kg) | 13.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | output torque | series | gear type | max. input hp | mounting type | gear ratio | center distance | no. of gear reductions | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GRG8215654.00 | - | - | - | - | - | - | - | - | €1,501.47 | |
| GRG8210125.00 | - | - | - | 1 73/125 hp | No Base | 20:1 | 2.06" | - | €1,050.98 | |
| GRG8210118.00 | - | - | - | 0.674 hp | No Base | 60:1 | 2.06" | - | €930.17 | |
| GRG8210113.00 | - | - | - | 1 73/125 hp | No Base | 20:1 | 2.06" | - | €1,050.98 | |
| GRG8210175.00 | - | - | - | 1 129/1000 hp | - | - | 2.06" | - | €1,341.81 | |
| GRG8210117.00 | - | - | - | 0.769 hp | No Base | 50:1 | 2.06" | - | €930.17 | |
| GRG8210115.00 | - | - | - | 1.129 hp | No Base | 30:1 | 2.06" | - | €930.17 |
