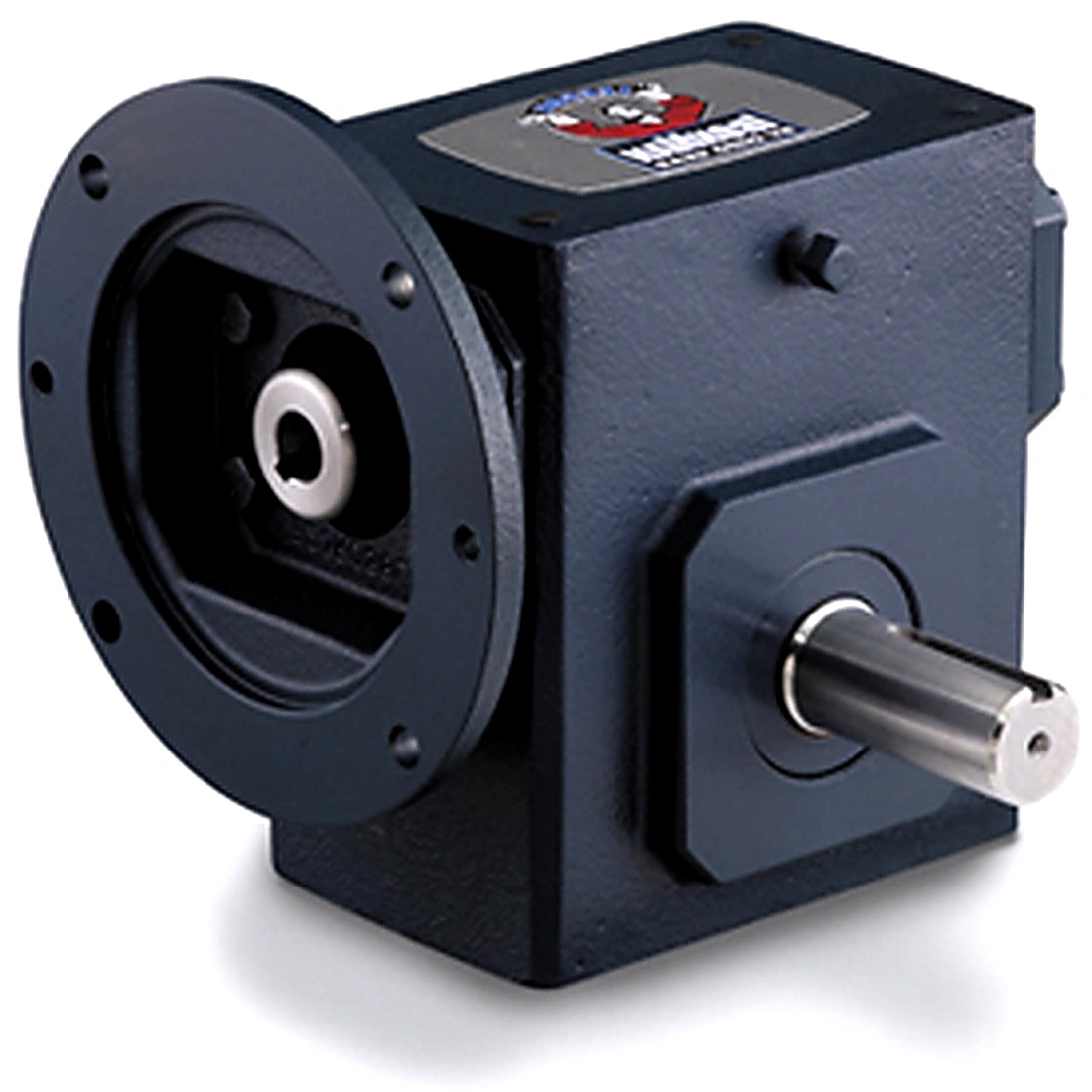

GROVE GEAR GRG8210142.00 GRG-BMQ821-60-D-56 Right Angle Gear Reducer, 60 to 1 Reduction Ratio, 29 RPM Output, 940 lb-in Torque, Dual Shaft Output
Get it by Monday, Aug 17
€1,323.17 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Application | General Purpose |
| Case Size | None |
| Center Distance | 2.06" |
| Centre Distance | 2.06" |
| Frame | 56 |
| Gear Drive Reductions | Single |
| Gear Ratio | 60:1 |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Input Bore (c Face) | 0.625 |
| Input Bore Size | 5/8" |
| Input Dia. | 5/8" |
| Input Frame | NBSP |
| Input Hp | 0.674 hp |
| Input Hp @ 1750 Rpm | 0.674 hp |
| Input Keyway Size | 3/16" x 3/32" |
| Input Size | 5/8" |
| Input Style | C Face Quill |
| Length | 10.69 |
| Lubrication | PAG Synthetic Oil |
| Lubrication Type | Pag Synthetic Oil |
| Material | Cast Iron |
| Max. Hp | 67/100 hp |
| Max. Input Hp | 0.674 hp , 337/500 hp |
| Max. Ohl (output Shaft) | 1415 |
| Max. Overhung Load | 1200 lbs. |
| Max. Thrust Load (output Shaft) | 1144 |
| Motor Hp | 1/2 hp |
| Mounting Type | No Base |
| No. Of Gear Reductions | Single |
| Output Dia. | 1" |
| Output Hp | 0.435 hp |
| Output Keyway Size | 1/4" x 1 11/25" |
| Output Shaft Dia. | 1" |
| Output Shaft Direction | Double |
| Output Shaft Length | 2.29" |
| Output Shaft Type | Double Shaft |
| Output Style | D |
| Output Type | Shaft |
| Product Line | GRG Series - Ironman Worm Gear Reducers |
| Product Series | GRG Series |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Series Type | Cast Iron 800 Worm Gear Reducers |
| Shaft Seal Material | Viton |
| Speed | 29 RPM |
| Torque | 940 lbs.-in. |
| Torque (lb-in)@1750rpm | 940 |
| Type | Right Angle Single Reduction |
| Type Of Oil | None |
| Width | 9.06 |
Shipping Info:
| Ship weight (kg) | 13.05 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
Product Variants
| Model | Output Speed | Output Dia. | Input Dia. | Output Hp | Output Torque | Max. Input Hp | Output | Paint/coating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GRG8215654.00 | - | - | - | - | - | - | Right | Blue | €1,501.47 | |
| GRG8210125.00 | 87.5 RPM | 1" | 5/8" | 1.338 hp | - | 1 73/125 hp | Right | Blue | €1,050.98 | |
| GRG8210118.00 | 29.2 RPM | 1" | 5/8" | 0.435 hp | - | 0.674 hp | Left | Blue | €930.17 | |
| GRG8210113.00 | - | 1" | 5/8" | 1.338 hp | - | 1 73/125 hp | Left | Blue | €1,050.98 | |
| GRG8210175.00 | 58.3 RPM | - | 7/8" | 0.896 hp | - | 1 129/1000 hp | - | Blue | €1,341.81 | |
| GRG8210117.00 | 35 RPM | 1" | 5/8" | 0.539 hp | - | 0.769 hp | Left | Blue | €930.17 | |
| GRG8210115.00 | - | 1" | 5/8" | 0.896 hp | - | 1.129 hp | Left | Blue | €930.17 |
