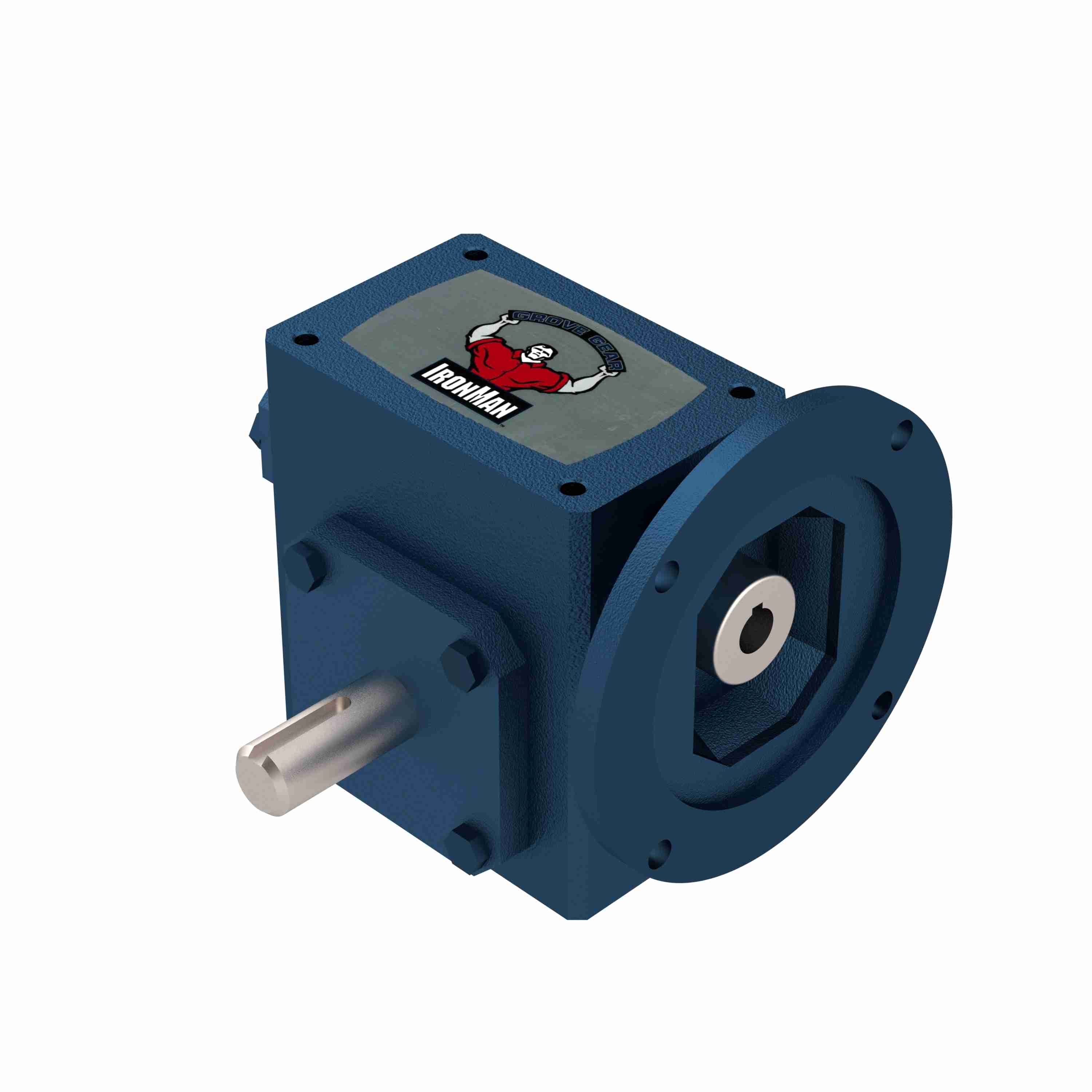

GROVE GEAR GRG8210137.00 GRG-BMQ821-20-D-56 Right Angle Gear Reducer, 20 to 1 Reduction Ratio, 87 RPM Output, 964 lb-in Torque, Dual Shaft Output
Get it by Friday, Jul 17
€1,101.66 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| A | 3.81 |
| Aj | 5.88 |
| Application | General Purpose |
| B | 5.8 |
| Be | 0.38" |
| Bf | 0.41 |
| C | 6.38" |
| Case Material | Cast Iron |
| Center Distance | 2.06" |
| D | 2.28 |
| Frame | 56 |
| Frame Size | 56C |
| G | 1.44 |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Hp | 1 29/50 hp |
| I | 3.61" |
| Input Bore (c Face) | 0.625 |
| Input Bore Size | 5/8" |
| Input Flange | 56C |
| Input Quill Dia. | 5/8" |
| Input Style | C-Face Quill |
| J | 4 3/4" |
| K | 2 1/2" |
| Length | 10.69 |
| Lm | 7.07 |
| Lq | 4.46" |
| M | 1.76 |
| Material | Cast Iron |
| Max. Hp | 1 29/50 hp |
| Max. Ohl (output Shaft) | 1175 |
| Max. Overhung Load | 1200 lbs. |
| Max. Thrust Load (output Shaft) | 1144 |
| Motor Hp | 1 1/2 hp |
| N | 4.68 |
| No. Of Gear Reductions | Single |
| O | 2.29" |
| Output Hp | 1.338 hp |
| Output Shaft | Solid Shaft |
| Output Shaft Dia. | 1" |
| Output Shaft Direction | Double |
| Output Shaft Thrust Rating | 1144 |
| Output Shaft Type | Double Shaft |
| Output Speed | 87.5 RPM |
| Output Style | D |
| Output Type | Double Shaft |
| Overhung Load Rating | 1175 lbs. |
| Paint/coating | Blue |
| Product Line | GRG Series - Ironman Worm Gear Reducers |
| Ratio | 20:1 |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Reduction | Single |
| Rq | 4.06" |
| Series Type | Cast Iron 800 Worm Gear Reducers |
| Service Factor 1 | 1.05 SF @ 1 1/2 HP |
| Service Factor 2 | 1.58 SF @ 1 HP |
| Service Factor 3 | 2.11 SF @ 3/4 HP |
| Shaft Seal Material | Viton |
| Speed | 87 RPM |
| Tap Depth | 0.63" |
| Torque | 964 lbs.-in. |
| Torque (lb-in)@1750rpm | 964 |
| U | 5/8" |
| Width | 9.06 |
Shipping Info:
| Ship weight (kg) | 13.05 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
Product Variants
| Model | output torque | series | gear type | max. input hp | mounting type | gear ratio | center distance | no. of gear reductions | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GRG8215654.00 | - | - | - | - | - | - | - | - | €1,501.47 | |
| GRG8210125.00 | - | - | - | 1 73/125 hp | No Base | 20:1 | 2.06" | - | €1,050.98 | |
| GRG8210118.00 | - | - | - | 0.674 hp | No Base | 60:1 | 2.06" | - | €930.17 | |
| GRG8210113.00 | - | - | - | 1 73/125 hp | No Base | 20:1 | 2.06" | - | €1,050.98 | |
| GRG8210175.00 | - | - | - | 1 129/1000 hp | - | - | 2.06" | - | €1,341.81 | |
| GRG8210117.00 | - | - | - | 0.769 hp | No Base | 50:1 | 2.06" | - | €930.17 | |
| GRG8210115.00 | - | - | - | 1.129 hp | No Base | 30:1 | 2.06" | - | €930.17 |
