GROVE GEAR GR8243041.00 GR-WBMQ824-20-L-140 Right Angle Gear Reducer, 20 to 1 Reduction Ratio, 88 RPM Output, 1421 lb-in Torque, Epoxy Washdown
Get it by Thursday, Aug 27
€1,833.79 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Application | Epoxy Washdown |
| Assembly | WBMQ-L |
| Center Distance | 2.38" |
| Family Name | Cast Iron Housing Material Worm Gear Reducers |
| Frame | 140TC |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Housing Material | Cast Iron |
| Input Bore (c Face) | 7/8" |
| Input Bore Size | 7/8" |
| Input Dia. | 7/8" |
| Input Hp | 2.326 hp |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Speed | 1750 RPM |
| Input Style | C Face Quill |
| Input Type | C-Face Quilled |
| Material | Cast Iron |
| Mounting Type | Base |
| No. Of Gear Reductions | 1 |
| Output | Left |
| Output Dia. | 1 1/8" |
| Output Hp | 1.972 hp |
| Output Key Size | 1/4" x 1 3/4" |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | L |
| Output Shaft Dia | 1.125 |
| Output Shaft Dia. | 1 1/8" |
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Shaft Type | Left Handed Shaft |
| Output Speed | 87 RPM |
| Output Style | L |
| Output Torque | 1421 lbs.-in. |
| Output Type | Shaft |
| Overhung Load | 1770 lbs. |
| Paint/coating | White Epoxy |
| Product Datasheet | grove-gear-gr8130084-00.pdf |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Reduction | Single |
| Reduction Type | Single |
| Series | GR Series |
| Series Style | GR-WBMQ-L |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Speed | 87 RPM |
| Torque (lb-in)@1750rpm | 1421 |
Shipping Info:
| Ship weight (kg) | 20.25 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
Documentation:
Product Variants
| Product | Model | Output Torque | Output Speed | Output Dia. | Output Hp | Input Dia. | Max. Input Hp | Output | Paint/coating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

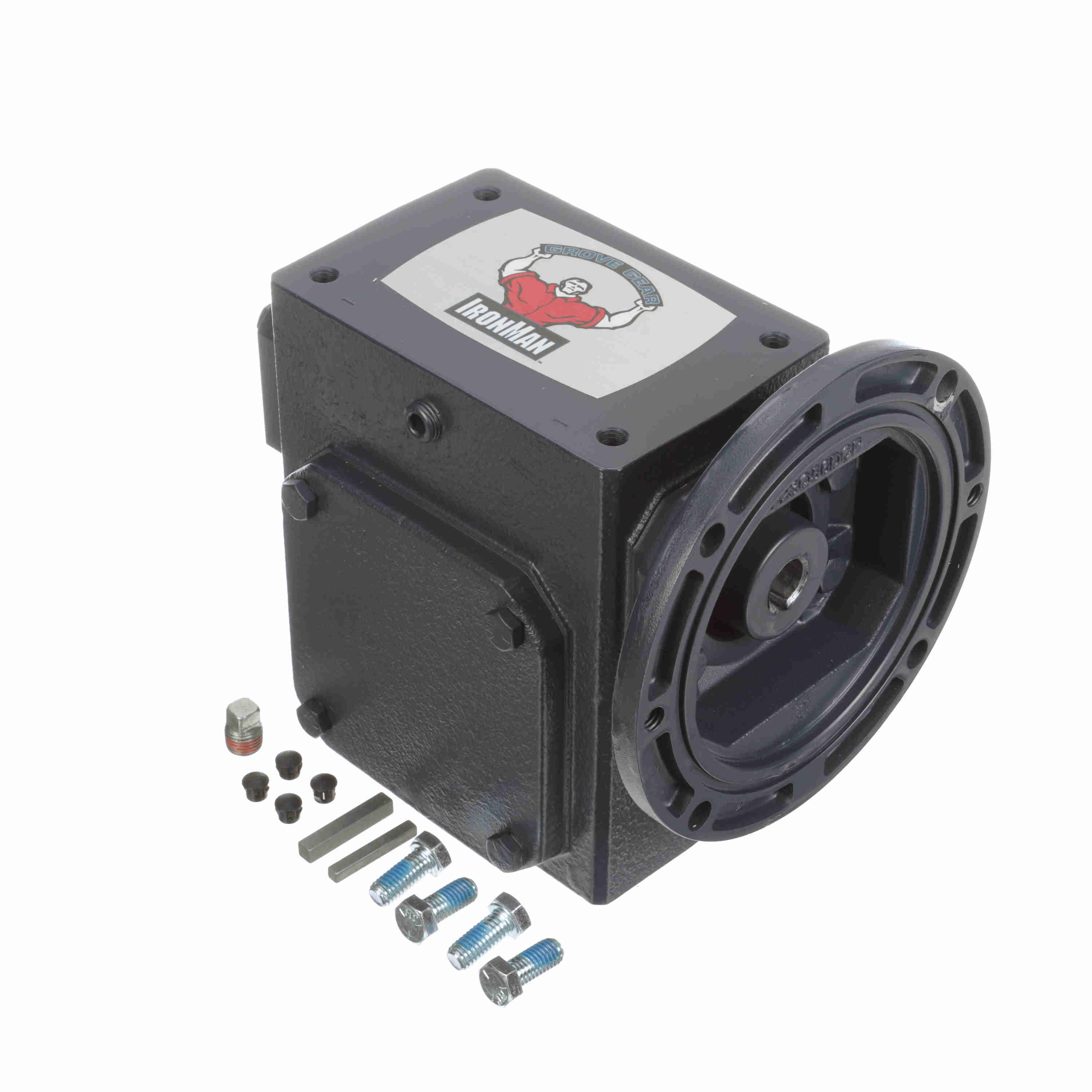

GR8240166.00 | 1604 | 29.2 RPM | 1 1/8" | 0.656 hp | 5/8" | 0.967 hp | Right | Blue | €1,119.76 | |
 |
GR8240154.00 | 1219 | 29.2 RPM | 1 1/8" | 0.656 hp | 5/8" | 0.967 hp | Left | Blue | €1,265.18 | |
 |
GR8240159.00 | - | 175 RPM | 1 1/8" | 3.253 hp | 5/8" | 3 141/250 hp | Right | Blue | €1,540.94 | |
 |

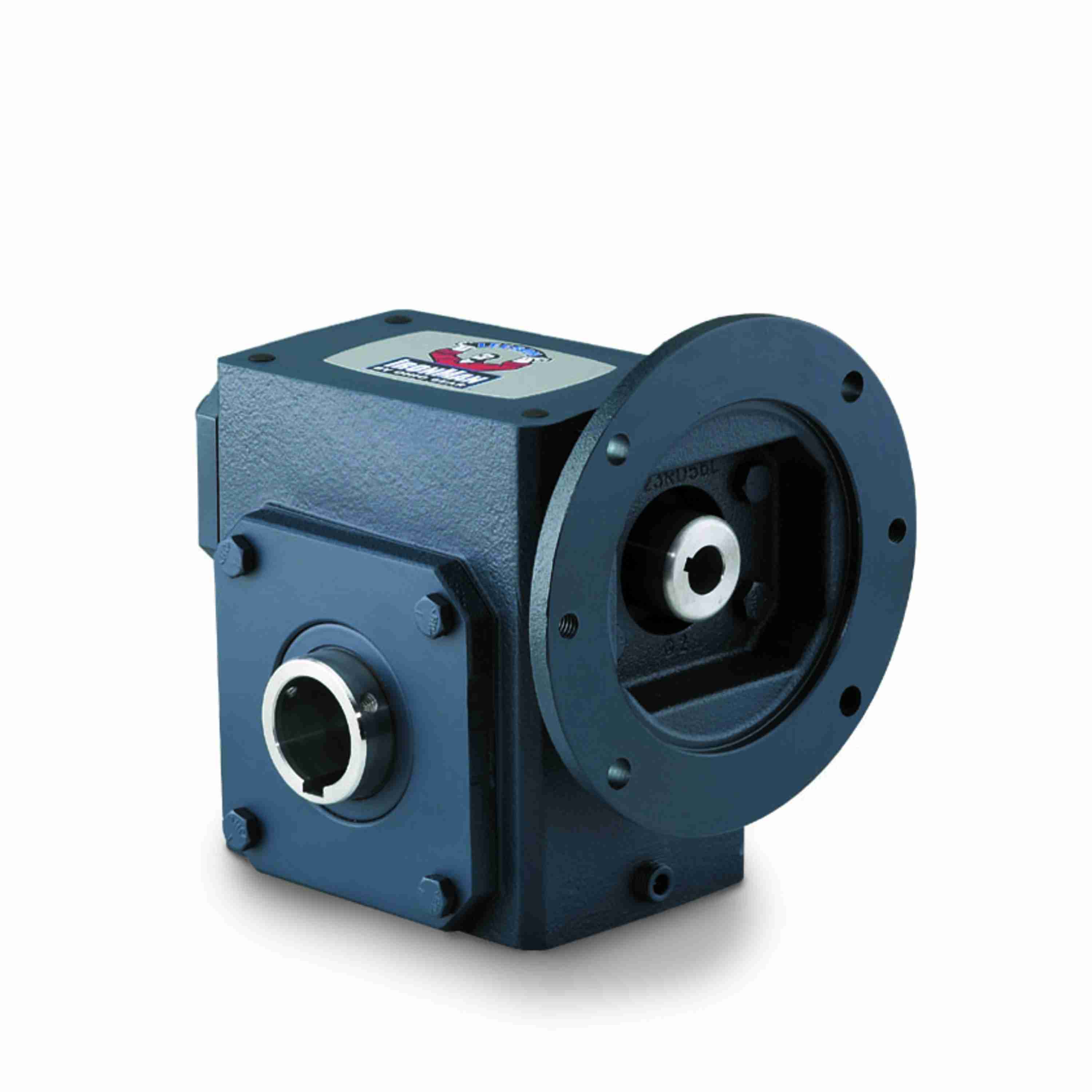

GR8240565.18 | 1421 lbs.-in. | 87.5 RPM | 1 1/8" | 1.972 hp | 7/8" | 2.326 hp | Hollow | Blue | €2,095.34 | |
|
GR8241164.00 | 1433 lbs.-in. | 43.75 RPM | - | 0.994 hp | - | - | Right | Blue | €1,422.33 | RFQ
|
 |

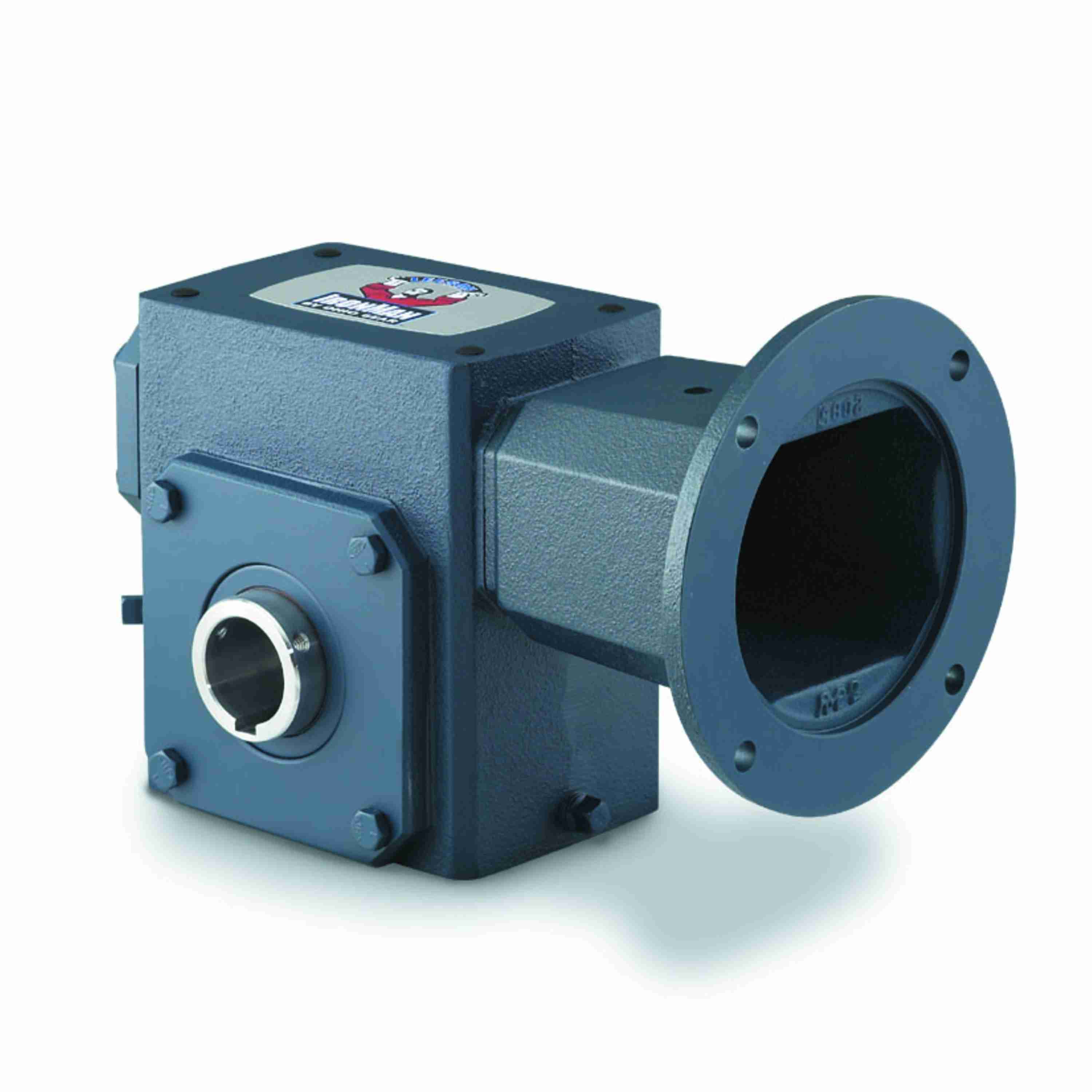

GR8240519.20 | 1423 lbs.-in. | 58.3 RPM | 1 1/4" | 1.317 hp | 3/4" | 1.653 hp | Hollow | Blue | €2,095.34 | |
 |
GR8240510.19 | 1418 lbs.-in. | 29.2 RPM | 1 3/16" | - | 3/4" | - | - | - | €1,051.60 |
