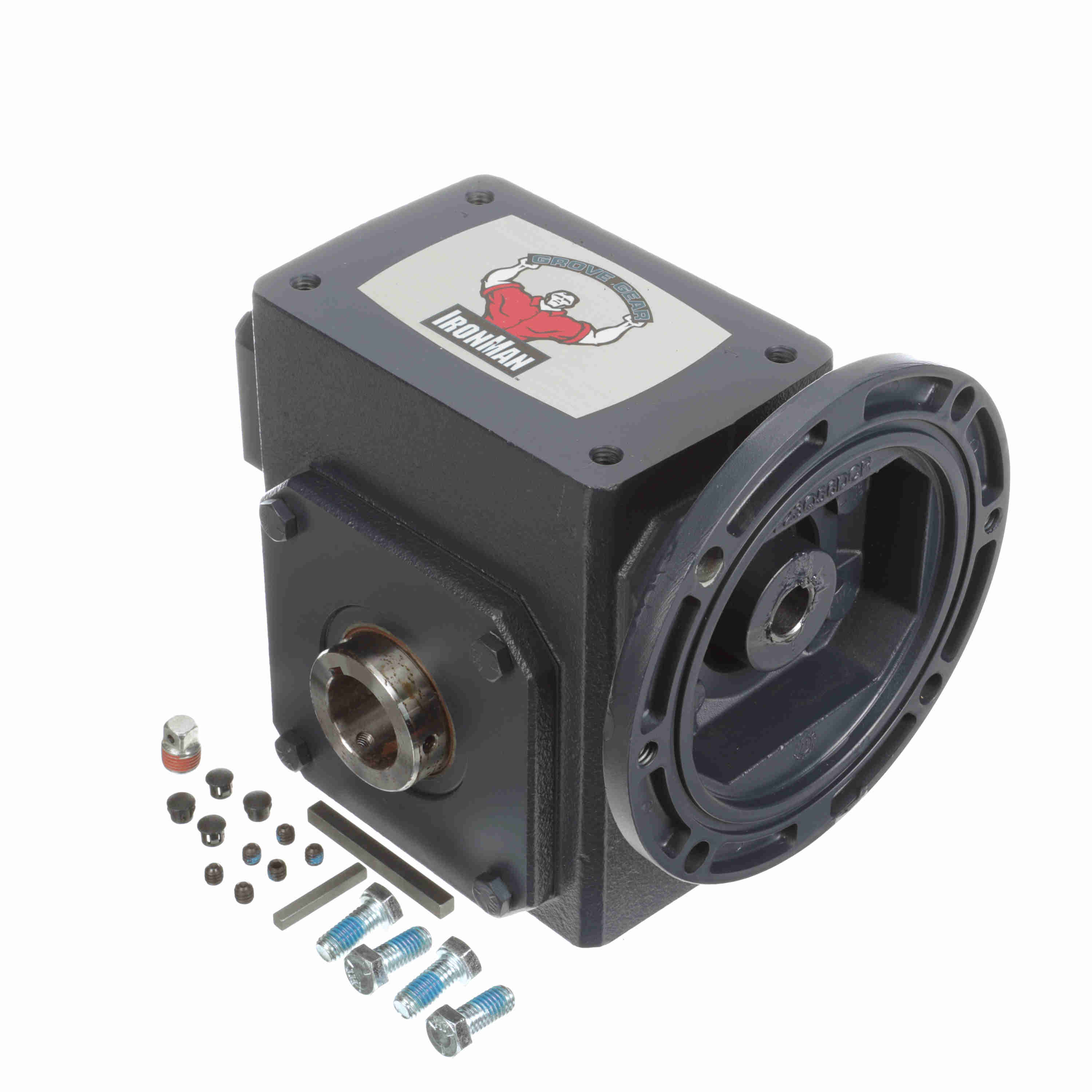

GROVE GEAR GR8240555.20 GR-HMQ824-30-H1-56-20 Right Angle Gear Reducer, 30 to 1 Reduction Ratio, 58.3 RPM Output, 1423 lb-in Torque, Cast Iron
Get it by Friday, Aug 28
€1,505.30 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Aa | 7.69 |
| Ab | 5.75 |
| Ae1 | 0.51 |
| Ae2 | 0.31 |
| Aj | 5.88 |
| Application | General Purpose |
| Assembly | HMQ-H1 |
| B | 6.12 |
| Be | 0.38" |
| Bf | 0.41 |
| Bore Code | 20 |
| C | 6.94" |
| Center Distance | 2.38" |
| F | 2.88 |
| Family Name | Cast Iron Housing Material Worm Gear Reducers |
| Frame | 56C |
| Frame Size | 56C |
| G | 1.44 |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| H | 0.53" |
| Housing Material | Cast Iron |
| I | 3.77" |
| Input Bore (c Face) | 5/8" |
| Input Bore Size | 5/8" |
| Input Dia. | 5/8" |
| Input Flange | 56C |
| Input Hp | 1.653 hp |
| Input Hp @ 1750 Rpm | 1.653 hp |
| Input Keyway Size | 3/16" x 1.63" |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Quill Dia. | 5/8" |
| Input Speed | 1750 RPM |
| Input Style | C Face Quill |
| Input Type | C-Face Quilled |
| J | 5" |
| Key Way Size | 3/16" x 3/32" |
| Lq | 4.63" |
| M | 2.38 |
| Material | Cast Iron |
| Max. Ohl (output Shaft) | 1770 |
| Max. Thrust Load (output Shaft) | 2091 |
| Motor Hp | 1 1/2 hp |
| Mounting Type | Shaft Mount |
| No. Of Gear Reductions | 1 |
| Output | Hollow |
| Output Dia. | 1 1/4" |
| Output Hollow Shaft Dia. | 1 1/4" |
| Output Hp | 1.317 hp |
| Output Key Size | 1/4" x 2.5" |
| Output Shaft | Hollow Bore |
| Output Shaft Assembly Code | H1 |
| Output Shaft Direction | H1 |
| Output Shaft Orientation | H1 |
| Output Shaft Thrust Rating | 2091 |
| Output Shaft Type | Hollow Shaft |
| Output Speed | 58.3 RPM |
| Output Style | H1 |
| Output Torque | 1423 lbs.-in. |
| Output Type | Hollow Bore |
| Paint/coating | Blue |
| Product Datasheet | grove-gear-gr8130084-00.pdf |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| R | 3/4" |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Reduction | Single |
| Reduction Type | Single |
| Rq | 4.09" |
| Series | GR Series |
| Series Style | GR-HMQ-H1 |
| Series Type | Cast Iron 800 Worm Gear Reducers |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Speed | 58.3 RPM |
| Torque (lb-in)@1750rpm | 1423 |
| U | 3/4" |
| V | 1.94" |
Shipping Info:
| Ship weight (kg) | 21.15 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
Documentation:
Product Variants
| Model | Output Dia. | Input Dia. | Output Hp | Output Torque | Max. Input Hp | Output Speed | Mounting Type | Input Hp @ 1750 Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GR8240558.16 | 1" | 5/8" | 82/125 hp | 1418 lbs.-in. | 0.967 hp | 29.2 RPM | Shaft Mount | 0.967 hp | €1,720.33 | |
| GR8240556.19 | 1.188" | 5/8" | 0.994 hp | 1433 lbs.-in. | 1.342 hp | 43.8 RPM | Shaft Mount | 1.342 hp | €2,066.26 | |
| GR8240560.16 | 1" | 5/8" | 9/50 hp | 648 lbs.-in. | 0.307 hp | 17.5 RPM | Shaft Mount | 0.307 hp | €2,066.26 | |
| GR8240574.23 | 1.438" | 1 1/8" | 3.685 hp | 995 lbs.-in. | 3.992 hp | 233.3 RPM | Shaft Mount | 3.992 hp | €2,095.34 | |
| GR8240565.19 | 1.188" | 7/8" | 1.972 hp | 1421 lbs.-in. | 2.326 hp | 87.5 RPM | Shaft Mount | 2.326 hp | €2,095.34 | |
| GR8240555.23 | 1.438" | 5/8" | 1.317 hp | 1194 | 1.653 hp | - | Shaft | 1.653 hp | €1,720.33 | |
| GR8240559.23 | 1.438" | 5/8" | 36/125 hp | 830 lbs.-in. | 91/200 hp | 21.9 RPM | Shaft Mount | 91/200 hp | €2,095.34 |
