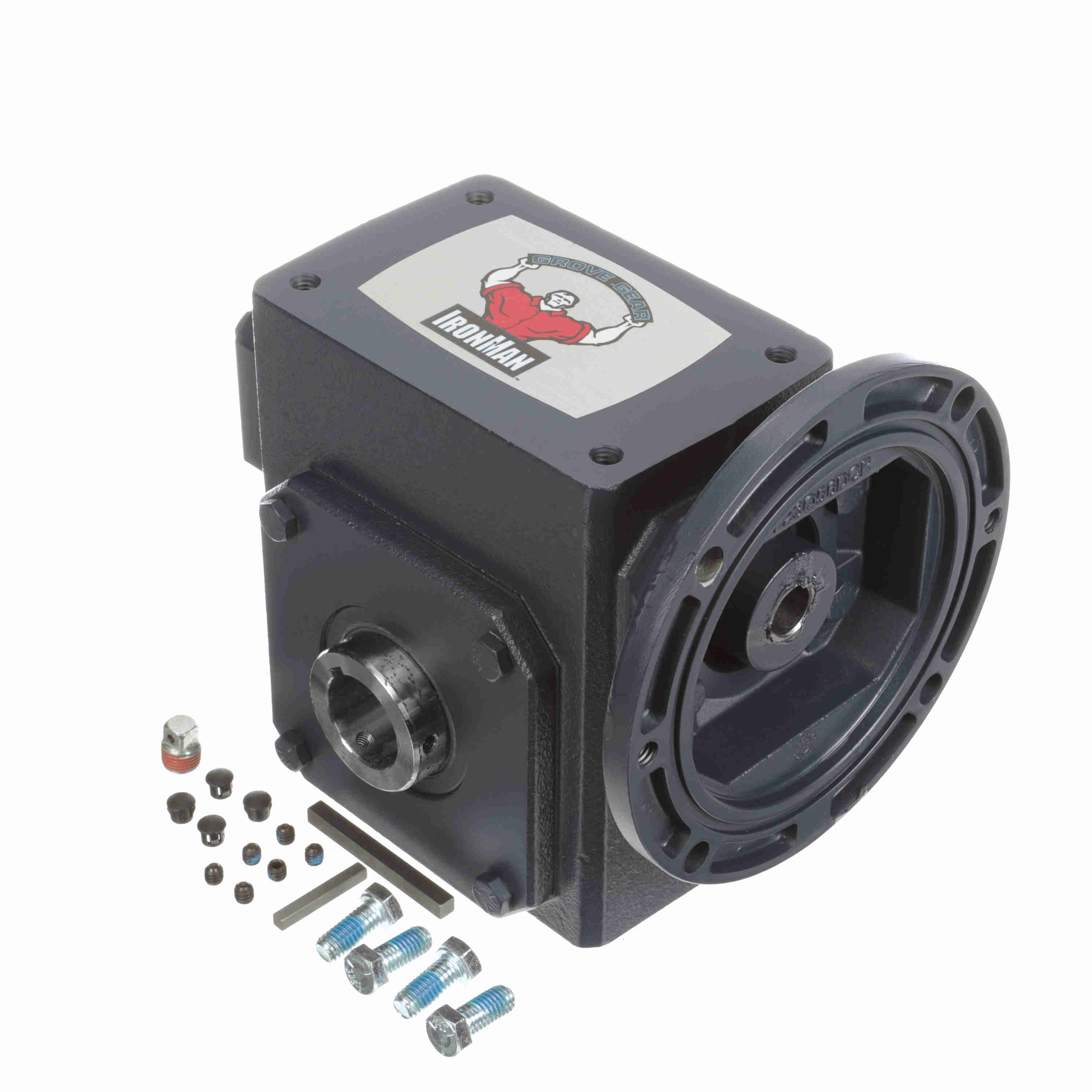

GROVE GEAR GR Series, HMQ-H1 Style, 824 Size, Ironman Worm Gear Reducers
Filter
A
B
C| Style | Model | max. input hp | mounting type | output torque | gear ratio | input style | output rpm | assembly | output diameter | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | GR8240560.20 | 0.307 hp | Shaft Mount | 648 lbs.-in. | - | C Face Quill | 17.5 RPM | HMQ-H1 | 1 1/4" | €2,095.34 | |
| A | GR8240560.16 | 0.307 hp | Shaft Mount | 648 lbs.-in. | - | C Face Quill | 17.5 RPM | HMQ-H1 | 1" | €2,066.26 | |
| A | GR8240572.20 | 0.307 hp | Shaft Mount | 648 lbs.-in. | - | C Face Quill | 17.5 RPM | HMQ-H1 | 1 1/4" | €1,175.09 | |
| A | GR8240560.19 | 0.307 hp | Shaft Mount | 648 lbs.-in. | - | C Face Quill | 17.5 RPM | HMQ-H1 | 1.188" | €2,095.34 | |
| B | GR8240558.20 | 0.967 hp | Shaft | - | 60:1 | C Face Quill | - | - | - | €1,720.33 | |
| B | GR8240558.16 | 0.967 hp | Shaft Mount | 1418 lbs.-in. | - | C Face Quill | 29.2 RPM | HMQ-H1 | 1" | €1,720.33 | |
| B | GR8240558.23 | 0.967 hp | Shaft Mount | 1418 lbs.-in. | - | C Face Quill | 29.2 RPM | HMQ-H1 | 1.438" | €1,720.33 | |
| A | GR8240557.18 | 1.137 hp | Shaft Mount | 1432 lbs.-in. | - | C Face Quill | 35 RPM | HMQ-H1 | 1 1/8" | €2,095.34 | |
| A | GR8240581.20 | 1.137 hp | Shaft Mount | 1432 lbs.-in. | - | C Face Quill | 35 RPM | HMQ-H1 | 1 1/4" | €2,095.34 | |
| A | GR8240557.20 | 1.137 hp | Shaft Mount | 1432 lbs.-in. | - | C Face Quill | 35 RPM | HMQ-H1 | 1 1/4" | €2,066.26 | |
| A | GR8240569.23 | 1.137 hp | Shaft Mount | 1432 lbs.-in. | - | C Face Quill | 35 RPM | HMQ-H1 | 1.438" | €2,095.34 | |
| A | GR8240556.16 | 1.342 hp | Shaft | - | 40:1 | C Face Quill | - | - | - | €1,720.33 | |
| A | GR8240556.19 | 1.342 hp | Shaft Mount | 1433 lbs.-in. | - | C Face Quill | 43.8 RPM | HMQ-H1 | 1.188" | €2,066.26 | |
| A | GR8240568.19 | 1.342 hp | Shaft Mount | 1433 lbs.-in. | - | C Face Quill | 43.8 RPM | HMQ-H1 | 1.188" | €2,095.34 | |
| B | GR8240555.16 | 1.653 hp | Shaft | - | 30:1 | C Face Quill | - | - | - | €1,720.33 | |
| A | GR8240555.19 | 1.653 hp | Shaft Mount | 1423 lbs.-in. | - | C Face Quill | 58.3 RPM | HMQ-H1 | 1.188" | €2,066.26 | |
| A | GR8240555.24 | 1.653 hp | Shaft Mount | 1423 lbs.-in. | - | C Face Quill | 58.3 RPM | HMQ-H1 | 1 1/2" | €1,175.09 | |
| A | GR8240567.16 | 1.653 hp | Shaft Mount | 1423 lbs.-in. | - | C Face Quill | 58.3 RPM | HMQ-H1 | 1" | €2,095.34 | |
| C | GR8240555.20 | 1.653 hp | Shaft Mount | 1423 lbs.-in. | - | C Face Quill | 58.3 RPM | HMQ-H1 | 1 1/4" | €1,505.30 | |
| A | GR8240567.19 | 1.653 hp | Shaft Mount | 1423 lbs.-in. | - | C Face Quill | 58.3 RPM | HMQ-H1 | 1.188" | €2,066.26 | |
| B | GR8240555.23 | 1.653 hp | Shaft | - | 30:1 | C Face Quill | - | - | - | €1,720.33 | |
| B | GR8240554.20 | 1.967 hp | Shaft Mount | 1454 lbs.-in. | - | C Face Quill | 70 RPM | HMQ-H1 | 1 1/4" | €1,720.33 | |
| A | GR8240578.20 | 1.967 hp | Shaft Mount | 1454 lbs.-in. | - | C Face Quill | 70 RPM | HMQ-H1 | 1 1/4" | €2,095.34 | |
| A | GR8240566.20 | 1.967 hp | Shaft Mount | 1454 lbs.-in. | - | C Face Quill | 70 RPM | HMQ-H1 | 1 1/4" | €2,066.26 | |
| A | GR8240554.18 | 1.967 hp | Shaft Mount | 1454 lbs.-in. | - | C Face Quill | 70 RPM | HMQ-H1 | 1 1/8" | €2,095.34 | |
| A | GR8240565.24 | 2.326 hp | Shaft Mount | 1421 lbs.-in. | - | C Face Quill | 87.5 RPM | HMQ-H1 | 1 1/2" | €2,066.26 | |
| A | GR8240565.19 | 2.326 hp | Shaft Mount | 1421 lbs.-in. | - | C Face Quill | 87.5 RPM | HMQ-H1 | 1.188" | €2,095.34 | |
| A | GR8240553.19 | 2.326 hp | Shaft Mount | 1421 lbs.-in. | - | C Face Quill | 87.5 RPM | HMQ-H1 | 1.188" | €2,095.34 | |
| A | GR8240577.23 | 2.326 hp | Shaft Mount | 1421 lbs.-in. | - | C Face Quill | 87.5 RPM | HMQ-H1 | 1.438" | €2,095.34 | |
| A | GR8240565.20 | 2.326 hp | Shaft Mount | 1421 lbs.-in. | - | C Face Quill | 87.5 RPM | HMQ-H1 | 1 1/4" | €2,066.26 | |
| A | GR8240552.20 | 2.765 hp | Shaft Mount | 1318 lbs.-in. | - | C Face Quill | 116.7 RPM | HMQ-H1 | 1 1/4" | €2,066.26 | |
| A | GR8240564.18 | 2.765 hp | Shaft Mount | 1318 lbs.-in. | - | C Face Quill | 116.7 RPM | HMQ-H1 | 1 1/8" | €2,095.34 | |
| B | GR8240552.23 | 2.765 hp | Shaft | - | 15:1 | C Face Quill | - | - | - | €1,720.33 | |
| B | GR8240564.24 | 2.765 hp | Shaft Mount | 1318 lbs.-in. | - | C Face Quill | 116.7 RPM | HMQ-H1 | 1 1/2" | €1,720.33 | |
| A | GR8240539.20 | 3.564 hp | Shaft Mount | 1172 lbs.-in. | - | Flexible Coupling Input | 175 RPM | HM-H1 | 1 1/4" | €2,095.34 | |
| B | GR8240563.23 | 3.564 hp | Shaft | - | 10:1 | C Face Quill | - | - | - | €1,744.57 | |
| A | GR8240575.23 | 3.564 hp | Shaft | - | 10:1 | C Face Quill | - | - | - | €2,095.34 | |
| A | GR8240551.23 | 3.564 hp | Shaft Mount | 1172 lbs.-in. | - | C Face Quill | 175 RPM | HMQ-H1 | 1.438" | €2,066.26 | |
| A | GR8240550.23 | 3.992 hp | Shaft Mount | 995 lbs.-in. | - | C Face Quill | 233.3 RPM | HMQ-H1 | 1.438" | €2,095.34 | |
| A | GR8240562.23 | 3.992 hp | Shaft Mount | 995 lbs.-in. | - | C Face Quill | 233.3 RPM | HMQ-H1 | 1.438" | €2,095.34 | |
| A | GR8240574.23 | 3.992 hp | Shaft Mount | 995 lbs.-in. | - | C Face Quill | 233.3 RPM | HMQ-H1 | 1.438" | €2,095.34 | |
| A | GR8240561.23 | 5.323 hp | Shaft Mount | 898 lbs.-in. | - | C Face Quill | 350 RPM | HMQ-H1 | 1.438" | €2,095.34 | |
| A | GR8240573.18 | 5.323 hp | Shaft Mount | 898 lbs.-in. | - | C Face Quill | 350 RPM | HMQ-H1 | 1 1/8" | €1,967.86 | |
| A | GR8240573.16 | 5.323 hp | Shaft Mount | 898 lbs.-in. | - | C Face Quill | 350 RPM | HMQ-H1 | 1" | €2,095.34 | |
| A | GR8240561.16 | 5.323 hp | Shaft Mount | 898 lbs.-in. | - | C Face Quill | 350 RPM | HMQ-H1 | 1" | €2,095.34 | |
| A | GR8240561.19 | 5.323 hp | Shaft Mount | 898 lbs.-in. | - | C Face Quill | 350 RPM | HMQ-H1 | 1.188" | €2,095.34 | |
| A | GR8240559.23 | 91/200 hp | Shaft Mount | 830 lbs.-in. | - | C Face Quill | 21.9 RPM | HMQ-H1 | 1.438" | €2,095.34 | |
| A | GR8240559.20 | 91/200 hp | Shaft Mount | 830 lbs.-in. | - | C Face Quill | 21.9 RPM | HMQ-H1 | 1 1/4" | €2,095.34 |
