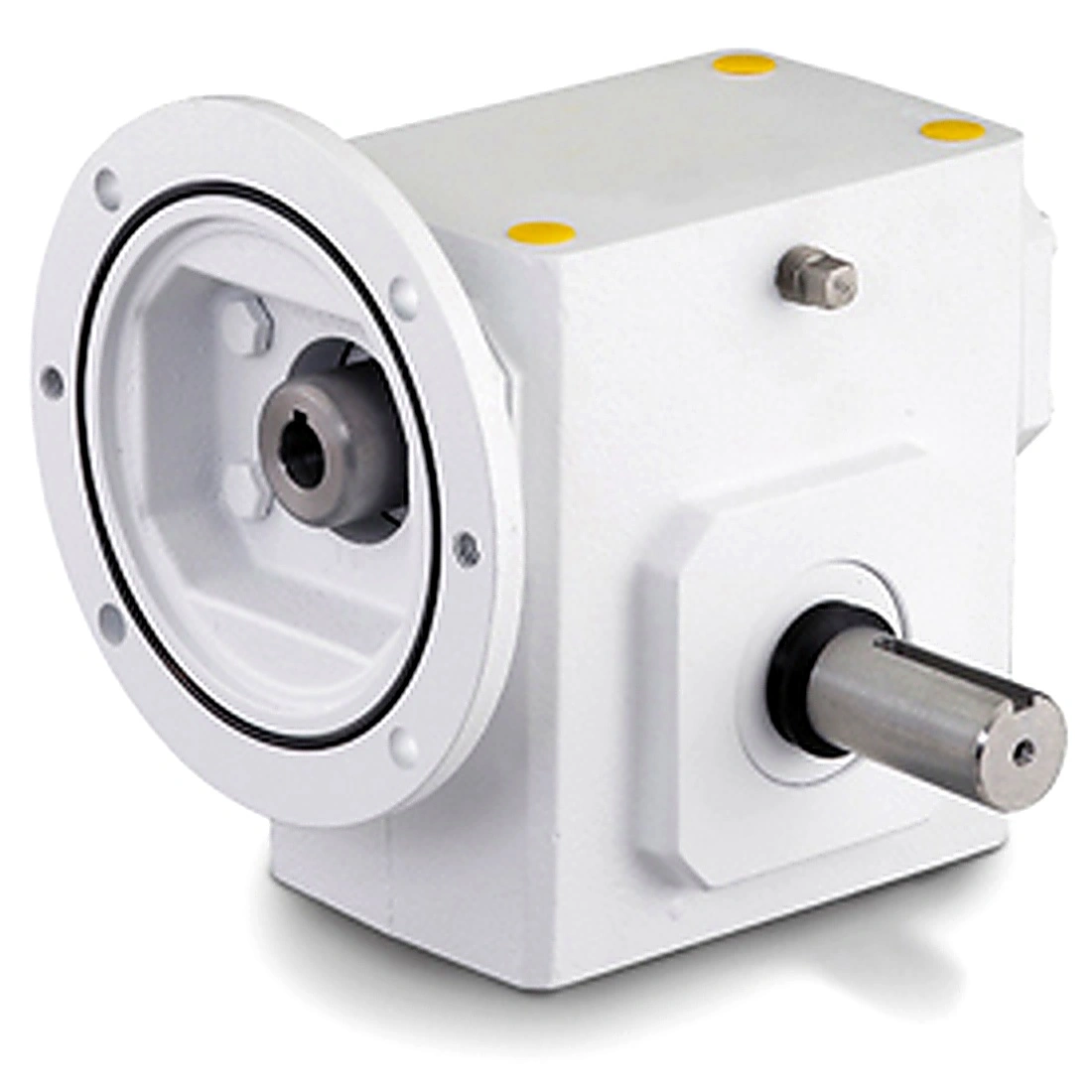

GROVE GEAR GR8133031.00 Worm Reducer, 30:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Right Angle Cast Iron | BG3DQX

GROVE GEAR GR8133031.00 GR-WBMQ813-30-D-56 Right Angle Gear Reducer, 30 to 1 Reduction Ratio, 58 RPM Output, 314 lb-in Torque, Epoxy Washdown

Item: BG3DQXModel: GR8133031.00Cross Ref: GR-WBMQ813-30-D-56
Check Availability
In Stock
Ratio

Get it by Monday, Aug 31

€718.52 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Reducer
A 2.82
Aj 5.88
Application Epoxy Washdown
Assembly WBMQ-D
B 3.8
Be 0.38"
Bf 0.41
C 4.66"
Center Distance 1.33"
D 1.72
Frame 56C
Frame Size 56C
Gear Type Worm
Housing Material Cast Iron
I 2.61"
Input Bore (c Face) 5/8"
Input Dia. 5/8"
Input Keyway Size (c Face) 3/16" x 3/32"
Input Quill Dia. 5/8"
Input Speed 1750 RPM
Input Style C Face Quill
J 3 1/4"
K 1.63"
Key Way Size 3/16" x 3/32"
Lq 3.46"
Max. Input Hp 79/200 hp
Mounting Type Base
No. Of Gear Reductions 1
O 2 4/25"
Output Dia. 5/8"
Output Hp 29/100 hp
Output Key Size 3/16" x 1.5"
Output Shaft Shaft
Output Shaft Assembly Code D
Output Shaft Dia 0.625
Output Shaft Direction Double
Output Shaft Orientation LR
Output Speed 58 RPM
Output Style D
Output Torque 314 lbs.-in.
Overhung Load 700 lbs.
Product Datasheet grove-gear-gr8130084-00.pdf
Product Line GR Series - Ironman Worm Gear Reducers
Reducer Worm - Right Angle
Reducer Style Worm - Right Angle
Reduction Single
Reduction Type Single
Rq 3.09"
Series GR Series
Series Style GR-WBMQ-D
Series Type Cast Iron 800 Worm Gear Reducers
Service Factor 1
Shaft Seal Material Viton
T 0.625
Tap Depth 1/2"
Tap Size 5/16"-18
Thread Type Coarse
Torque (lb-in)@1750rpm 314

Shipping Info:

Ship weight (kg) 8.55
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Documentation:

Datasheet

Product Variants

ProductModelOutput SpeedOutput TorqueInput Dia.Output HpMax. Input HpNo. Of Gear ReductionsOutput Shaft DirectionOutput ShaftPrice
GROVE GEAR GR8130075.00 Worm Reducer, 10:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Cast Iron | AX4ANL GR8130075.00175 RPM2635/8"0.729 hp0.823 hpSingleLeft-€822.82
GROVE GEAR GR8130077.00 Worm Reducer, 20:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Right Angle Cast Iron | AX4BBW GR8130077.0087.5 RPM3205/8"0.445 hp0.551 hpSingleLeft-€745.38
GROVE GEAR GR8130005.00 Worm Reducer, 20:1 Ratio, 0.5 Inch I.D, 0.625 Inch O.D, Cast Iron | AX4MFU GR8130005.0087 RPM320 lbs.-in.1/2"89/200 hp0.551 hp1LeftSolid Shaft-
RFQ
GROVE GEAR GR8135568.00 Quill Input Worm Gear Reducer | AX4NJH GR8135568.00116.7 RPM292 lbs.-in.-0.541 hp----€1,155.72
GROVE GEAR GR8130089.00 Worm Reducer, 20:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Cast Iron | AX4NPC GR8130089.0087.5 RPM3205/8"0.445 hp0.551 hpSingleRight-€822.82
GROVE GEAR GR8130079.00 Worm Reducer, 30:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Cast Iron | AX4ULL GR8130079.0058.3 RPM3145/8"0.29 hp79/200 hpSingleLeft-€822.82
GROVE GEAR GR8130043.00 Worm Reducer, 30:1 Ratio, 0.5 Inch I.D, 0.625 Inch O.D, Cast Iron | AX6DPB GR8130043.0058 RPM314 lbs.-in.1/2"29/100 hp79/200 hp1LeftSolid Shaft€1,002.19
