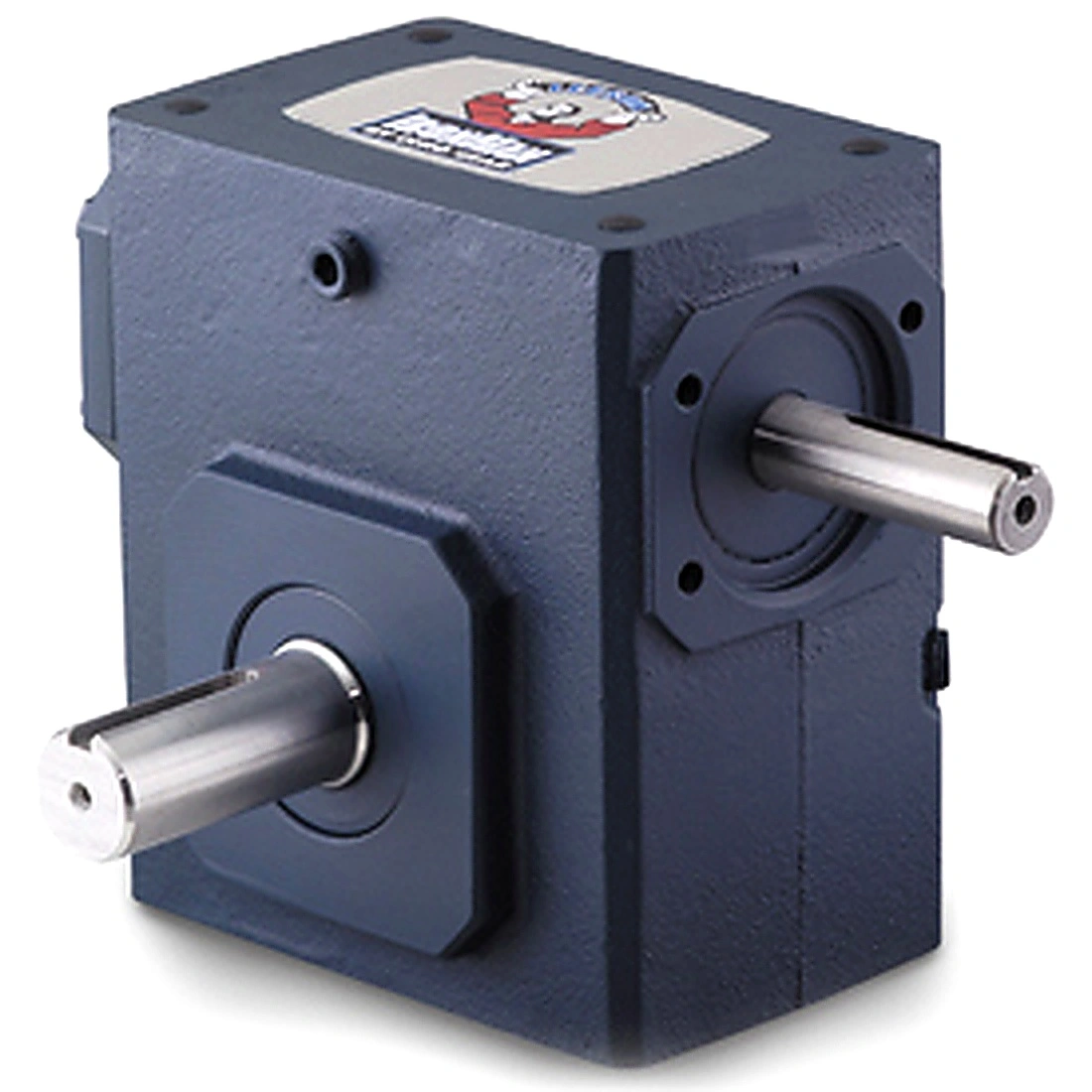

GROVE GEAR GR8130005.00 GR-B813-20-L Right Angle Gear Reducer, 20 to 1 Reduction Ratio, 87 RPM Output, 320 lb-in Torque, H1 Left Output
Get it by Friday, Aug 28
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Application | General Purpose |
| Assembly | B-L |
| Center Distance | 1.33" |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Housing Material | Cast Iron |
| Input Bore Size | 1/2" |
| Input Dia. | 1/2" |
| Input Hp | 0.551 hp |
| Input Hp @ 1750 Rpm | 0.551 hp |
| Input Keyway Size | 1/8" x 1" |
| Input Speed | 1750 RPM |
| Input Style | Solid Shaft |
| Input Type | Solid Shaft |
| Length | 10.69 |
| Material | Cast Iron |
| Max. Ohl (output Shaft) | 700 |
| Max. Thrust Load (output Shaft) | 1144 |
| Mount Style | B |
| Mounting Type | Base |
| Nema Input Mounting | Solid Shaft |
| No. Of Gear Reductions | 1 |
| Output | Left |
| Output Dia. | 5/8" |
| Output Hp | 89/200 hp |
| Output Key Size | 3/16" x 1.5" |
| Output Shaft | Solid Shaft |
| Output Shaft Assembly Code | L |
| Output Shaft Dia | 0.625 |
| Output Shaft Dia. | 5/8" |
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Shaft Thrust Rating | 1144 |
| Output Shaft Type | Left Handed Shaft |
| Output Speed | 87 RPM |
| Output Style | L |
| Output Torque | 320 lbs.-in. |
| Output Type | Solid Shaft |
| Overhung Load | 700 lbs. |
| Paint/coating | Blue |
| Product Datasheet | grove-gear-gr8130084-00.pdf |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Reduction Type | Single |
| Series | GR Series |
| Series Style | GR-B-L |
| Series Type | Cast Iron 800 Worm Gear Reducers |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Speed | 87 RPM |
| Tap Depth | 1/2" |
| Tap Size | 5/16"-18 |
| Thread Type | Coarse |
| Torque (lb-in)@1750rpm | 320 |
| Width | 9.06 |
Shipping Info:
| Ship weight (kg) | 7.65 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
Documentation:
Product Variants
| Model | Output Speed | Output Torque | Input Dia. | Output Hp | Max. Input Hp | No. Of Gear Reductions | Output Shaft Direction | Output Shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GR8130075.00 | 175 RPM | 263 | 5/8" | 0.729 hp | 0.823 hp | Single | Left | - | €822.82 | |
| GR8130077.00 | 87.5 RPM | 320 | 5/8" | 0.445 hp | 0.551 hp | Single | Left | - | €745.38 | |
| GR8135568.00 | 116.7 RPM | 292 lbs.-in. | - | 0.541 hp | - | - | - | - | €1,155.72 | |
| GR8130089.00 | 87.5 RPM | 320 | 5/8" | 0.445 hp | 0.551 hp | Single | Right | - | €822.82 | |
| GR8130079.00 | 58.3 RPM | 314 | 5/8" | 0.29 hp | 79/200 hp | Single | Left | - | €822.82 | |
| GR8130043.00 | 58 RPM | 314 lbs.-in. | 1/2" | 29/100 hp | 79/200 hp | 1 | Left | Solid Shaft | €1,002.19 | |
| GR8130002.00 | 233 RPM | 252 lbs.-in. | 1/2" | 0.933 hp | 1 1/40 hp | 1 | Left | Solid Shaft | €824.51 |
