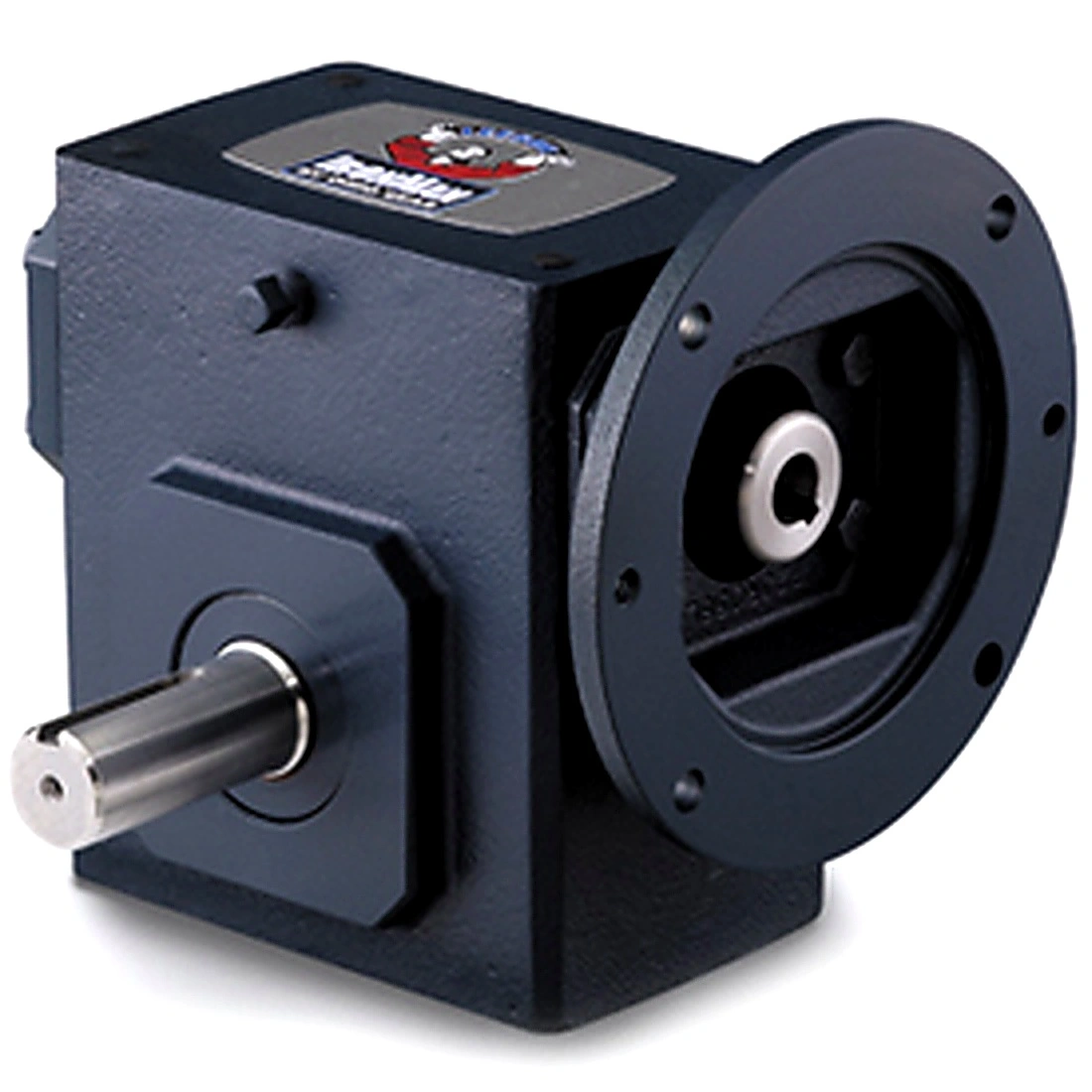

GROVE GEAR GR8130181.00 Quill Input Worm Gear Reducer, 1.33 Inch Distance, 209 Inch/lbs Torque, Cast Iron | AX7BHJ GR-BMQ813-5-L-48

GROVE GEAR GR8130181.00 GR-BMQ813-5-L-48 Right Angle Gear Reducer, 5 to 1 Ratio, 0.625 Inch Left Output Shaft, 48C NEMA Input, 350 RPM Output

Item: AX7BHJModel: GR8130181.00Cross Ref: GR-BMQ813-5-L-48
Check Availability
In Stock

Get it by Monday, Aug 31

€562.28 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Gear Reducer
A 2.82
Aj 3.75
Ak 3
Application General Purpose
Assembly BMQ-L
B 3.8
Bd 4.36
Be 0.38"
Bf 0.28
C 4.66"
Center Distance 1.33"
D 1.72
F 2
Frame 48
G 1
Gear Type Worm
H-tap Size 5/16"-18
H-tap Type UNC
Housing Material Cast Iron
I 2.61"
Input Bore (c Face) 0.5 , 1/2"
Input Hp @ 1750 Rpm 1 31/125 hp
Input Keyway (c Face) 1/8 x 1/16
Input Keyway Size (c Face) 1/8" x 1/16"
Input Speed 1750 , 1750 RPM
Input Style C Face Quill
J 3 1/4"
K 1.63"
Lq 3.46"
Max. Input Hp @ 1750 1 hp
Motor Frame Size 48
Mount Footprint 2 x 3.25
Mount Style BMQ
N 4
Nema Input Mounting 48C
No. Of Gear Reductions 1 , Single
O 2 4/25"
Output Config H1 Left
Output Dia. 5/8"
Output Key 3/16 x 1.5
Output Key Size 3/16" x 1.5"
Output Shaft Solid Shaft
Output Shaft Assembly Code L
Output Shaft Dia. 0.625
Output Shaft Direction Left
Output Shaft Thrust Rating 827
Output Speed 350 , 350 RPM
Output Speed @ 1750 Rpm Input 350
Output Torque 209 lbs.-in.
Output Torque Rating (in-lb) 209 lbs.-in.
Overhung Load Rating 700 lbs.
Product Datasheet grove-gear-gr8130084-00.pdf
Product Line GR Series - Ironman Worm Gear Reducers
Product Type Right Angle
Ratio 51
Reducer Worm - Right Angle
Reduction Ratio 5
Rq 3.09"
Series GR , GR Series
Series Code Gr
Series Size 813
Service Factor 1
Shaft Center Distance 1.33
Shaft Center Height 1.72
Shaft Seal Material Viton
T 0.625
Tap Depth 1/2"
Tap Size 5/16"-18
Thread Type Coarse
Torque (lb-in)@1750rpm 209 lbs.-in.

Shipping Info:

Ship weight (kg) 7.65
Ship height (cm)12.7
Ship length (cm)20.32
Ship width (cm)15.24

Documentation:

Datasheet

Product Variants

ProductModelOutput SpeedOutput TorqueInput Dia.Output HpMax. Input HpNo. Of Gear ReductionsOutput Shaft DirectionOutput ShaftPrice
GROVE GEAR GR8130075.00 Worm Reducer, 10:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Cast Iron | AX4ANL GR8130075.00175 RPM2635/8"0.729 hp0.823 hpSingleLeft-€822.82
GROVE GEAR GR8130077.00 Worm Reducer, 20:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Right Angle Cast Iron | AX4BBW GR8130077.0087.5 RPM3205/8"0.445 hp0.551 hpSingleLeft-€745.38
GROVE GEAR GR8130005.00 Worm Reducer, 20:1 Ratio, 0.5 Inch I.D, 0.625 Inch O.D, Cast Iron | AX4MFU GR8130005.0087 RPM320 lbs.-in.1/2"89/200 hp0.551 hp1LeftSolid Shaft-
RFQ
GROVE GEAR GR8135568.00 Quill Input Worm Gear Reducer | AX4NJH GR8135568.00116.7 RPM292 lbs.-in.-0.541 hp----€1,155.72
GROVE GEAR GR8130089.00 Worm Reducer, 20:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Cast Iron | AX4NPC GR8130089.0087.5 RPM3205/8"0.445 hp0.551 hpSingleRight-€822.82
GROVE GEAR GR8130079.00 Worm Reducer, 30:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Cast Iron | AX4ULL GR8130079.0058.3 RPM3145/8"0.29 hp79/200 hpSingleLeft-€822.82
GROVE GEAR GR8130043.00 Worm Reducer, 30:1 Ratio, 0.5 Inch I.D, 0.625 Inch O.D, Cast Iron | AX6DPB GR8130043.0058 RPM314 lbs.-in.1/2"29/100 hp79/200 hp1LeftSolid Shaft€1,002.19
