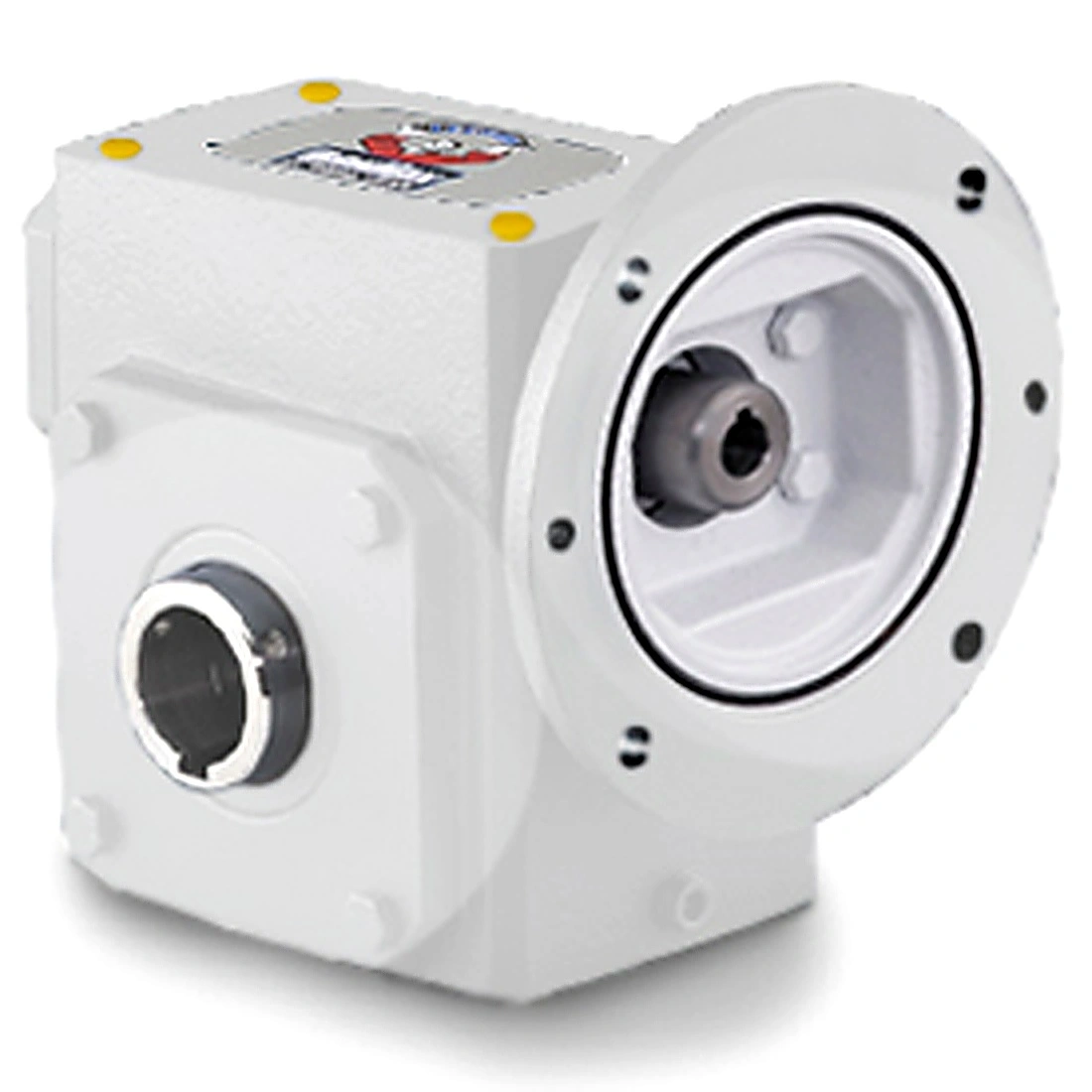

GROVE GEAR GR8133510.10 GR-WHMQ813-60-H-56 Right Angle Gear Reducer, 60 to 1 Reduction Ratio, 29 RPM Output, 313 lb-in Torque, Epoxy Washdown
Get it by Friday, Aug 14
€808.08 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Application | Epoxy Washdown |
| Center Distance | 1.3" |
| Color | White |
| Finish | Epoxy Painted |
| Hollow Bore Dim | 5/8" |
| Input Flange | 56C |
| Input Style | Quill |
| Max. Input Hp @1750 | 1/5 hp |
| Mount Footprint | 2 x 3.25 |
| Nema Input Mounting | 56C |
| Output | Hollow |
| Output Config | H1 Hollow Bore |
| Output Speed @ 1750 Rpm Input | 29 RPM |
| Paint/coating | White Epoxy |
| Reduction Ratio | 60 |
| Series | GR Series |
| Series Size | 813 |
| Shaft Center Distance | 1.33 |
| Shaft Center Height | 1.72 |
| Torque (lb-in)@1750rpm | 313 |
| Torque @ 1750 Rpm | 313 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 8.1 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Output Speed | Output Torque | Input Dia. | Output Hp | Max. Input Hp | No. Of Gear Reductions | Output Shaft Direction | Output Shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GR8130075.00 | 175 RPM | 263 | 5/8" | 0.729 hp | 0.823 hp | Single | Left | - | €822.82 | |
| GR8130077.00 | 87.5 RPM | 320 | 5/8" | 0.445 hp | 0.551 hp | Single | Left | - | €745.38 | |
| GR8130005.00 | 87 RPM | 320 lbs.-in. | 1/2" | 89/200 hp | 0.551 hp | 1 | Left | Solid Shaft | - | RFQ
|
| GR8135568.00 | 116.7 RPM | 292 lbs.-in. | - | 0.541 hp | - | - | - | - | €1,155.72 | |
| GR8130089.00 | 87.5 RPM | 320 | 5/8" | 0.445 hp | 0.551 hp | Single | Right | - | €822.82 | |
| GR8130079.00 | 58.3 RPM | 314 | 5/8" | 0.29 hp | 79/200 hp | Single | Left | - | €822.82 | |
| GR8130043.00 | 58 RPM | 314 lbs.-in. | 1/2" | 29/100 hp | 79/200 hp | 1 | Left | Solid Shaft | €1,002.19 |
