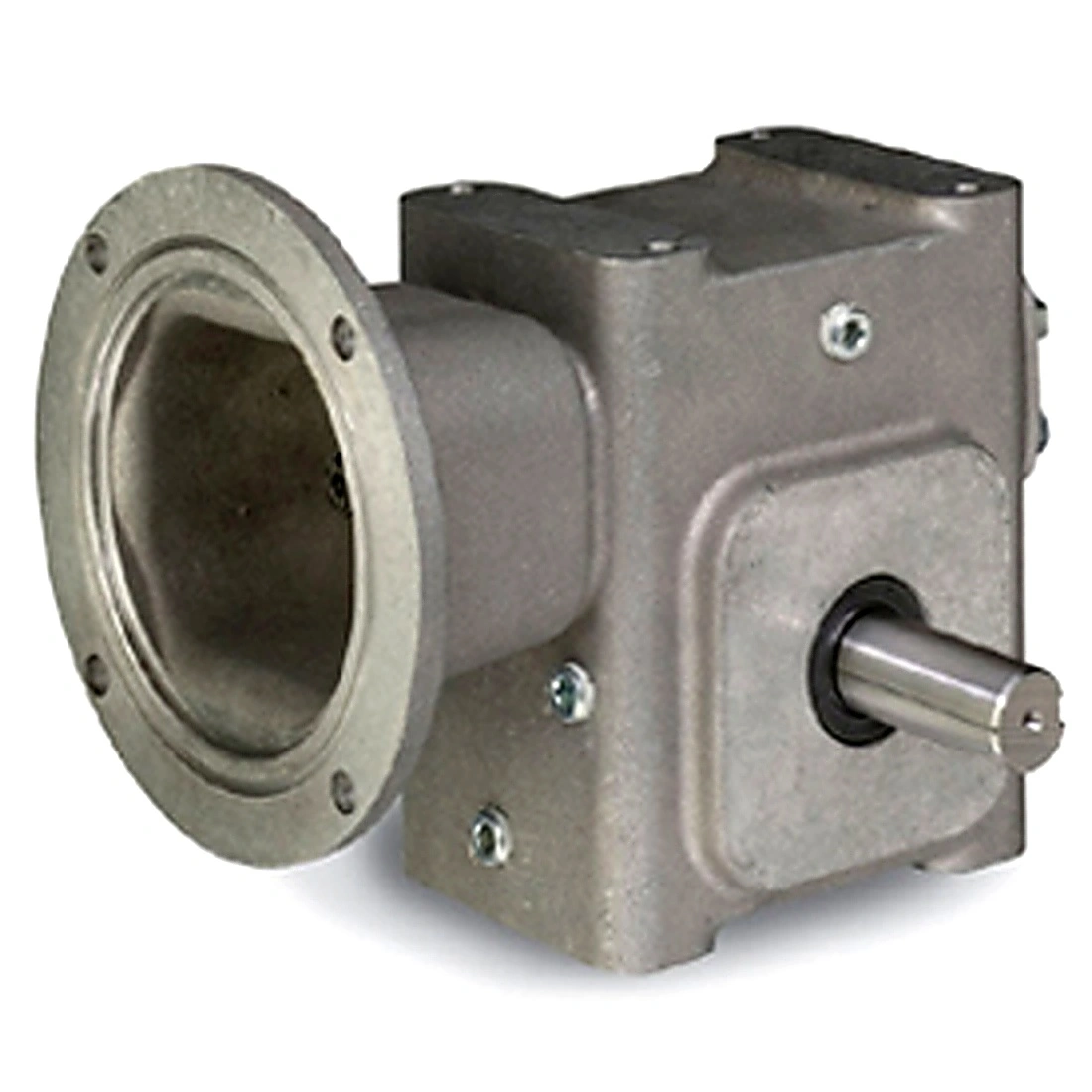

GROVE GEAR EL8320058.00 EL-BM832-15-R-140 Right Angle Gear Reducer, 15 to 1 Reduction Ratio, 116 RPM Output, 2980 lb-in Torque, Aluminum
Get it by Friday, Aug 28
€3,340.55 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| A | 5.25 |
| Aj | 5.88 |
| Application | Aluminum |
| Assembly | BM-R |
| B | 8.11 |
| Be | 0.38" |
| Bf | 0.41 |
| C | 10 1/2" |
| Center Distance | 3 1/4" |
| F | 4.13 |
| Frame | 140TC |
| G | 2.06 |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Housing Material | Aluminum |
| I | 5" |
| Input Bore (c Face) | 7/8" |
| Input Bore Size | 7/8" |
| Input Dia. | 7/8" |
| Input Hp | 6.127 hp |
| Input Hp @ 1750 Rpm | 6.127 hp |
| Input Keyway Size | 3/16" x 1/2" |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Speed | 1750 RPM |
| Input Style | Flexible Coupling Input |
| Input Type | C-Face Coupled |
| J | 6.63" |
| K | 3.31" |
| L1 | 5 14/25" |
| Lm | 7.86 |
| Material | Aluminum |
| Max. Ohl (output Shaft) | 2170 |
| Max. Thrust Load (output Shaft) | 2490 |
| Mounting Type | Base |
| N | 6.62 |
| No. Of Gear Reductions | 1 |
| O | 3 3/5" |
| Output | Right |
| Output Dia. | 1 5/8" |
| Output Hp | 5.516 hp |
| Output Key Size | 3/8" x 2 1/4" |
| Output Shaft | Solid Shaft |
| Output Shaft Assembly Code | R |
| Output Shaft Dia | 1.625 |
| Output Shaft Dia. | 1 5/8" |
| Output Shaft Direction | Right |
| Output Shaft Orientation | R |
| Output Shaft Thrust Rating | 2490 |
| Output Shaft Type | Right Handed Shaft |
| Output Speed | 116 RPM |
| Output Style | R |
| Output Torque | 2980 lbs.-in. |
| Output Type | Solid Shaft |
| Overhung Load | 2170 lbs. |
| Overhung Load Rating | 2170 lbs. |
| Paint/coating | Aluminum |
| Product Datasheet | grove-gear-el8420339-00.pdf |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Reduction | Single |
| Reduction Type | Single |
| Series | EL Series |
| Series Style | EL-BM-R |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Speed | 116 RPM |
| T | 1.625 |
| Tap Depth | 1" |
| Tap Size | 1/2"-13 |
| Torque (lb-in)@1750rpm | 2980 |
| U | 7/8" |
Shipping Info:
| Ship weight (kg) | 22.5 |
| Ship height (cm) | 38.1 |
| Ship length (cm) | 49.23 |
| Ship width (cm) | 38.43 |
Documentation:
Product Variants
| Product | Model | Output Hp | Output Speed | Output Torque | Output Dia. | Input Dia. | Max. Input Hp | Input Speed | No. Of Gear Reductions | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EL8320543.24 | 4 67/125 hp | 87 RPM | 3267 lbs.-in. | 1 1/2" | 7/8" | 5 9/50 hp | 1750 RPM | 1 | €2,512.30 | |
 |
EL8320241.00 | 11 29/100 hp | 350 RPM | 2033 lbs.-in. | 1 5/8" | 7/8" | 11 23/25 hp | 1750 RPM | 1 | €3,482.88 | |
 |
EL8320518.23 | 5.516 hp | 116 RPM | 2980 lbs.-in. | 1.438" | 7/8" | 6.127 hp | 1750 RPM | 1 | €4,204.29 | |
|
EL8320583.23 | 0.695 hp | 21.9 RPM | - | 1.438" | 1 3/8" | 1 3/100 hp | 1750 RPM | 1 | €2,512.30 | |
|
EL8320580.27 | 2.293 hp | 43 RPM | 3303 lbs.-in. | 1.688" | 1 3/8" | 2.926 hp | 1750 RPM | 1 | €2,512.30 | |
|
EL8320602.23 | 3.732 hp | - | 3360 lbs.-in. | - | 1 3/8" | 4 373/1000 hp | - | 1 | €4,262.95 | |
 |
EL8320557.28 | - | - | - | - | - | - | - | - | €1,694.91 | RFQ
|
