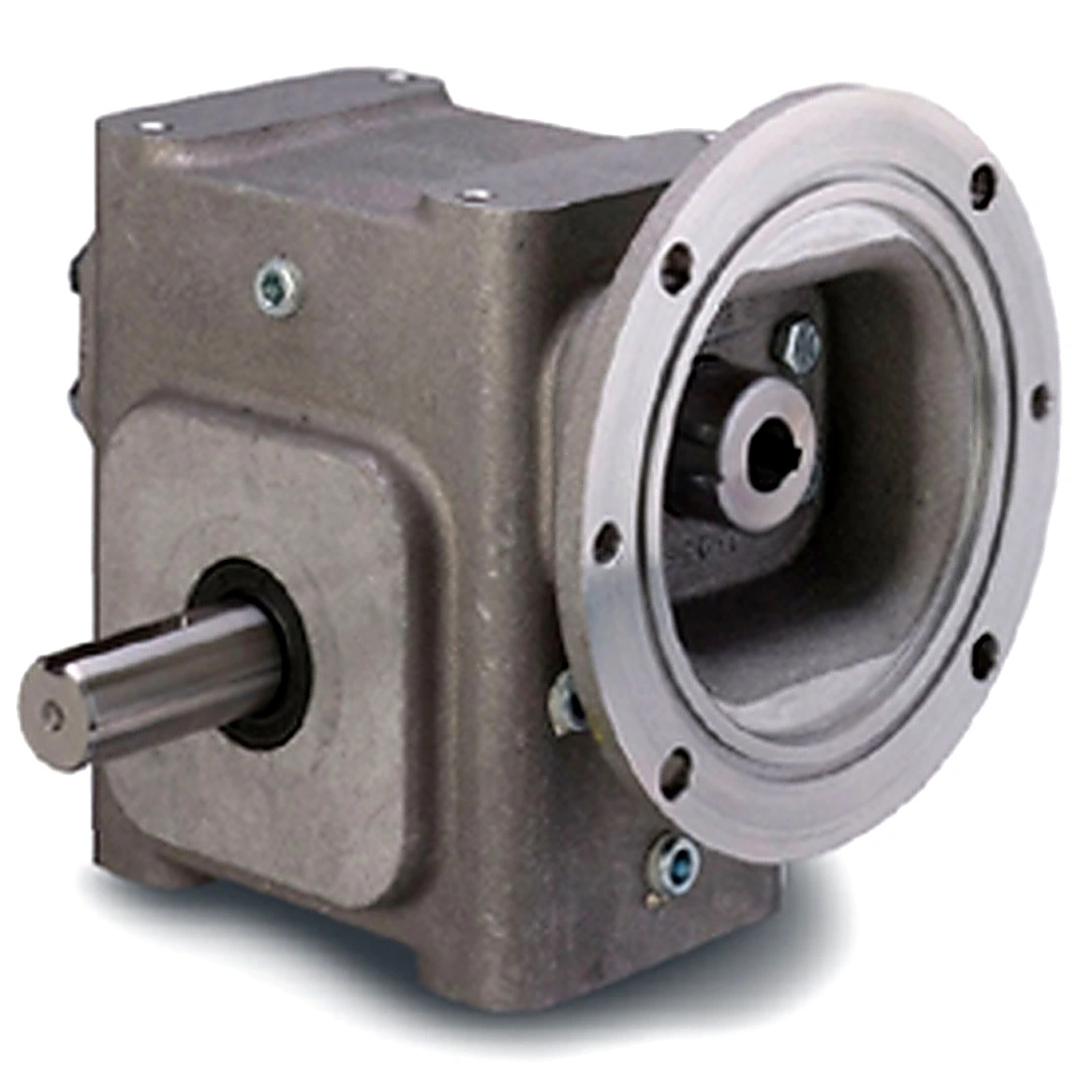

GROVE GEAR EL8300258.00 Worm Reducer, 25:1 Ratio, 1.125 Inch I.D, 1.5 Inch O.D, Aluminum | AY9ETD

GROVE GEAR EL8300258.00 EL-BMQ830-25-L-180 Right Angle Gear Reducer, 25 to 1 Reduction Ratio, 70 RPM Output, 2527 lb-in Torque, Aluminum

Item: AY9ETDModel: EL8300258.00Cross Ref: EL-BMQ830-25-L-180
Check Availability
In Stock
Ratio

Get it by Friday, Aug 28

€2,823.64 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Reducer
A 5.25
Aj 7.25
Ak 8.5
Application Aluminum
Assembly BMQ-L
B 8.11
Be1 1/2"
Bf 0.53
C 8.94"
Center Distance 3"
F 4.13
Frame 180TC
G 2.06
Gear Drive Reductions Single
Gear Type Worm
Gearbox Type Worm
Gross Weight 0 lbs.
Housing Material Aluminum
I 4.81"
Input Bore (c Face) 1 1/8"
Input Bore Size 1 1/8"
Input Dia. 1 1/8"
Input Hp @ 1750 Rpm 3 71/200 hp
Input Keyway Size (c Face) 1/4" x 1/8"
Input Speed 1750 RPM
Input Style C Face Quill
Input Type C-Face Quilled
J 5 3/4"
K 2 22/25"
Lq1 5.97"
Material Aluminum
Max. Ohl (output Shaft) 2170
Max. Thrust Load (output Shaft) 2574
Mounting Type Base
N 6.62
No. Of Gear Reductions 1
O 3 3/5"
Output Left
Output Dia. 1 1/2"
Output Hp 2.807 hp
Output Key Size 3/8" x 2 1/4"
Output Shaft Solid Shaft
Output Shaft Assembly Code L
Output Shaft Dia 1.5
Output Shaft Dia. 1 1/2"
Output Shaft Direction Left
Output Shaft Orientation L
Output Shaft Thrust Rating 2574
Output Shaft Type Left Handed Shaft
Output Speed 70 RPM
Output Style L
Output Torque 2527 lbs.-in.
Output Type Solid Shaft
Overhung Load 2170 lbs.
Overhung Load Rating 2170 lbs.
Paint/coating Aluminum
Product Datasheet grove-gear-el8420339-00.pdf
Product Line EL Series - Aluminum Worm Gear Reducers
Reducer Worm - Right Angle
Reducer Style Worm - Right Angle
Reducer Type Single
Reduction Single
Reduction Type Single
Rq 5 8/25"
Series EL Series
Series Style EL-BMQ-L
Service Factor 1
Shaft Seal Material Viton
Speed 70 RPM
T 1.5
Tap Depth 1"
Tap Size 1/2"-13
Torque (lb-in)@1750rpm 2527

Shipping Info:

Ship weight (kg) 20.25
Ship height (cm)38.1
Ship length (cm)49.23
Ship width (cm)38.43

Documentation:

Datasheet

Product Variants

ProductModelOutput HpOutput SpeedOutput TorqueMax. Input HpOutput Dia.Input Dia.Paint/coatingInput SpeedPrice
GROVE GEAR EL8300004.00 Worm Reducer, 15:1 Ratio, 0.875 Inch I.D, 1.5 Inch O.D, Aluminum | AX3ZXR EL8300004.004.311 hp116 RPM2329 lbs.-in.4.843 hp1 1/2"7/8"Aluminum1750 RPM€2,595.38
GROVE GEAR EL8300239.00 Worm Reducer, 80:1 Ratio, 0.875 Inch I.D, 1.5 Inch O.D, Aluminum | AX4NPB EL8300239.000.585 hp21 RPM1684 lbs.-in.0.895 hp1 1/2"7/8"Aluminum1750 RPM€2,823.64
GROVE GEAR EL8305096.00 Reducer, 3-Piece Coupled Input Output Shaft Left Worm Gear | AX6HGL EL8305096.00------Aluminum-€1,618.82
GROVE GEAR EL8300193.00 Worm Reducer, 5:1 Ratio, 0.625 Inch I.D, 1.5 Inch O.D, Aluminum | AX6WCZ EL8300193.008.573 hp350 RPM1544 lbs.-in.9.093 hp1 1/2"5/8"Aluminum1750 RPM€2,823.64
GROVE GEAR EL8300545.28 Worm Reducer, 50:1 Ratio, 1.125 Inch I.D, 1.75 Inch O.D, Aluminum | AX7WZF EL8300545.281.383 hp35 RPM2490 lbs.-in.1.915 hp1 3/4"1 1/8"Aluminum1750 RPM€3,476.15
GROVE GEAR EL8300544.24 Worm Reducer, 40:1 Ratio, 1.125 Inch I.D, 1.5 Inch O.D, Aluminum | AX7YWZ EL8300544.241 18/25 hp43 RPM2477 lbs.-in.2.251 hp1 1/2"1 1/8"Aluminum1750 RPM€3,476.15
GROVE GEAR EL8300581.35 Output Worm Gear Reducer | AX8DQB EL8300581.35------Aluminum-€1,471.83
