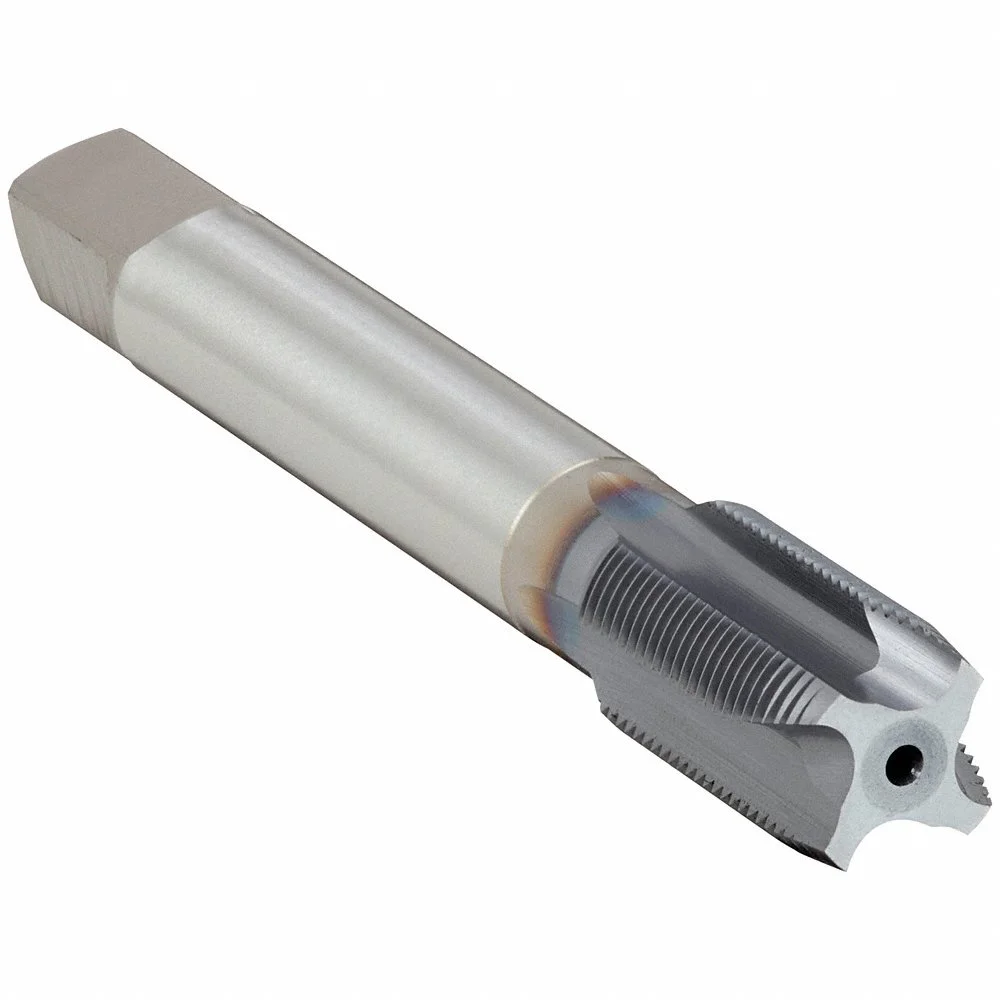

OSG 1651007108 Spiral Point Tap, M24X2 Thread Size, 36 mm Thread Length, 140 mm Length, Right Hand
Item: CT6PPTModel: 1651007108Cross Ref: 54ML01
7 In Stock
0.874"
1.41"
Ships within 2 days via
10.00% off
€473.92 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Point Tap |
| 55% Thread Drill Size | 22.5 mm |
| 65% Thread Drill Size | 7/8" |
| 75% Thread Drill Size | 0.875" |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 21.92 mm, 22.05 mm, 22.18 mm, 22.31 mm, 22.44 mm |
| Extended Neck | Yes |
| Finish | Titanium Carbonitride Coated |
| Fits Class | Class JIS 2 |
| Number Of Flutes | 4 |
| Overall Length | 140 mm |
| Primary Material Application | Hardened Steel, Stainless Steel, Steel |
| Primary Material Application Iso Code | H, M, P |
| Secondary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Steel |
| Secondary Material Application Iso Code | K, N, P |
| Shank Dia. | 19.3 mm |
| Shank Length | 89 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 14.48 mm |
| System Of Measurement | Metric |
| Tap Chamfer | Modified Bottoming, Semi Bottoming |
| Tap Finish | TiCN |
| Tap Length Standard | DIN |
| Tap Material | High Strength Steel |
| Tap Thread Size | M24 x 2 |
| Thread Direction | Right Hand |
| Thread Length | 36 mm |
| Thread Limit | D7 |
| Thread Limit / Class Of Fit | D7, JIS 2 |
| Thread Pitch | 2 mm |
| Thread Size | M24 x 2 |
| Thread Standard | Metric Fine |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Thread Size | Thread Direction | Number Of Flutes | Thread Length | Overall Length | Tap Finish | Thread Limit | 75% Thread Drill Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2805608 | #2-56 | Right Hand | 2 | 3/8" | 1 3/4" | TiCN | H2 | 1.73 mm | €59.92 | |
|
2811408 | #4-40 | Right Hand | 2 | 1/4" | 1 27/32" | TiCN | H3 | 2.2 mm | €40.60 | |
|
2835408 | 1/4"-28 | Right Hand | 3 | 9/16" | 2 1/2" | TiCN | H4 | 5.45 mm | €42.08 | |
|
2844008 | 7/8"-9 | Right Hand | 3 | 1 5/16" | 4 21/32" | TiCN | H5 | 19.5 mm | €289.14 | |
|
2852001 | 1 1/2"-8 | Right Hand | 4 | 2" | 6 11/32" | Black Oxide | H6 | 1.3782" | €1,096.75 | |
 |
2891101 | M7 x 1 | Right Hand | 3 | 12 mm | 69 mm | Black Oxide | D5 | 6 mm | €53.12 | |
 |
2888205 | M5 X 0.8 | Right Hand | 2 | 13 mm | 60 mm | Tin | 6H | 4.2 mm | €32.68 |
