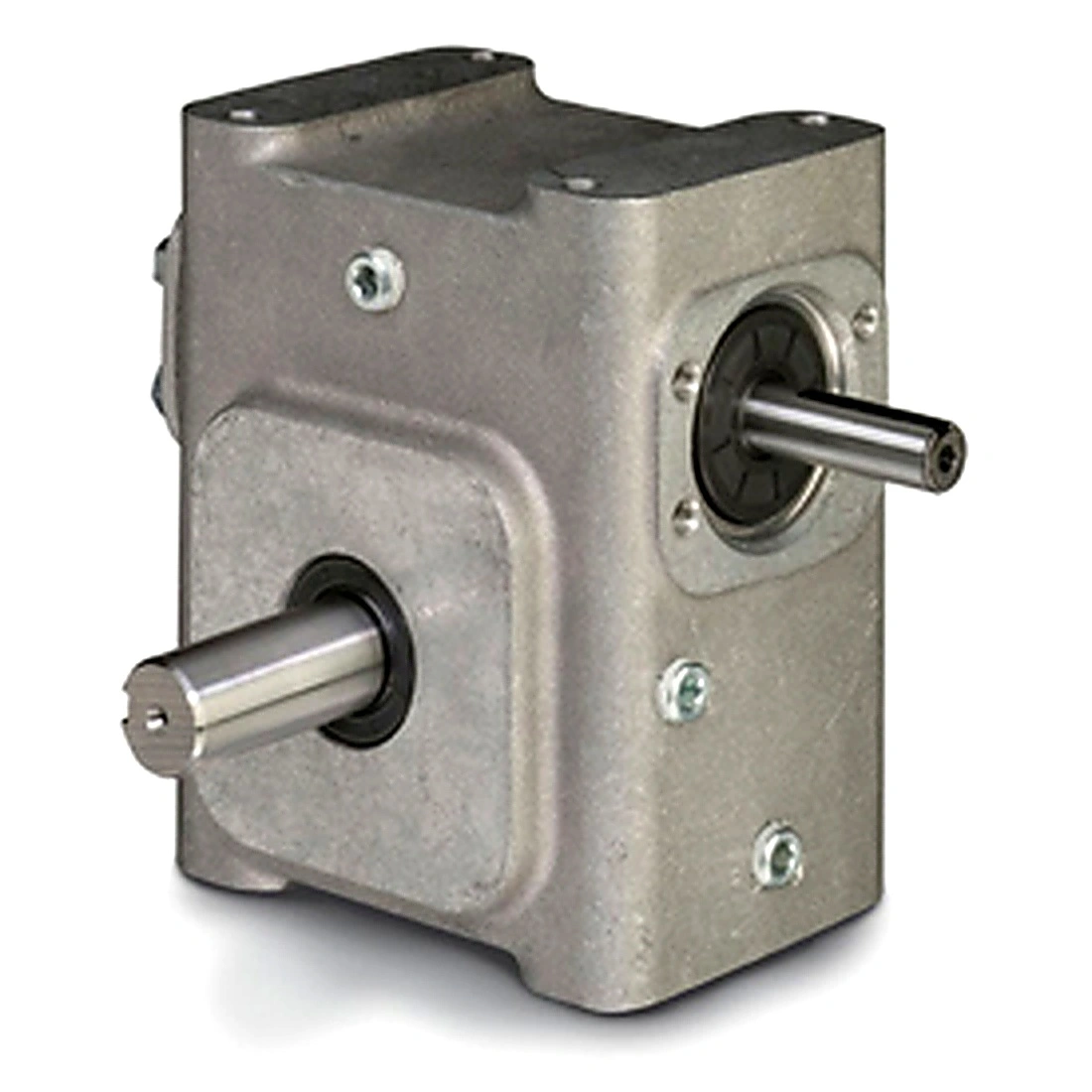

GROVE GEAR EL8300004.00 EL-B830-15-L Right Angle Gear Reducer, 15 to 1 Reduction Ratio, 116 RPM Output, 2329 lb-in Torque, Aluminum
Get it by Wednesday, Jul 15
€2,595.38 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Application | Aluminum |
| Assembly | B-L |
| Center Distance | 3" |
| Family Name | Aluminum Housing Material Worm Gear Reducers |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Housing Material | Aluminum |
| Input Bore Size | 7/8" |
| Input Dia. | 7/8" |
| Input Hp | 4.843 hp |
| Input Hp @ 1750 Rpm | 4.843 hp |
| Input Keyway Size | 3/16" x 1.63" |
| Input Speed | 1750 RPM |
| Input Style | Solid Shaft |
| Input Type | Solid Shaft |
| Material | Aluminum |
| Max. Input Hp | 4 843/1000 hp , 4.843 hp |
| Max. Ohl (output Shaft) | 2170 |
| Max. Thrust Load (output Shaft) | 2549 |
| Mount Style | B |
| Mounting Type | Base |
| Nema Input Mounting | Solid Shaft |
| No. Of Gear Reductions | 1 |
| Output | Left |
| Output Dia. | 1 1/2" |
| Output Hp | 4.311 hp |
| Output Key Size | 3/8" x 2 1/4" |
| Output Shaft | Solid Shaft |
| Output Shaft Assembly Code | L |
| Output Shaft Dia | 1.5 |
| Output Shaft Dia. | 1 1/2" |
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Shaft Thrust Rating | 2549 |
| Output Shaft Type | Left Handed Shaft |
| Output Speed | 116 RPM |
| Output Style | L |
| Output Torque | 2329 lbs.-in. |
| Output Type | Solid Shaft |
| Overhung Load | 2170 lbs. |
| Paint/coating | Aluminum |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Reduction Type | Single |
| Series | EL Series |
| Series Style | EL-B-L |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Speed | 116 RPM |
| Tap Depth | 1" |
| Tap Size | 1/2"-13 |
| Torque (lb-in)@1750rpm | 2329 |
Shipping Info:
| Ship weight (kg) | 18.9 |
| Ship height (cm) | 38.1 |
| Ship length (cm) | 49.23 |
| Ship width (cm) | 38.43 |
Product Variants
| Product | Model | output torque | max. input hp | gear type | mounting type | gear ratio | output shaft assembly code | output shaft | output style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
EL8300239.00 | 1684 lbs.-in. | 0.895 hp | Worm | Base | - | R | Solid Shaft | R | €2,823.64 | |
|
EL8305096.00 | - | - | - | - | - | - | - | - | €1,618.82 | |
 |
EL8300193.00 | 1544 lbs.-in. | 9.093 hp | Worm | Base | - | R | Solid Shaft | R | €2,823.64 | |
 |
EL8300545.28 | 2490 lbs.-in. | 1.915 hp | Worm | Shaft Mount | - | H1 | Hollow Bore | H1 | €3,476.15 | |
|
EL8300544.24 | 2477 lbs.-in. | 2.251 hp | Worm | Shaft Mount | - | H1 | Hollow Bore | H1 | €3,476.15 | |
|
EL8300581.35 | - | - | - | - | - | - | - | - | €1,471.83 | RFQ
|
|
EL8300546.24 | 2413 lbs.-in. | 1.637 hp | Worm | Shaft Mount | - | H1 | Hollow Bore | H1 | €3,476.15 |
