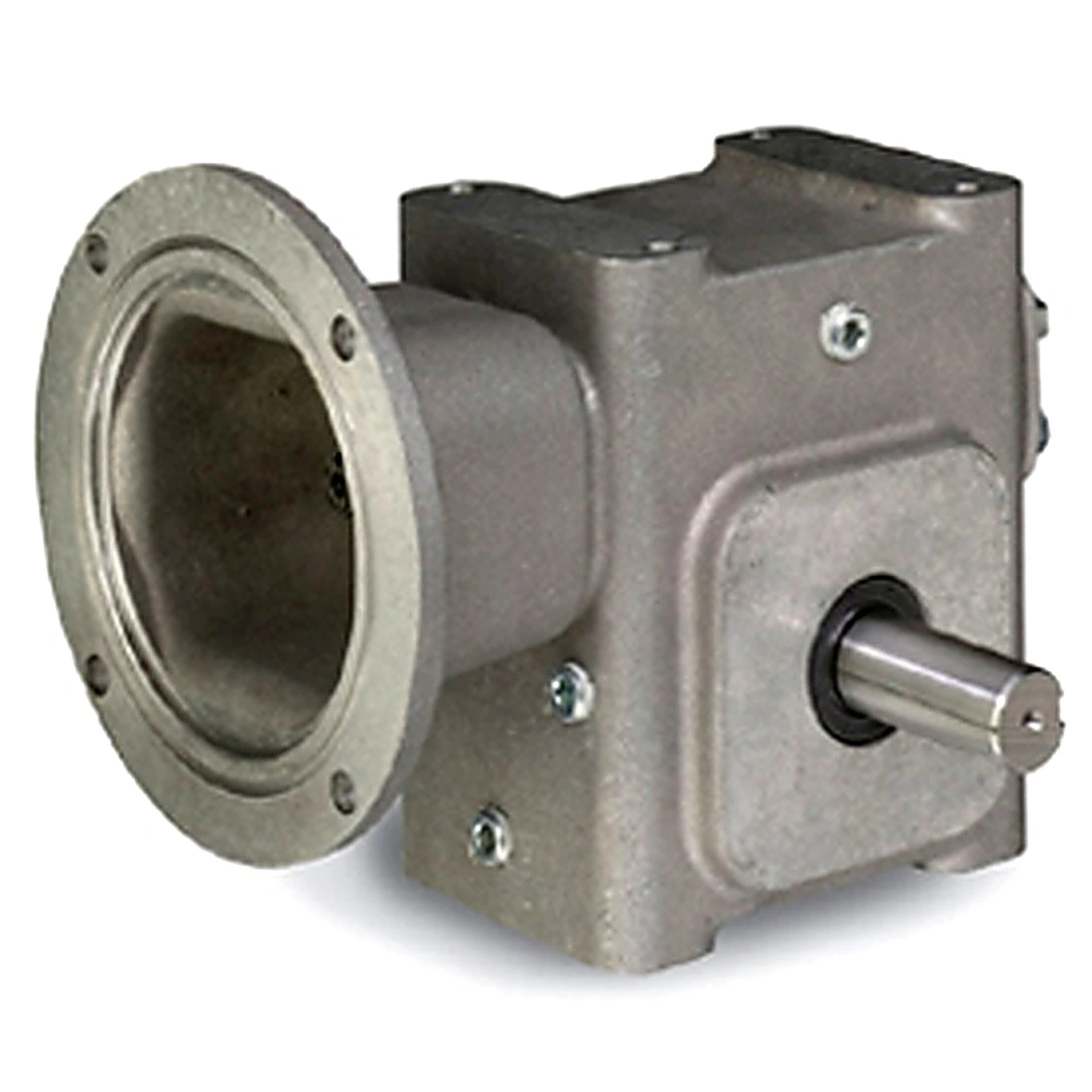

GROVE GEAR EL8300157.00 EL-BM830-5-R-210 Right Angle Gear Reducer, 5 to 1 Reduction Ratio, 350 RPM Output, 1544 lb-in Torque, Aluminum
Get it by Tuesday, Aug 18
€2,823.64 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| A | 5.25 |
| Aj | 7.25 |
| Ak | 8.5 |
| Application | Aluminum |
| Assembly | BM-R |
| B | 8.11 |
| Be1 | 1/2" |
| Bf | 0.53 |
| C | 8.94" |
| Center Distance | 3" |
| F | 4.13 |
| G | 2.06 |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Housing Material | Aluminum |
| I | 4.81" |
| Input Bore (c Face) | 1 3/8" |
| Input Bore Size | 1 3/8" |
| Input Dia. | 7/8" |
| Input Hp | 9.093 hp |
| Input Hp @ 1750 Rpm | 9.093 hp |
| Input Keyway Size | 3/16" x 1/2" |
| Input Keyway Size (c Face) | 5/16" x 5/32" |
| Input Speed | 1750 RPM |
| Input Style | Flexible Coupling Input |
| Input Type | C-Face Coupled |
| J | 5 3/4" |
| K | 2 22/25" |
| L1 | 5.38" |
| Lm1 | 8.31 |
| Material | Aluminum |
| Max. Input Hp | 9 93/1000 hp , 9.093 hp |
| Max. Ohl (output Shaft) | 2170 |
| Max. Thrust Load (output Shaft) | 1729 |
| Mounting Type | Base |
| N | 6.62 |
| No. Of Gear Reductions | 1 |
| O | 3 3/5" |
| Output | Right |
| Output Dia. | 1 1/2" |
| Output Hp | 8.573 hp |
| Output Key Size | 3/8" x 2 1/4" |
| Output Shaft | Solid Shaft |
| Output Shaft Assembly Code | R |
| Output Shaft Dia | 1.5 |
| Output Shaft Dia. | 1 1/2" |
| Output Shaft Direction | Right |
| Output Shaft Orientation | R |
| Output Shaft Thrust Rating | 1729 |
| Output Shaft Type | Right Handed Shaft |
| Output Speed | 350 RPM |
| Output Style | R |
| Output Torque | 1544 lbs.-in. |
| Output Type | Solid Shaft |
| Overhung Load | 2170 lbs. |
| Overhung Load Rating | 2170 lbs. |
| Paint/coating | Aluminum |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Reduction | Single |
| Reduction Type | Single |
| Series | EL Series |
| Series Style | EL-BM-R |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Speed | 350 RPM |
| T | 1.5 |
| Tap Depth | 1" |
| Tap Size | 1/2"-13 |
| Torque (lb-in)@1750rpm | 1544 |
| U | 7/8" |
Shipping Info:
| Ship weight (kg) | 20.7 |
| Ship height (cm) | 38.1 |
| Ship length (cm) | 49.23 |
| Ship width (cm) | 38.43 |
Product Variants
| Product | Model | Output Hp | Output Speed | Output Torque | Max. Input Hp | Output Dia. | Input Dia. | Paint/coating | Input Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EL8300004.00 | 4.311 hp | 116 RPM | 2329 lbs.-in. | 4.843 hp | 1 1/2" | 7/8" | Aluminum | 1750 RPM | €2,595.38 | |
|
EL8300239.00 | 0.585 hp | 21 RPM | 1684 lbs.-in. | 0.895 hp | 1 1/2" | 7/8" | Aluminum | 1750 RPM | €2,823.64 | |
|
EL8305096.00 | - | - | - | - | - | - | Aluminum | - | €1,618.82 | |
 |
EL8300193.00 | 8.573 hp | 350 RPM | 1544 lbs.-in. | 9.093 hp | 1 1/2" | 5/8" | Aluminum | 1750 RPM | €2,823.64 | |
 |
EL8300545.28 | 1.383 hp | 35 RPM | 2490 lbs.-in. | 1.915 hp | 1 3/4" | 1 1/8" | Aluminum | 1750 RPM | €3,476.15 | |
|
EL8300544.24 | 1 18/25 hp | 43 RPM | 2477 lbs.-in. | 2.251 hp | 1 1/2" | 1 1/8" | Aluminum | 1750 RPM | €3,476.15 | |
|
EL8300581.35 | - | - | - | - | - | - | Aluminum | - | €1,471.83 | RFQ
|
